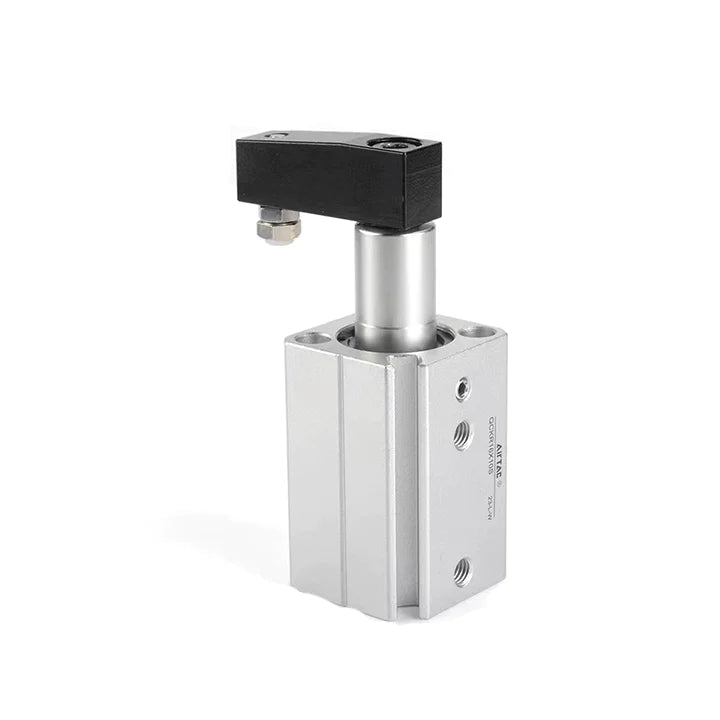

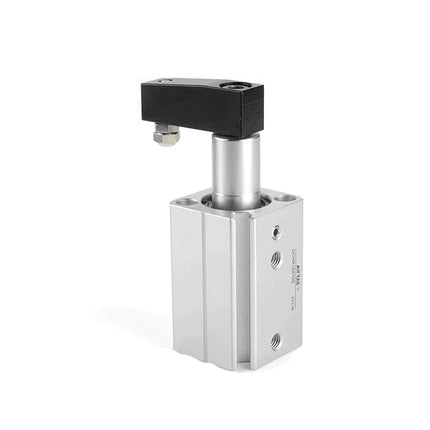

Airtac QCK series: rotary clamping cylinder - QCKL16X30SMFB

Description

Specifications: rotary clamping cylinder Steering: Left Cylinder diameter: 16mm Clamping stroke: 30mm Magnet: with magnet Type of piston rod end: flat type (without swing arm) Fixed form: rear cover flange connecting plate Tooth type: M5X0.8

Click to download Airtac product catalog

Product Features

1. Can be installed on the welding tooling, QPQ surface treatment can prevent the piston rod caused by welding slag damage, better than chrome plated piston rod.

2. The front cover with stainless steel dust ring, effectively blocking dust. The welding slag enters to protect the internal parts of the cylinder.

3. The installation size of the cylinder is the same as that of the ACQ series, and the accessories of the ACQ series can be used.

Product form

Specifications: rotary clamping cylinder Steering: Left Cylinder diameter: 16mm Clamping stroke: 30mm Magnet: with magnet Type of piston rod end:... Read more

SKU: QCKL16X30SMFB

$72.22

    • Guaranteed secure & safe checkout.

      paypal
    • Image may not be representative of actual product.
    • Shipped today? Order within: Jun 19, 2026 17:00:00 -0700

    Description

    Specifications: rotary clamping cylinder Steering: Left Cylinder diameter: 16mm Clamping stroke: 30mm Magnet: with magnet Type of piston rod end: flat type (without swing arm) Fixed form: rear cover flange connecting plate Tooth type: M5X0.8

    Click to download Airtac product catalog

    Product Features

    1. Can be installed on the welding tooling, QPQ surface treatment can prevent the piston rod caused by welding slag damage, better than chrome plated piston rod.

    2. The front cover with stainless steel dust ring, effectively blocking dust. The welding slag enters to protect the internal parts of the cylinder.

    3. The installation size of the cylinder is the same as that of the ACQ series, and the accessories of the ACQ series can be used.
