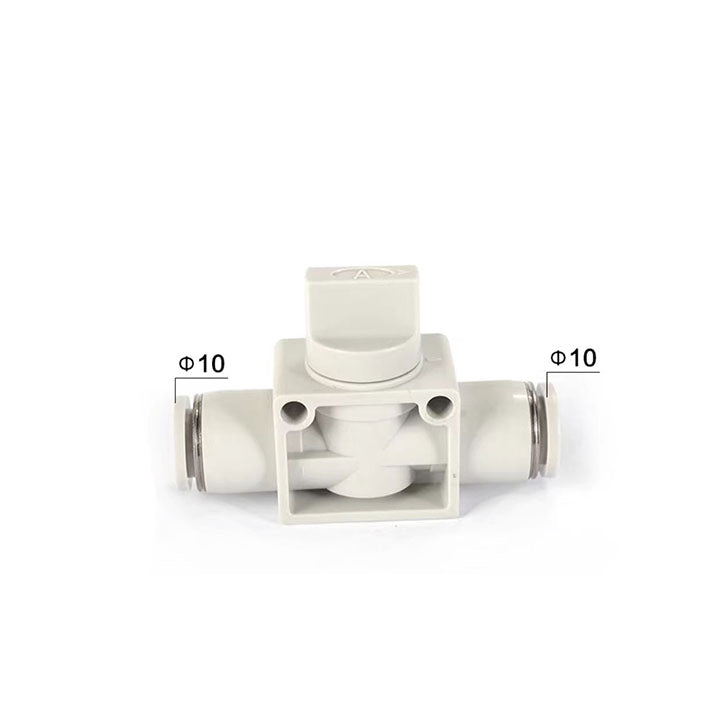

Airtac PHV series: manual shut-off valve - PHV10A

Photos are for reference only. Not all models have pictures.

Description

Specifications: PHV10A is an Airtac three-way finger valve. Finger valve; Tube outside diameter: 10 mm; Three-way; knob marked A; Gray release button and body.

Product Catalog

Download Airtac Product Catalog (PDF)

For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

Model Code Explained

Code Meaning
PHV Finger valve
10 Tube outside diameter: 10 mm
A Three-way; knob marked A
(blank color code) Gray release button and body

Technical Specifications

Parameter Details
Operating pressure 0–1.0 MPa
Negative pressure −750 mmHg (10 Torr), as printed
Proof pressure 1.5 MPa
Ambient and fluid temperature −20 to 70 °C
Applicable tubing Soft nylon or polyurethane; use the exact tube outside diameter specified for this model.
Tube connections Two tube connections, each for 10 mm outside diameter
Valve type Three-way with exhaust function
Application Matching pneumatic tubing; the source specifies tubing sizes rather than a named valve family.

Features and Operation

  • The PHV catalog states that this series contains no brass. It describes good flow characteristics and sensitive directional operation.
  • The knob and body arrows aligned in the same direction indicate the open state. A 90-degree angle between the knob arrow and body arrow indicates the closed state.
  • When this three-way version closes, the downstream outlet pressure is released through the exhaust path, helping commissioning and maintenance.

External and Mounting Dimensions

Dimensions retain the letter labels and separate views in the source drawing. Linear dimensions are in millimeters; pipe threads retain their stated standard and nominal size. Do not combine unrelated callouts into an overall size.

Parameter Details
ØD 10 mm
A 66 mm
B 21 mm
C 42 mm
ØP 18 mm
K 21 mm
E 11 mm
ØJ 4.3 mm
JB 11 mm
JC 24 mm

Source: Linked PHV PDF page 1, printed page 310; A/B versions share dimensions.

For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

Catalog reference weight: 25.1 g. This is a published reference, not a measured shipping weight; actual product weight governs.

Internal Components

Part numbers refer to the current source edition and its applicable internal-structure drawing.

Part / name Material
1 — Knob POM
2 — Fixing ring Aluminum alloy
3 — Spool Aluminum alloy
4 — Cam groove block POM
5 — Pin Stainless steel
6 — Plastic body PBT
7 — Locating block Aluminum alloy
8 — Spacer POM
9 — Special-shape O-ring NBR
10 — Spacer ring Aluminum alloy
11 — Special-shape O-ring NBR
12 — Locating seat POM
13 — Spring gasket Stainless steel
14 — Locating ring Aluminum alloy
15 — Plastic interface POM

Series Ordering Options

  • Tube OD 6, 8, 10 or 12 mm; A three-way or B two-way; gray or black. A and B share the catalogued dimensions.

Optional Matching PU Tubing

T = the two push-in sockets for 10 mm OD tube, one at the inlet and one at the outlet. T groups equal tube sizes; it does not make the inlet and outlet interchangeable. Follow the actual valve-body direction marking (inlet left and outlet right in the catalogue view). The listed tube codes are alternative complete coils, not a quantity requirement. Model code A identifies the three-way exhaust function; its internal exhaust is not a third tubing connection. Tube dimensions below are OD × ID in mm. These tubing options are optional and ordered separately.

Code-prefix uses (match the longest listed family prefix): UE polyurethane tube; US polyurethane tube.

Use Size / complete codes
T 10 × 6.5: UE95A100065100MBU,US98A100065100MBU

The listed PU tubes are optional, separately ordered choices for the two same-size receiving sockets. Match the exact metric outside diameter at each socket; inch sizes are not substitutes. Keep the inlet and outlet functions separate and follow the actual valve-body arrow. T groups tube sizes only; it neither permits reversing the valve nor specifies how many coils are required. These tube choices do not add a threaded connection, mounting accessory or external exhaust connection.

For the three-way A version, the built-in exhaust releases downstream outlet pressure when the valve closes. Keep that exhaust path unobstructed. The catalogue does not give an external connection size for it, so the listed tubes are assigned only to the inlet and outlet sockets; do not attach a third tube, silencer or plug to the exhaust on this basis. Isolate the supply and verify that all affected sections are depressurized before tube removal; the selected valve function is not a substitute for checking the actual circuit.

These selections cover positive-pressure compressed-air service only. PHV has a 0–1.0 MPa working-pressure range; its 1.5 MPa proof pressure is not a working rating. The separately printed −750 mmHg (10 Torr) valve value does not establish vacuum or collapse resistance for these exact PU tubes or the complete assembled path. Dimensional fit alone does not establish liquid service, system flow capacity or leak performance.

US98A and UE95A tubing are rated 1.0 MPa at 23°C. Apply the tubing catalogue temperature-derating curve and every stricter valve, tube and system limit; do not assume 1.0 MPa is available throughout the temperature range. US98A has a −20–70°C component range and UE95A −40–70°C. With PHV’s −20–70°C range, the assembled path must stay within −20–70°C or a narrower applicable range. UE95A’s lower component limit does not extend the valve below −20°C. Tube burst pressure and valve proof pressure are not allowable continuous working pressures.

US98A is polyester-based PU, Shore A98±2; UE95A is ether-based PU, Shore A95±2. Each listed complete code specifies its own OD and ID, a 100 m coil (100M) and blue colour (BU). Tube ID affects flow but does not replace OD as the push-in socket selection criterion. These verified standard-pressure examples do not represent every available length, colour or tube construction. The valve’s grey/black body and release-button colour is separate from tube colour.

For T, 10 mm OD × 6.5 mm ID, the minimum bend radii are US98A 25 mm and UE95A 20 mm. Keep bends clear of both sockets and support the tube so that it is not kinked, flattened or pulled against the valve. Confirm insertion depth, retention and sealing on the actual socket. Keep the knob and release buttons accessible. Preserve clearance for the built-in exhaust.

Confirm compatibility of the actual air contaminants, lubricant or additives with the valve seals, tube and connected equipment. Follow the PU tubing restrictions on acids, alkalis, organic solvents, seawater, corrosive gases, prolonged sunlight and excessive heat. PHV’s catalogue statement that the valve contains no brass does not certify all other components of an assembled installation or establish unrestricted chemical compatibility.

Confirm the exact complete tube code and current availability before ordering; catalogue inclusion is not a current-production, stock or delivery promise. No additional component or coil quantity is included merely because two sockets or internal components appear in the valve drawing.

Product form

Specifications: PHV10A is an Airtac three-way finger valve. Finger valve; Tube outside diameter: 10 mm; Three-way; knob marked A; Gray... Read more

SKU: PHV10A

$11.10 Incl. VAT

    Guaranteed secure & safe checkout.

    Ach Direct DebitAmazon American Express Apple Pay BizumDiners ClubDiscoverGoogle Pay Mastercard MB WAY PayPalSatispayShop Pay USDC Visa

    Bank transfer also available. Payment options may vary by location and device.

    Shipping, returns & order help

    Free shipping on orders US$30+ under 2 kg

    Import duties & taxes included on all orders

    Download: 3D model selection.
    Shipping & delivery times

    In-stock items: processed and shipped within 1–3 business days. Custom-made items: G/NPT threads and non-standard specifications require 7–15 business days of factory production before shipping.

    Standard international delivery typically takes 7–13 business days after dispatch, depending on customs clearance and the local delivery network. Processing or production time is additional. Next-day and overnight delivery are not available.

    Most products ship from our manufacturing centers in Asia, then transfer to a local carrier after customs clearance.

    Read our shipping policy
    Shipping costs & import taxes

    Free shipping: orders of US$30 or more weighing under 2 kg. Import duties and taxes are included on all orders.

    If an overweight shipping surcharge applies after packing, we pause shipment and email you the amount for approval before dispatch. This is a transport charge, not an import tax. If you do not reply within 7 days, the order is canceled and fully refunded.

    Shipping charges and tax details
    Model selection & custom orders

    Please check the full model number, dimensions, thread type, stroke and voltage where applicable before ordering. If you are unsure, email airtacs@airtacs.com with the model number and required specifications.

    Custom-made products, including G/NPT thread specifications and custom-built parts, are non-returnable and non-refundable under our refund policy.

    Read the refund policy before ordering
    Tracking & delivery support

    Use the tracking link in your shipping confirmation email. For YunExpress shipments, enter your YT tracking number at Yuntrack to view the journey and local delivery details.

    Provide a complete physical delivery address and reachable contact details. P.O. boxes and virtual mail-forwarding addresses are not accepted.

    If delivery fails, contact the local carrier and email airtacs@airtacs.com with your order and tracking numbers. For failures caused by an incorrect/incomplete address or an unreachable recipient, return to the local warehouse typically takes 7–30 business days. Redelivery requires an additional shipping fee; cancellation after failed delivery is subject to deductions for original shipping and carrier return fees.

    Delivery issue policy
    Returns & product issues

    Eligible returns are accepted within 7 days of delivery. Items must be unused, uninstalled and in their original factory packaging. Contact airtacs@airtacs.com for a Return Authorization (RA) number before returning anything.

    Ordered the wrong model or changed your mind? You pay return shipping, original shipping is non-refundable, and a 50% restocking fee is deducted from the actual price paid for the returned product.

    Defective, damaged or incorrect item? We provide a replacement and cover return shipping; no restocking fee applies. Custom-made items are excluded from standard returns. These terms are subject to applicable law and do not limit your statutory rights.

    Read the full refund policy
    Bank transfers & invoices

    Bank transfer: Select bank transfer at checkout and submit your order. The bank account details and payment instructions will then be displayed.

    Invoices: Invoices are available only after an order is placed. We are a US-based company and provide a standard commercial invoice, not an EU VAT tax invoice. If your company requires an EU VAT invoice, please confirm your requirements with us before ordering.

    For payment or invoice questions, email airtacs@airtacs.com with your order number.

    Description

    Specifications: PHV10A is an Airtac three-way finger valve. Finger valve; Tube outside diameter: 10 mm; Three-way; knob marked A; Gray release button and body.

    Product Catalog

    Download Airtac Product Catalog (PDF)

    For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

    Model Code Explained

    Code Meaning
    PHV Finger valve
    10 Tube outside diameter: 10 mm
    A Three-way; knob marked A
    (blank color code) Gray release button and body

    Technical Specifications

    Parameter Details
    Operating pressure 0–1.0 MPa
    Negative pressure −750 mmHg (10 Torr), as printed
    Proof pressure 1.5 MPa
    Ambient and fluid temperature −20 to 70 °C
    Applicable tubing Soft nylon or polyurethane; use the exact tube outside diameter specified for this model.
    Tube connections Two tube connections, each for 10 mm outside diameter
    Valve type Three-way with exhaust function
    Application Matching pneumatic tubing; the source specifies tubing sizes rather than a named valve family.

    Features and Operation

    • The PHV catalog states that this series contains no brass. It describes good flow characteristics and sensitive directional operation.
    • The knob and body arrows aligned in the same direction indicate the open state. A 90-degree angle between the knob arrow and body arrow indicates the closed state.
    • When this three-way version closes, the downstream outlet pressure is released through the exhaust path, helping commissioning and maintenance.

    External and Mounting Dimensions

    Dimensions retain the letter labels and separate views in the source drawing. Linear dimensions are in millimeters; pipe threads retain their stated standard and nominal size. Do not combine unrelated callouts into an overall size.

    Parameter Details
    ØD 10 mm
    A 66 mm
    B 21 mm
    C 42 mm
    ØP 18 mm
    K 21 mm
    E 11 mm
    ØJ 4.3 mm
    JB 11 mm
    JC 24 mm

    Source: Linked PHV PDF page 1, printed page 310; A/B versions share dimensions.

    For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

    Catalog reference weight: 25.1 g. This is a published reference, not a measured shipping weight; actual product weight governs.

    Internal Components

    Part numbers refer to the current source edition and its applicable internal-structure drawing.

    Part / name Material
    1 — Knob POM
    2 — Fixing ring Aluminum alloy
    3 — Spool Aluminum alloy
    4 — Cam groove block POM
    5 — Pin Stainless steel
    6 — Plastic body PBT
    7 — Locating block Aluminum alloy
    8 — Spacer POM
    9 — Special-shape O-ring NBR
    10 — Spacer ring Aluminum alloy
    11 — Special-shape O-ring NBR
    12 — Locating seat POM
    13 — Spring gasket Stainless steel
    14 — Locating ring Aluminum alloy
    15 — Plastic interface POM

    Series Ordering Options

    • Tube OD 6, 8, 10 or 12 mm; A three-way or B two-way; gray or black. A and B share the catalogued dimensions.

    Optional Matching PU Tubing

    T = the two push-in sockets for 10 mm OD tube, one at the inlet and one at the outlet. T groups equal tube sizes; it does not make the inlet and outlet interchangeable. Follow the actual valve-body direction marking (inlet left and outlet right in the catalogue view). The listed tube codes are alternative complete coils, not a quantity requirement. Model code A identifies the three-way exhaust function; its internal exhaust is not a third tubing connection. Tube dimensions below are OD × ID in mm. These tubing options are optional and ordered separately.

    Code-prefix uses (match the longest listed family prefix): UE polyurethane tube; US polyurethane tube.

    Use Size / complete codes
    T 10 × 6.5: UE95A100065100MBU,US98A100065100MBU

    The listed PU tubes are optional, separately ordered choices for the two same-size receiving sockets. Match the exact metric outside diameter at each socket; inch sizes are not substitutes. Keep the inlet and outlet functions separate and follow the actual valve-body arrow. T groups tube sizes only; it neither permits reversing the valve nor specifies how many coils are required. These tube choices do not add a threaded connection, mounting accessory or external exhaust connection.

    For the three-way A version, the built-in exhaust releases downstream outlet pressure when the valve closes. Keep that exhaust path unobstructed. The catalogue does not give an external connection size for it, so the listed tubes are assigned only to the inlet and outlet sockets; do not attach a third tube, silencer or plug to the exhaust on this basis. Isolate the supply and verify that all affected sections are depressurized before tube removal; the selected valve function is not a substitute for checking the actual circuit.

    These selections cover positive-pressure compressed-air service only. PHV has a 0–1.0 MPa working-pressure range; its 1.5 MPa proof pressure is not a working rating. The separately printed −750 mmHg (10 Torr) valve value does not establish vacuum or collapse resistance for these exact PU tubes or the complete assembled path. Dimensional fit alone does not establish liquid service, system flow capacity or leak performance.

    US98A and UE95A tubing are rated 1.0 MPa at 23°C. Apply the tubing catalogue temperature-derating curve and every stricter valve, tube and system limit; do not assume 1.0 MPa is available throughout the temperature range. US98A has a −20–70°C component range and UE95A −40–70°C. With PHV’s −20–70°C range, the assembled path must stay within −20–70°C or a narrower applicable range. UE95A’s lower component limit does not extend the valve below −20°C. Tube burst pressure and valve proof pressure are not allowable continuous working pressures.

    US98A is polyester-based PU, Shore A98±2; UE95A is ether-based PU, Shore A95±2. Each listed complete code specifies its own OD and ID, a 100 m coil (100M) and blue colour (BU). Tube ID affects flow but does not replace OD as the push-in socket selection criterion. These verified standard-pressure examples do not represent every available length, colour or tube construction. The valve’s grey/black body and release-button colour is separate from tube colour.

    For T, 10 mm OD × 6.5 mm ID, the minimum bend radii are US98A 25 mm and UE95A 20 mm. Keep bends clear of both sockets and support the tube so that it is not kinked, flattened or pulled against the valve. Confirm insertion depth, retention and sealing on the actual socket. Keep the knob and release buttons accessible. Preserve clearance for the built-in exhaust.

    Confirm compatibility of the actual air contaminants, lubricant or additives with the valve seals, tube and connected equipment. Follow the PU tubing restrictions on acids, alkalis, organic solvents, seawater, corrosive gases, prolonged sunlight and excessive heat. PHV’s catalogue statement that the valve contains no brass does not certify all other components of an assembled installation or establish unrestricted chemical compatibility.

    Confirm the exact complete tube code and current availability before ordering; catalogue inclusion is not a current-production, stock or delivery promise. No additional component or coil quantity is included merely because two sockets or internal components appear in the valve drawing.
