Description

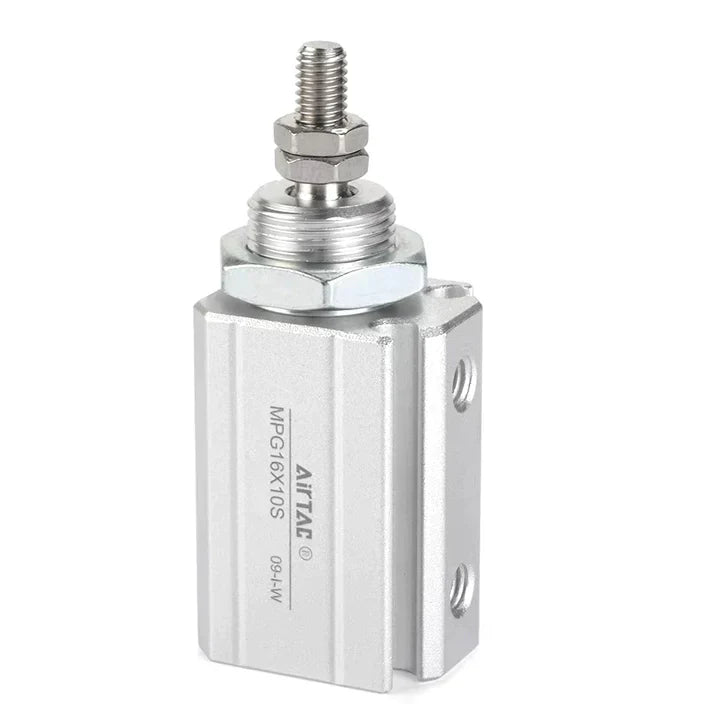

Specifications: Standard panel type cylinder (double action type) Cylinder diameter: 16mm Stroke: 20mm Magnet: no magnet Tooth type of piston rod: toothless type Fixed type: front flange connecting plate
Specifications
1. Model: MPG16X20NFA
2. Action type: double action type, working medium: air (filtered by filter screen above 40μm)
3. Use pressure range: 0.15~0.7MPa(22~100psi), Guaranteed pressure resistance: 1.2MPa(175psi), Fixed type: basic type, earring type 、FA、LB、SDB
4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel tolerance range: +0/1.0
5. Buffer type: anti-collision pad, nozzle caliber: M5X0.8, Sensor optional: DMSH,CMSH,EMSH
Internal structure and main parts material: 1. Hexagon nut: stainless steel/2. Piston rod: Stainless steel/3. Piston rod O: NBR/4. Hexagon nut: carbon steel/5. Body: aluminum alloy/6. Anti-collision gasket: TPU/7. Piston O: NBR/8. Piston: Brass (other), aluminum alloy (ø16)/9. Buckle: Spring steel/10. Back cover: aluminum alloy plastic/11. Magnet seat: ø6: stainless steel, ø8~ø12: brass, ø16: aluminum alloy/12. Magnet spacer: NBR/13. Magnet: rare earth
Installation accessories :F-MPG16LB Axial mounting F-MPG16FA Flange connecting plate ， Piston rod end joint :F-M5X080I I Connector F-M5X080Y Y connector
Click to download Airtac product catalog
Product Features
1. Compact structure. Small size. Light weight, easy installation and disassembly.
2. The piston rod guide precision is high, no need to add lubricant.
3. The back cover adopts advanced rubber covering technology.
4. Various specifications of the installation accessories optional.
5. With magnet type with position sensing function.
6. The magnetic switch slot is arranged around the cylinder body, which is convenient to install the induction switch.
7. Various specifications of the cylinder can be selected.
