Airtac F-3V2 series: mounting plate - F-3V2FA

Photos are for reference only. Not all models have pictures.

Description

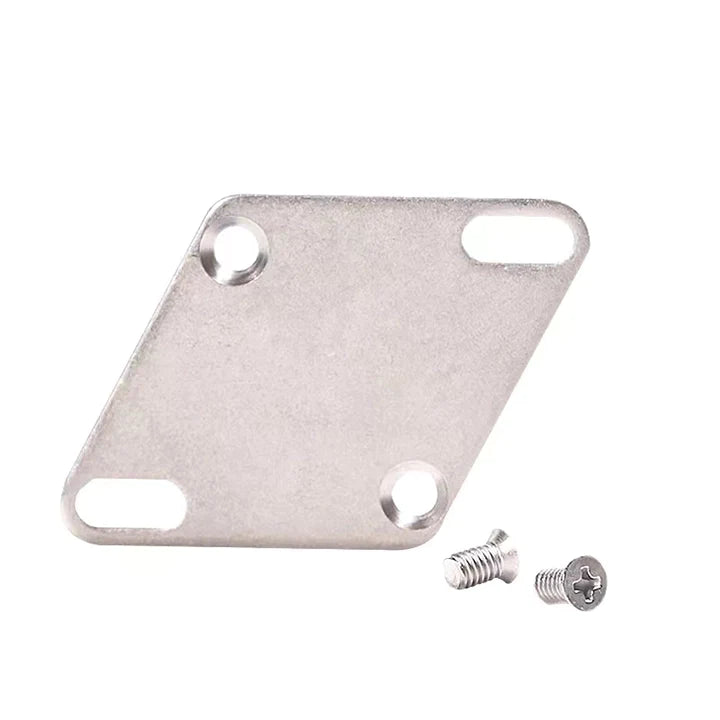

Specifications: Mounting accessory for 3V2 series three-port, two-position solenoid valves; Accessory type: FA mounting plate; Model: F-3V2FA.

Product Catalog

Download Airtac Product Catalog (PDF)

For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

Airtac 3V2 series valves are functional alternatives to SMC VT307 series valves.

Model Code Explained

This model: F-3V2FA

Model code Meaning for this accessory
F Mounting accessory
3V2 For 3V2 series three-port, two-position solenoid valves
FA FA mounting plate

Accessory Specifications

Parameter Specification
Model F-3V2FA
Product type FA mounting plate
Applicable valve series Airtac 3V2
Purpose Mounting accessory shown with the 3V2 valve installation drawings
Ordering Separate accessory code F-3V2FA; the mounting plate is optional for the valves

Features and Installation

  • Use the mounting-plate views in the catalog to check the installation layout.
  • The catalog shows the optional mounting plate with both DIN connector and flying lead valve drawings.

External and Mounting Dimensions

For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

The following values are reference callouts from the complete valve-and-mounting-plate drawings on printed page 36. The threaded-hole callouts identify the mating valve mounting arrangement; they are not a claim that the plate itself has those threads.

Drawing location Reference dimension
Mounting/bracket view: horizontal dimensions 37, 28 and 25 mm; each belongs to its own dimension line.
Mounting/bracket view: vertical dimensions 18.6, 33, 46 and 55 mm; each belongs to its own dimension line.
Threaded mounting holes shown 2 × M4 × 0.7; depth 7 mm.
Two bracket mounting openings The drawing marks 2–4.5; the opening width dimension is 4.5 mm.
Side view: mounting plate thickness 2 mm; mounting plate is shown as optional on the valve drawing.

Consult the dimension lines in the PDF to distinguish the valve, mounting plate and mating holes. These reference values do not form a standalone overall length × width × height specification for the accessory.

Accessory Ordering Code

F + 3V2 + FA = F-3V2FA. F denotes mounting accessories, 3V2 identifies the valve series, and FA selects the FA mounting plate.
