Description

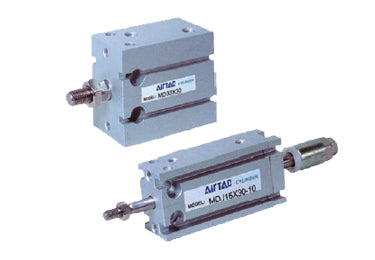

Specifications: multi-solid cylinder (double-action type) Bore: 32mm Stroke: 45mm Magnet: with magnet Tooth type: NPT tooth
Specifications
1. Model: MD32X45ST
2. Action type: double action type, working medium: air (filtered by filter screen above 40μm)
3. Use pressure range: 0.15~1.0MPa(22~145psi), Guaranteed pressure resistance: 1.5MPa(215psi)
4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel tolerance range: +0/1.0
5. Buffer type: anti-collision pad, nozzle caliber: PT1/8
6. The nozzle tooth type is optional with PT tooth, G tooth and NPT tooth, and the sensor can be selected: DMSG,CMSG,EMSG
Internal structure and main parts material: 1. Hexagon nut: mild steel or stainless steel/2. Piston rod: Stainless steel or S45C hard chrome-plated abrasive rod/3. Piston Oring: NBR/4. Body: aluminum alloy/5. Anti-collision pad (ring):TPU/6. Magnet seat: aluminum alloy/7. Magnet spacer: NBR/8. Magnet: Sintered Rubidium Iron Boron/9. Piston O: NBR/10. Wear pad (ring): wear-resistant material/11. Piston: Aluminum alloy/12.O-ring: NBR/13.C-ring: Spring steel/14. Back cover: aluminum alloy/15. Crash cushion (ring):TPU
Type of sealing ring :P-MD32-R1 NBR material P-MD32-R2 Fluorine rubber material
Click to download Airtac product catalog
Product Features
1. Adopt the Airtac brand.
2. The cylinder is fixed in various ways, easy to install and use.
3. Can be used in combination of multiple cylinders, effectively saving installation space.
4. The piston rod is guided with high precision and no additional lubrication is required.
5. Various specifications of the cylinder can be selected.
6. Using high temperature resistant sealing material to ensure the normal operation of the cylinder at a high temperature of 150 degrees Celsius (optional).
