Airtac MCK series: welding clamp cylinder - MCK80X150G

Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

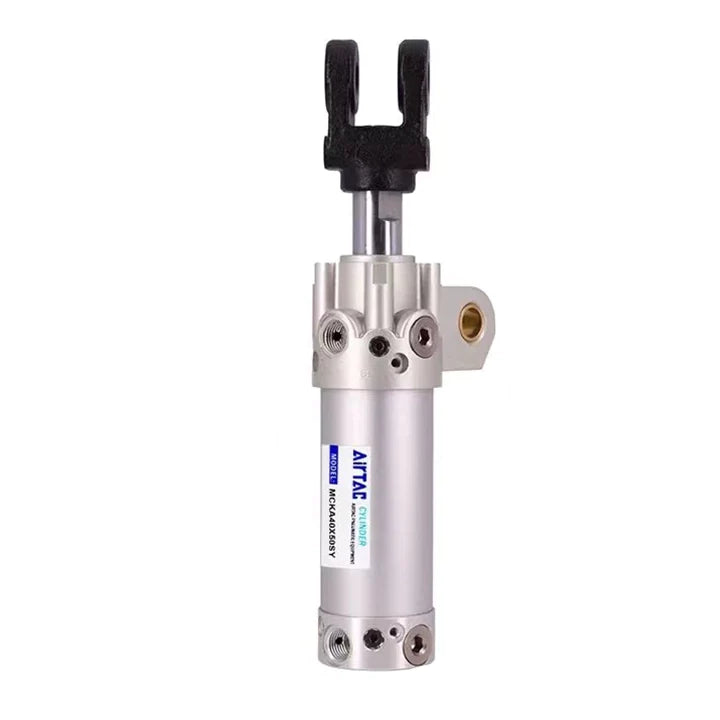

Photos are for reference only. Not all models have pictures.

Description

Specifications: MCK80X150G — MCK welding clamp cylinder, 80 mm bore × 150 mm stroke, without built-in magnet, G 3/8 ports.

Product Catalog

Download Airtac Product Catalog (PDF)

Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF)

Download 2022 cylinder installation and weight tables (PDF)

For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

Model Code Explained

Parameter	Details
MCK	Double-acting welding clamp cylinder
80	80 mm bore
X150	150 mm stroke
G	G-thread ports

Technical Specifications

Parameter	Details
Action	Double acting
Medium	Compressed air filtered through 40 µm element
Pressure	0.15–1.0 MPa
Proof pressure	1.5 MPa
Temperature	−20 to 70°C
Piston speed	50–500 mm/s
Stroke	150 mm; standard strokes 50, 75, 100, 125 and 150 mm
Maximum catalog stroke	150 mm
Cushioning	Front and rear pneumatic cushions
Speed limiting	No built-in flow limiter for 25/32; front and rear flow limiters for 40/50/63/80
Lubrication	Not required
Mounting	Double clevis
Air ports	G 3/8
Port quantity	Three selectable port holes per cover
Rod-end attachment	No Y knuckle specified

Current Model Dimensions

Parameter	Details
Overall reference length	353 mm (203 + stroke)
Tube / mounting reference lengths	234 / 274 mm
Rod-end projection / clevis reference	50 / 59 mm
Rod diameter / thread	Ø25 mm; M20 × 1.5
Cylinder body diameter	Ø93 mm
Cover diameter	Ø87 mm
Clevis opening / pin	28 / Ø18 mm
Body width / height	72 / 115.5 mm
Y knuckle order code	MCK80-Y, for MCK80
Y knuckle dimensions	72 mm width × 90 mm height; Ø18 pin; 28 mm opening
Sensor mount position	216 mm (66 + stroke) for magnetic version

Theoretical Force at 0.5 MPa

Parameter	Details
Extension	2513.3 N
Retraction	2267.8 N
Basis	Calculated from the current bore and rod diameters. Theoretical pneumatic force excludes friction and does not state fixture clamping force at a lever tip.

Sensor and Accessory Selection

This model has no S code and no built-in magnet. Magnetic position sensing requires a magnetic version; a sensor alone does not add a magnet. For the magnetic MCK version, DMSG or CMSG uses the F-MCK40G holder listed for MCK; order the sensor and holder separately.
For an AC welding magnetic field, use DS1-69AM with F-MCK40H. The anti-interference holder is different from F-MCK40G for ordinary G-profile sensors.
Use the current opening A/B and bore when selecting a replacement Y knuckle. MCK25/32 share the matching MCKA25-YW or MCKB25-YW; MCK40/50/63 share the matching MCKA50-Y or MCKB50-Y; MCK80 uses MCK80-Y.
YW identifies the knuckle without M6 holes; Y identifies the version with M6 holes. Do not promise mounting holes on a YW version.

Materials

Parameter	Details
Piston rod	S45C ground steel
Dust scraper	Stainless steel
Rod and piston seals; O-rings	NBR
Bush, covers, tube and piston	Aluminum alloy
Wear ring	Wear-resistant material
Cushion seal	TPU
Circlips	Spring steel
Pin	S45C steel
Sliding bush	Powder metallurgy
Cover plate	SPCC
Cotter pin	Mild steel
Y knuckle	Ductile iron / low-carbon steel

Features

Designed for welding fixture service; stainless-steel scraper at the front cover helps resist dust and welding spatter.
The 40/50/63/80 designs provide built-in cushion and speed adjustments according to the E or standard configuration. The small 25/32 designs use the separately listed bumper-cushioned configuration.

Installation and Selection

Size the actuator for the actual force, load, cycle time and supply pressure. The cylinder-selection guidance in the 2022 catalog, printed execution pages 10–13 and 418–431, also requires checking speed, tubing, valve flow, load direction and cushioning.
Flush the piping before connecting it. Use clean compressed air filtered through a 40 µm element; prevent condensate from freezing at low temperatures. Protect ports and exposed metal during storage.
Use suitable flow controls to set speed and verify the complete operating cycle. Do not apply unintended side load or impact to the rod, pin or clamping arm.
Dimensions and weight apply to the specified configuration. The catalog weight tables are reference values; confirm the actual supplied assembly and accessories when determining final shipping weight.

Air Circuit Sizing Reference

The general catalog selection table gives a 80 mm bore example at a theoretical 500 mm/s. This is a circuit-sizing example, not a rated clamp speed or a statement that these parts are supplied.

Parameter	Details
Required effective flow area	13.1 mm²
Example solenoid valves	5V31010 / 5V32010
Example air-pilot valves	4A31010 / 4A32010
Example flow control / silencer	PTL03 / BSL03
Example tube OD / ID	16 / 11 mm
Application check	Match valve flow, fittings, actual cylinder port thread, line length, load and the required controlled clamp speed before selecting the complete circuit.

Optional complete connection and control order codes

These separately ordered options supplement the retained air-circuit sizing reference; they are not supplied as a complete connection kit. The 500 mm/s reference is a theoretical sizing example. Verify valve flow, tubing length, pressure loss, fixture load and the required controlled clamping cycle before selection.

US98A160110100MBU: polyester polyurethane; 16 mm OD × 11 mm ID; blue, 100 m roll
Optional tube packaging example; cut to the installed length
BSL02: PT1/4 male; 0–1 MPa, −20 to +70°C
Silencer at the selected valve exhaust R/S only; never at cylinder work ports
5V31010A050, 5V31010A200, 5V32010A050, 5V32010A200: PT3/8 female P/A/B; PT1/4 female R/S; terminal cable
220 V AC 5/2 direction control for extension and retraction
5V31010B050, 5V31010B200, 5V32010B050, 5V32010B200: PT3/8 female P/A/B; PT1/4 female R/S; terminal cable
24 V DC 5/2 direction control for extension and retraction
5V31010C050, 5V31010C200, 5V32010C050, 5V32010C200: PT3/8 female P/A/B; PT1/4 female R/S; terminal cable
110 V AC 5/2 direction control for extension and retraction
5V31010E050, 5V31010E200, 5V32010E050, 5V32010E200: PT3/8 female P/A/B; PT1/4 female R/S; terminal cable
24 V AC 5/2 direction control for extension and retraction
5V31010F050, 5V31010F200, 5V32010F050, 5V32010F200: PT3/8 female P/A/B; PT1/4 female R/S; terminal cable
12 V DC 5/2 direction control for extension and retraction

The cylinder working ports are G3/8; the selected valve P/A/B ports are PT3/8. A complete connector or flow-controller order code for the retained 16 mm OD tubing is not established here. Select connections for each actual thread and exact 16 mm tube, then verify the whole flow path. Do not insert 16 mm tube into a smaller socket or substitute a smaller tube merely to fit a listed connector.

The 40/50/63/80 mm MCK designs include front and rear speed-flow adjustments. Standard configurations have front and rear pneumatic cushions; E configurations retain only the rear pneumatic cushion. Coordinate any additional external flow control with the actual cylinder settings, load and cycle rather than assuming every controller is required.

5V31010 is single-solenoid spring return; 5V32010 is double-solenoid with memory. Both are 5/2 valves for this double-acting cylinder. Final 050/200 selects a 0.5/2 m terminal cable, not a DIN plug. AC tolerance is +15%/−10% at 2.0 VA; DC tolerance is ±10% at 1.6 W. Choose the required voltage and control action; valve memory does not provide a mechanical fixture lock.

The selected valve branch is limited to 0.15–0.8 MPa and −20 to +70°C, subject to any lower component limit and tube temperature derating. The MCK body remains rated 0.15–1.0 MPa and 50–500 mm/s; these component choices do not guarantee a particular loaded cylinder speed or fixture clamping force.

G cylinder ports and the selected PT valve ports are different thread systems. Select any necessary external meter-out controls separately and coordinate them with the cylinder’s built-in speed adjustments. No 16 mm connector, controller or thread-adapter fit is certified by this list.

Use BSL02 at the selected valve exhaust R/S (PT1/4), never at the cylinder working ports. Keep the two exhaust paths open; each required exhaust connection is selected separately. The retained BSL03 sizing-reference silencer has a different thread and is not a direct fit to these exhaust ports. Silencer ratings are 0–1 MPa and −20 to +70°C.

US98A160110100MBU is a blue 100 m packaging example, not installed length: polyester polyurethane, 16 mm OD × 11 mm ID, 1 MPa at 23°C, −20 to +70°C and minimum bend radius 80 mm. Apply temperature derating and the lowest circuit limit. The 16 mm work-line connectors remain subject to separate verification.

Weight and Source Notes

Parameter	Details
Reference weight	2995 g
Weight basis	2022 execution p430 formula: 2095 g fixed nonmagnetic body + 6 g/mm × 150 mm stroke. Catalog reference weight; no separate allowance is listed for E, G or Y versus YW machining.
Technical source	AirTAC 2022 Chinese comprehensive catalog, execution printed pages 360–364, 408, 430; checked against the product PDF download above.
Actual supplied mass	Reference value only; actual weight is determined by the supplied product, not an individually weighed or packed shipping mass.
