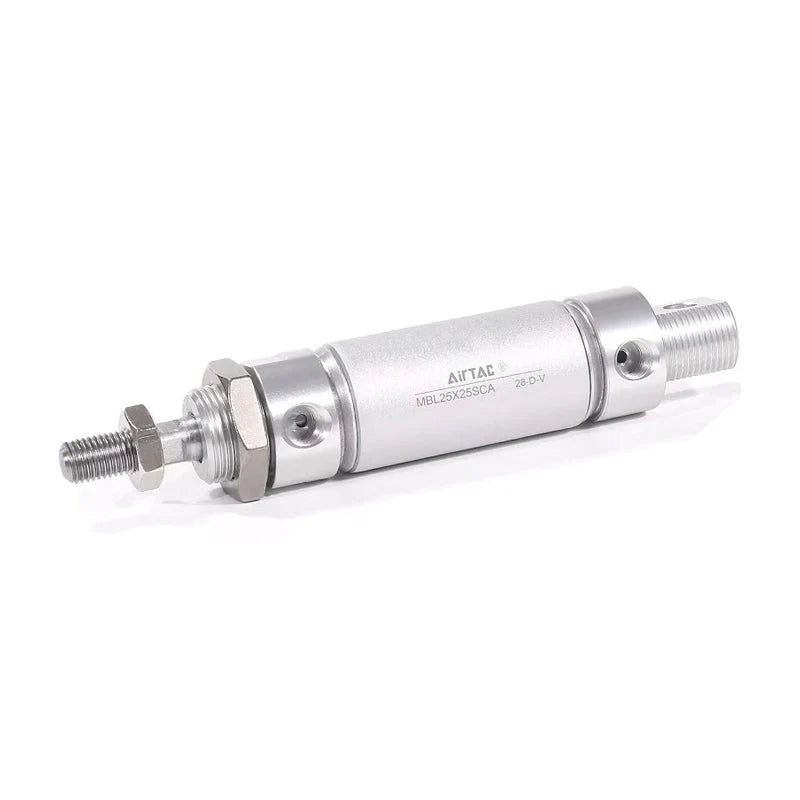

Airtac MBL series: double-acting double-rod adjustable-stroke aluminum-alloy mini cylinder - MBLJ32X60-30SLBT

Photos are for reference only. Not all models have pictures.

Description

Specifications: MBLJ32X60-30SLBT — AirTAC MBLJ aluminum alloy mini cylinder, double acting, double rod, adjustable stroke, 32 mm bore and 60 mm stroke. Adjustment length: 30 mm. NPT1/8 port; magnetic piston.

Product Catalog

Download Airtac Product Catalog (PDF)

Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF)

Download 2022 mounting brackets (PDF)

Download 2022 rod-end joints and sensor mounts (PDF)

Download 2022 cylinder installation and weight tables (PDF)

For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

Model Code Explained

Code Meaning
MBLJ aluminum alloy mini cylinder; double acting, double rod, adjustable stroke
32 Cylinder bore: 32 mm
X60 Stroke: 60 mm
-30 Adjustment length: 30 mm
S Magnetic piston
LB foot bracket
T NPT thread

Technical Specifications

Parameter Details
Model MBLJ32X60-30SLBT
Product type aluminum alloy mini cylinder
Operation double acting, double rod, adjustable stroke
Bore 32 mm
Stroke 60 mm
Piston-rod diameter 12 mm
Rod-end thread M10 × 1.25
Adjustment length 30 mm
Working medium Air filtered to 40 µm or finer
Operating pressure 0.15–1.0 MPa
Proof pressure 1.5 MPa
Operating temperature −20 to +70 °C
Piston speed 30–800 mm/s
Port NPT1/8
Cushioning Bumper
Magnetic piston Included (S)
Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm
Mounting code in this model LB — foot bracket

Features and Operation

  • Alternating the supply and exhaust at the two cylinder ports drives extension and retraction.
  • The rod passes through both ends. The opposite rod and any stroke adjuster need operating clearance; the catalog length contains twice the stroke term.
  • The order code specifies a 30 mm adjustment length in addition to the 60 mm stroke. Use the dedicated adjustable-stroke drawing for the locknut and rear projection.
  • The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis.

External and Mounting Dimensions

The following symbols refer to the MBLJ drawing for 32 mm bore, 60 mm stroke in the 2022 cylinder catalog, printed page 115. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height.

Parameter Details
A — base length before the stroke term 155 mm
B — body dimension in the drawing 37 mm
M — body mounting thread M24 × 2
EA 21 mm
Overall length from the printed formula 305 mm
Drawing length relation A + 2 × stroke + adjustment length

LB mounting reference from printed page 116; use the dedicated bracket drawing to locate the symbols. The fixed bracket values below are distinct from stroke-dependent cylinder assembly dimensions.

Parameter Details
AE 59 mm
AF 45 mm
AL 25 mm
AQ 8 mm
AP 7 mm
AT 3.5 mm
AH 32 mm

For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

Compatible Accessories and Sensors

Accessory code Purpose and compatibility
F-MA32LB F-MA32LB: foot bracket for MBLJ series, 32 mm bore. Matches the mounting code selected in this model.
F-MA32FA F-MA32FA: front flange for MBLJ series, 32 mm bore. Optional; not implied by this model code.
F-MA25I F-MA25I: rod-end eye joint for MBLJ series, 32 mm bore. Optional; not implied by this model code.
F-MA25Y F-MA25Y: rod-end fork joint for MBLJ series, 32 mm bore. Optional; not implied by this model code.
F-M10X125F F-M10X125F: floating joint for MBLJ series, 32 mm bore. Optional; not implied by this model code.
F-M10X125U F-M10X125U: spherical rod-end joint for MBLJ series, 32 mm bore. Optional; not implied by this model code.

For this magnetic MBLJ cylinder with 32 mm bore, the 2022 sensor selection table lists CMSG and DMSG with the round-cylinder mounting band F-MQA32. The band matches the aluminum cylinder body; do not substitute a tie-rod bracket or a different bore size. Sensors and bands are selected separately and are not implied by the S piston-magnet code.

Fit the sensor into the band holder, wrap and fasten the band around the cylinder, move it to the required detection position, then tighten the sensor and band fasteners. Select the complete sensor order code to match the required supply voltage, output circuit, wiring and cable length; CMSG/DMSG here identify compatible sensor profiles.

Weight Reference

812.3 g — estimated configuration weight. Calculated using the dedicated variant formula in the top weight summary, including the specified stroke, magnetic and rear-cover/adjuster terms. The selected LB mount adds an approximate 184.8 g based on its catalog plate envelope and steel density; holes and supplied fasteners are not individually weighed. Catalog weights and estimates are for reference only; actual product weight prevails.

Force Reference

Calculated theoretical force at 0.5 MPa: extension 345.4 N; retraction 345.4 N, using bore 32 mm and rod diameter 12 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load.

Internal Components and Materials

Component Catalog material
Piston rod S45C, hard-chromed and ground
Tube, covers and piston Aluminum alloy
Hexagon nut Carbon steel
Fasteners Alloy steel
O-rings NBR
Bumper / cushion ring TPU
Wear ring Wear-resistant material
Magnet Plastic magnet

Series Ordering Reference

Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500 mm. These are alternative order selections; they are not additional travel available from the current cylinder.

Select the operating variant, bore, stroke, magnetic option, rear-cover form, mounting accessory and pipe-thread option from the corresponding ordering chart. Do not transfer rear-cover or mount choices between single-rod, double-rod and adjustable-stroke versions without checking their dedicated row.

Selection, Installation and Use

  • Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism.
  • Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder.
  • Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod.
  • Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit.
  • Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication.
  • Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used.

Circuit-selection reference at a theoretical 500 mm/s: for 32 mm bore the general catalog lists effective area 2.1 mm², valve examples 5V110M5 / 5V120M5, pneumatic-pilot alternatives 4A110M5 / 4A120M5, flow control PTLM5, silencer BSLM5, and tubing 6 mm OD × 4 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load.
