Description

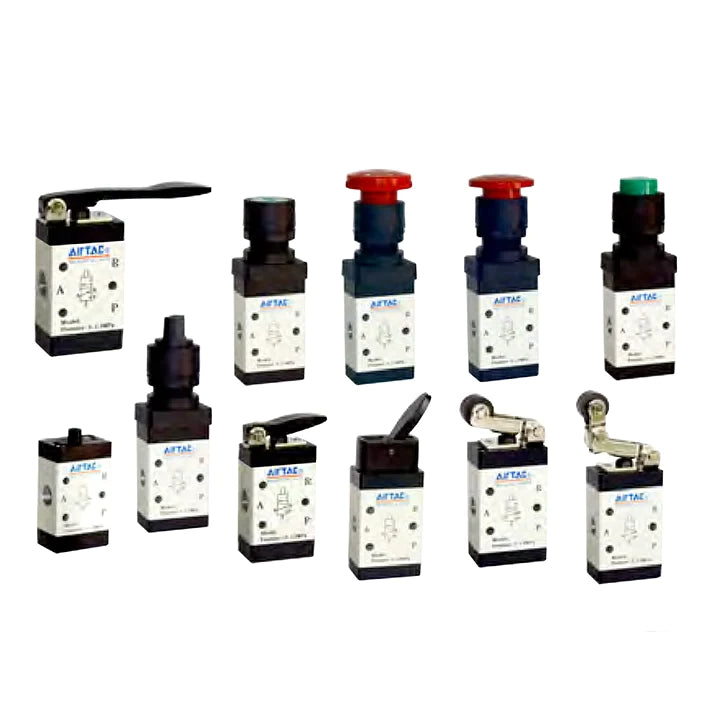

M type 3/2 way,roller type,100 series single control,1/8" port,PT thread
Product feature:
1.Exhaust outlet locates over the body, which is convenient to install muffler to decrease noise and pollution.
2.The external force required by direction-change of series of M3B.M3R and M3L is provided by external mechanism, which can be used for position test or stroke switch] limit switch.
3.M3C, M3D, M3Y, M3PF, M3PM, M3PP, M3PLand M3HS are operated manually, owning control joints with several structure forms and suitable for application under different conditions.
4.It is in sliding column structure that the control force is not influenced by working pressure (that is, there is no back pressure effect); internal circle is sealed with good tightness and the direction-change is sensitive.
5.No need to add oil for lubrication.
6.Multi-mounting makes it convenient to install and apply;
7.The control joints of series of M3C, M3D, M3Y, M3R, and M3L are made of metal which has long service life and more reliable and steady performance.
