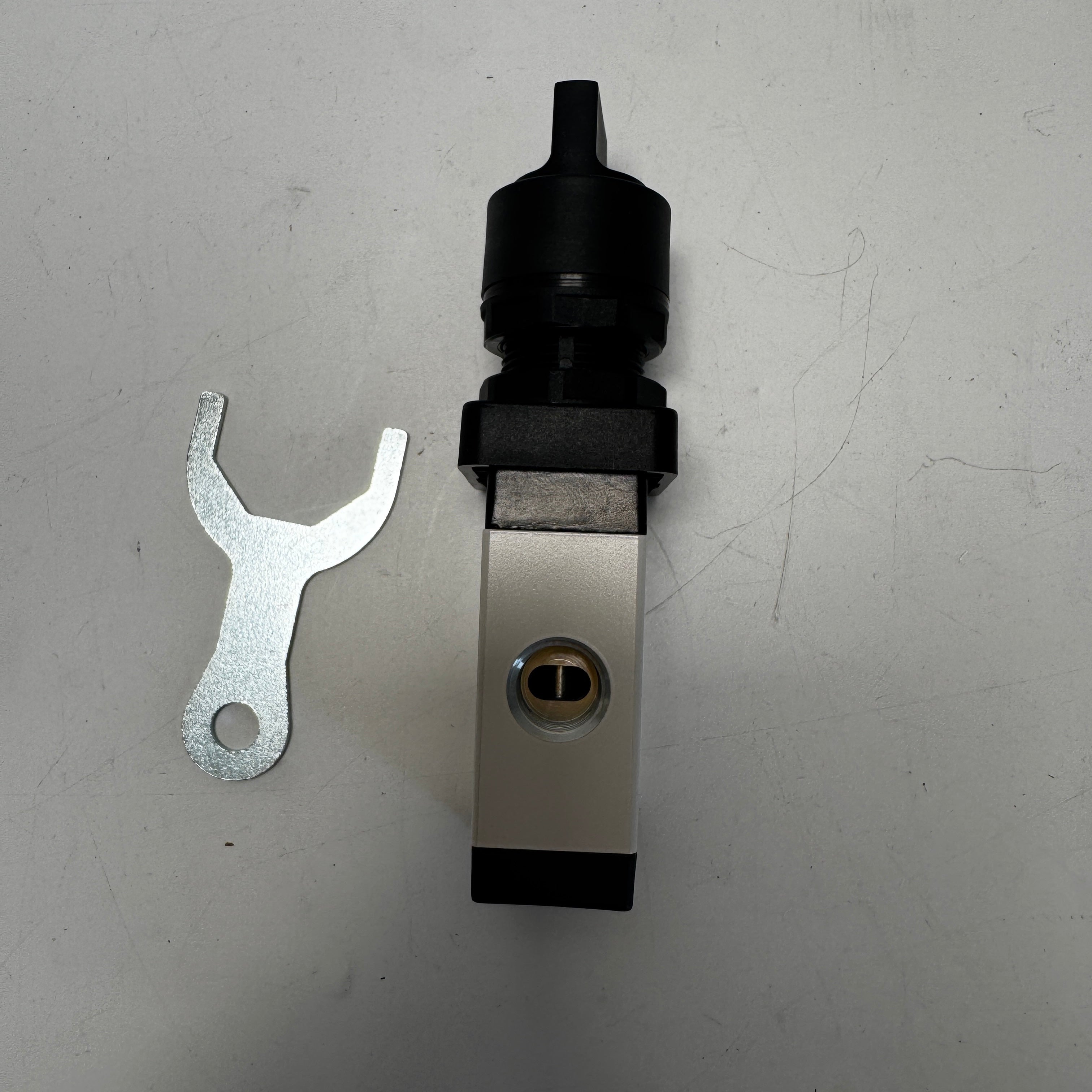

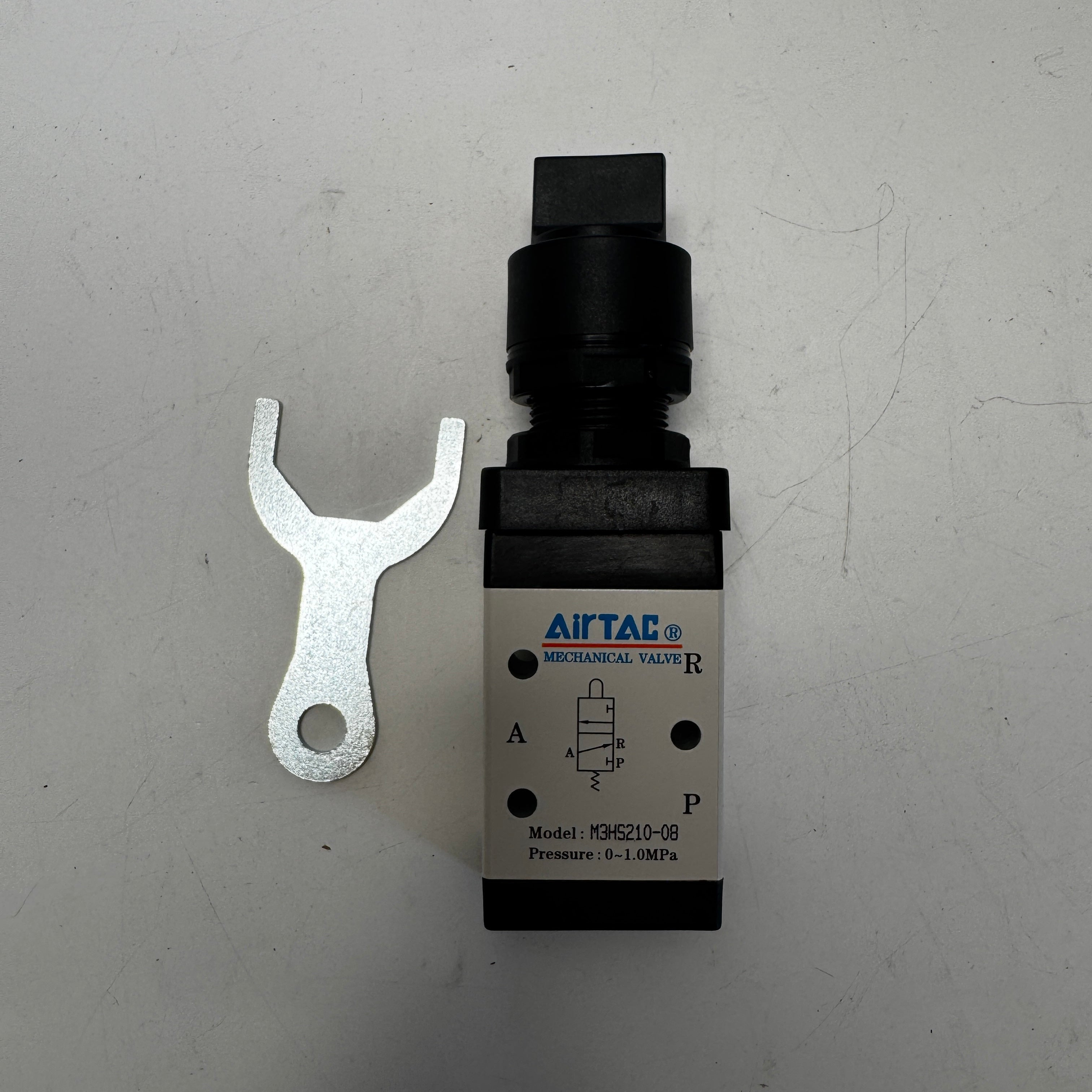

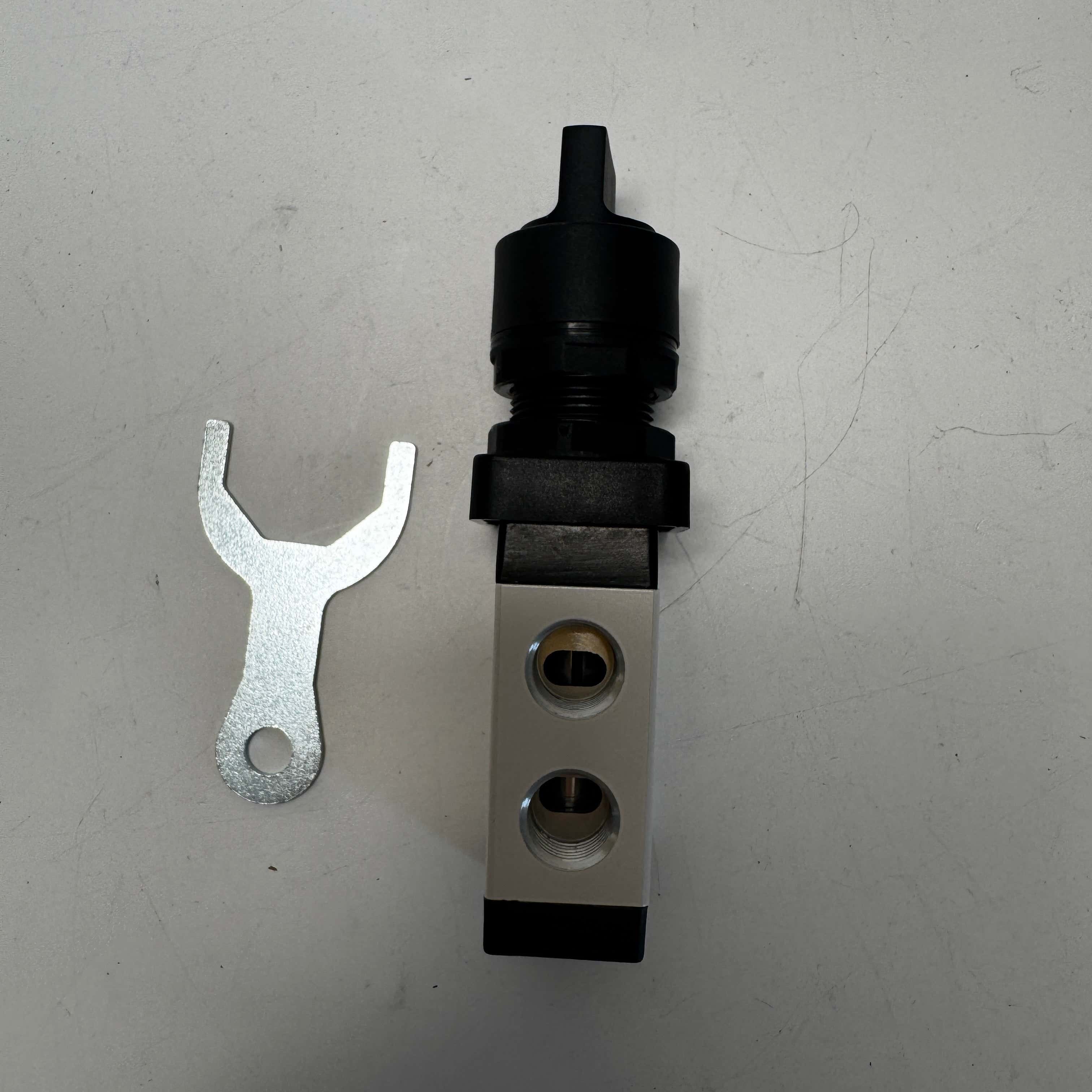

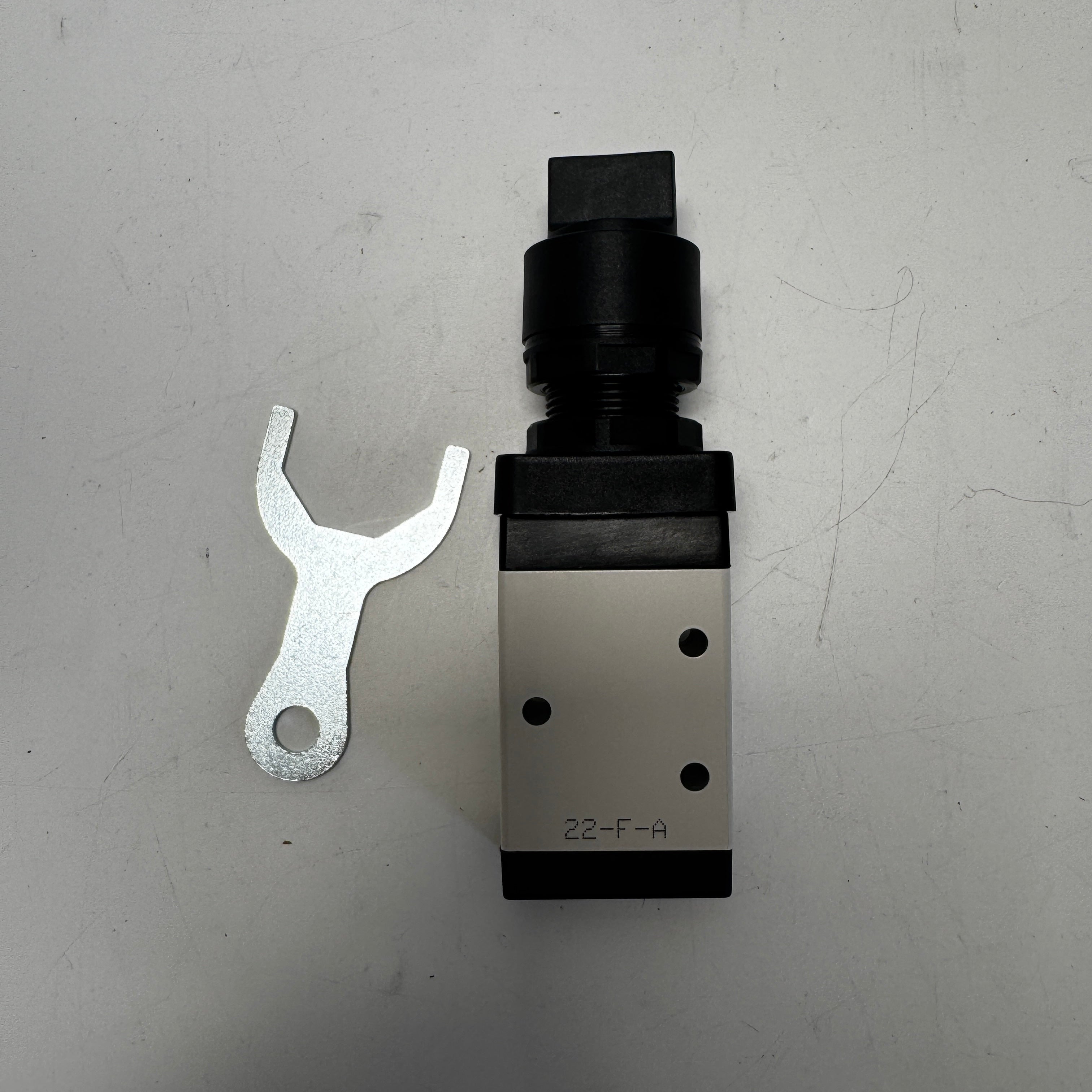

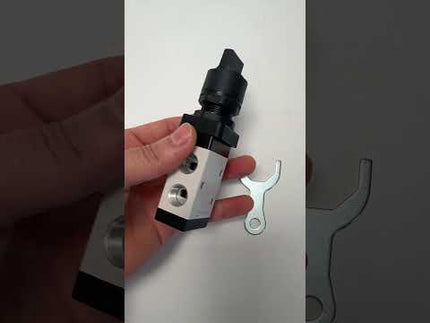

Airtac M3 series: manually operated directional valve - M3HS21008B

Photos are for reference only. Not all models have pictures.

Description

Specifications: M3HS21008B is an AirTAC M3 control valve with 3 ports, 2 positions, a selector actuator and PT 1/4 inch connections. Code 210 selects the 200 series single-control body. Button/selector color B is black.

Product Catalog

Download Airtac Product Catalog (PDF)

For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

Functional Alternative Statement

Airtac M3 series valves are functional alternatives to SMC VM400 series valves.

Model Code Explained

Parameter Details
Exact ordering code M3HS21008B
Series M3 3 ports, 2 positions; external direct mechanical control
Control-head code HS Selector
Body code 210 = 200 series, single control
Port-size code 08 PT 1/4 inch
Thread option Blank = PT
Color code B Black

Technical Specifications

Parameter Details
Fluid Air, filtered through a 40 μm filter element
Operating method External direct acting
Valve function 3 ports, 2 positions
Selected control form selector
Working connection PT 1/4 inch
Effective flow area 12.0 mm²
Cv 0.67
Operating-pressure range 0–1.0 MPa (0–145 psi)
Proof pressure 1.5 MPa (215 psi)
Working temperature −20 to 70 °C
Body material Aluminum alloy
Lubrication Not required

Features and Pneumatic Operation

The sliding-column construction has internal sealing and a control force that the catalog states is unaffected by working pressure, with no back-pressure effect. The exhaust connections are placed above the body to make it easier to fit a suitable silencer and reduce exhaust noise and contamination; a silencer is not specified as included.

The selected control head is manually operated. The available head forms serve different operator controls; only the head encoded in this exact model is selected here.

Lubrication is not required. If lubricated air is introduced, continue using the same lubrication medium without interruption; the catalog recommends ISO VG32 oil or an equivalent grade.

Port letters identify P as the supply, A as the controlled outlet and R as exhaust. The graphical symbol in the PDF defines the exact flow paths for the selected actuator and valve position.

Selected Operating Travel

Parameter Details
Valve-spool stroke 2.0–3.3 mm
Button / roller / handle stroke 5.1–6.4 mm

The listed stroke ranges are installation limits for the selected control form. Travel is not an added body dimension. Use the drawing orientation and do not drive the mechanism past its stated range.

Installation, Travel Limits and Operation

Mount the valve through the body fixing points or use the illustrated panel arrangement where the selected head permits it. Keep the body and head aligned and retain access to the pneumatic ports. The catalog does not state a general screw-tightening torque.

Do not exceed the selected spool and actuator stroke ranges. Excess travel imposed by the external mechanism can cause leakage or damage. Engineering-plastic button components must be operated by hand and must not be struck with metal tools; the dedicated mechanical roller/plunger models are actuated by their intended external mechanism.

This control form is manually reset. Return the lever or selector deliberately to the required position; it is not described as an automatically returning pushbutton.

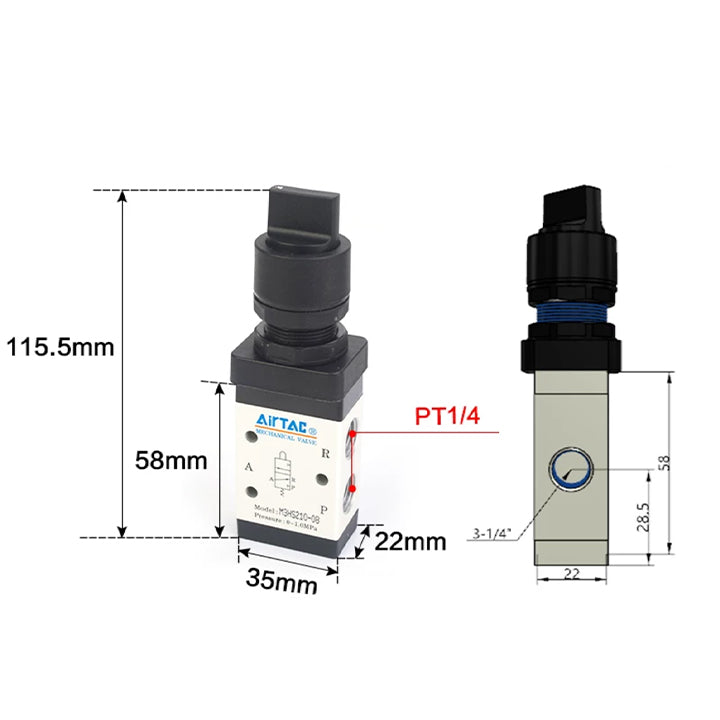

Body and Mounting Dimensions

The M3 common-body table uses the basic B valve as its dimensional reference. The selected HS control head has its own drawing below; body and head references must not be added into an invented overall envelope.

Drawing reference Value
Drawing dimension A 35 mm
Drawing dimension B 22 mm
Drawing dimension C 64 mm
Drawing dimension D 58 mm
Drawing dimension K 4.3 mm
Drawing dimension KA 23.5 mm
Drawing dimension KB 18.5 mm
Drawing dimension KC 20 mm
Drawing dimension PA 20 mm
Drawing dimension PB 18.5 mm
Drawing dimension PC 28.5 mm
Drawing P — three ports PT 1/4 inch
Body mounting holes 3 × Ø4.3 mm through-holes

Selected Control Head and Replacement Reference

The values below describe the selected actuator or control-head assembly. They are separate from the body drawing and must not be added indiscriminately to the body dimensions.

Control-head drawing reference Value
Head base width 36 mm
Head base depth 30 mm
Panel allowance reference 6 mm
Panel mounting thread M22 × 1.25
Button / selector diameter 28.5 mm
Head height reference 57.5 mm

The M3 catalog explicitly lists control-head assembly S3HS05-P13A for this head family. The M3/S3 prefix on a shared replacement head is retained exactly; it does not change this valve’s M3 ordering code. This valve includes its selected actuator; a second head is not required for normal operation.

Dimension Drawing Reminder

All linear drawing values above are in millimeters unless a thread or angle unit is stated. The original drawings retain the dimension-arrow relationships, actuator orientations and port views that cannot be fully represented by a two-column table.

For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

Internal Components — Catalog Reference

The sectioned illustration is labeled M3R210. Its numbered components are listed below as a series construction reference. This is not a spare-parts kit or an assertion that every actuator variation has an identical exploded assembly. Materials are stated only where the catalog expressly supplies them.

Drawing item Component
1 Bottom cover
2 Hex-socket screw
3 Spring
4 Spacer
5 Body
6 Cross-head screw
7 Roller holder
8 Roller
9 Rotating block
10 Axle
11 Cross-head screw
12 Front cover
13 Piston O-ring
14 Spool
15 Positioning block

Flow Characteristics

The catalog flow chart for M3B-210-08 plots operating pressure in MPa on the vertical axis from 0 to 1.0, and flow in L/min on the horizontal axis from 0 to 1300. The family of curves illustrates the pressure/flow relationship. Axis limits are graph bounds, not guaranteed rated flow values for this complete valve; use the supplied curve and the required pressure conditions.

Supply Scope and Related Heads

This ordering code identifies one valve with its selected control-head form. It does not encode a multiple-valve assembly, a spare head, a silencer, mounting-panel hardware or pneumatic tubing. Where the catalog lists a separately orderable head, its exact code is given above as a replacement reference; the source does not provide a screw/gasket quantity breakdown for a service kit.

Series Ordering Options

The M3 common range offers B, C, D, Y, R and L heads; red-only PL; and PP, PF, PM and HS in red, green or black. The 110 body uses 06 ports only; the 210 body offers 06 or 08. The separate 05 mini range has B, R and L heads only. Mini models do not use the 110/210 code or a PT/G/NPT suffix.

For 1/8 and 1/4 inch connections, a blank thread suffix means PT, G means G thread and T means NPT. M5 connections have no such thread suffix. These are series alternatives; the selected configuration is the one decoded above.

Reference Weight

Catalog reference weight: 130 g, from the M3HS210 row of the 2022 comprehensive catalog weight table (paper page 300). The table distinguishes the selected series size and control-head type. Its reference does not separately list port, color or thread variants. The table states that weights are for reference only; actual weight is determined by the delivered product. This is not a measured or packaged shipping weight.

Catalog Basis

Technical information is taken from the linked M3 catalog and cross-checked against the 2022 comprehensive catalog, paper pages 143–145 (PDF pages 144–146). The paper-page-300 weight table is cited separately above. No unrelated series dimensions or weights are substituted.

Matching Accessory Codes and Conditions

Item Complete codes and use
HS replacement heads (green/red/black) These are optional replacement selector heads for the corresponding M3 HS common 110/210 valve families. Replacement-head suffixes -P11A, -P12A and -P13A mean green, red and black, respectively. The valve already includes its selected black head; order a spare separately only when needed. Retain the selected head form and follow the operating-travel, reset and mounting instructions above. The S3 prefix is the catalogue shared-head code, not a complete valve.
S3HS05-P11A,S3HS05-P12A

Optional Piping Accessories

P = this M3 valve’s supply (PT1/4); W = its controlled working port A (PT1/4); E = its exhaust port R (PT1/4). All three ports are female threaded connections. The drawing callout 3-P identifies three same-size ports; it does not mean three supply ports. Silencers serve E only; ASC and GAFR connect upstream of P only. Keep supply, working and exhaust circuits separate. No pilot or manifold route is assigned. Multiple keys retain each use. Tube OD is mm (in = inches); compression/tubing show OD × ID. These piping accessories are optional and ordered separately.

Code-prefix uses (match the longest listed family prefix): ASC inline threaded flow control; BB male–male; BD male–female; BESL adjustable silencer; BKC compression fitting; BPC metal straight; BPOC metal straight; BSL silencer; BSLM miniature silencer; GAFR upstream filter-regulator; GPSA/PSA inline flow control; PAL plastic silencer; PALM miniature plastic silencer; PC straight; PEB branch tee; PED run tee; PH banjo elbow; PHF female branch banjo; PHW twin banjo; PKD reducing distribution fitting; PL elbow; PLL extended elbow; POC round straight; PPA plug-in silencer; PSL elbow flow control; PSS flow control; PTL push-lock flow control; PYB Y; PZB cross; UE PU tube; US PU tube.

Use Size / complete codes
P ASC20008,GAFR20008S,GAFR30008S
E,P,W male PT1/4 ↔ male PT1/8: BB0102,BB0102-S
male PT1/4 ↔ male PT1/4: BB0202,BB0202-S
male PT3/8 ↔ male PT1/4: BB0203,BB0203-S
male PT1/2 ↔ male PT1/4: BB0204,BB0204-S
male PT1/4 ↔ female PT1/8: BD0102,BD0102-S
6 × 4: BKC0604-02,BKC0604-02-S,UE95A060040100MBU,US98A060040100MBU
8 × 5: BKC0805-02,BKC0805-02-S,UE95A080050100MBU,US98A080050100MBU
8 × 5.5 or 6: BKC0806-02,BKC0806-02-S
10 × 6.5: BKC1065-02,BKC1065-02-S,UE95A100065100MBU,US98A100065100MBU
10 × 7.5 or 8: BKC1075-02,BKC1075-02-S
12 × 8: BKC1208-02,BKC1208-02-S,UE95A120080100MBU,US98A120080100MBU
12 × 9 or 10: BKC1209-02,BKC1209-02-S
10: BPC1002,BPOC1002,GPSA10,GPSA10D,PC1002,PC1002-S,PC1002D,PC1002D-S,PEB1002,PEB1002-S,PEB1002D,PEB1002D-S,PED1002,PED1002-S,PED1002D,PED1002D-S,PH1002,PH1002-S,PH1002D,PH1002D-S,PHW1002,PHW1002-S,PHW1002D,PHW1002D-S,PL1002,PL1002-S,PL1002D,PL1002D-S,PLL1002,PLL1002-S,PLL1002D,PLL1002D-S,POC1002,POC1002-S,POC1002D,POC1002D-S,PSA10,PSA10-S,PSA10D,PSA10D-S,PSL1002A,PSL1002A-S,PSL1002AD,PSL1002AD-S,PSL1002B,PSL1002B-S,PSL1002BD,PSL1002BD-S,PSS1002A,PSS1002A-S,PSS1002AD,PSS1002AD-S,PSS1002B,PSS1002B-S,PSS1002BD,PSS1002BD-S,PTL1002A,PTL1002AD,PTL1002B,PTL1002BD,PYB1002,PYB1002-S,PYB1002D,PYB1002D-S,PZB1002,PZB1002-S,PZB1002D,PZB1002D-S
12: BPC1202,GPSA12,GPSA12D,PC1202,PC1202-S,PC1202D,PC1202D-S,PEB1202,PEB1202-S,PEB1202D,PEB1202D-S,PED1202,PED1202-S,PED1202D,PED1202D-S,PL1202,PL1202-S,PL1202D,PL1202D-S,PLL1202,PLL1202-S,PLL1202D,PLL1202D-S,POC1202,POC1202-S,POC1202D,POC1202D-S,PSA12,PSA12-S,PSA12D,PSA12D-S,PYB1202,PYB1202-S,PYB1202D,PYB1202D-S
4: BPC402,GPSA4,GPSA4D,PC402,PC402-S,PC402D,PC402D-S,PEB402,PEB402-S,PEB402D,PEB402D-S,PED402,PED402-S,PED402D,PED402D-S,PL402,PL402-S,PL402D,PL402D-S,PLL402,PLL402-S,PLL402D,PLL402D-S,POC402,POC402-S,POC402D,POC402D-S,PSA4,PSA4-S,PSA4D,PSA4D-S,PYB402,PYB402-S,PYB402D,PYB402D-S
6: BPC602,BPOC602,GPSA6,GPSA6D,PC602,PC602-S,PC602D,PC602D-S,PEB602,PEB602-S,PEB602D,PEB602D-S,PED602,PED602-S,PED602D,PED602D-S,PH602,PH602-S,PH602D,PH602D-S,PHW602,PHW602-S,PHW602D,PHW602D-S,PL602,PL602-S,PL602D,PL602D-S,PLL602,PLL602-S,PLL602D,PLL602D-S,POC602,POC602-S,POC602D,POC602D-S,PSA6,PSA6-S,PSA6D,PSA6D-S,PSL602A,PSL602A-S,PSL602AD,PSL602AD-S,PSL602B,PSL602B-S,PSL602BD,PSL602BD-S,PSS602A,PSS602A-S,PSS602AD,PSS602AD-S,PSS602B,PSS602B-S,PSS602BD,PSS602BD-S,PTL602A,PTL602AD,PTL602B,PTL602BD,PYB602,PYB602-S,PYB602D,PYB602D-S,PZB602,PZB602-S,PZB602D,PZB602D-S
8: BPC802,BPOC802,GPSA8,GPSA8D,PC802,PC802-S,PC802D,PC802D-S,PEB802,PEB802-S,PEB802D,PEB802D-S,PED802,PED802-S,PED802D,PED802D-S,PH802,PH802-S,PH802D,PH802D-S,PHW802,PHW802-S,PHW802D,PHW802D-S,PL802,PL802-S,PL802D,PL802D-S,PLL802,PLL802-S,PLL802D,PLL802D-S,POC802,POC802-S,POC802D,POC802D-S,PSA8,PSA8-S,PSA8D,PSA8D-S,PSL802A,PSL802A-S,PSL802AD,PSL802AD-S,PSL802B,PSL802B-S,PSL802BD,PSL802BD-S,PSS802A,PSS802A-S,PSS802AD,PSS802AD-S,PSS802B,PSS802B-S,PSS802BD,PSS802BD-S,PTL802A,PTL802AD,PTL802B,PTL802BD,PYB802,PYB802-S,PYB802D,PYB802D-S,PZB802,PZB802-S,PZB802D,PZB802D-S
10; male RA PT1/4 / female RB PT1/4: PHF1002,PHF1002-S,PHF1002D,PHF1002D-S
6; male RA PT1/4 / female RB PT1/4: PHF602,PHF602-S,PHF602D,PHF602D-S
8; male RA PT1/4 / female RB PT1/4: PHF802,PHF802-S,PHF802D,PHF802D-S
main 8 / branch 6: PKD8-602,PKD8-602-S,PKD8-602D,PKD8-602D-S
4 × 2.5: UE95A040025100MBU,US98A040025100MBU
E BESL02,BESL02-S,BSL02,BSL02-S,BSLM02,BSLM02-S,PAL02,PAL02D,PALM02,PALM02D
10: PPA10
12: PPA12
6: PPA6
8: PPA8

Match PT/G/NPT exactly. Use the specified thread seal or face gasket. Match tube OD and compression OD/ID; metric and inch sizes are not interchangeable. Use suitable soft nylon/PU tube and check seating, clearance, bends and flow. Tighten compression bodies by the hex, not tube nuts. Where listed: D is black, blank grey, -M miniature; -S denotes only the specified 304 stainless parts.

PSA/GPSA are tube-side flow controls and need separate matching tube connections; they do not screw directly into P, W or E. PHF use male RA at the valve; female RB requires its own matching male thread and seal and is not a tube socket. Match both adapter ends to their separate mating parts. Branches join one circuit. Keep supply P, working A and exhaust R separate; do not bridge these paths.

Standard push-in fittings, silencers and flow-control parts: ≤1 MPa, −20–70°C. Metal BPC/BPOC: ≤0.9 MPa; compression fittings/thread adapters: ≤1 MPa. The listed metal push-in, compression and adapter groups have a 0–150°C range, limiting the connected valve path to 0–70°C or narrower. Apply every stricter component limit; no system vacuum rating is established.

This mechanically or manually operated M3 valve operates at 0–1 MPa and −20–70°C with 40 µm filtered air. Accessory limits may narrow that range; proof pressure is not working pressure. The piping choices are optional and ordered separately, and do not establish separately orderable panel-mounting or internal-part kits.

Flow-control suffix A restricts thread→tube, with free reverse flow; suffix B reverses it. Supply normally flows tube→thread and exhaust thread→tube. At valve working port A, suffix A restricts flow to the actuator and suffix B the return; cylinder-mounted orientation differs. Follow the flow symbols, including PSA/GPSA. Closed controls are not leak-tight isolation. Adjust gently without forcing stops; depressurize before tube removal. Never cap an active supply, working or exhaust connection.

Silencers serve only exhaust R. Check flow capacity and back pressure, including adjustable silencers and remote exhaust lines; do not restrict the exhaust so that valve or actuator operation is impaired. PPA silencers require matching metric push-in exhaust sockets; they are not threaded plugs or vacuum filters.

ASC is a separately connected upstream supply flow control, assigned to P only. Both female ports require matching male connections; follow its P/A markings. Its limits are 0.05–0.95 MPa and −20–70°C with ≤40 µm filtration. The complete valve path must meet these and every stricter component limit; the valve’s 0–1 MPa range does not extend the ASC rating.

GAFR is a separately connected upstream supply filter/regulator, assigned to P only. Both female ports require matching male piping; follow IN→OUT and check total flow and bowl/environment suitability. Inlet ≤1 MPa; regulation 0.15–0.9 MPa; −5–70°C, nonfreezing. Apply every stricter valve/component limit. Listed GAFR S versions have a 40 µm filter, PC bowl, differential/manual drain, bracket and round snap-in gauge (MPa/psi), without a reverse-flow valve. Air lubrication is not required. If lubricated air is introduced, continue with consistent lubrication using ISO VG32 or equivalent oil.

US98A/UE95A examples are separately ordered blue 100 m metric PU coils rated 1 MPa at 23°C. US98A: −20–70°C; UE95A: −40–70°C. Match OD/ID and derate as temperature rises within valve/component limits; 1 MPa is not assured throughout. Use inch tube where the selected connection requires it; metric tube is not a substitute.

PTL recommended cap-adjustment torque: 1/4: 0.16 N·m. These are not thread-installation torques.

Items marked discontinued are historical service references, not current standard recommendations. Confirm availability or a manufacturer-approved replacement. An unmarked catalogue entry does not promise current production, stock or delivery. All listed options are ordered separately.

Product form

Specifications: M3HS21008B is an AirTAC M3 control valve with 3 ports, 2 positions, a selector actuator and PT 1/4 inch... Read more

SKU: M3HS21008B

$31.65 Incl. VAT

    Guaranteed secure & safe checkout.

    Ach Direct DebitAmazon American Express Apple Pay BizumDiners ClubDiscoverGoogle Pay Mastercard MB WAY PayPalSatispayShop Pay USDC Visa

    Bank transfer also available. Payment options may vary by location and device.

    Shipping, returns & order help

    Free shipping on orders US$30+ under 2 kg

    Import duties & taxes included on all orders

    Download: 3D model selection.
    Shipping & delivery times

    In-stock items: processed and shipped within 1–3 business days. Custom-made items: G/NPT threads and non-standard specifications require 7–15 business days of factory production before shipping.

    Standard international delivery typically takes 7–13 business days after dispatch, depending on customs clearance and the local delivery network. Processing or production time is additional. Next-day and overnight delivery are not available.

    Most products ship from our manufacturing centers in Asia, then transfer to a local carrier after customs clearance.

    Read our shipping policy
    Shipping costs & import taxes

    Free shipping: orders of US$30 or more weighing under 2 kg. Import duties and taxes are included on all orders.

    If an overweight shipping surcharge applies after packing, we pause shipment and email you the amount for approval before dispatch. This is a transport charge, not an import tax. If you do not reply within 7 days, the order is canceled and fully refunded.

    Shipping charges and tax details
    Model selection & custom orders

    Please check the full model number, dimensions, thread type, stroke and voltage where applicable before ordering. If you are unsure, email airtacs@airtacs.com with the model number and required specifications.

    Custom-made products, including G/NPT thread specifications and custom-built parts, are non-returnable and non-refundable under our refund policy.

    Read the refund policy before ordering
    Tracking & delivery support

    Use the tracking link in your shipping confirmation email. For YunExpress shipments, enter your YT tracking number at Yuntrack to view the journey and local delivery details.

    Provide a complete physical delivery address and reachable contact details. P.O. boxes and virtual mail-forwarding addresses are not accepted.

    If delivery fails, contact the local carrier and email airtacs@airtacs.com with your order and tracking numbers. For failures caused by an incorrect/incomplete address or an unreachable recipient, return to the local warehouse typically takes 7–30 business days. Redelivery requires an additional shipping fee; cancellation after failed delivery is subject to deductions for original shipping and carrier return fees.

    Delivery issue policy
    Returns & product issues

    Eligible returns are accepted within 7 days of delivery. Items must be unused, uninstalled and in their original factory packaging. Contact airtacs@airtacs.com for a Return Authorization (RA) number before returning anything.

    Ordered the wrong model or changed your mind? You pay return shipping, original shipping is non-refundable, and a 50% restocking fee is deducted from the actual price paid for the returned product.

    Defective, damaged or incorrect item? We provide a replacement and cover return shipping; no restocking fee applies. Custom-made items are excluded from standard returns. These terms are subject to applicable law and do not limit your statutory rights.

    Read the full refund policy
    Bank transfers & invoices

    Bank transfer: Select bank transfer at checkout and submit your order. The bank account details and payment instructions will then be displayed.

    Invoices: Invoices are available only after an order is placed. We are a US-based company and provide a standard commercial invoice, not an EU VAT tax invoice. If your company requires an EU VAT invoice, please confirm your requirements with us before ordering.

    For payment or invoice questions, email airtacs@airtacs.com with your order number.

    Description

    Specifications: M3HS21008B is an AirTAC M3 control valve with 3 ports, 2 positions, a selector actuator and PT 1/4 inch connections. Code 210 selects the 200 series single-control body. Button/selector color B is black.

    Product Catalog

    Download Airtac Product Catalog (PDF)

    For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

    Functional Alternative Statement

    Airtac M3 series valves are functional alternatives to SMC VM400 series valves.

    Model Code Explained

    Parameter Details
    Exact ordering code M3HS21008B
    Series M3 3 ports, 2 positions; external direct mechanical control
    Control-head code HS Selector
    Body code 210 = 200 series, single control
    Port-size code 08 PT 1/4 inch
    Thread option Blank = PT
    Color code B Black

    Technical Specifications

    Parameter Details
    Fluid Air, filtered through a 40 μm filter element
    Operating method External direct acting
    Valve function 3 ports, 2 positions
    Selected control form selector
    Working connection PT 1/4 inch
    Effective flow area 12.0 mm²
    Cv 0.67
    Operating-pressure range 0–1.0 MPa (0–145 psi)
    Proof pressure 1.5 MPa (215 psi)
    Working temperature −20 to 70 °C
    Body material Aluminum alloy
    Lubrication Not required

    Features and Pneumatic Operation

    The sliding-column construction has internal sealing and a control force that the catalog states is unaffected by working pressure, with no back-pressure effect. The exhaust connections are placed above the body to make it easier to fit a suitable silencer and reduce exhaust noise and contamination; a silencer is not specified as included.

    The selected control head is manually operated. The available head forms serve different operator controls; only the head encoded in this exact model is selected here.

    Lubrication is not required. If lubricated air is introduced, continue using the same lubrication medium without interruption; the catalog recommends ISO VG32 oil or an equivalent grade.

    Port letters identify P as the supply, A as the controlled outlet and R as exhaust. The graphical symbol in the PDF defines the exact flow paths for the selected actuator and valve position.

    Selected Operating Travel

    Parameter Details
    Valve-spool stroke 2.0–3.3 mm
    Button / roller / handle stroke 5.1–6.4 mm

    The listed stroke ranges are installation limits for the selected control form. Travel is not an added body dimension. Use the drawing orientation and do not drive the mechanism past its stated range.

    Installation, Travel Limits and Operation

    Mount the valve through the body fixing points or use the illustrated panel arrangement where the selected head permits it. Keep the body and head aligned and retain access to the pneumatic ports. The catalog does not state a general screw-tightening torque.

    Do not exceed the selected spool and actuator stroke ranges. Excess travel imposed by the external mechanism can cause leakage or damage. Engineering-plastic button components must be operated by hand and must not be struck with metal tools; the dedicated mechanical roller/plunger models are actuated by their intended external mechanism.

    This control form is manually reset. Return the lever or selector deliberately to the required position; it is not described as an automatically returning pushbutton.

    Body and Mounting Dimensions

    The M3 common-body table uses the basic B valve as its dimensional reference. The selected HS control head has its own drawing below; body and head references must not be added into an invented overall envelope.

    Drawing reference Value
    Drawing dimension A 35 mm
    Drawing dimension B 22 mm
    Drawing dimension C 64 mm
    Drawing dimension D 58 mm
    Drawing dimension K 4.3 mm
    Drawing dimension KA 23.5 mm
    Drawing dimension KB 18.5 mm
    Drawing dimension KC 20 mm
    Drawing dimension PA 20 mm
    Drawing dimension PB 18.5 mm
    Drawing dimension PC 28.5 mm
    Drawing P — three ports PT 1/4 inch
    Body mounting holes 3 × Ø4.3 mm through-holes

    Selected Control Head and Replacement Reference

    The values below describe the selected actuator or control-head assembly. They are separate from the body drawing and must not be added indiscriminately to the body dimensions.

    Control-head drawing reference Value
    Head base width 36 mm
    Head base depth 30 mm
    Panel allowance reference 6 mm
    Panel mounting thread M22 × 1.25
    Button / selector diameter 28.5 mm
    Head height reference 57.5 mm

    The M3 catalog explicitly lists control-head assembly S3HS05-P13A for this head family. The M3/S3 prefix on a shared replacement head is retained exactly; it does not change this valve’s M3 ordering code. This valve includes its selected actuator; a second head is not required for normal operation.

    Dimension Drawing Reminder

    All linear drawing values above are in millimeters unless a thread or angle unit is stated. The original drawings retain the dimension-arrow relationships, actuator orientations and port views that cannot be fully represented by a two-column table.

    For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

    Internal Components — Catalog Reference

    The sectioned illustration is labeled M3R210. Its numbered components are listed below as a series construction reference. This is not a spare-parts kit or an assertion that every actuator variation has an identical exploded assembly. Materials are stated only where the catalog expressly supplies them.

    Drawing item Component
    1 Bottom cover
    2 Hex-socket screw
    3 Spring
    4 Spacer
    5 Body
    6 Cross-head screw
    7 Roller holder
    8 Roller
    9 Rotating block
    10 Axle
    11 Cross-head screw
    12 Front cover
    13 Piston O-ring
    14 Spool
    15 Positioning block

    Flow Characteristics

    The catalog flow chart for M3B-210-08 plots operating pressure in MPa on the vertical axis from 0 to 1.0, and flow in L/min on the horizontal axis from 0 to 1300. The family of curves illustrates the pressure/flow relationship. Axis limits are graph bounds, not guaranteed rated flow values for this complete valve; use the supplied curve and the required pressure conditions.

    Supply Scope and Related Heads

    This ordering code identifies one valve with its selected control-head form. It does not encode a multiple-valve assembly, a spare head, a silencer, mounting-panel hardware or pneumatic tubing. Where the catalog lists a separately orderable head, its exact code is given above as a replacement reference; the source does not provide a screw/gasket quantity breakdown for a service kit.

    Series Ordering Options

    The M3 common range offers B, C, D, Y, R and L heads; red-only PL; and PP, PF, PM and HS in red, green or black. The 110 body uses 06 ports only; the 210 body offers 06 or 08. The separate 05 mini range has B, R and L heads only. Mini models do not use the 110/210 code or a PT/G/NPT suffix.

    For 1/8 and 1/4 inch connections, a blank thread suffix means PT, G means G thread and T means NPT. M5 connections have no such thread suffix. These are series alternatives; the selected configuration is the one decoded above.

    Reference Weight

    Catalog reference weight: 130 g, from the M3HS210 row of the 2022 comprehensive catalog weight table (paper page 300). The table distinguishes the selected series size and control-head type. Its reference does not separately list port, color or thread variants. The table states that weights are for reference only; actual weight is determined by the delivered product. This is not a measured or packaged shipping weight.

    Catalog Basis

    Technical information is taken from the linked M3 catalog and cross-checked against the 2022 comprehensive catalog, paper pages 143–145 (PDF pages 144–146). The paper-page-300 weight table is cited separately above. No unrelated series dimensions or weights are substituted.

    Matching Accessory Codes and Conditions

    Item Complete codes and use

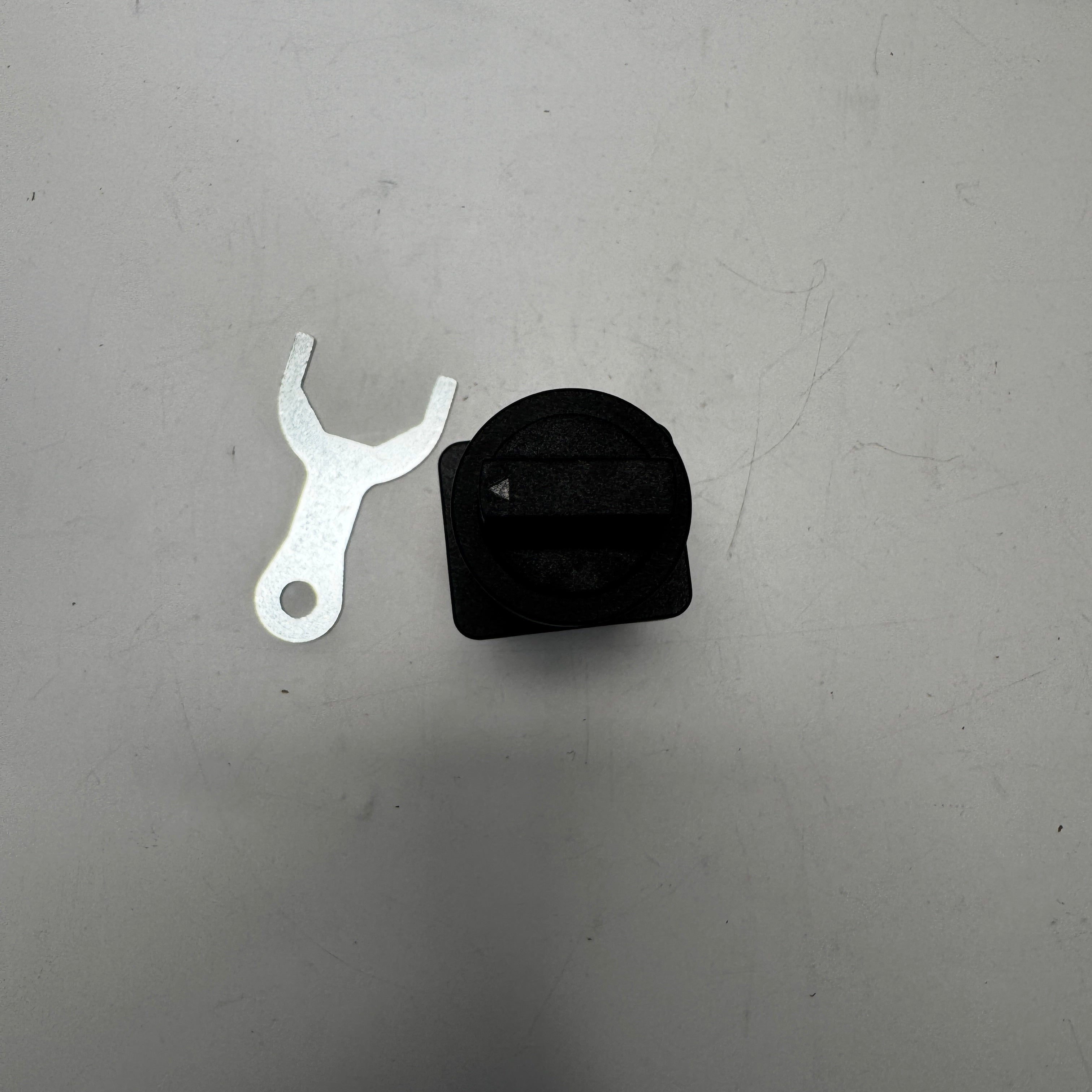

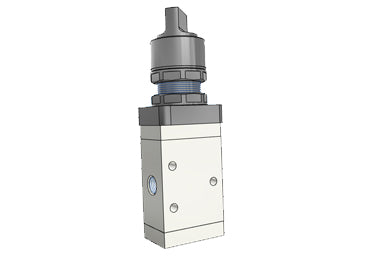

    HS replacement heads (green/red/black) These are optional replacement selector heads for the corresponding M3 HS common 110/210 valve families. Replacement-head suffixes -P11A, -P12A and -P13A mean green, red and black, respectively. The valve already includes its selected black head; order a spare separately only when needed. Retain the selected head form and follow the operating-travel, reset and mounting instructions above. The S3 prefix is the catalogue shared-head code, not a complete valve.
    S3HS05-P11A,S3HS05-P12A

    Optional Piping Accessories

    P = this M3 valve’s supply (PT1/4); W = its controlled working port A (PT1/4); E = its exhaust port R (PT1/4). All three ports are female threaded connections. The drawing callout 3-P identifies three same-size ports; it does not mean three supply ports. Silencers serve E only; ASC and GAFR connect upstream of P only. Keep supply, working and exhaust circuits separate. No pilot or manifold route is assigned. Multiple keys retain each use. Tube OD is mm (in = inches); compression/tubing show OD × ID. These piping accessories are optional and ordered separately.

    Code-prefix uses (match the longest listed family prefix): ASC inline threaded flow control; BB male–male; BD male–female; BESL adjustable silencer; BKC compression fitting; BPC metal straight; BPOC metal straight; BSL silencer; BSLM miniature silencer; GAFR upstream filter-regulator; GPSA/PSA inline flow control; PAL plastic silencer; PALM miniature plastic silencer; PC straight; PEB branch tee; PED run tee; PH banjo elbow; PHF female branch banjo; PHW twin banjo; PKD reducing distribution fitting; PL elbow; PLL extended elbow; POC round straight; PPA plug-in silencer; PSL elbow flow control; PSS flow control; PTL push-lock flow control; PYB Y; PZB cross; UE PU tube; US PU tube.

    Use Size / complete codes
    P ASC20008,GAFR20008S,GAFR30008S
    E,P,W male PT1/4 ↔ male PT1/8: BB0102,BB0102-S
    male PT1/4 ↔ male PT1/4: BB0202,BB0202-S
    male PT3/8 ↔ male PT1/4: BB0203,BB0203-S
    male PT1/2 ↔ male PT1/4: BB0204,BB0204-S
    male PT1/4 ↔ female PT1/8: BD0102,BD0102-S
    6 × 4: BKC0604-02,BKC0604-02-S,UE95A060040100MBU,US98A060040100MBU
    8 × 5: BKC0805-02,BKC0805-02-S,UE95A080050100MBU,US98A080050100MBU
    8 × 5.5 or 6: BKC0806-02,BKC0806-02-S
    10 × 6.5: BKC1065-02,BKC1065-02-S,UE95A100065100MBU,US98A100065100MBU
    10 × 7.5 or 8: BKC1075-02,BKC1075-02-S
    12 × 8: BKC1208-02,BKC1208-02-S,UE95A120080100MBU,US98A120080100MBU
    12 × 9 or 10: BKC1209-02,BKC1209-02-S
    10: BPC1002,BPOC1002,GPSA10,GPSA10D,PC1002,PC1002-S,PC1002D,PC1002D-S,PEB1002,PEB1002-S,PEB1002D,PEB1002D-S,PED1002,PED1002-S,PED1002D,PED1002D-S,PH1002,PH1002-S,PH1002D,PH1002D-S,PHW1002,PHW1002-S,PHW1002D,PHW1002D-S,PL1002,PL1002-S,PL1002D,PL1002D-S,PLL1002,PLL1002-S,PLL1002D,PLL1002D-S,POC1002,POC1002-S,POC1002D,POC1002D-S,PSA10,PSA10-S,PSA10D,PSA10D-S,PSL1002A,PSL1002A-S,PSL1002AD,PSL1002AD-S,PSL1002B,PSL1002B-S,PSL1002BD,PSL1002BD-S,PSS1002A,PSS1002A-S,PSS1002AD,PSS1002AD-S,PSS1002B,PSS1002B-S,PSS1002BD,PSS1002BD-S,PTL1002A,PTL1002AD,PTL1002B,PTL1002BD,PYB1002,PYB1002-S,PYB1002D,PYB1002D-S,PZB1002,PZB1002-S,PZB1002D,PZB1002D-S
    12: BPC1202,GPSA12,GPSA12D,PC1202,PC1202-S,PC1202D,PC1202D-S,PEB1202,PEB1202-S,PEB1202D,PEB1202D-S,PED1202,PED1202-S,PED1202D,PED1202D-S,PL1202,PL1202-S,PL1202D,PL1202D-S,PLL1202,PLL1202-S,PLL1202D,PLL1202D-S,POC1202,POC1202-S,POC1202D,POC1202D-S,PSA12,PSA12-S,PSA12D,PSA12D-S,PYB1202,PYB1202-S,PYB1202D,PYB1202D-S
    4: BPC402,GPSA4,GPSA4D,PC402,PC402-S,PC402D,PC402D-S,PEB402,PEB402-S,PEB402D,PEB402D-S,PED402,PED402-S,PED402D,PED402D-S,PL402,PL402-S,PL402D,PL402D-S,PLL402,PLL402-S,PLL402D,PLL402D-S,POC402,POC402-S,POC402D,POC402D-S,PSA4,PSA4-S,PSA4D,PSA4D-S,PYB402,PYB402-S,PYB402D,PYB402D-S
    6: BPC602,BPOC602,GPSA6,GPSA6D,PC602,PC602-S,PC602D,PC602D-S,PEB602,PEB602-S,PEB602D,PEB602D-S,PED602,PED602-S,PED602D,PED602D-S,PH602,PH602-S,PH602D,PH602D-S,PHW602,PHW602-S,PHW602D,PHW602D-S,PL602,PL602-S,PL602D,PL602D-S,PLL602,PLL602-S,PLL602D,PLL602D-S,POC602,POC602-S,POC602D,POC602D-S,PSA6,PSA6-S,PSA6D,PSA6D-S,PSL602A,PSL602A-S,PSL602AD,PSL602AD-S,PSL602B,PSL602B-S,PSL602BD,PSL602BD-S,PSS602A,PSS602A-S,PSS602AD,PSS602AD-S,PSS602B,PSS602B-S,PSS602BD,PSS602BD-S,PTL602A,PTL602AD,PTL602B,PTL602BD,PYB602,PYB602-S,PYB602D,PYB602D-S,PZB602,PZB602-S,PZB602D,PZB602D-S
    8: BPC802,BPOC802,GPSA8,GPSA8D,PC802,PC802-S,PC802D,PC802D-S,PEB802,PEB802-S,PEB802D,PEB802D-S,PED802,PED802-S,PED802D,PED802D-S,PH802,PH802-S,PH802D,PH802D-S,PHW802,PHW802-S,PHW802D,PHW802D-S,PL802,PL802-S,PL802D,PL802D-S,PLL802,PLL802-S,PLL802D,PLL802D-S,POC802,POC802-S,POC802D,POC802D-S,PSA8,PSA8-S,PSA8D,PSA8D-S,PSL802A,PSL802A-S,PSL802AD,PSL802AD-S,PSL802B,PSL802B-S,PSL802BD,PSL802BD-S,PSS802A,PSS802A-S,PSS802AD,PSS802AD-S,PSS802B,PSS802B-S,PSS802BD,PSS802BD-S,PTL802A,PTL802AD,PTL802B,PTL802BD,PYB802,PYB802-S,PYB802D,PYB802D-S,PZB802,PZB802-S,PZB802D,PZB802D-S
    10; male RA PT1/4 / female RB PT1/4: PHF1002,PHF1002-S,PHF1002D,PHF1002D-S
    6; male RA PT1/4 / female RB PT1/4: PHF602,PHF602-S,PHF602D,PHF602D-S
    8; male RA PT1/4 / female RB PT1/4: PHF802,PHF802-S,PHF802D,PHF802D-S
    main 8 / branch 6: PKD8-602,PKD8-602-S,PKD8-602D,PKD8-602D-S
    4 × 2.5: UE95A040025100MBU,US98A040025100MBU
    E BESL02,BESL02-S,BSL02,BSL02-S,BSLM02,BSLM02-S,PAL02,PAL02D,PALM02,PALM02D
    10: PPA10
    12: PPA12
    6: PPA6
    8: PPA8

    Match PT/G/NPT exactly. Use the specified thread seal or face gasket. Match tube OD and compression OD/ID; metric and inch sizes are not interchangeable. Use suitable soft nylon/PU tube and check seating, clearance, bends and flow. Tighten compression bodies by the hex, not tube nuts. Where listed: D is black, blank grey, -M miniature; -S denotes only the specified 304 stainless parts.

    PSA/GPSA are tube-side flow controls and need separate matching tube connections; they do not screw directly into P, W or E. PHF use male RA at the valve; female RB requires its own matching male thread and seal and is not a tube socket. Match both adapter ends to their separate mating parts. Branches join one circuit. Keep supply P, working A and exhaust R separate; do not bridge these paths.

    Standard push-in fittings, silencers and flow-control parts: ≤1 MPa, −20–70°C. Metal BPC/BPOC: ≤0.9 MPa; compression fittings/thread adapters: ≤1 MPa. The listed metal push-in, compression and adapter groups have a 0–150°C range, limiting the connected valve path to 0–70°C or narrower. Apply every stricter component limit; no system vacuum rating is established.

    This mechanically or manually operated M3 valve operates at 0–1 MPa and −20–70°C with 40 µm filtered air. Accessory limits may narrow that range; proof pressure is not working pressure. The piping choices are optional and ordered separately, and do not establish separately orderable panel-mounting or internal-part kits.

    Flow-control suffix A restricts thread→tube, with free reverse flow; suffix B reverses it. Supply normally flows tube→thread and exhaust thread→tube. At valve working port A, suffix A restricts flow to the actuator and suffix B the return; cylinder-mounted orientation differs. Follow the flow symbols, including PSA/GPSA. Closed controls are not leak-tight isolation. Adjust gently without forcing stops; depressurize before tube removal. Never cap an active supply, working or exhaust connection.

    Silencers serve only exhaust R. Check flow capacity and back pressure, including adjustable silencers and remote exhaust lines; do not restrict the exhaust so that valve or actuator operation is impaired. PPA silencers require matching metric push-in exhaust sockets; they are not threaded plugs or vacuum filters.

    ASC is a separately connected upstream supply flow control, assigned to P only. Both female ports require matching male connections; follow its P/A markings. Its limits are 0.05–0.95 MPa and −20–70°C with ≤40 µm filtration. The complete valve path must meet these and every stricter component limit; the valve’s 0–1 MPa range does not extend the ASC rating.

    GAFR is a separately connected upstream supply filter/regulator, assigned to P only. Both female ports require matching male piping; follow IN→OUT and check total flow and bowl/environment suitability. Inlet ≤1 MPa; regulation 0.15–0.9 MPa; −5–70°C, nonfreezing. Apply every stricter valve/component limit. Listed GAFR S versions have a 40 µm filter, PC bowl, differential/manual drain, bracket and round snap-in gauge (MPa/psi), without a reverse-flow valve. Air lubrication is not required. If lubricated air is introduced, continue with consistent lubrication using ISO VG32 or equivalent oil.

    US98A/UE95A examples are separately ordered blue 100 m metric PU coils rated 1 MPa at 23°C. US98A: −20–70°C; UE95A: −40–70°C. Match OD/ID and derate as temperature rises within valve/component limits; 1 MPa is not assured throughout. Use inch tube where the selected connection requires it; metric tube is not a substitute.

    PTL recommended cap-adjustment torque: 1/4: 0.16 N·m. These are not thread-installation torques.

    Items marked discontinued are historical service references, not current standard recommendations. Confirm availability or a manufacturer-approved replacement. An unmarked catalogue entry does not promise current production, stock or delivery. All listed options are ordered separately.

    Recently viewed products

      Footer image

      © 2026 Airtac, Powered by Shopify

      • US (USD $) US (USD $)
      • Ach Direct Debit
      • Amazon
      • American Express
      • Apple Pay
      • Bizum
      • Diners Club
      • Discover
      • Google Pay
      • Mastercard
      • MB WAY
      • PayPal
      • Satispay
      • Shop Pay
      • USDC
      • Visa
