Description

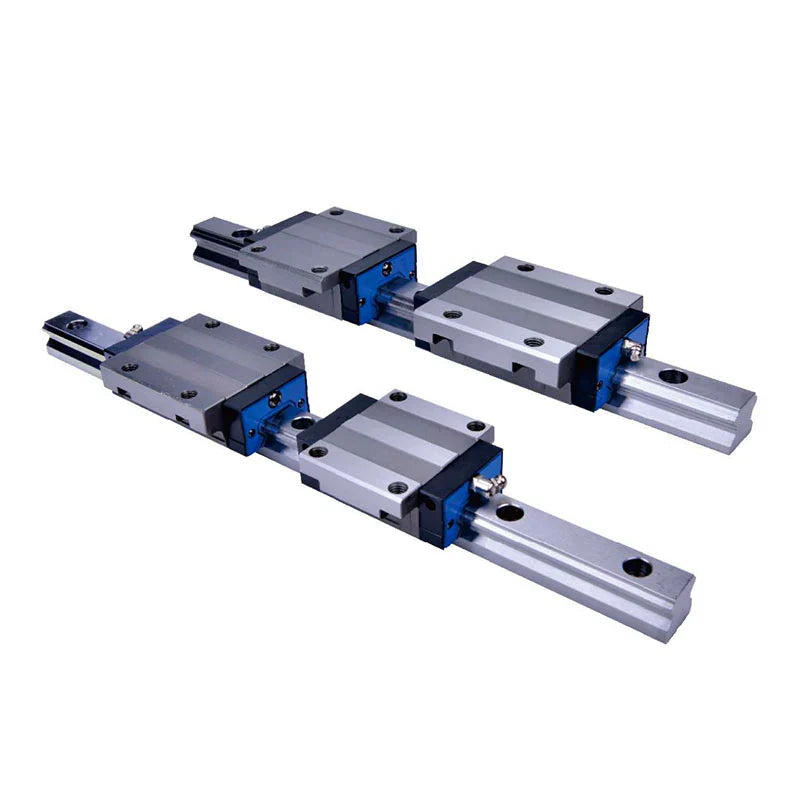

Specifications: silent linear slide Slider table: black chrome plated slider Slide width: 34mm slider code: slider Slider type: flange type up and down locking type Slider specifications: extended type Accuracy class: high Group code: B Nozzle/tubing joint specification: M6 to M8,L type
Click to download Airtac product catalog
Product Features
1. Low noise design. The special holding chain realizes accurate uniform distribution and equal interval arrangement of steel balls, prevents metal noise caused by disordered collision, significantly suppresses high-frequency sharp noise, and detects the frequency. Belly is most sensitive to human body at 1000-3000Hz. After strict testing in the full speed domain, the overall sound intensity is reduced by about 5 decibels compared with the standard series, improving the acoustic environment quality.
2. Oil storage and self-moistening design. Maintain a specific interval in the middle of the chain to build an oil storage area to accurately meet the lubrication needs of steel balls. When running to the direction turning part, the lubricating oil is automatically and evenly replenished, reducing the frequency and workload of manual oil replenishment. Conventional very light loads require no additional maintenance, reducing full life cycle costs.
3. High rate design. The spacing part of the holding chain is designed to eliminate the friction between the steel balls, and the steel balls are in circular line contact with the holding chain, which greatly reduces the friction resistance. High-speed movement with less energy loss, heat control, so that the guide has excellent high-speed performance, for high-speed mechanical systems to provide accurate and stable linear motion guidance, expand high-speed automated production lines and other fields of application.
4. Ride smoothness improvement. The friction resistance of the traditional non-holding chain guide rail fluctuates sharply during the initial operation of the steel ball impact, and the stability is poor. Keep the chain connected with the steel balls, the steel balls start almost synchronously when the slider moves, no round-trip collision, maintain stable motion inertia, reduce the range of friction resistance, ensure smooth and smooth movement, improve the smoothness and stability index, and provide reliable support for high-precision motion control.
