Description

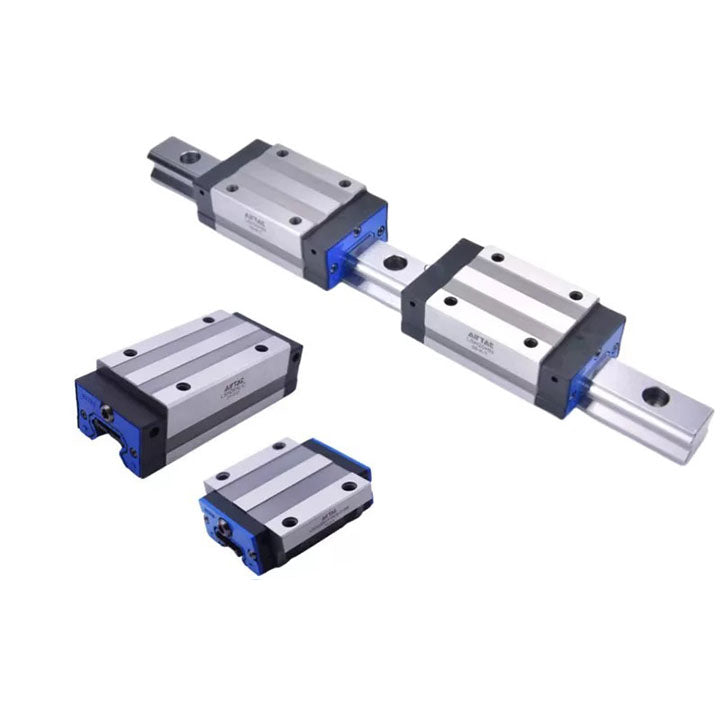

Specification: high temperature resistant linear slide Slide width: 23mm slider code: slider Slider type: flange type up and down locking type Slider specifications: standard type Accuracy class: high Group code: B Nozzle/tubing joint specification: M6 to PT1/8, straight-through type
Click to download Airtac product catalog
Product Features
1. With automatic self-aligning ability. The front combination of X-type (45 °-45 °) arc raceway groove design, so that it has the ability to automatically adjust the center, even if the installation surface has a little error, can be absorbed by the slider and maintain high-precision smooth and stable linear motion.
2. High stiffness, four directions and equal load design. Using 4 rows of steel balls and raceway 45 degrees contact angle design, steel balls to achieve the ideal two-point contact, can withstand the positive reaction force from the radial and transverse, and if necessary, can also apply pre-pressure to increase the rigidity.
3. Have interchangeability. Due to the strict control of production and manufacturing accuracy, the dimensional accuracy can be maintained within a stable tolerance range, and the slider has a cage design to prevent the steel ball from falling, so the slider can be arbitrarily assembled on the same type of slide rail for interchangeable line rail assembly, and its smoothness, prepressure and accuracy can be maintained.
