Description

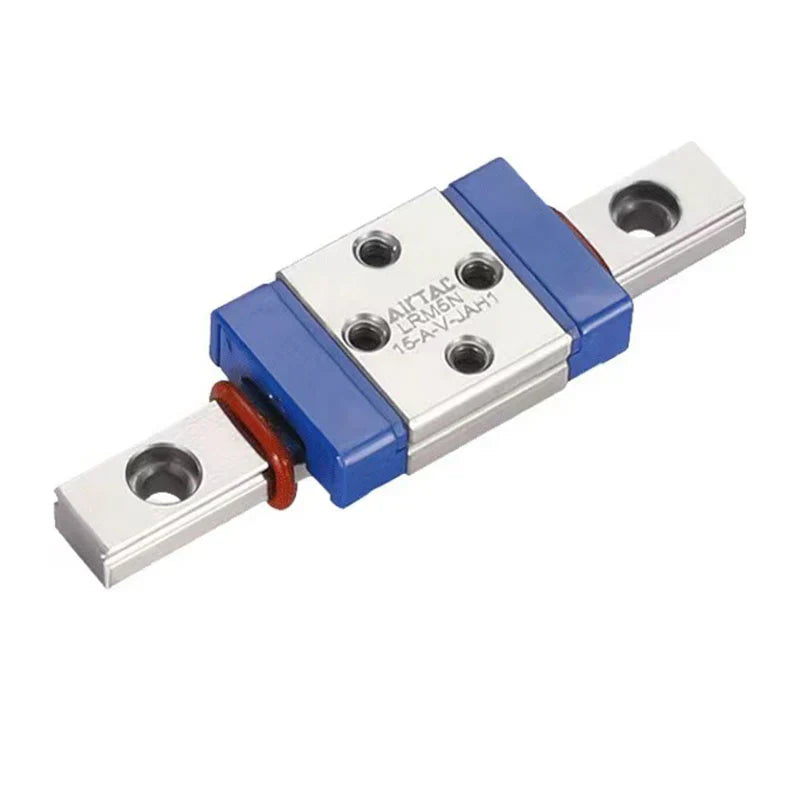

Specifications: Low Mounting Linear Slide Slide width: 23mm Slide Rail length: 220mm Edge distance of rail head end hole: 20mm Accuracy class: high Group code: E
Click to download Airtac product catalog
Product Features
1. With automatic centering ability; The front combination X-type (45-45 degrees) arc raceway groove design makes it have automatic centering ability. Even if there is a little error in the mounting surface, it can be absorbed by the slider and maintain high-precision smooth and stable linear motion.
2. Low installation, high stiffness, four directions and other load design; Using 4 rows of steel balls and raceway 45 degrees contact angle design, steel balls to achieve the ideal two-point contact, can withstand the positive reaction force from the radial and transverse, and if necessary, can also apply pre-pressure to increase rigidity. Reduce the combined height of the slider and the slide rail, shorten the length of the slider, and realize miniaturization.
3. Interchangeability; Due to strict control of production and manufacturing accuracy, dimensional accuracy can be maintained within a stable tolerance range, and the slider is designed with a cage to prevent steel balls from falling off, the slider can be arbitrarily assembled on the same type of slide rail during assembly of interchangeable line rails, and its smoothness, preloading and accuracy can be maintained.
