Description

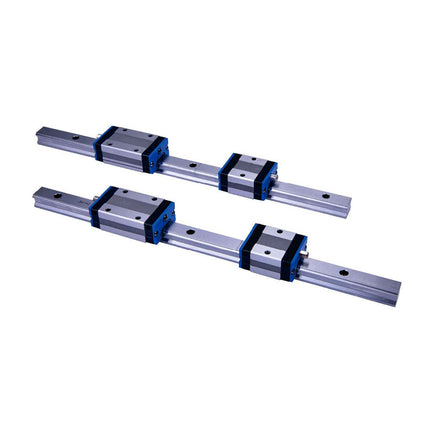

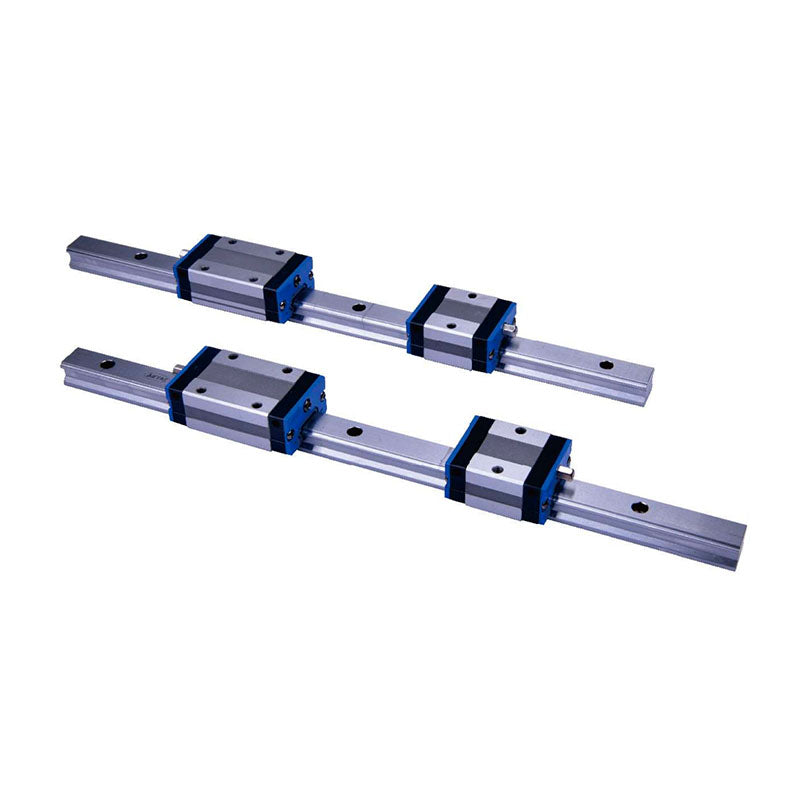

The hole spacing needs to be provided by the customer to us, otherwise it will be shipped according to the official standard size/low installation linear slide rail/slide rail width 15mm/slide rail length 600mm/slide rail head end hole margin 0mm/precision grade: advanced/matching grade: d/locking type (applicable M4 bolt)/Up locked/right end hole margin 8.0mm/
Product Features:
1.X-shaped(45°-45°)of curved groove oncross section design makesitself-ligning.Even small misalignmentexists on the mounting surface this design can help absorbit and maintain high precision,smooth and stable linear motion.
2.Low profile,High rigidity,equal load on four direction design
The 45-degree contact angle design of the four rows of steelballsand the raceway allow the steel ball to achieve the ideal wo-point contact
and can withstand the action and reaction force from theradialandlatera direction.Meanwhile,pre-loadcan be appliedto increase extrarigdityif necessary. Reduce the combined height of the slide block and the slide rail,shorten the length of the slide block,to achieve miniaturization.
3.Because of the strict control on manufacturing process,the dimensional accuracy is stable andwithin the set tolerance.
Besides,theball etainer design can prevent stee ball from falling out.Therefore when assembing,blocks areinterchangeable within the samespec and still maintain consistency of pre-load and accuracy.
