Description

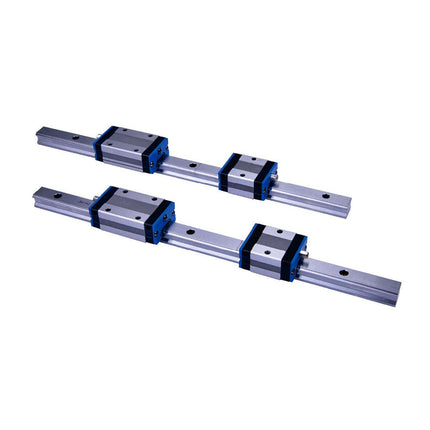

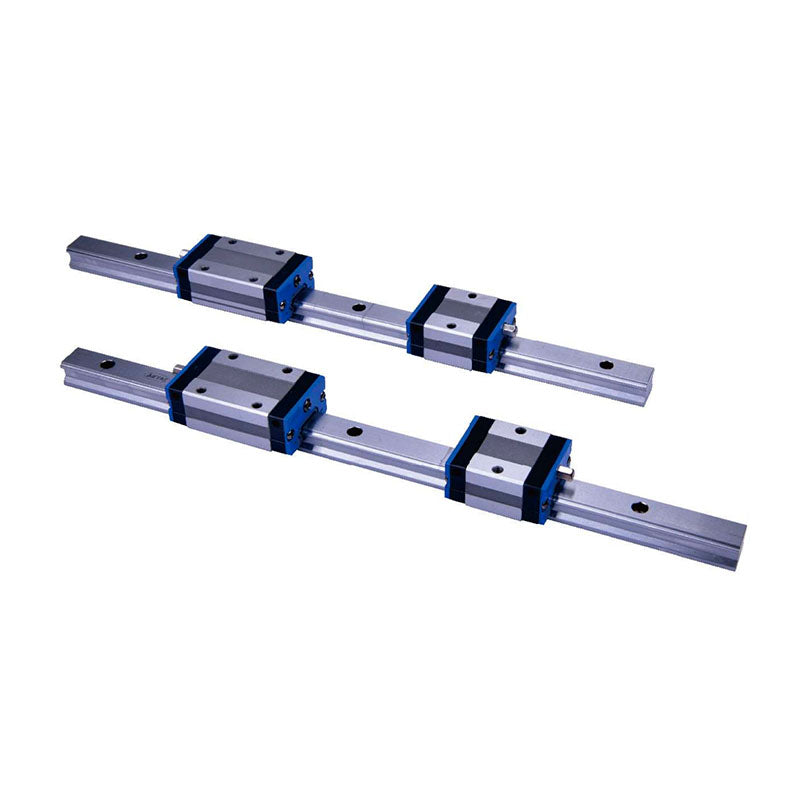

Low-mounted linear slide rail rail width 15mm/square slide block/standard type/precision grade: normal grade/matching grade: SB grade/M4 to M6,L type/no high dust-proof accessory/
Product Features:
1.X-shaped(45°-45°)of curved groove oncross section design makesitself-ligning.Even small misalignmentexists on the mounting surface this design can help absorbit and maintain high precision,smooth and stable linear motion.
2.Low profile,High rigidity,equal load on four direction design
The 45-degree contact angle design of the four rows of steelballsand the raceway allow the steel ball to achieve the ideal wo-point contact
and can withstand the action and reaction force from theradialandlatera direction.Meanwhile,pre-loadcan be appliedto increase extrarigdityif necessary. Reduce the combined height of the slide block and the slide rail,shorten the length of the slide block,to achieve miniaturization.
3.Because of the strict control on manufacturing process,the dimensional accuracy is stable andwithin the set tolerance.
Besides,theball etainer design can prevent stee ball from falling out.Therefore when assembing,blocks areinterchangeable within the samespec and still maintain consistency of pre-load and accuracy.
