Description

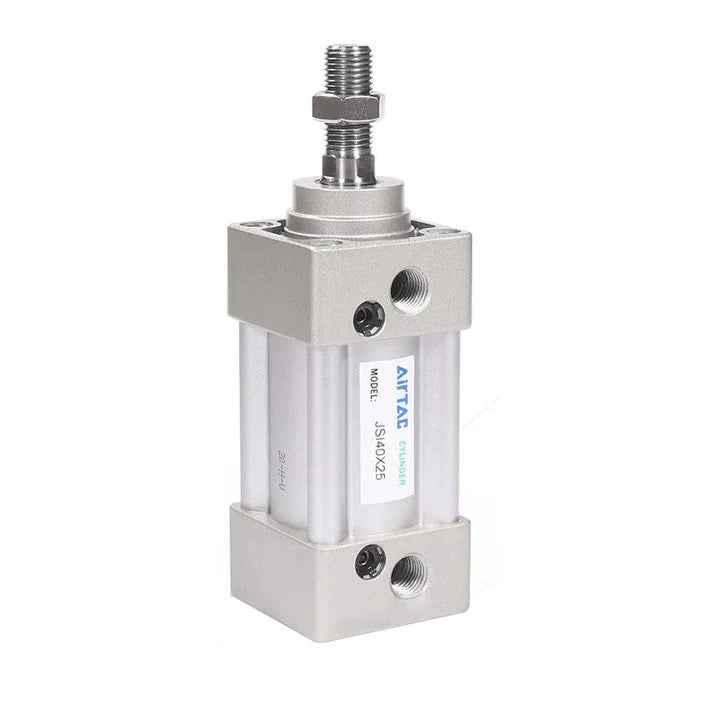

Specifications: Double-axis compound stroke adjustable type Bore: 63mm Stroke: 1546mm Adjusting stroke: 100mm Magnet: with magnet Fixed type: none Tooth type: G tooth
Specifications
1. Model: JSIJ63X1546-100SG
2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,LB,TC,TCM1,TCM2
3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar)
4. Working temperature ℃:-20~70, Use speed range mm/s:30~800, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0
5. Buffer type: adjustable buffer, buffer stroke: 20.5, Nozzle caliber: PT3/8
6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSE,CMSE
Internal structure and main parts material: 1. nut: carbon steel/2. Piston rod: S45C hard chrome abrasive rod/3. Front cover o order: TPU/4. Bushing: wear-resistant material/5. Front cover: Aluminum alloy/6. Buffer gasket: TPU/7. Cylinder: aluminum alloy/8.O-ring: NBR/9. Piston: Aluminum alloy/10. Piston O: NBR/11. Magnet: plastic/12. Wear ring: wear-resistant material/13. Buffer O: TPU/14. Hexagon socket bolt: carbon steel/15. Back cover: Aluminum alloy/16. Strut Nut: Carbon Steel
Type of sealing ring :P-JSIJ63-R1 TPU material P-JSIJ63N-R1 NBR Material P-JSIJ63-R2 Fluorine rubber material ， Installation accessories :F-JSI63LB Axial mounting F-SI63FA Flange connecting plate F-SAI63TC Middle Trunnion Bracket F-SI63TCM1 trunnion mount F-SI63TCM2 trunnion mount ， Piston rod end joint :F-M18X150I I Connector F-M18X150Y Y connector F-M18X150F Floating joint F-M18X150U fisheye joint
Click to download Airtac product catalog
Product Features
1.JIS standard cylinder.
2. The piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function.
3.JSI series aluminum tube meter type, no pull rod, good corrosion resistance.
4. Compared with ISO15552 standard cylinders, the length of JSI series cylinders with the same bore is small.
5. The cylinder buffer adjustment is stable.
6. A variety of specifications of the cylinder and installation accessories to choose from.
