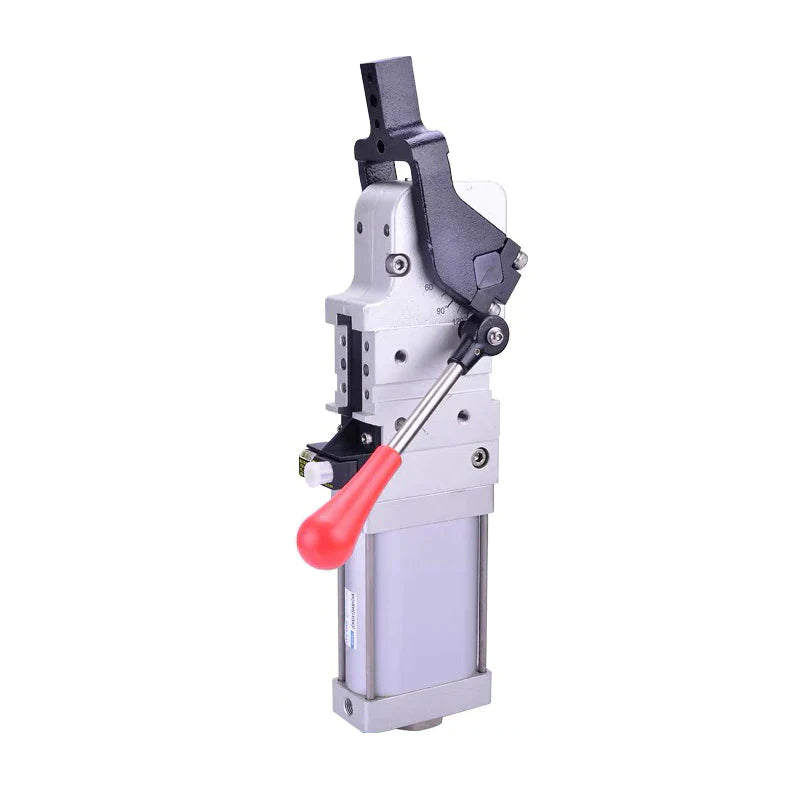

Description
Output torque (0.5MPa):120N.m Action type: complex type Working medium: air (filtered by filter screen above 40μm) Working pressure range: 0.3~0.8MPa(43~116psi) Guaranteed pressure resistance: 1.2MPa(175psi) Operating temperature:-10~60°C Opening angle: 45 ° Minimum opening and closing time: 1 second clamping, 1 second opening Position sensing: pneumatic sensor Buffer form: gas buffer Nozzle caliber: PT1/8
Click to download Airtac product catalog
Product Features
1. The cylinder provides three-sided installation, and the installation size conforms to DIN standard.
2. Mechanism and cylinder integrated design.
3. Clamping arm and other models and specifications of the cylinder clamping arm common.
4. The opening angle is simpler and more convenient (by replacing the adjusting screw).
5. The pneumatic sensor has been preset in the cylinder, with the built-in mechanical valve to achieve full pneumatic control function, the signal output is stable and reliable.
