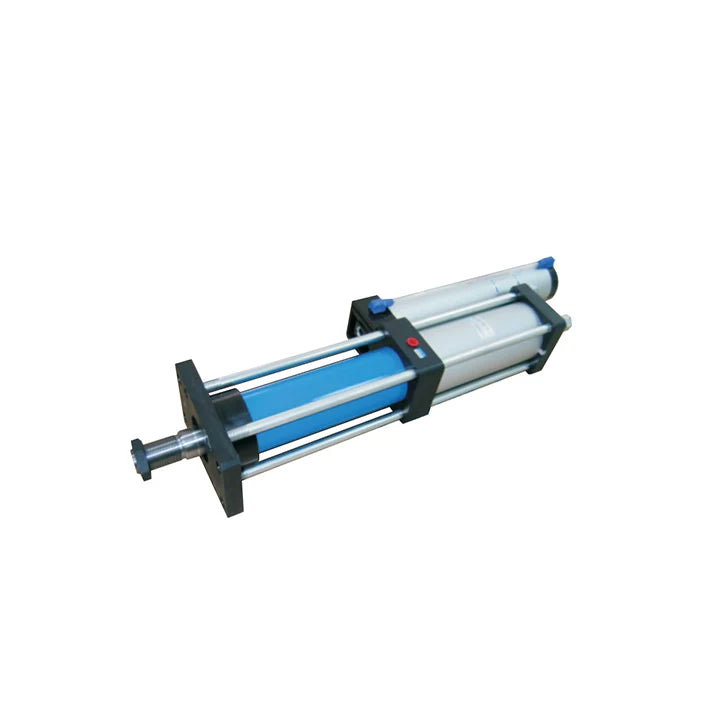

Airtac APT series: air-oil booster - APT-15TX50-20-20T-S

Photos are for reference only. Not all models have pictures.

Description

Specifications: APT-15TX50-20-20T-S — standard air-oil booster listing with 125 mm selected hydraulic bore, 20 mm boosted stroke and 20 tonne output-class selection.

Product Catalog

Download Airtac Product Catalog (PDF)

For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

This Ordering Code

Code Meaning
APT Standard air-oil booster
15T 125 mm hydraulic bore under the catalog’s bore-code mapping
X50 50 mm total stroke
20 20 mm boosted stroke
20T 20 tonne theoretical output class
S Horizontal arrangement

Technical Specifications

Parameter Details
Selected hydraulic bore 125 mm
Selected boosted stroke 20 mm
Total stroke 50 mm
Selected output class 20 tonne
Air pressure, series range 0.2–0.7 MPa, filtered dry air
Oil grade ISO VG68
Working temperature, series range −5 to +60°C
Hydraulic proof pressure, series 30 MPa
Pneumatic proof pressure, series 1.5 MPa
Stroke tolerance +1.0 / 0 mm
Working frequency, series 10 cycles/min

Dimensions and Installation

Parameter Details
A 165 mm
B 411 mm
C 846 mm
D 936 mm
E 220 mm
Flange width / height 200 / 285 mm
Flange fixing pitch 140 × 255 mm
Flange holes 4 × Ø25 mm
Rod diameter Ø55 mm
Rod-end thread M48 × 2P
Rear cylinder section 180 mm
Gauge port PT1/4
Air-port designation Three PT1/2 ports in the drawing heading

Dimensions are in millimetres unless a different unit is shown. Lettered dimensions refer to the matching drawing in the catalog; check that drawing before machining or installing the product.

Dimension-table caution: this exact stroke row has non-progressive A/C/D values compared with the neighbouring strokes. The printed values are reproduced above without correcting them; obtain an approved installation drawing for this exact stroke before machining.

Theoretical Output

Parameter Details
Pre-pressure output at 1 kgf/cm² 120 kgf-equivalent
Pre-pressure output at 2 kgf/cm² 240 kgf-equivalent
Pre-pressure output at 3 kgf/cm² 360 kgf-equivalent
Pre-pressure output at 4 kgf/cm² 480 kgf-equivalent
Pre-pressure output at 5 kgf/cm² 600 kgf-equivalent
Pre-pressure output at 6 kgf/cm² 720 kgf-equivalent
Pre-pressure output at 7 kgf/cm² 840 kgf-equivalent
Boosted output at 1 kgf/cm² 3500 kgf-equivalent
Boosted output at 2 kgf/cm² 7000 kgf-equivalent
Boosted output at 3 kgf/cm² 10500 kgf-equivalent
Boosted output at 4 kgf/cm² 14000 kgf-equivalent
Boosted output at 5 kgf/cm² 17500 kgf-equivalent
Boosted output at 6 kgf/cm² 21000 kgf-equivalent
Boosted output at 7 kgf/cm² 24500 kgf-equivalent
Return pull at 1 kgf/cm² 90 kgf-equivalent
Return pull at 2 kgf/cm² 180 kgf-equivalent
Return pull at 3 kgf/cm² 270 kgf-equivalent
Return pull at 4 kgf/cm² 360 kgf-equivalent
Return pull at 5 kgf/cm² 450 kgf-equivalent
Return pull at 6 kgf/cm² 540 kgf-equivalent
Return pull at 7 kgf/cm² 630 kgf-equivalent

Values above follow the printed theoretical table. The 1 kgf/cm² column is a calculation reference below the 0.2 MPa minimum operating pressure; it is not a permitted operating point. Theoretical output is not a guaranteed measured force.

The dimension table illustrates the standard cylinder configuration. For horizontal installation, the reservoir is connected vertically to the hydraulic cylinder as stated in the ordering footnote. The standard drawing is a dimensional reference, not a complete final layout for an independently positioned reservoir.

System Installation

  • Use filtered, dry compressed air within the stated pressure range.
  • A receiver between the air-preparation assembly and booster is recommended to stabilise the pressure supply.
  • An automatic-drain air-preparation assembly is recommended for the supply.
  • Use the oil grade specified for this series; the overview mentions ISO VG32 and VG68 for different products, so do not interchange them without the series requirement.
  • A regulator with reverse-flow function before the high-pressure-stage air inlet allows the minimum required working force to be set, reducing tooling load and air consumption.
  • Normal mounting is by flange with the output rod pointing down. For horizontal mounting, arrange the air-oil converter upright as illustrated.
  • Inverted or inclined installation cannot use the standard arrangement directly; the converter must be arranged upright as shown for the modified layout.
  • Mount the intensifier above the hydraulic cylinder where possible; a different orientation requires the specified alternative design.
  • The recommended circuit shows two 5/2 solenoid valves, speed-control valves, an air receiver and air preparation; these are circuit components, not an automatic list of items supplied with this cylinder.

For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

Estimated Weight

43215 g. This is a calculated reference estimate for this product, not a manufacturer-published or measured product weight. Packaging is excluded. Approximate matching-bore reference envelope 936 × 200 × 285 mm × assumed aluminium-equivalent density 2.7 g/cm³ × 30% solid fill; excludes operating oil and remote pipework.
