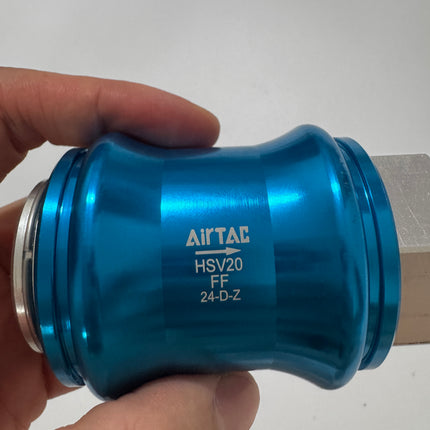

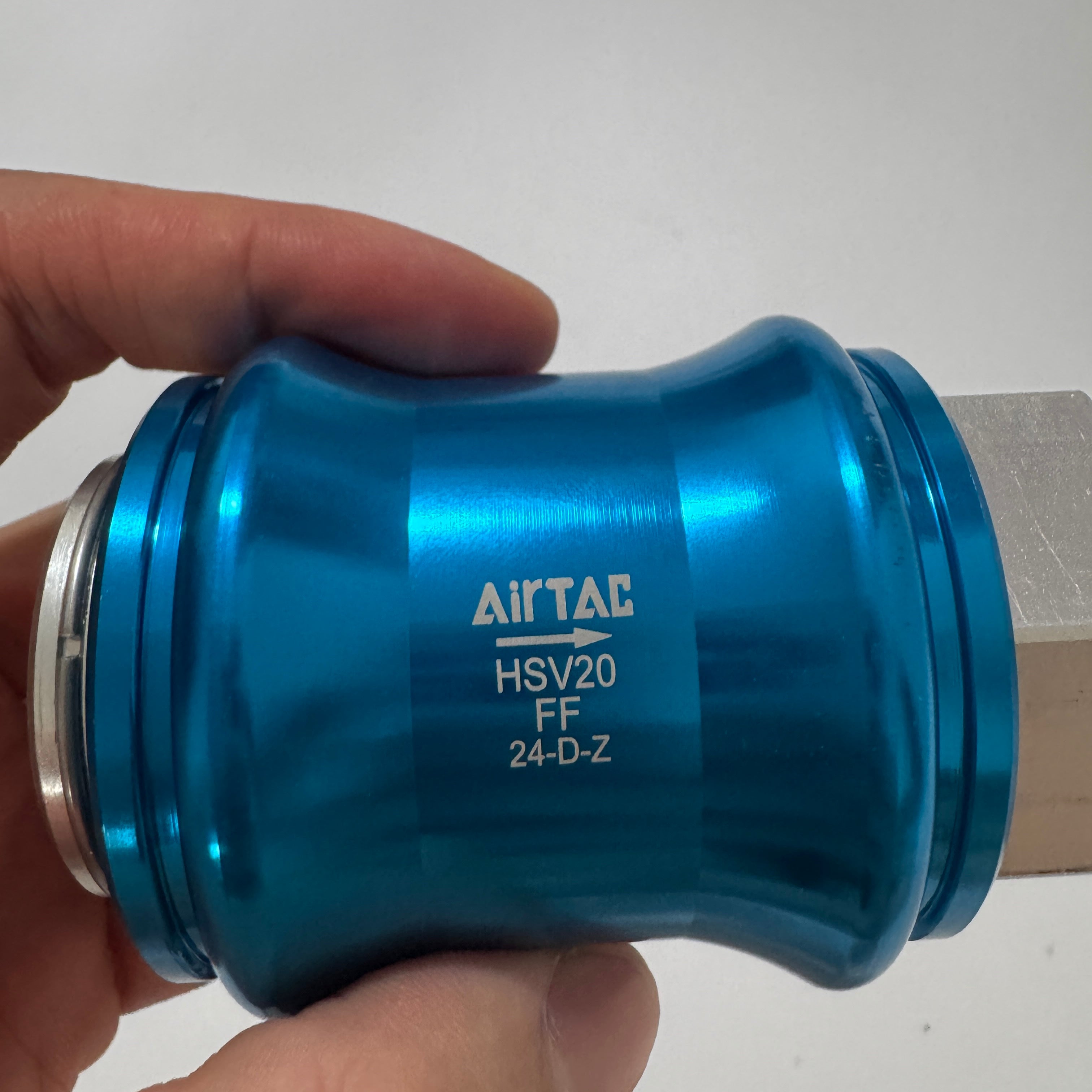

Airtac HSV series: hand slide valve - HSV20FF
Photos are for reference only. Not all models have pictures.
Description
Specifications: HSV20FF is a 3-port, 2-position manual hand slide valve. HSV identifies the series, 20 selects the 3/4-inch connection size, FF selects female-thread connections at both ends, and the omitted final suffix selects PT thread.
Product Catalog
Download Airtac Product Catalog (PDF)
For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.
Model Code Explained
Code
Meaning for this model
HSV
Manual hand slide valve
20
Port size PT 3/4
FF
Female-thread connections at both ends
Thread suffix omitted
PT thread
Technical Specifications
Parameter
Details
Valve function
3-port, 2-position
Actuation
Direct acting; manual sliding control
Connection size
PT 3/4
Connection arrangement
Female-thread connections at both ends
Effective flow area
250 mm²
Cv
13.8
Body material
Aluminum alloy
Working medium
Air, filtered through a 40 µm filter element
Working pressure
0–1.0 MPa
Proof pressure
1.5 MPa
Operating temperature
−20 to 70 °C
Air lubrication
Not required
Weight
The 2022 catalog weight table does not list an exact weight for this configuration

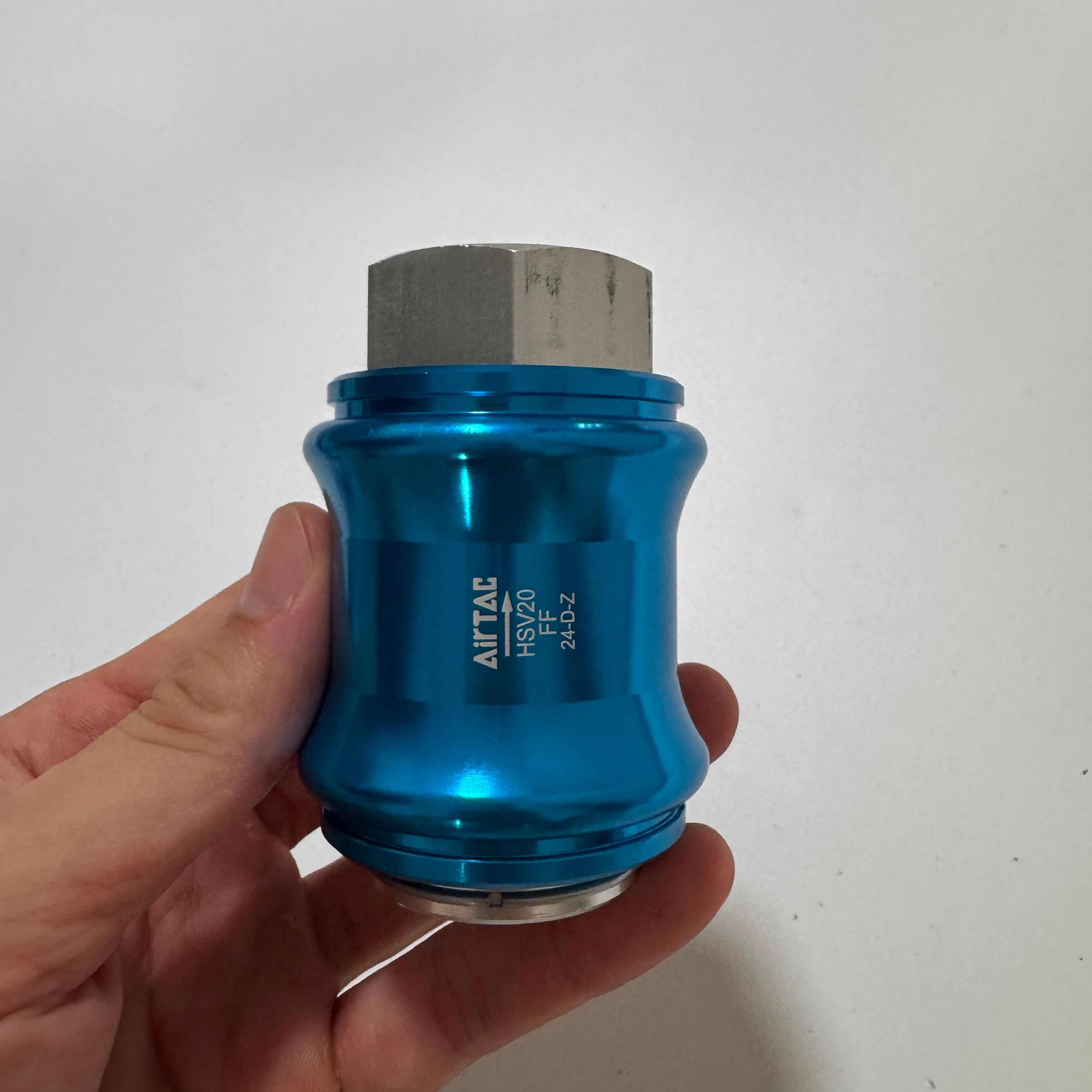

Features and Operation
The sleeve is moved by hand to change the valve state. Follow the IN/OUT orientation indicated in the applicable catalog drawing.
The series offers different male/female connections for different piping arrangements, with smooth sliding operation and a large effective flow area.
The valve plug receives a hard-anodized surface treatment, and the body is anodized.

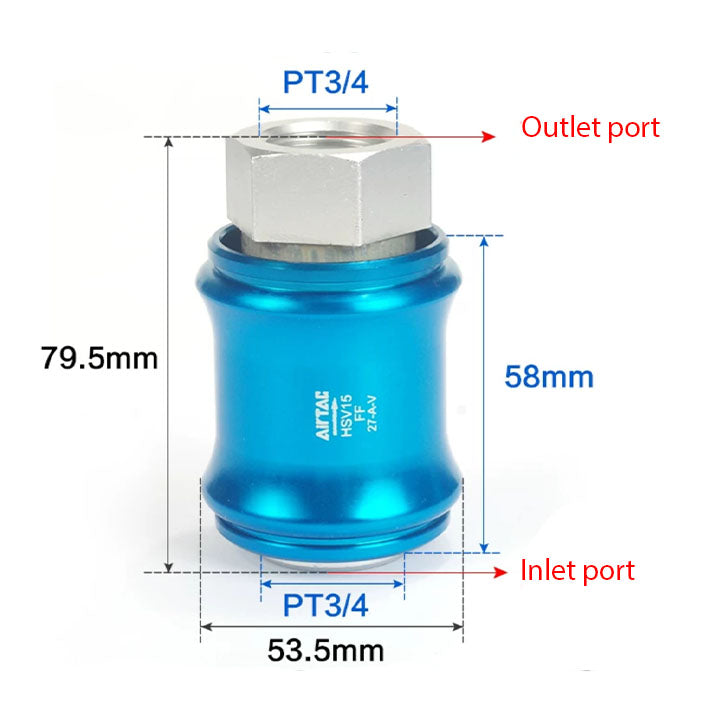

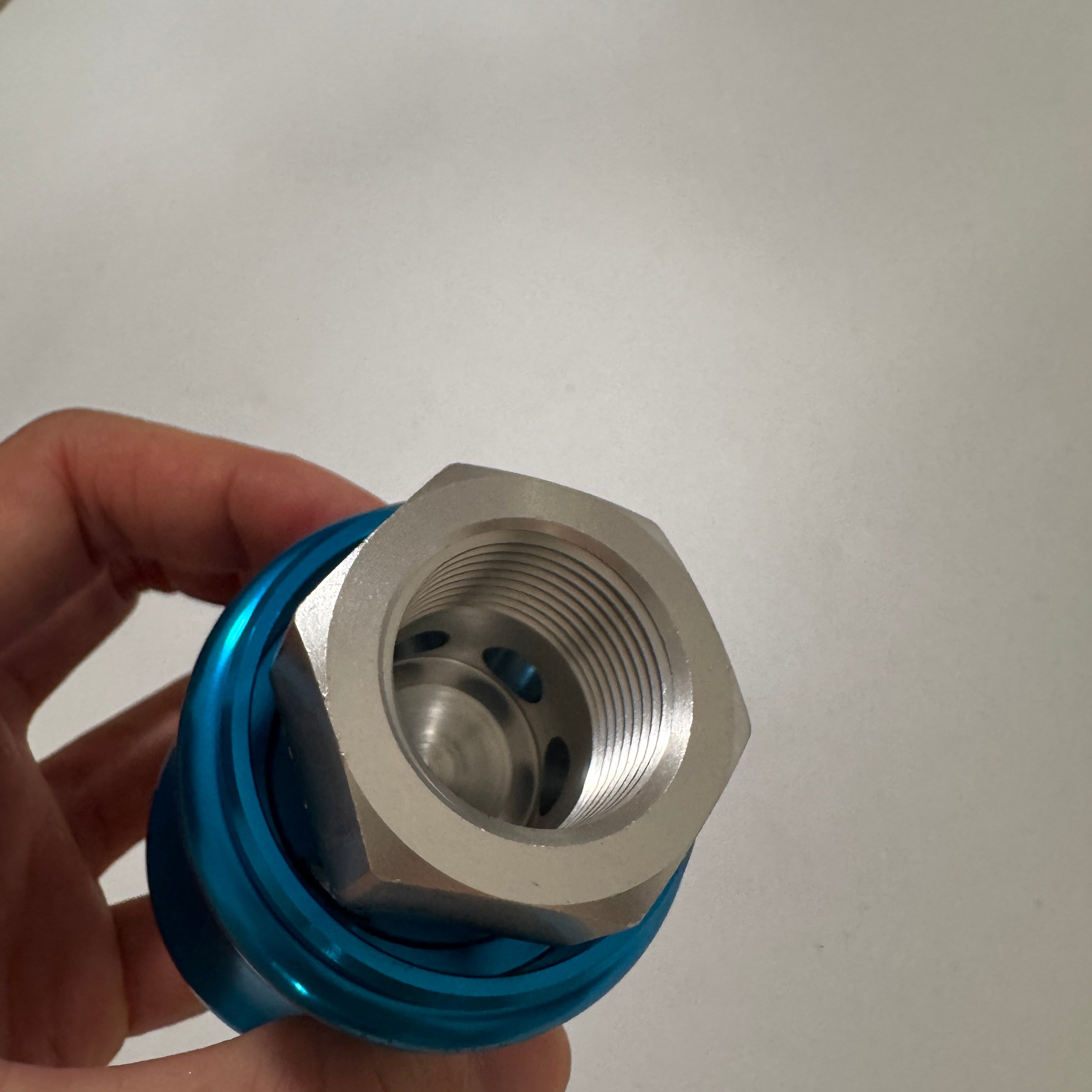

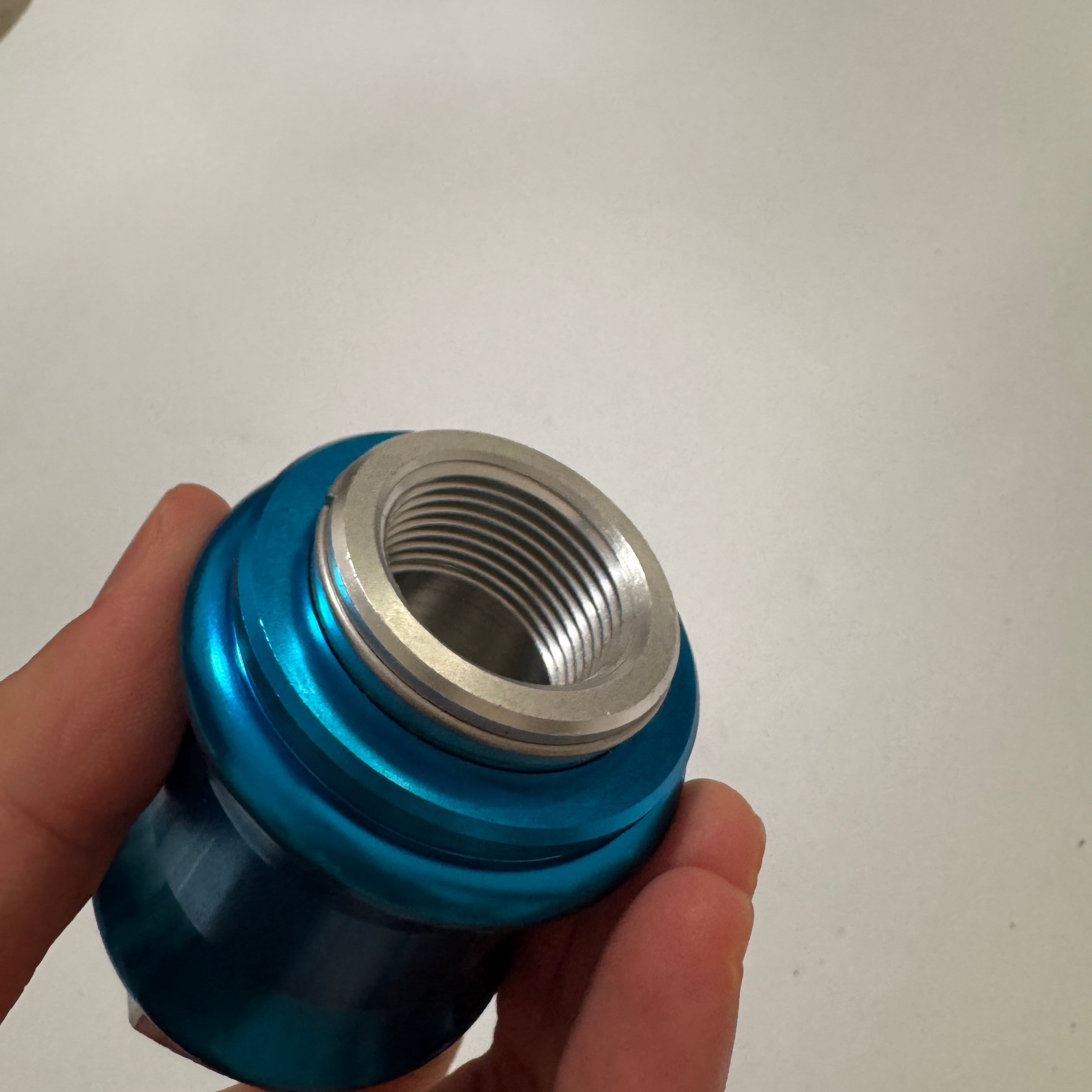

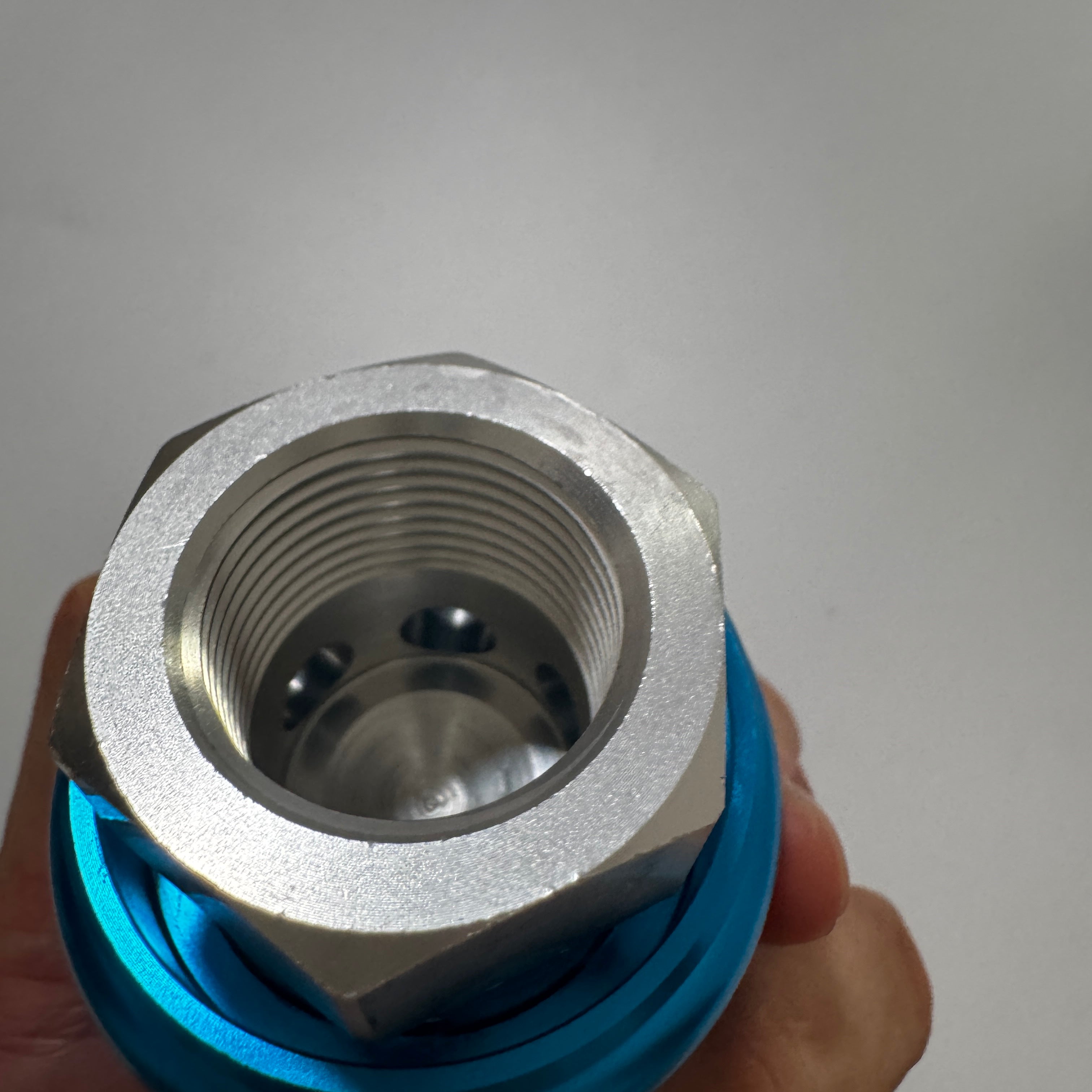

External and Mounting Dimensions
Drawing label
Value for this model
A — FF drawing
79.5 mm
B — outside diameter
Ø53.5 mm
BA — hexagon reference
36 mm
D — body-length reference
58 mm
E
PT 3/4
EA
PT 3/4
Use the FF drawing to locate the thread callouts and the IN/OUT ends. The standard and SF arrangements have distinct drawings even where the overall A value matches. The BA value is retained as the size-table hexagon reference; the detailed connection view determines its location.
For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.
Flow and Performance Reference
The specification table lists an effective area of 250 mm² and Cv 13.8 for the 3/4-inch size. No separate performance curve or variant-specific weight table is supplied on this page.
Internal Components
The numbered items below reproduce the catalog internal-structure reference. Item numbers identify parts in the illustration; they are not quantities, replacement-kit order codes or a list of separately supplied accessories.
Catalog item number
Component name
1
Valve plug
2
Body
3
O-ring
4
Retaining clip
Series Ordering Options
The series offers 1/8, 1/4, 3/8, 1/2, 3/4 and 1-inch sizes. An omitted arrangement suffix selects Standard; SS selects male/male, FF female/female, and SF mixed male/female. An omitted thread suffix selects PT; G and T select G and NPT. These are alternative valve configurations; the page does not publish a separate accessory kit or kit quantities.
Reference Weight
Estimated reference weight: 227 g. The reference is HSV20, published at 227 g. The FF end-connection arrangement differs from the basic HSV reference and has no separately published mass adjustment. The current option differences are not individually weighed; this weight analogy does not establish technical or mounting interchangeability. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.
Optional Piping Accessories
IN = this HSV valve’s inlet (PT3/4, female, drawing E); OUT = its controlled outlet (PT3/4, female, drawing EA). Match each end with the opposite connection gender. Follow the valve’s IN/OUT markings; Standard and SF are not reversible equivalents. Each listed branch stays on its assigned side and must not bypass the valve. No separately threaded exhaust, pilot or manifold route is assigned. Multiple keys retain each use. Tube OD is mm (in = inches); compression/tubing show OD × ID. These piping accessories are optional and ordered separately.
Code-prefix uses (match the longest listed family prefix): GAFR upstream filter-regulator.
Use
Size / complete codes
IN
GAFR50020S,GAFR600C20S
The HSV valve operates at 0–1 MPa and −20–70°C with 40 µm filtered air. Apply every stricter component limit; proof pressure is not working pressure and no complete-path vacuum rating is established. All listed accessories are optional and ordered separately. Leave clearance to move the sliding sleeve fully and preserve the valve’s exhaust function.
Match the exact PT, G or NPT standard, size and opposite thread gender at each assigned end. Use the specified thread seal or face gasket and check engagement, tool access and support. Keep IN and OUT separate; never use a branch or adapter to bypass the valve. The sleeve and exhaust openings must remain unobstructed. The connection-arrangement suffix describes the complete valve, not a separate adapter kit.
GAFR serves upstream IN only. Both GAFR ports are female; connect its OUT to this female HSV IN through separately selected matching male piping. Follow GAFR IN→OUT and verify total flow and bowl/environment suitability. Inlet ≤1 MPa; regulation 0.15–0.9 MPa; −5–70°C without freezing. These are not 1 MPa regulated-output ratings. GAFR500 uses the listed default PC bowl; GAFR600C requires the metal bowl C. The listed standard S codes specify 40 µm filtration, differential/manual drain, bracket, round snap-in gauge (MPa/psi) and no reverse-flow valve. Other options change the complete code. Air lubrication is not required by the HSV specification.
Items marked discontinued are historical service references, not current standard recommendations. Confirm availability or a manufacturer-approved replacement. An unmarked catalogue entry does not promise current production, stock or delivery.
Product form
