Specifications: HSV06SFG is a 3-port, 2-position manual hand slide valve. HSV identifies the series, 06 selects the 1/8-inch connection size, SF selects one male-thread and one female-thread connection, and the G final suffix selects G thread.
Product Catalog
Download Airtac Product Catalog (PDF)
For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.
Model Code Explained
| Code |
Meaning for this model |
| HSV |
Manual hand slide valve |
| 06 |
Port size G 1/8 |
| SF |
One male-thread and one female-thread connection |
| G |
G thread |
Technical Specifications
| Parameter |
Details |
| Valve function |
3-port, 2-position |
| Actuation |
Direct acting; manual sliding control |
| Connection size |
G 1/8 |
| Connection arrangement |
One male-thread and one female-thread connection |
| Effective flow area |
23 mm² |
| Cv |
1.28 |
| Body material |
Aluminum alloy |
| Working medium |
Air, filtered through a 40 µm filter element |
| Working pressure |
0–1.0 MPa |
| Proof pressure |
1.5 MPa |
| Operating temperature |
−20 to 70 °C |
| Air lubrication |
Not required |
| Weight |
The 2022 catalog weight table does not list an exact weight for this configuration |
Features and Operation
- The sleeve is moved by hand to change the valve state. Follow the IN/OUT orientation indicated in the applicable catalog drawing.
- The series offers different male/female connections for different piping arrangements, with smooth sliding operation and a large effective flow area.
- The valve plug receives a hard-anodized surface treatment, and the body is anodized.

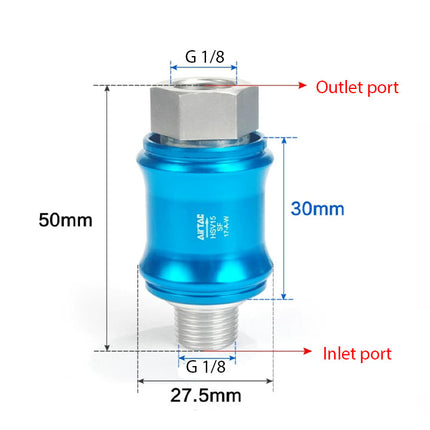

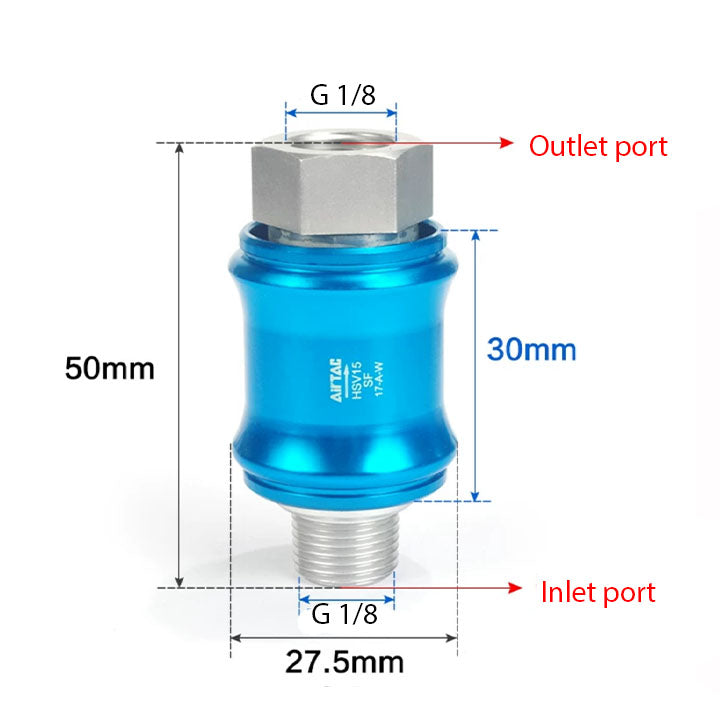

External and Mounting Dimensions
| Drawing label |
Value for this model |
| A — SF drawing |
50 mm |
| B — outside diameter |
Ø27.5 mm |
| BA — hexagon reference |
17 mm |
| D — body-length reference |
30 mm |
| EA |
G 1/8 |
| FA |
G 1/8 |
Use the SF drawing to locate the thread callouts and the IN/OUT ends. The standard and SF arrangements have distinct drawings even where the overall A value matches. The BA value is retained as the size-table hexagon reference; the detailed connection view determines its location.
For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.
Flow and Performance Reference
The specification table lists an effective area of 23 mm² and Cv 1.28 for the 1/8-inch size. No separate performance curve or variant-specific weight table is supplied on this page.
Internal Components
The numbered items below reproduce the catalog internal-structure reference. Item numbers identify parts in the illustration; they are not quantities, replacement-kit order codes or a list of separately supplied accessories.
| Catalog item number |
Component name |
| 1 |
Valve plug |
| 2 |
Body |
| 3 |
O-ring |
| 4 |
Retaining clip |
Series Ordering Options
The series offers 1/8, 1/4, 3/8, 1/2, 3/4 and 1-inch sizes. An omitted arrangement suffix selects Standard; SS selects male/male, FF female/female, and SF mixed male/female. An omitted thread suffix selects PT; G and T select G and NPT. These are alternative valve configurations; the page does not publish a separate accessory kit or kit quantities.
Optional Piping Accessories
IN = this HSV valve’s inlet (G1/8, male, drawing FA); OUT = its controlled outlet (G1/8, female, drawing EA). Match each end with the opposite connection gender. Follow the valve’s IN/OUT markings; Standard and SF are not reversible equivalents. Each listed branch stays on its assigned side and must not bypass the valve. No separately threaded exhaust, pilot or manifold route is assigned. Multiple keys retain each use. Tube OD is mm (in = inches); compression/tubing show OD × ID. These piping accessories are optional and ordered separately.
Code-prefix uses (match the longest listed family prefix): ASC inline threaded flow control; GAFR upstream filter-regulator; GBB male–male; GBD male–female; GBKC compression fitting; GBPC metal straight; GBPCF metal female straight connector; GBPMF metal female bulkhead connector; GBU double female straight coupling; GPC straight; GPCF female straight connector; GPEB branch tee; GPED run tee; GPH banjo elbow; GPHF female branch banjo; GPHW twin banjo; GPKD reducing distribution fitting; GPL elbow; GPLF female elbow; GPLL extended elbow; GPMF female bulkhead connector; GPSA/PSA inline flow control; GPSS flow control; GPTL push-lock flow control; GPYB Y; GPZB cross; UE PU tube; US PU tube.
| Use |
Size / complete codes |
| IN |
ASC10006G,GAFR20006SG
male G1/4 ↔ female G1/8: GBD0102
male G3/8 ↔ female G1/8: GBD0103
male G1/2 ↔ female G1/8: GBD0104
G1/8 female / 4 OD: GBPCF401,GBPMF401,GPCF401,GPCF401D,GPLF401,GPLF401D,GPMF401,GPMF401D
G1/8 female / 6 OD: GBPCF601,GBPMF601,GPCF601,GPCF601D,GPLF601,GPLF601D,GPMF601,GPMF601D
G1/8 female / 8 OD: GBPCF801,GBPMF801,GPCF801,GPCF801D,GPLF801,GPLF801D,GPMF801,GPMF801D
G1/8 female / G1/8 female: GBU0101
G1/8 female / 10 OD: GPCF1001,GPCF1001D,GPLF1001,GPLF1001D,GPMF1001,GPMF1001D |
| OUT |
male G1/8 ↔ male G1/8: GBB0101
male G1/4 ↔ male G1/8: GBB0102
male G3/8 ↔ male G1/8: GBB0103
4 × 2.5: GBKC0425-01
6 × 4: GBKC0604-01
8 × 5: GBKC0805-01
8 × 5.5 or 6: GBKC0806-01
10: GBPC1001,GPC1001,GPC1001D,GPEB1001,GPEB1001D,GPED1001,GPED1001D,GPL1001,GPL1001D,GPLL1001,GPLL1001D,GPYB1001,GPYB1001D
4: GBPC401,GPC401-M,GPC401D-M,GPEB401,GPEB401D,GPED401,GPED401D,GPH401,GPH401D,GPHW401,GPHW401D,GPL401-M,GPL401D-M,GPLL401,GPLL401D,GPYB401,GPYB401D
6: GBPC601,GPC601,GPC601-M,GPC601D,GPC601D-M,GPEB601,GPEB601D,GPED601,GPED601D,GPH601,GPH601D,GPHW601,GPHW601D,GPL601,GPL601-M,GPL601D,GPL601D-M,GPLL601,GPLL601D,GPSS601A,GPSS601AD,GPSS601B,GPSS601BD,GPTL601A,GPTL601AD,GPTL601B,GPTL601BD,GPYB601,GPYB601D,GPZB601,GPZB601D
8: GBPC801,GPC801,GPC801D,GPEB801,GPEB801D,GPED801,GPED801D,GPH801,GPH801D,GPHW801,GPHW801D,GPL801,GPL801D,GPLL801,GPLL801D,GPSS801A,GPSS801AD,GPSS801B,GPSS801BD,GPTL801A,GPTL801AD,GPTL801B,GPTL801BD,GPYB801,GPYB801D,GPZB801,GPZB801D
12: GPC1201,GPC1201D,GPL1201,GPL1201D,GPSA12,GPSA12D,PSA12,PSA12-S,PSA12D,PSA12D-S
main 6 / branch 4: GPKD6-401,GPKD6-401D
12 × 8: UE95A120080100MBU,US98A120080100MBU |
| IN,OUT |
4; male RA G1/8 / female RB G1/8: GPHF401,GPHF401D
6; male RA G1/8 / female RB G1/8: GPHF601,GPHF601D
8; male RA G1/8 / female RB G1/8: GPHF801,GPHF801D
10: GPSA10,GPSA10D,PSA10,PSA10-S,PSA10D,PSA10D-S
4: GPSA4,GPSA4D,PSA4,PSA4-S,PSA4D,PSA4D-S
6: GPSA6,GPSA6D,PSA6,PSA6-S,PSA6D,PSA6D-S
8: GPSA8,GPSA8D,PSA8,PSA8-S,PSA8D,PSA8D-S
4 × 2.5: UE95A040025100MBU,US98A040025100MBU
6 × 4: UE95A060040100MBU,US98A060040100MBU
8 × 5: UE95A080050100MBU,US98A080050100MBU
10 × 6.5: UE95A100065100MBU,US98A100065100MBU |
The HSV valve operates at 0–1 MPa and −20–70°C with 40 µm filtered air. Apply every stricter component limit; proof pressure is not working pressure and no complete-path vacuum rating is established. All listed accessories are optional and ordered separately. Leave clearance to move the sliding sleeve fully and preserve the valve’s exhaust function.
Match the exact PT, G or NPT standard, size and opposite thread gender at each assigned end. Use the specified thread seal or face gasket and check engagement, tool access and support. Keep IN and OUT separate; never use a branch or adapter to bypass the valve. The sleeve and exhaust openings must remain unobstructed. The connection-arrangement suffix describes the complete valve, not a separate adapter kit.
Match tube OD and, for compression fittings, OD/ID; metric and inch sizes are not interchangeable. Use suitable soft nylon/PU tube and check insertion depth, bends, flow and sleeve clearance. Tube-side accessories need a separately selected matching threaded connection; tube does not connect directly to an HSV thread. Tighten compression bodies by the hex, not tube nuts. Where listed, D is black and blank grey; -M is miniature and -S identifies the specified stainless 304 parts only. Depressurize before disconnecting tubing or fittings.
GPCF/GPLF/GPMF/GBPCF/GBPMF have female pneumatic threads for the assigned male HSV end. Their tube socket is a separate connection. On GPMF/GBPMF bulkhead fittings, the outside panel-mounting thread and retaining nuts are not pneumatic pipe connections. Check panel thickness and washer/nut seating; support the assembly without restricting the HSV sleeve. For GPCF/GPMF, D specifies a black release button (blank: grey). For GPLF, D specifies a black release button and body (blank: grey). These D options do not apply to the listed metal or N-prefixed female fittings.
GPHF fittings have male RA and female RB of the stated thread, plus a separate tube socket. Use RA at an HSV female end or RB at an HSV male end; connect the remaining threaded end to its own matching opposite-gender part with the correct seal. RB is not a tube socket. Every branch belongs to that same IN or OUT circuit.
Match both adapter ends independently by size, gender and thread standard. GBD first size is female RB and the second male RA. GBU are female-to-female couplings; their other end requires a separately selected matching male part. These parts do not convert PT to G or NPT, and do not authorize plugging an active valve connection.
Standard push-in fittings and flow controls: ≤1 MPa, −20–70°C. Metal GBPC/GBPCF/GBPMF: ≤0.9 MPa. GBKC/GBB/GBD/GBU: ≤1 MPa. The listed metal push-in, compression, thread-adapter groups have a 0–150°C component range, limiting the HSV path to 0–70°C or narrower. Follow the lower pressure and narrower temperature range of the complete connection path.
For a directly mounted flow control, suffix A restricts thread→tube with free reverse flow; suffix B reverses it. Normal inlet flow at IN is tube→thread; normal delivery at OUT is thread→tube. Choose by the required direction and follow the symbols. Restrictions in the OUT line can affect downstream venting; a closed flow control is not leak-tight isolation. Do not force adjustment stops, and depressurize before tube removal.
PSA/GPSA are tube-side flow controls used through separate matching tube connections. Match each end’s tube OD and follow the flow symbols; they do not screw into the HSV threads. Keep the assigned IN or OUT circuit separate and check delivery and downstream venting in both valve states. Closed controls are not leak-tight isolation.
ASC serves upstream IN only. Its female connection may mate with this male HSV IN, subject to the specified seal and clearance; its other port still requires a matching male connection. Follow its P/A flow symbols. Its limits are 0.05–0.95 MPa and −20–70°C with ≤40 µm filtration. Apply these and every stricter component limit; the HSV rating does not extend the ASC range.
GAFR serves upstream IN only. Its female OUT may mate with this male HSV IN if the thread, seal, mounting and sleeve clearances agree; its inlet still needs matching male piping. Follow GAFR IN→OUT and verify total flow and bowl/environment suitability. Inlet ≤1 MPa; regulation 0.15–0.9 MPa; −5–70°C without freezing. These are not 1 MPa regulated-output ratings. The listed GAFR S configurations use a PC bowl. The listed standard S codes specify 40 µm filtration, differential/manual drain, bracket, round snap-in gauge (bar/MPa) and no reverse-flow valve. Other options change the complete code. Air lubrication is not required by the HSV specification.
US98A/UE95A examples are separately ordered blue 100 m metric PU coils rated 1 MPa at 23°C. US98A: −20–70°C; UE95A: −40–70°C. Match OD/ID and derate with increasing temperature within all valve/component limits; 1 MPa is not assured throughout. Use inch tube for an inch socket, never an approximately similar metric size.
GPTL recommended cap-adjustment torque: 0.08 N·m for 1/8. This is not thread-installation torque.
Items marked discontinued are historical service references, not current standard recommendations. Confirm availability or a manufacturer-approved replacement. An unmarked catalogue entry does not promise current production, stock or delivery.
