Description

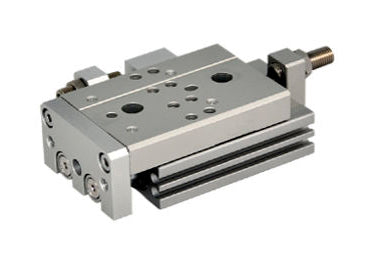

Pneumatic compact slide cylinder recirculating linear ball bearing 20mm Bore 75mm Stroke with Magnet Shock absorber (both ends) NPT thread typeAirtac HLQ cylinders are a functional replacement for the SMC MXQ series cylinders.
Pneumatic cylinder / double-rod / double-acting
HLQ series
Product features:
1.Recirculating linear ball bearingit achieves high precisionhigh rigiditywith antirust and dustproof function.
2.Through hole for body mounting.
3.Pin holes positioning Improved repeatability of work mounting.
4.Floating joint design Piston rod needn't endure additional torque.
5.Dual rod-doubles the outpute thrust.
6.Pin holes for positioning Improved repeatability of body mounting.
7.Body mounting holes Provide 3 mounting positions.
