Specifications: HLH16X10S is a double-acting side-guide recirculating-ball precision slide-table cylinder with a 16 mm bore, 10 mm stroke and built-in magnet.
Product Catalog
Download Airtac Product Catalog (PDF)
Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF)
Download 2022 cylinder installation and weight tables (PDF)
For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.
Model code
| Code |
Meaning |
| HLH |
Side-guide precision slide table |
| 16 |
16 mm bore |
| X10 |
10 mm stroke |
| S |
With magnet |
Technical specifications
| Parameter |
Details |
| Acting type |
Double acting |
| Fluid |
Compressed air filtered through a40 μm element |
| Operating pressure —2022 catalog |
0.15–0.7 MPa |
| Proof pressure |
1.2 MPa |
| Temperature |
−20 to+70 °C |
| Speed range |
50–500 mm/s |
| Stroke tolerance |
0 /+1.0 mm |
| Cushioning |
Fixed cushioning at both ends |
| Port |
M5 × 0.8 |
| Sensor profiles |
CMSH / DMSH / EMSH |
| Maximum allowable kinetic energy |
0.05 J |

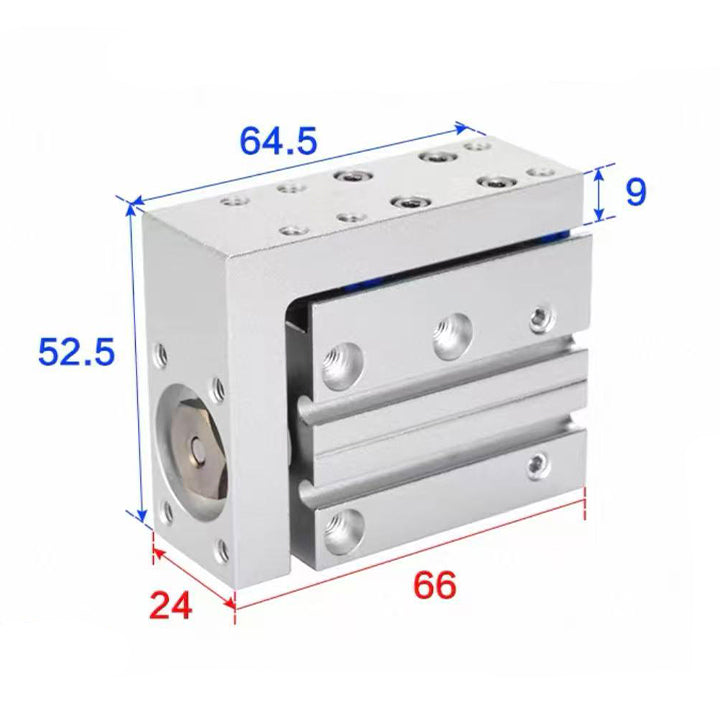

Current-model dimensions
Values are millimeters. Lettered references keep the catalog drawing definitions. M and N in the HLF/HLH dimension tables are hole quantities, not dimensions.
| Parameter |
Details |
| A |
66 mm |
| AB |
52 mm |
| AC |
64.5 mm |
| JB |
20 mm |
| KB |
20 mm |
| LB |
10 mm |
| N |
4 holes |
| Body width |
25 mm |
| Body height |
53.5 mm |
| Plate height |
52.5 mm |
| Top fixing thread |
M4 × 0.7; depth6 |
| Front fixing thread |
M4 × 0.7; depth10 |
| Body through hole |
Ø4.5; Ø7.5 counterbore depth4.5 |
| Body mounting thread |
M5 × 0.8 through |
| Top hole transverse pitch |
17 mm |
| Piston-rod diameter |
6 mm |
For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.
Load, moment and sensing limits
| Parameter |
Details |
| Allowable pitch Mp / yaw My / roll Mr |
3.28 /3.28 /3.45 N·m |
| Minimum neighboring-cylinder clearance d |
10 mm |
| Corresponding center/reference separation L |
35 mm |
Use the appropriate load-versus-overhang curve for vertical or horizontal mounting. Curves are grouped by maximum speed100,300 or500 mm/s; the horizontal examples additionally distinguish load offsets50,100 and200 mm. The moment/deflection curves distinguish pitch, yaw and roll and the applicable stroke. Do not infer a universal payload from one curve.
Mounting limits
| Parameter |
Details |
| Through-body fixing screw / maximum tightening torque |
M4 ×0.7; 2.5 N·m |
| Through-body hole length L1 |
20.6 mm |
| Transverse threaded-body fixing |
M5 ×0.8 / 5.1 N·m / 16.2 mm depth |
| Axial / vertical body fixing screw depth |
6 mm; M4 ×0.7; 2.5 N·m |
| Front workpiece fixing maximum depth |
10 mm; M4 ×0.7; 2.5 N·m |
| Top workpiece fixing maximum depth |
9 mm; M4 ×0.7; 2.5 N·m |
- Mount the body from either side, rear or bottom. Workpieces can be attached to the top or front of the slide.
- Three inlet/outlet sets are available; rear ports are the default arrangement, and side ports are plugged. Move the connection only as shown and seal the unused ports.
- Hold the slide table when tightening fixture screws. Holding the body while applying excessive torque to the slide can reduce guide accuracy.
- Do not exceed the listed screw penetration, load or moment limits. Apply external pushing force in line with the piston-rod axis. Use a speed controller and keep speed at or below500 mm/s.
Internal structure and materials
- 1. Slide table: Aluminum alloy.
- 2. Piston rod: Stainless steel.
- 3. Flanged hex nut: Free-cutting steel.
- 4. Hex nut: Free-cutting steel.
- 5. Rod O-ring: NBR.
- 6. Body: Aluminum alloy.
- 7. Hex-socket countersunk screw: Medium-carbon steel.
- 8. Guide rail: Stainless steel.
- 9. Slide block: Material not separately specified.
- 10. Bumper cup: TPU.
- 11. Magnet holder: Aluminum alloy.
- 12. Magnet pad: NBR.
- 13. Magnet: Sintered NdFeB.
- 14. Steel ball: SUS304.
- 15. Piston O-ring: NBR.
- 16. Piston: Aluminum alloy.
- 17. O-ring: NBR.
- 18. Bumper cup: TPU.
- 19. Rear cover: Aluminum alloy.
- 20. C retaining ring: Spring steel.
Series strokes
The standard strokes listed for this bore are 5, 10, 15, 20, 25, 30, 40, 50, 60 mm. Other strokes require a specifically defined order.
Position sensing
The dedicated product and sensor selection tables specify H (CMSH / DMSH / EMSH)-profile magnetic sensors for this series and size. Select the full sensor order code separately for the required output, voltage, cable and connector; the profile letter does not identify the electrical specification. Sensor switches and separately ordered holders are not included unless the product configuration expressly lists them.
Pneumatic circuit selection reference
The 2022 selection example for a 16 mm cylinder bore uses a theoretical speed of 500 mm/s and an effective flow area of 0.5 mm². It is a circuit-sizing example, not a guaranteed installed speed or a supplied package. Match the actual cylinder port, valve capacity and tubing. This product uses M5 × 0.8; a reference accessory with a different thread is not a direct screw-in connection.
| Parameter |
Details |
| Single / double solenoid valve example |
5V110M5 / 5V120M5 |
| Single / double air-pilot valve example |
4A110M5 / 4A120M5 |
| Flow control / silencer example |
PTLM5 / BSLM5 |
| Tube outside / inside diameter |
4 / 2.5 mm |
Installation and operating conditions
- Flush the piping before connection and use clean, conditioned compressed air with the filtration specified for this cylinder. Keep sealant clear of the first 1–2 thread turns.
- Align the actuator and load; provide protection from moving parts and unexpected motion after a loss or restoration of air or electrical power. Exhaust residual pressure before maintenance or removal.
- Start with the flow-control valve closed and open gradually to the required speed. Check cushioning against the actual speed, load and stopping energy; a closed-center valve does not guarantee prolonged load holding or precise intermediate stopping.
- Protect the sliding surfaces, prevent moisture from freezing and keep contaminants out of the ports. Protect stored equipment from corrosion. Follow the dedicated lubrication instructions; where continued lubrication is selected, the general catalog specifies additive-free ISO VG32 turbine oil.
Optional magnetic sensors and matching cables
-
H-profile: CMSH — standard/A05 reed sensors
Two-wire reed operation at 5–240 V AC/DC.
CMSH-020, CMSH-030, CMSH-050, CMSH-100, CMSH-M08, CMSH-M08010, CMSH-M08020, CMSH-M08030, CMSH-M12, CMSH-M12010, CMSH-M12020, CMSH-M12030, A05-CMSH-020, A05-CMSH-030, A05-CMSH-050, A05-CMSH-100
-
H-profile: CMSH — high-temperature reed sensors (final -H suffix)
Two-wire reed operation at 5–240 V AC/DC.
CMSH-020-H, CMSH-030-H, CMSH-050-H, CMSH-100-H, CMSH-M08-H, CMSH-M08010-H, CMSH-M08020-H, CMSH-M08030-H, CMSH-M12-H, CMSH-M12010-H, CMSH-M12020-H, CMSH-M12030-H
-
H-profile: DMSH — two-wire electronic sensors
Two-wire electronic operation at 10–28 V DC.
DMSH-020, DMSH-030, DMSH-050, DMSH-100, DMSH-M08, DMSH-M08010, DMSH-M08020, DMSH-M08030, DMSH-M12, DMSH-M12010, DMSH-M12020, DMSH-M12030, DMSH-020-W, DMSH-030-W, DMSH-050-W, DMSH-100-W, A05-DMSH-020, A05-DMSH-030, A05-DMSH-050, A05-DMSH-100, A06-DMSH-020, A06-DMSH-030, A06-DMSH-050, A06-DMSH-100
-
H-profile: DMSH — NPN electronic sensors
NPN three-wire output with a 5–30 V DC supply.
DMSH-N020, DMSH-N030, DMSH-N050, DMSH-N100, DMSH-NM08, DMSH-NM08010, DMSH-NM08020, DMSH-NM08030, DMSH-NM12, DMSH-NM12010, DMSH-NM12020, DMSH-NM12030, DMSH-N020-W, DMSH-N030-W, DMSH-N050-W, DMSH-N100-W
-
H-profile: DMSH — PNP electronic sensors
PNP three-wire output with a 5–30 V DC supply.
DMSH-P020, DMSH-P030, DMSH-P050, DMSH-P100, DMSH-PM08, DMSH-PM08010, DMSH-PM08020, DMSH-PM08030, DMSH-PM12, DMSH-PM12010, DMSH-PM12020, DMSH-PM12030, DMSH-P020-W, DMSH-P030-W, DMSH-P050-W, DMSH-P100-W
-
H-profile: EMSH — miniature two-wire sensors
Miniature two-wire electronic operation at 10–28 V DC.
EMSH-020, EMSH-030, EMSH-050, EMSH-100, EMSH-M08, EMSH-M08010, EMSH-M08020, EMSH-M08030, EMSH-M12, EMSH-M12010, EMSH-M12020, EMSH-M12030, EMSH-020-W, EMSH-030-W, EMSH-050-W, EMSH-100-W, EMSH-M08-W, EMSH-M08010-W, EMSH-M08020-W, EMSH-M08030-W, EMSH-M12-W, EMSH-M12010-W, EMSH-M12020-W, EMSH-M12030-W, A05-EMSH-020, A05-EMSH-030, A05-EMSH-050, A05-EMSH-100, A06-EMSH-020, A06-EMSH-030, A06-EMSH-050, A06-EMSH-100
-
Two-wire mating cables (B)
For a matching M8 or M12 two-wire male sensor; ordered separately.
F-ECM08B020, F-ECM08B030, F-ECM08B050, F-ECM08B100, F-ECM12B020, F-ECM12B030, F-ECM12B050, F-ECM12B100
-
Three-wire mating cables (C)
For a matching M8 or M12 NPN/PNP male sensor; ordered separately.
F-ECM08C020, F-ECM08C030, F-ECM08C050, F-ECM08C100, F-ECM12C020, F-ECM12C030, F-ECM12C050, F-ECM12C100
The listed options are alternatives, not a required set. The H in CMSH/DMSH/EMSH identifies the sensor profile; a final -H on a CMS order code instead selects the high-temperature reed version.
CMSH reed sensors are limited to 100 mA, 10 W and 200 Hz, with no internal consumption or leakage. Standard/A05 voltage drop is at most 2.5 V at 100 mA DC; versions with the final -H suffix have no residual voltage or indicator LED.
Two-wire DMSH and EMSH require 2.5–100 mA loads, up to 2.8 W and 1,000 Hz. Maximum consumption, residual voltage and leakage are 3 mA, 3.5 V and 0.06 mA respectively.
NPN/PNP DMSH outputs are rated to 30 V / 200 mA, 6 W and 1,000 Hz. Maximum consumption, residual voltage and leakage are 5 mA, 0.7 V and 0.01 mA respectively. Check controller input compatibility as well as load ratings.
Sensor and female-cable endings 020/030/050/100 mean 2/3/5/10 m. M08/M12 sensors have M8/M12 male connectors on 0.5 m leads; M08010/M08020/M08030 and M12010/M12020/M12030 give 1/2/3 m leads. Lead length does not depend on cylinder stroke.
Match female cables to the male connector size and wire count; direct-lead sensors need none. B pinout: 1 brown (+), 4 blue (−), 3 unused. C pinout: 1 brown (+), 3 blue (−), 4 black output. Check the mating cable and connector ratings separately.
A05 flex-resistant robotics cable and A06 oil-resistant flex cable have a recommended minimum bend radius of 19 mm. Both are two-wire direct-lead types, without M8/M12, NPN/PNP or W options; A05-CMSH also excludes the final high-temperature -H suffix. W means waterproof: DMSH-W has direct leads only; the listed EMSH-W options also include connectors.
Sensor temperature limits are −10 to +70°C, or −10 to +125°C for CMSH versions with the final -H suffix. The HLH cylinder remains limited to +70°C. Ordinary, high-temperature and A05 sensors are IP64; W/A06 are IP68. These ratings do not extend to the cylinder, connectors or whole assembly; use their common limits.
CMS has no protection circuit; DMS/EMS have reverse-polarity and surge protection, and EMS also has temperature-overload protection. Reed, two-wire electronic, NPN and PNP circuits are not interchangeable. Complete and insulate wiring before powering it; keep it separate from power/high-voltage wiring. For direct leads, connect brown and blue in series with the load on two-wire types; do not connect the switch alone across the supply. On three-wire types, brown is positive supply, blue is negative and black is output; connect an NPN load to positive and a PNP load to negative.
Install the selected H-profile sensor in a matching sensor groove on the HLH cylinder body. Detection uses the magnet included in this S configuration. Loosen the locking screw so it does not project below the sensor base. Slide the sensor to the required position, then tighten. Set detection at the actuation-range centre. Recommended sensor-screw torque is 0.15–0.20 N·m, never over 0.25 N·m; these are not cylinder mounting torques. Prevent impacts; keep cables free of strain and avoid unnecessary movement or bending. Observe the stated bend-radius guidance for flex-resistant versions, and inspect fixings, cables and indication.
Keep ordinary sensors dry and do not immerse waterproof types for long periods. Avoid explosive gas, aggressive chemicals, sudden temperature changes, welding interference and magnetic debris. Provide suitable protection for A05 cables exposed to heat, dust, water or oil, and for A06 cables exposed to weld spatter.
Optional circuit connections and complete valve codes
Use PC4M5 or PTL4M5A-M at each M5 cylinder chamber port; use straight PC4M5 fittings at the M5 valve A/B ports and keep the chamber lines separate. The A-type controller restricts cylinder-to-tube exhaust and permits free charging. Seat the M5 sealing gaskets correctly.
-
PC4M5: M5×0.8 male; 4 mm tube OD
Selected valve A/B connection; also M5 cylinder ports if a straight connection is chosen
-
PTL4M5A-M: M5×0.8 male; 4 mm tube OD; mini A-type
Meter-out controller at each selected M5 cylinder port, instead of a straight fitting
-
PC401: PT1/8 male; 4 mm tube OD
Only the separate 4A pilot connection if that pilot tube is 4 mm OD
-
US98A040025100MBU: Polyester PU; 4×2.5 mm; blue 100 m roll
Optional tube packaging example, cut to installed length
-
UE95A040025100MBU: Polyether PU; 4×2.5 mm; blue 100 m roll
Alternative tube packaging example, cut to installed length
-
5V110M5A050, 5V110M5A200, 5V120M5A050, 5V120M5A200: 5/2 valve; M5×0.8 main/exhaust ports; terminal cable
220 V AC direction control; 050/200 = 0.5/2 m leads
-
5V110M5B050, 5V110M5B200, 5V120M5B050, 5V120M5B200: 5/2 valve; M5×0.8 main/exhaust ports; terminal cable
24 V DC direction control; 050/200 = 0.5/2 m leads
-
5V110M5C050, 5V110M5C200, 5V120M5C050, 5V120M5C200: 5/2 valve; M5×0.8 main/exhaust ports; terminal cable
110 V AC direction control; 050/200 = 0.5/2 m leads
-
5V110M5E050, 5V110M5E200, 5V120M5E050, 5V120M5E200: 5/2 valve; M5×0.8 main/exhaust ports; terminal cable
24 V AC direction control; 050/200 = 0.5/2 m leads
-
5V110M5F050, 5V110M5F200, 5V120M5F050, 5V120M5F200: 5/2 valve; M5×0.8 main/exhaust ports; terminal cable
12 V DC direction control; 050/200 = 0.5/2 m leads
The gray fittings/controllers accept soft nylon or PU tube at 0–1 MPa and −20 to +70°C. Recommended controller-cap rotation torque is 0.05 N·m, not thread-tightening torque. Check insertion and wrench clearance.
5V110 is single-solenoid spring return; 5V120 is double-solenoid with memory. Final 050/200 selects a 0.5/2 m terminal cable, not a DIN plug. AC tolerance is +15%/−10% (2.0 VA); DC is ±10% (1.6 W). Select the electrical or pneumatic control scheme.
The existing 4A110M5/4A120M5 pneumatic alternatives require one/two external pilot signals through separate PT1/8 pilot ports. The listed pilot fitting assumes 4 mm OD pilot tubing; match both ends and seal the tapered pilot thread.
The selected 5V/4A control branch is limited to 0.15–0.7 MPa and −20 to +70°C, subject to temperature derating and the lowest connected-component limit.
BSLM5 fits these selected valve exhaust ports R/S (M5×0.8), not cylinder work ports. Silencer limits are 0–1 MPa and −20 to +70°C.
The two blue 100 m tube codes are alternative packaging examples, not required installed lengths. US98A polyester-PU is rated −20 to +70°C; UE95A polyether-PU −40 to +70°C. Both are rated 1 MPa at 23°C; minimum bend radii (US/UE) are 10/8 mm. Apply temperature derating and the lowest component limit; avoid solvents, corrosive media and prolonged sunlight.
Weight reference
233 g, from the2022 cylinder weight-reference table. The catalog states that the actual product weight governs; this is not a packed shipping weight.
