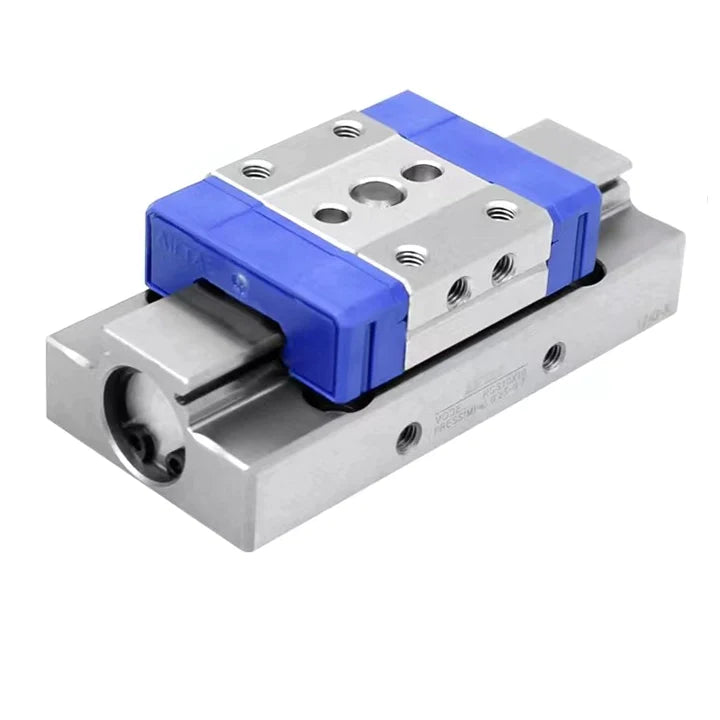

Airtac HGS series: miniature precision slide-table cylinder - HGS12X5S

Photos are for reference only. Not all models have pictures.

Description

Specifications: HGS12X5S is an HGS double-acting miniature precision slide-table cylinder with a 12 mm bore and 5 mm stroke. The stainless-steel body and slide provide guided linear motion.

Product Catalog

Download Airtac Product Catalog (PDF)

Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF)

Download 2022 cylinder installation and weight tables (PDF)

For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

Model code

Code Meaning
HGS Miniature precision slide-table cylinder
12 12 mm cylinder bore
X5 5 mm cylinder stroke
S With magnet and sensor-holder package

Technical specifications

Parameter Details
Acting type Double acting
Fluid Compressed air filtered through a 40 μm element
Operating pressure — 2022 Chinese catalog 0.15–0.7 MPa
Proof pressure 1.2 MPa
Temperature −20 to +70 °C
Speed range 50–500 mm/s
Stroke tolerance 0 / +0.5 mm
Lubrication Not required
Cushioning Fixed cushioning at both ends; optional hydraulic shock absorbers are listed for HGS10/12
Air connection for this configuration M5 × 0.8
Magnet and holder Included
Stroke-adjustment device Not included

Edition note: the linked earlier English specification page gives 0.2–0.7 MPa for this size. The working-pressure entry above follows the 2022 Chinese HGS specification page. Select the operating supply for the supplied edition before installation.

Load and accuracy

Parameter Details
Maximum allowable load for this stop arrangement 1.2 kg
Maximum allowable pitch / yaw / roll moment 2.4 / 2.9 / 4.7 N·m
Reference-surface parallelism 0.02 mm; C to A and D to B, as defined by the drawing
Travel parallelism 0.004 mm; C to A and D to B
E / F dimensional tolerance ±0.05 mm

The catalog displacement plots relate pitch, roll and yaw loading to table displacement at L=100 mm. Check the load direction and lever arm in the drawing; a moment limit is not a direct load rating at every offset.

Current configuration dimensions

Parameter Details

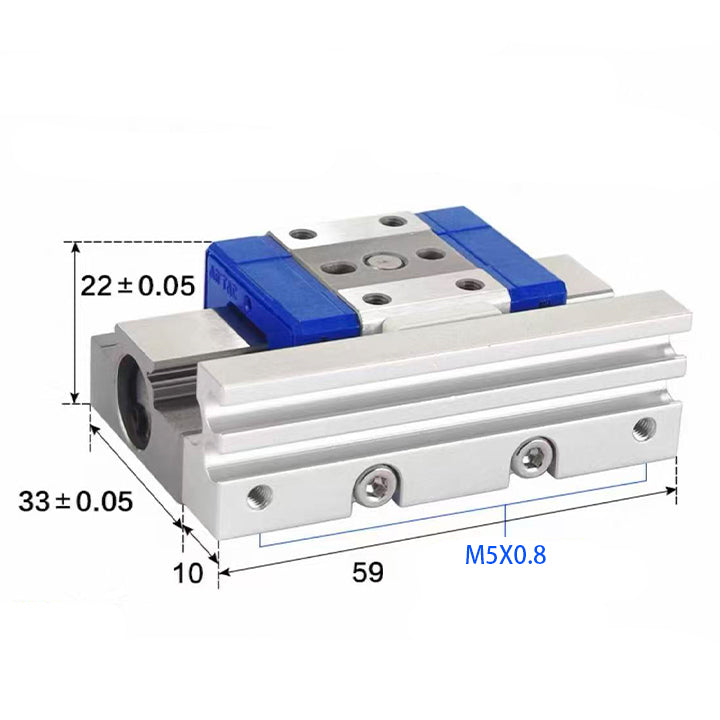

Body length in the retracted drawing 60 mm
Body width 33 ±0.05 mm
Body height 22 ±0.05 mm
Rail width 32 ±0.02 mm
Rail lateral offset 0.5 ±0.1 mm
Slide length 48 mm
Slide mounting-hole lateral / longitudinal reference spacing 25 / 28 mm
Slide mounting threads M3 × 0.5; 5 mm depth
Locating holes Ø3 mm, +0.01/+0.04 mm; depth 3 mm
Rear mounting-hole lateral spacing 28.5 ±0.05 mm
Sensor-holder rail length / screw pitch 59 / 45 mm
Sensor-holder projection shown beyond body 10 mm
Air-port position with sensor-holder package Use the S-configuration drawing: the sensor holder reroutes the air connection.

For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

Mounting and adjustment

Parameter Details
Through-bolt fixing: screw / maximum torque / hole length M3 × 0.5; 1.1 N·m; 4.8 mm
Threaded body fixing: screw / maximum torque / depth M4 × 0.7; 2.5 N·m; 4.8 mm
Workpiece top fixing: screw / maximum torque / depth M3 × 0.5; 1.1 N·m; 4 mm
Workpiece side fixing: screw / maximum torque / depth M3 × 0.5; 1.1 N·m; 4 mm

Use screw lengths compatible with the available depth. Excessive tightening can cause damage; insufficient tightening can allow the workpiece to move or fall. The sensor package can be mounted on either side. Mount the stroke-adjustment package on the side without air ports, and fit the air-port transfer seal correctly.

Internal structure and materials

Component Material
1 — Body Stainless steel
2 — Slide table Stainless steel
3 — Stroke-adjustment screw Stainless steel
4 — Bumper NBR
5 — Nut Stainless steel
6 — Middle stopping block Free-cutting steel
7 — Hex-socket countersunk screw Alloy steel
8 — End stopping block Aluminum alloy
9 — Hex-socket countersunk screw Alloy steel
10 — Sensor mounting rail Aluminum alloy
11 — Hex-socket countersunk screw Alloy steel
12 — Magnet holder Engineering plastic
13 — Magnet Rare-earth material
14 — Cross-head screw Alloy steel
15 — Connecting pin Stainless steel
16 — Piston Stainless steel
17 — Piston O-ring NBR
18 — End cover Stainless steel
19 — O-ring NBR
20 — C retaining ring Spring steel

The end-cover material above follows the 2022 Chinese parts table. The earlier English PDF prints TPU for item18, while the 2022 table identifies stainless steel; the entry is edition-specific.

Options and accessories

Parameter Details
Sensor-holder package for this bore and stroke F-HGS12X5H
Stroke-adjustment package for this bore and stroke F-HGS10X10J
Optional oil shock absorber ACA0806-1N for HGS10/12 only; not listed for HGS6/8
Shock absorber locknut torque 1.67 N·m for ACA0806-1N
Standard strokes for this bore 5, 10, 15, 20, 25 mm

Hydraulic shock absorbers are wear items. Replace them when energy absorption deteriorates. Do not turn the rear non-adjustable screw; doing so can cause oil leakage.

Position sensing

The dedicated product and sensor selection tables specify H (DMSH / EMSH)-profile magnetic sensors for this series and size. Select the full sensor order code separately for the required output, voltage, cable and connector; the profile letter does not identify the electrical specification. Sensor switches and separately ordered holders are not included unless the product configuration expressly lists them.

Pneumatic circuit selection reference

The 2022 selection example for a 12 mm cylinder bore uses a theoretical speed of 500 mm/s and an effective flow area of 0.3 mm². It is a circuit-sizing example, not a guaranteed installed speed or a supplied package. Match the actual cylinder port, valve capacity and tubing. This product uses M5 × 0.8; a reference accessory with a different thread is not a direct screw-in connection.

Parameter Details
Single / double solenoid valve example 5V110M5 / 5V120M5
Single / double air-pilot valve example 4A110M5 / 4A120M5
Flow control / silencer example PTLM5 / BSLM5
Tube outside / inside diameter 4 / 2.5 mm

Installation and operating conditions

  • Flush the piping before connection and use clean, conditioned compressed air with the filtration specified for this cylinder. Keep sealant clear of the first 1–2 thread turns.
  • Align the actuator and load; provide protection from moving parts and unexpected motion after a loss or restoration of air or electrical power. Exhaust residual pressure before maintenance or removal.
  • Start with the flow-control valve closed and open gradually to the required speed. Check cushioning against the actual speed, load and stopping energy; a closed-center valve does not guarantee prolonged load holding or precise intermediate stopping.
  • Protect the sliding surfaces, prevent moisture from freezing and keep contaminants out of the ports. Protect stored equipment from corrosion. Follow the dedicated lubrication instructions; where continued lubrication is selected, the general catalog specifies additive-free ISO VG32 turbine oil.

Optional magnetic sensors and matching cables

  • H-profile: CMSH — standard/A05 reed sensors
    Two-wire reed operation at 5–240 V AC/DC.
    CMSH-020, CMSH-030, CMSH-050, CMSH-100, CMSH-M08, CMSH-M08010, CMSH-M08020, CMSH-M08030, CMSH-M12, CMSH-M12010, CMSH-M12020, CMSH-M12030, A05-CMSH-020, A05-CMSH-030, A05-CMSH-050, A05-CMSH-100
  • H-profile: CMSH — high-temperature reed sensors (final -H suffix)
    Two-wire reed operation at 5–240 V AC/DC.
    CMSH-020-H, CMSH-030-H, CMSH-050-H, CMSH-100-H, CMSH-M08-H, CMSH-M08010-H, CMSH-M08020-H, CMSH-M08030-H, CMSH-M12-H, CMSH-M12010-H, CMSH-M12020-H, CMSH-M12030-H
  • H-profile: DMSH — two-wire electronic sensors
    Two-wire electronic operation at 10–28 V DC.
    DMSH-020, DMSH-030, DMSH-050, DMSH-100, DMSH-M08, DMSH-M08010, DMSH-M08020, DMSH-M08030, DMSH-M12, DMSH-M12010, DMSH-M12020, DMSH-M12030, DMSH-020-W, DMSH-030-W, DMSH-050-W, DMSH-100-W, A05-DMSH-020, A05-DMSH-030, A05-DMSH-050, A05-DMSH-100, A06-DMSH-020, A06-DMSH-030, A06-DMSH-050, A06-DMSH-100
  • H-profile: DMSH — NPN electronic sensors
    NPN three-wire output with a 5–30 V DC supply.
    DMSH-N020, DMSH-N030, DMSH-N050, DMSH-N100, DMSH-NM08, DMSH-NM08010, DMSH-NM08020, DMSH-NM08030, DMSH-NM12, DMSH-NM12010, DMSH-NM12020, DMSH-NM12030, DMSH-N020-W, DMSH-N030-W, DMSH-N050-W, DMSH-N100-W
  • H-profile: DMSH — PNP electronic sensors
    PNP three-wire output with a 5–30 V DC supply.
    DMSH-P020, DMSH-P030, DMSH-P050, DMSH-P100, DMSH-PM08, DMSH-PM08010, DMSH-PM08020, DMSH-PM08030, DMSH-PM12, DMSH-PM12010, DMSH-PM12020, DMSH-PM12030, DMSH-P020-W, DMSH-P030-W, DMSH-P050-W, DMSH-P100-W
  • H-profile: EMSH — miniature two-wire sensors
    Miniature two-wire electronic operation at 10–28 V DC.
    EMSH-020, EMSH-030, EMSH-050, EMSH-100, EMSH-M08, EMSH-M08010, EMSH-M08020, EMSH-M08030, EMSH-M12, EMSH-M12010, EMSH-M12020, EMSH-M12030, EMSH-020-W, EMSH-030-W, EMSH-050-W, EMSH-100-W, EMSH-M08-W, EMSH-M08010-W, EMSH-M08020-W, EMSH-M08030-W, EMSH-M12-W, EMSH-M12010-W, EMSH-M12020-W, EMSH-M12030-W, A05-EMSH-020, A05-EMSH-030, A05-EMSH-050, A05-EMSH-100, A06-EMSH-020, A06-EMSH-030, A06-EMSH-050, A06-EMSH-100
  • Two-wire mating cables (B)
    For a matching M8 or M12 two-wire male sensor; ordered separately.
    F-ECM08B020, F-ECM08B030, F-ECM08B050, F-ECM08B100, F-ECM12B020, F-ECM12B030, F-ECM12B050, F-ECM12B100
  • Three-wire mating cables (C)
    For a matching M8 or M12 NPN/PNP male sensor; ordered separately.
    F-ECM08C020, F-ECM08C030, F-ECM08C050, F-ECM08C100, F-ECM12C020, F-ECM12C030, F-ECM12C050, F-ECM12C100

The listed options are alternatives, not a required set. The H in CMSH/DMSH/EMSH identifies the sensor profile; a final -H on a CMS order code instead selects the high-temperature reed version.

CMSH reed sensors are limited to 100 mA, 10 W and 200 Hz, with no internal consumption or leakage. Standard/A05 voltage drop is at most 2.5 V at 100 mA DC; versions with the final -H suffix have no residual voltage or indicator LED.

Two-wire DMSH and EMSH require 2.5–100 mA loads, up to 2.8 W and 1,000 Hz. Maximum consumption, residual voltage and leakage are 3 mA, 3.5 V and 0.06 mA respectively.

NPN/PNP DMSH outputs are rated to 30 V / 200 mA, 6 W and 1,000 Hz. Maximum consumption, residual voltage and leakage are 5 mA, 0.7 V and 0.01 mA respectively. Check controller input compatibility as well as load ratings.

Sensor and female-cable endings 020/030/050/100 mean 2/3/5/10 m. M08/M12 sensors have M8/M12 male connectors on 0.5 m leads; M08010/M08020/M08030 and M12010/M12020/M12030 give 1/2/3 m leads. Lead length does not depend on cylinder stroke.

Match female cables to the male connector size and wire count; direct-lead sensors need none. B pinout: 1 brown (+), 4 blue (−), 3 unused. C pinout: 1 brown (+), 3 blue (−), 4 black output. Check the mating cable and connector ratings separately.

A05 flex-resistant robotics cable and A06 oil-resistant flex cable have a recommended minimum bend radius of 19 mm. Both are two-wire direct-lead types, without M8/M12, NPN/PNP or W options; A05-CMSH also excludes the final high-temperature -H suffix. W means waterproof: DMSH-W has direct leads only; the listed EMSH-W options also include connectors.

Sensor temperature limits are −10 to +70°C, or −10 to +125°C for CMSH versions with the final -H suffix. The HGS cylinder remains limited to +70°C. Ordinary, high-temperature and A05 sensors are IP64; W/A06 are IP68. These ratings do not extend to the cylinder, connectors or whole assembly; use their common limits.

CMS has no protection circuit; DMS/EMS have reverse-polarity and surge protection, and EMS also has temperature-overload protection. Reed, two-wire electronic, NPN and PNP circuits are not interchangeable. Complete and insulate wiring before powering it; keep it separate from power/high-voltage wiring. For direct leads, connect brown and blue in series with the load on two-wire types; do not connect the switch alone across the supply. On three-wire types, brown is positive supply, blue is negative and black is output; connect an NPN load to positive and a PNP load to negative.

Install the selected H-profile sensor in the matching groove of the sensor-holder package included in this S configuration. The holder and its air-transfer seal must be installed correctly; do not fit the sensor directly to the bare cylinder body. Loosen the locking screw so it does not project below the sensor base. Slide the sensor to the required position, then tighten. Set detection at the actuation-range centre. Recommended sensor-screw torque is 0.15–0.20 N·m, never over 0.25 N·m; these are not cylinder mounting torques. Prevent impacts; keep cables free of strain and avoid unnecessary movement or bending. Observe the stated bend-radius guidance for flex-resistant versions, and inspect fixings, cables and indication.

Keep ordinary sensors dry and do not immerse waterproof types for long periods. Avoid explosive gas, aggressive chemicals, sudden temperature changes, welding interference and magnetic debris. Provide suitable protection for A05 cables exposed to heat, dust, water or oil, and for A06 cables exposed to weld spatter.

Optional circuit connections and complete valve codes

For an S/SJ configuration, connect at the external working-air ports of the installed sensor-holder assembly shown in its configuration drawing, with the transfer seal correctly seated. The separately listed fittings do not include that holder assembly. Do not substitute the bare-body port thread for the holder-port thread.

  • PC4M5: M5×0.8 male; 4 mm tube OD
    Selected valve A/B connection; also M5 cylinder ports if a straight connection is chosen
  • PTL4M5A-M: M5×0.8 male; 4 mm tube OD; mini A-type
    Meter-out controller at each M5 cylinder port, instead of a straight fitting
  • PC401: PT1/8 male; 4 mm tube OD
    Only the separate 4A pilot connection if that pilot tube is 4 mm OD
  • US98A040025100MBU: Polyester PU; 4×2.5 mm; blue 100 m roll
    Optional tube packaging example, cut to installed length
  • UE95A040025100MBU: Polyether PU; 4×2.5 mm; blue 100 m roll
    Alternative tube packaging example, cut to installed length
  • 5V110M5A050, 5V110M5A200, 5V120M5A050, 5V120M5A200: 5/2 valve; M5×0.8 main/exhaust ports; terminal cable
    220 V AC direction control; 050/200 = 0.5/2 m leads
  • 5V110M5B050, 5V110M5B200, 5V120M5B050, 5V120M5B200: 5/2 valve; M5×0.8 main/exhaust ports; terminal cable
    24 V DC direction control; 050/200 = 0.5/2 m leads
  • 5V110M5C050, 5V110M5C200, 5V120M5C050, 5V120M5C200: 5/2 valve; M5×0.8 main/exhaust ports; terminal cable
    110 V AC direction control; 050/200 = 0.5/2 m leads
  • 5V110M5E050, 5V110M5E200, 5V120M5E050, 5V120M5E200: 5/2 valve; M5×0.8 main/exhaust ports; terminal cable
    24 V AC direction control; 050/200 = 0.5/2 m leads
  • 5V110M5F050, 5V110M5F200, 5V120M5F050, 5V120M5F200: 5/2 valve; M5×0.8 main/exhaust ports; terminal cable
    12 V DC direction control; 050/200 = 0.5/2 m leads

Use PC4M5 or PTL4M5A-M at each M5 cylinder chamber port; use straight PC4M5 fittings at the M5 valve A/B ports and keep the chamber lines separate. The A-type controller restricts cylinder-to-tube exhaust and permits free charging. Seat the M5 sealing gaskets correctly.

The gray fittings/controllers accept soft nylon or PU tube at 0–1 MPa and −20 to +70°C. Recommended controller-cap rotation torque is 0.05 N·m, not thread-tightening torque. Check insertion and wrench clearance.

5V110 is single-solenoid spring return; 5V120 is double-solenoid with memory. Final 050/200 selects a 0.5/2 m terminal cable, not a DIN plug. AC tolerance is +15%/−10% (2.0 VA); DC is ±10% (1.6 W). Select the electrical or pneumatic control scheme.

The existing 4A110M5/4A120M5 pneumatic alternatives require one/two external pilot signals through separate PT1/8 pilot ports. The listed pilot fitting assumes 4 mm OD pilot tubing; match both ends and seal the tapered pilot thread.

This selected control branch uses a conservative 0.2–0.7 MPa and −20 to +70°C, respecting the cylinder edition note above and any lower connected-component limit. Apply temperature derating.

BSLM5 fits these selected valve exhaust ports R/S (M5×0.8), not cylinder work ports. Silencer limits are 0–1 MPa and −20 to +70°C.

The two blue 100 m tube codes are alternative packaging examples, not required installed lengths. US98A polyester-PU is rated −20 to +70°C; UE95A polyether-PU −40 to +70°C. Both are rated 1 MPa at 23°C; minimum bend radii (US/UE) are 10/8 mm. Apply temperature derating and the lowest component limit; avoid solvents, corrosive media and prolonged sunlight.

Weight reference

312.65 g. Catalog component-weight reference for this configuration; packaging and separately ordered electrical sensors are not included.

Product form

Specifications: HGS12X5S is an HGS double-acting miniature precision slide-table cylinder with a 12 mm bore and 5 mm stroke. The... Read more

SKU: HGS12X5S

$270.99 Incl. VAT

    Guaranteed secure & safe checkout.

    Ach Direct DebitAmazon American Express Apple Pay BizumDiners ClubDiscoverGoogle Pay Mastercard MB WAY PayPalSatispayShop Pay USDC Visa

    Bank transfer also available. Payment options may vary by location and device.

    Shipping, returns & order help

    Free shipping on orders US$30+ under 2 kg

    Import duties & taxes included on all orders

    Download: 3D model selection.
    Shipping & delivery times

    In-stock items: processed and shipped within 1–3 business days. Custom-made items: G/NPT threads and non-standard specifications require 7–15 business days of factory production before shipping.

    Standard international delivery typically takes 7–13 business days after dispatch, depending on customs clearance and the local delivery network. Processing or production time is additional. Next-day and overnight delivery are not available.

    Most products ship from our manufacturing centers in Asia, then transfer to a local carrier after customs clearance.

    Read our shipping policy
    Shipping costs & import taxes

    Free shipping: orders of US$30 or more weighing under 2 kg. Import duties and taxes are included on all orders.

    If an overweight shipping surcharge applies after packing, we pause shipment and email you the amount for approval before dispatch. This is a transport charge, not an import tax. If you do not reply within 7 days, the order is canceled and fully refunded.

    Shipping charges and tax details
    Model selection & custom orders

    Please check the full model number, dimensions, thread type, stroke and voltage where applicable before ordering. If you are unsure, email airtacs@airtacs.com with the model number and required specifications.

    Custom-made products, including G/NPT thread specifications and custom-built parts, are non-returnable and non-refundable under our refund policy.

    Read the refund policy before ordering
    Tracking & delivery support

    Use the tracking link in your shipping confirmation email. For YunExpress shipments, enter your YT tracking number at Yuntrack to view the journey and local delivery details.

    Provide a complete physical delivery address and reachable contact details. P.O. boxes and virtual mail-forwarding addresses are not accepted.

    If delivery fails, contact the local carrier and email airtacs@airtacs.com with your order and tracking numbers. For failures caused by an incorrect/incomplete address or an unreachable recipient, return to the local warehouse typically takes 7–30 business days. Redelivery requires an additional shipping fee; cancellation after failed delivery is subject to deductions for original shipping and carrier return fees.

    Delivery issue policy
    Returns & product issues

    Eligible returns are accepted within 7 days of delivery. Items must be unused, uninstalled and in their original factory packaging. Contact airtacs@airtacs.com for a Return Authorization (RA) number before returning anything.

    Ordered the wrong model or changed your mind? You pay return shipping, original shipping is non-refundable, and a 50% restocking fee is deducted from the actual price paid for the returned product.

    Defective, damaged or incorrect item? We provide a replacement and cover return shipping; no restocking fee applies. Custom-made items are excluded from standard returns. These terms are subject to applicable law and do not limit your statutory rights.

    Read the full refund policy
    Bank transfers & invoices

    Bank transfer: Select bank transfer at checkout and submit your order. The bank account details and payment instructions will then be displayed.

    Invoices: Invoices are available only after an order is placed. We are a US-based company and provide a standard commercial invoice, not an EU VAT tax invoice. If your company requires an EU VAT invoice, please confirm your requirements with us before ordering.

    For payment or invoice questions, email airtacs@airtacs.com with your order number.

    Description

    Specifications: HGS12X5S is an HGS double-acting miniature precision slide-table cylinder with a 12 mm bore and 5 mm stroke. The stainless-steel body and slide provide guided linear motion.

    Product Catalog

    Download Airtac Product Catalog (PDF)

    Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF)

    Download 2022 cylinder installation and weight tables (PDF)

    For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

    Model code

    Code Meaning
    HGS Miniature precision slide-table cylinder
    12 12 mm cylinder bore
    X5 5 mm cylinder stroke
    S With magnet and sensor-holder package

    Technical specifications

    Parameter Details
    Acting type Double acting
    Fluid Compressed air filtered through a 40 μm element
    Operating pressure — 2022 Chinese catalog 0.15–0.7 MPa
    Proof pressure 1.2 MPa
    Temperature −20 to +70 °C
    Speed range 50–500 mm/s
    Stroke tolerance 0 / +0.5 mm
    Lubrication Not required
    Cushioning Fixed cushioning at both ends; optional hydraulic shock absorbers are listed for HGS10/12
    Air connection for this configuration M5 × 0.8
    Magnet and holder Included
    Stroke-adjustment device Not included

    Edition note: the linked earlier English specification page gives 0.2–0.7 MPa for this size. The working-pressure entry above follows the 2022 Chinese HGS specification page. Select the operating supply for the supplied edition before installation.

    Load and accuracy

    Parameter Details
    Maximum allowable load for this stop arrangement 1.2 kg
    Maximum allowable pitch / yaw / roll moment 2.4 / 2.9 / 4.7 N·m
    Reference-surface parallelism 0.02 mm; C to A and D to B, as defined by the drawing
    Travel parallelism 0.004 mm; C to A and D to B
    E / F dimensional tolerance ±0.05 mm

    The catalog displacement plots relate pitch, roll and yaw loading to table displacement at L=100 mm. Check the load direction and lever arm in the drawing; a moment limit is not a direct load rating at every offset.

    Current configuration dimensions

    Parameter Details
    Body length in the retracted drawing 60 mm
    Body width 33 ±0.05 mm
    Body height 22 ±0.05 mm
    Rail width 32 ±0.02 mm
    Rail lateral offset 0.5 ±0.1 mm
    Slide length 48 mm
    Slide mounting-hole lateral / longitudinal reference spacing 25 / 28 mm
    Slide mounting threads M3 × 0.5; 5 mm depth
    Locating holes Ø3 mm, +0.01/+0.04 mm; depth 3 mm
    Rear mounting-hole lateral spacing 28.5 ±0.05 mm
    Sensor-holder rail length / screw pitch 59 / 45 mm
    Sensor-holder projection shown beyond body 10 mm
    Air-port position with sensor-holder package Use the S-configuration drawing: the sensor holder reroutes the air connection.

    For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

    Mounting and adjustment

    Parameter Details
    Through-bolt fixing: screw / maximum torque / hole length M3 × 0.5; 1.1 N·m; 4.8 mm
    Threaded body fixing: screw / maximum torque / depth M4 × 0.7; 2.5 N·m; 4.8 mm
    Workpiece top fixing: screw / maximum torque / depth M3 × 0.5; 1.1 N·m; 4 mm
    Workpiece side fixing: screw / maximum torque / depth M3 × 0.5; 1.1 N·m; 4 mm

    Use screw lengths compatible with the available depth. Excessive tightening can cause damage; insufficient tightening can allow the workpiece to move or fall. The sensor package can be mounted on either side. Mount the stroke-adjustment package on the side without air ports, and fit the air-port transfer seal correctly.

    Internal structure and materials

    Component Material
    1 — Body Stainless steel
    2 — Slide table Stainless steel
    3 — Stroke-adjustment screw Stainless steel
    4 — Bumper NBR
    5 — Nut Stainless steel
    6 — Middle stopping block Free-cutting steel
    7 — Hex-socket countersunk screw Alloy steel
    8 — End stopping block Aluminum alloy
    9 — Hex-socket countersunk screw Alloy steel
    10 — Sensor mounting rail Aluminum alloy
    11 — Hex-socket countersunk screw Alloy steel
    12 — Magnet holder Engineering plastic
    13 — Magnet Rare-earth material
    14 — Cross-head screw Alloy steel
    15 — Connecting pin Stainless steel
    16 — Piston Stainless steel
    17 — Piston O-ring NBR
    18 — End cover Stainless steel
    19 — O-ring NBR
    20 — C retaining ring Spring steel

    The end-cover material above follows the 2022 Chinese parts table. The earlier English PDF prints TPU for item18, while the 2022 table identifies stainless steel; the entry is edition-specific.

    Options and accessories

    Parameter Details
    Sensor-holder package for this bore and stroke F-HGS12X5H
    Stroke-adjustment package for this bore and stroke F-HGS10X10J
    Optional oil shock absorber ACA0806-1N for HGS10/12 only; not listed for HGS6/8
    Shock absorber locknut torque 1.67 N·m for ACA0806-1N
    Standard strokes for this bore 5, 10, 15, 20, 25 mm

    Hydraulic shock absorbers are wear items. Replace them when energy absorption deteriorates. Do not turn the rear non-adjustable screw; doing so can cause oil leakage.

    Position sensing

    The dedicated product and sensor selection tables specify H (DMSH / EMSH)-profile magnetic sensors for this series and size. Select the full sensor order code separately for the required output, voltage, cable and connector; the profile letter does not identify the electrical specification. Sensor switches and separately ordered holders are not included unless the product configuration expressly lists them.

    Pneumatic circuit selection reference

    The 2022 selection example for a 12 mm cylinder bore uses a theoretical speed of 500 mm/s and an effective flow area of 0.3 mm². It is a circuit-sizing example, not a guaranteed installed speed or a supplied package. Match the actual cylinder port, valve capacity and tubing. This product uses M5 × 0.8; a reference accessory with a different thread is not a direct screw-in connection.

    Parameter Details
    Single / double solenoid valve example 5V110M5 / 5V120M5
    Single / double air-pilot valve example 4A110M5 / 4A120M5
    Flow control / silencer example PTLM5 / BSLM5
    Tube outside / inside diameter 4 / 2.5 mm

    Installation and operating conditions

    • Flush the piping before connection and use clean, conditioned compressed air with the filtration specified for this cylinder. Keep sealant clear of the first 1–2 thread turns.
    • Align the actuator and load; provide protection from moving parts and unexpected motion after a loss or restoration of air or electrical power. Exhaust residual pressure before maintenance or removal.
    • Start with the flow-control valve closed and open gradually to the required speed. Check cushioning against the actual speed, load and stopping energy; a closed-center valve does not guarantee prolonged load holding or precise intermediate stopping.
    • Protect the sliding surfaces, prevent moisture from freezing and keep contaminants out of the ports. Protect stored equipment from corrosion. Follow the dedicated lubrication instructions; where continued lubrication is selected, the general catalog specifies additive-free ISO VG32 turbine oil.

    Optional magnetic sensors and matching cables

    • H-profile: CMSH — standard/A05 reed sensors
      Two-wire reed operation at 5–240 V AC/DC.
      CMSH-020, CMSH-030, CMSH-050, CMSH-100, CMSH-M08, CMSH-M08010, CMSH-M08020, CMSH-M08030, CMSH-M12, CMSH-M12010, CMSH-M12020, CMSH-M12030, A05-CMSH-020, A05-CMSH-030, A05-CMSH-050, A05-CMSH-100
    • H-profile: CMSH — high-temperature reed sensors (final -H suffix)
      Two-wire reed operation at 5–240 V AC/DC.
      CMSH-020-H, CMSH-030-H, CMSH-050-H, CMSH-100-H, CMSH-M08-H, CMSH-M08010-H, CMSH-M08020-H, CMSH-M08030-H, CMSH-M12-H, CMSH-M12010-H, CMSH-M12020-H, CMSH-M12030-H
    • H-profile: DMSH — two-wire electronic sensors
      Two-wire electronic operation at 10–28 V DC.
      DMSH-020, DMSH-030, DMSH-050, DMSH-100, DMSH-M08, DMSH-M08010, DMSH-M08020, DMSH-M08030, DMSH-M12, DMSH-M12010, DMSH-M12020, DMSH-M12030, DMSH-020-W, DMSH-030-W, DMSH-050-W, DMSH-100-W, A05-DMSH-020, A05-DMSH-030, A05-DMSH-050, A05-DMSH-100, A06-DMSH-020, A06-DMSH-030, A06-DMSH-050, A06-DMSH-100
    • H-profile: DMSH — NPN electronic sensors
      NPN three-wire output with a 5–30 V DC supply.
      DMSH-N020, DMSH-N030, DMSH-N050, DMSH-N100, DMSH-NM08, DMSH-NM08010, DMSH-NM08020, DMSH-NM08030, DMSH-NM12, DMSH-NM12010, DMSH-NM12020, DMSH-NM12030, DMSH-N020-W, DMSH-N030-W, DMSH-N050-W, DMSH-N100-W
    • H-profile: DMSH — PNP electronic sensors
      PNP three-wire output with a 5–30 V DC supply.
      DMSH-P020, DMSH-P030, DMSH-P050, DMSH-P100, DMSH-PM08, DMSH-PM08010, DMSH-PM08020, DMSH-PM08030, DMSH-PM12, DMSH-PM12010, DMSH-PM12020, DMSH-PM12030, DMSH-P020-W, DMSH-P030-W, DMSH-P050-W, DMSH-P100-W
    • H-profile: EMSH — miniature two-wire sensors
      Miniature two-wire electronic operation at 10–28 V DC.
      EMSH-020, EMSH-030, EMSH-050, EMSH-100, EMSH-M08, EMSH-M08010, EMSH-M08020, EMSH-M08030, EMSH-M12, EMSH-M12010, EMSH-M12020, EMSH-M12030, EMSH-020-W, EMSH-030-W, EMSH-050-W, EMSH-100-W, EMSH-M08-W, EMSH-M08010-W, EMSH-M08020-W, EMSH-M08030-W, EMSH-M12-W, EMSH-M12010-W, EMSH-M12020-W, EMSH-M12030-W, A05-EMSH-020, A05-EMSH-030, A05-EMSH-050, A05-EMSH-100, A06-EMSH-020, A06-EMSH-030, A06-EMSH-050, A06-EMSH-100
    • Two-wire mating cables (B)
      For a matching M8 or M12 two-wire male sensor; ordered separately.
      F-ECM08B020, F-ECM08B030, F-ECM08B050, F-ECM08B100, F-ECM12B020, F-ECM12B030, F-ECM12B050, F-ECM12B100
    • Three-wire mating cables (C)
      For a matching M8 or M12 NPN/PNP male sensor; ordered separately.
      F-ECM08C020, F-ECM08C030, F-ECM08C050, F-ECM08C100, F-ECM12C020, F-ECM12C030, F-ECM12C050, F-ECM12C100

    The listed options are alternatives, not a required set. The H in CMSH/DMSH/EMSH identifies the sensor profile; a final -H on a CMS order code instead selects the high-temperature reed version.

    CMSH reed sensors are limited to 100 mA, 10 W and 200 Hz, with no internal consumption or leakage. Standard/A05 voltage drop is at most 2.5 V at 100 mA DC; versions with the final -H suffix have no residual voltage or indicator LED.

    Two-wire DMSH and EMSH require 2.5–100 mA loads, up to 2.8 W and 1,000 Hz. Maximum consumption, residual voltage and leakage are 3 mA, 3.5 V and 0.06 mA respectively.

    NPN/PNP DMSH outputs are rated to 30 V / 200 mA, 6 W and 1,000 Hz. Maximum consumption, residual voltage and leakage are 5 mA, 0.7 V and 0.01 mA respectively. Check controller input compatibility as well as load ratings.

    Sensor and female-cable endings 020/030/050/100 mean 2/3/5/10 m. M08/M12 sensors have M8/M12 male connectors on 0.5 m leads; M08010/M08020/M08030 and M12010/M12020/M12030 give 1/2/3 m leads. Lead length does not depend on cylinder stroke.

    Match female cables to the male connector size and wire count; direct-lead sensors need none. B pinout: 1 brown (+), 4 blue (−), 3 unused. C pinout: 1 brown (+), 3 blue (−), 4 black output. Check the mating cable and connector ratings separately.

    A05 flex-resistant robotics cable and A06 oil-resistant flex cable have a recommended minimum bend radius of 19 mm. Both are two-wire direct-lead types, without M8/M12, NPN/PNP or W options; A05-CMSH also excludes the final high-temperature -H suffix. W means waterproof: DMSH-W has direct leads only; the listed EMSH-W options also include connectors.

    Sensor temperature limits are −10 to +70°C, or −10 to +125°C for CMSH versions with the final -H suffix. The HGS cylinder remains limited to +70°C. Ordinary, high-temperature and A05 sensors are IP64; W/A06 are IP68. These ratings do not extend to the cylinder, connectors or whole assembly; use their common limits.

    CMS has no protection circuit; DMS/EMS have reverse-polarity and surge protection, and EMS also has temperature-overload protection. Reed, two-wire electronic, NPN and PNP circuits are not interchangeable. Complete and insulate wiring before powering it; keep it separate from power/high-voltage wiring. For direct leads, connect brown and blue in series with the load on two-wire types; do not connect the switch alone across the supply. On three-wire types, brown is positive supply, blue is negative and black is output; connect an NPN load to positive and a PNP load to negative.

    Install the selected H-profile sensor in the matching groove of the sensor-holder package included in this S configuration. The holder and its air-transfer seal must be installed correctly; do not fit the sensor directly to the bare cylinder body. Loosen the locking screw so it does not project below the sensor base. Slide the sensor to the required position, then tighten. Set detection at the actuation-range centre. Recommended sensor-screw torque is 0.15–0.20 N·m, never over 0.25 N·m; these are not cylinder mounting torques. Prevent impacts; keep cables free of strain and avoid unnecessary movement or bending. Observe the stated bend-radius guidance for flex-resistant versions, and inspect fixings, cables and indication.

    Keep ordinary sensors dry and do not immerse waterproof types for long periods. Avoid explosive gas, aggressive chemicals, sudden temperature changes, welding interference and magnetic debris. Provide suitable protection for A05 cables exposed to heat, dust, water or oil, and for A06 cables exposed to weld spatter.

    Optional circuit connections and complete valve codes

    For an S/SJ configuration, connect at the external working-air ports of the installed sensor-holder assembly shown in its configuration drawing, with the transfer seal correctly seated. The separately listed fittings do not include that holder assembly. Do not substitute the bare-body port thread for the holder-port thread.

    • PC4M5: M5×0.8 male; 4 mm tube OD
      Selected valve A/B connection; also M5 cylinder ports if a straight connection is chosen
    • PTL4M5A-M: M5×0.8 male; 4 mm tube OD; mini A-type
      Meter-out controller at each M5 cylinder port, instead of a straight fitting
    • PC401: PT1/8 male; 4 mm tube OD
      Only the separate 4A pilot connection if that pilot tube is 4 mm OD
    • US98A040025100MBU: Polyester PU; 4×2.5 mm; blue 100 m roll
      Optional tube packaging example, cut to installed length
    • UE95A040025100MBU: Polyether PU; 4×2.5 mm; blue 100 m roll
      Alternative tube packaging example, cut to installed length
    • 5V110M5A050, 5V110M5A200, 5V120M5A050, 5V120M5A200: 5/2 valve; M5×0.8 main/exhaust ports; terminal cable
      220 V AC direction control; 050/200 = 0.5/2 m leads
    • 5V110M5B050, 5V110M5B200, 5V120M5B050, 5V120M5B200: 5/2 valve; M5×0.8 main/exhaust ports; terminal cable
      24 V DC direction control; 050/200 = 0.5/2 m leads
    • 5V110M5C050, 5V110M5C200, 5V120M5C050, 5V120M5C200: 5/2 valve; M5×0.8 main/exhaust ports; terminal cable
      110 V AC direction control; 050/200 = 0.5/2 m leads
    • 5V110M5E050, 5V110M5E200, 5V120M5E050, 5V120M5E200: 5/2 valve; M5×0.8 main/exhaust ports; terminal cable
      24 V AC direction control; 050/200 = 0.5/2 m leads
    • 5V110M5F050, 5V110M5F200, 5V120M5F050, 5V120M5F200: 5/2 valve; M5×0.8 main/exhaust ports; terminal cable
      12 V DC direction control; 050/200 = 0.5/2 m leads

    Use PC4M5 or PTL4M5A-M at each M5 cylinder chamber port; use straight PC4M5 fittings at the M5 valve A/B ports and keep the chamber lines separate. The A-type controller restricts cylinder-to-tube exhaust and permits free charging. Seat the M5 sealing gaskets correctly.

    The gray fittings/controllers accept soft nylon or PU tube at 0–1 MPa and −20 to +70°C. Recommended controller-cap rotation torque is 0.05 N·m, not thread-tightening torque. Check insertion and wrench clearance.

    5V110 is single-solenoid spring return; 5V120 is double-solenoid with memory. Final 050/200 selects a 0.5/2 m terminal cable, not a DIN plug. AC tolerance is +15%/−10% (2.0 VA); DC is ±10% (1.6 W). Select the electrical or pneumatic control scheme.

    The existing 4A110M5/4A120M5 pneumatic alternatives require one/two external pilot signals through separate PT1/8 pilot ports. The listed pilot fitting assumes 4 mm OD pilot tubing; match both ends and seal the tapered pilot thread.

    This selected control branch uses a conservative 0.2–0.7 MPa and −20 to +70°C, respecting the cylinder edition note above and any lower connected-component limit. Apply temperature derating.

    BSLM5 fits these selected valve exhaust ports R/S (M5×0.8), not cylinder work ports. Silencer limits are 0–1 MPa and −20 to +70°C.

    The two blue 100 m tube codes are alternative packaging examples, not required installed lengths. US98A polyester-PU is rated −20 to +70°C; UE95A polyether-PU −40 to +70°C. Both are rated 1 MPa at 23°C; minimum bend radii (US/UE) are 10/8 mm. Apply temperature derating and the lowest component limit; avoid solvents, corrosive media and prolonged sunlight.

    Weight reference

    312.65 g. Catalog component-weight reference for this configuration; packaging and separately ordered electrical sensors are not included.
