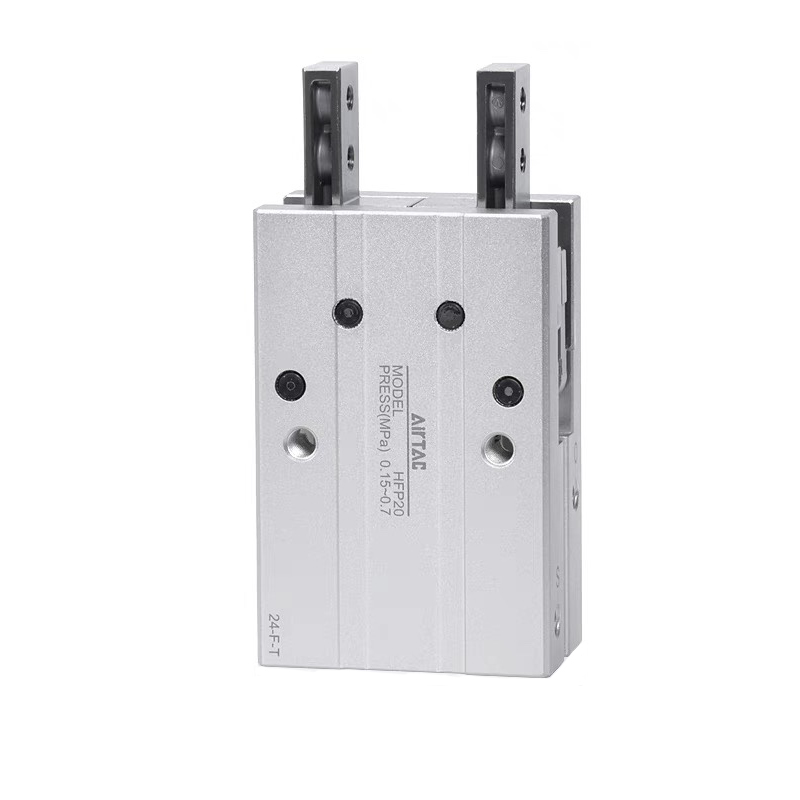

Airtac HFP: Air Gripper(mechanical parallel stype),Air Finger,Double Acting - HFP20

Description

Air gripper(mechanical parallel stype),air finger,double acting,20mm bore,standard finger type



Product Features:
1. A structure of lever type gripping is designed to reduce the cost under the premise of accuracy.
2. A sheet metal is installed between the finger and body to reduce abrasion and extend the service life.
3. The contact area between finger and body is enlarged to reduce shading and enhance the gripping accuracy.
4. The finger clamps when the piston rod pushes out and stretches when the piston rod retracts. The gripping force is 20%-30% greater than the tensile force.
5. Can be mounted from three directions.
6. Magnet is included in the standard configuration.

Product form

Air gripper(mechanical parallel stype),air finger,double acting,20mm bore,standard finger type   Product Features:1. A structure of lever type gripping is designed... Read more

SKU: HFP20

$106.07

    • Image may not be representative of actual product.
    • Shipped today? Order within: Oct 10, 2025 17:00:00 -0700

    Description

    Air gripper(mechanical parallel stype),air finger,double acting,20mm bore,standard finger type



    Product Features:
    1. A structure of lever type gripping is designed to reduce the cost under the premise of accuracy.
    2. A sheet metal is installed between the finger and body to reduce abrasion and extend the service life.
    3. The contact area between finger and body is enlarged to reduce shading and enhance the gripping accuracy.
    4. The finger clamps when the piston rod pushes out and stretches when the piston rod retracts. The gripping force is 20%-30% greater than the tensile force.
    5. Can be mounted from three directions.
    6. Magnet is included in the standard configuration.
