Airtac GAF series: air filter - GAF300N10AT

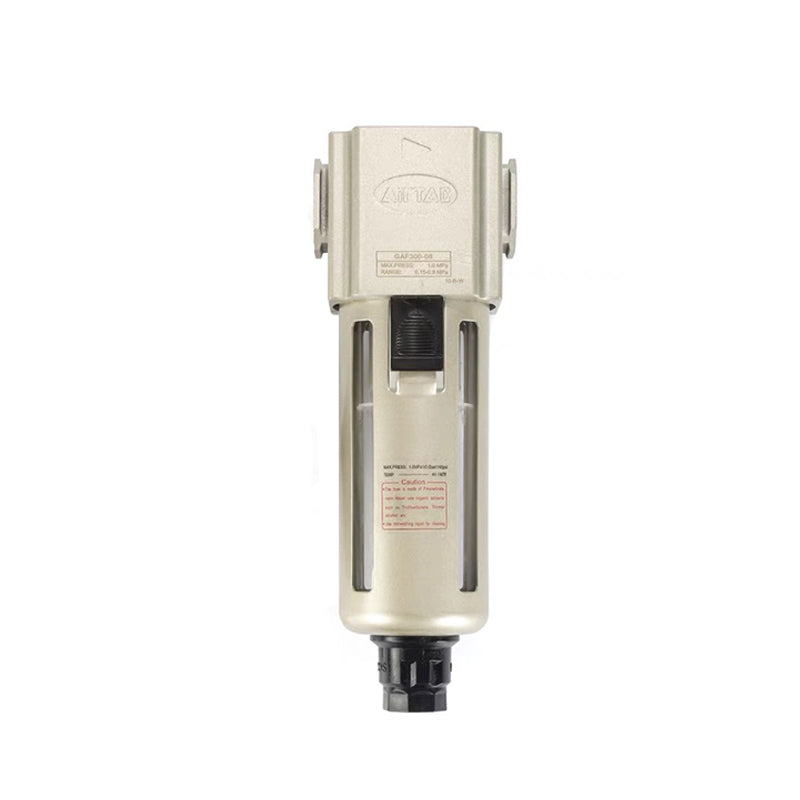

Photos are for reference only. Not all models have pictures.

Description

Specifications: GAF300N10AT is an AirTAC GAF300 air filter with a nylon bowl, NPT 3/8 ports, a 40 µm element and automatic drainage, supplied with a bracket.

Airtac GAF200-600 air preparation series are functional alternatives to SMC AF20-40 series.

Product Catalog

Download Airtac Product Catalog (PDF)

For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

Model Code Explained

Code Meaning for This Product
GAF GA Series air filter
300 300-size body
N nylon bowl
10 3/8-inch nominal port size
A automatic drainage
Blank bracket code Bracket included
Blank filtering code 40 µm filter
T NPT thread

Product Features

  • The filter removes moisture and solid particles from compressed air.
  • The filter uses air rotation to separate liquid and an element to remove particles, with low pressure loss and high water-separation performance.
  • The catalog provides semi-automatic drainage with manual operation, or automatic drainage. The selected option is identified above.
  • Bowl materials are selected by model code, allowing the published PC, metal and nylon options to be distinguished.

Technical Specifications

Parameter Details
Working medium Air
Main ports NPT 3/8
Filtering grade 40 µm
Pressure range 0.15–0.9 MPa (20–130 psi)
Proof pressure 1.5 MPa (215 psi)
Temperature −5 to 70 °C, non-freezing
Bowl material nylon
Drain type automatic drainage
Drain bowl capacity 60 cc
Mounting bracket Included
Catalog reference weight 360 g for the standard family model in this linked catalog. This is a catalog reference, not a measured weight of this individual option combination or a shipping weight.

Series Ordering Options

These are ordering alternatives for the current size. The model-code table identifies the configuration supplied under this listing; alternative options are not extra parts supplied together.

Parameter Details
Body and port options for this size 08 = 1/4 inch, 10 = 3/8 inch, 15 = 1/2 inch
Bowl choices Blank: PC; C: metal; N: nylon
Drain choices Blank: semi-automatic with manual drainage; A: automatic
Filter choices Blank: 40 µm; W: 5 µm
Thread choices Blank: PT; G: G; T: NPT
Bracket choices Blank: bracket included; J: no bracket

Internal Construction

The parts table covers the GAF series. Items 1–6 identify the filter construction and the selected bowl material. The catalog illustrates GAF200 and GAF600 section views; the additional guard/level-indicator items below are explicitly labeled as those drawing references, not a claim that every bowl version has both assemblies.

Drawing Item Material / Current Selection
1 — Body Aluminum alloy
2 — O-ring NBR
3 — Air guider High-viscosity POM
4 — Filter element HDPE; 40 µm for this product
5 — Umbrella baffle High-viscosity POM
6 — Drain bowl Nylon
Series Drawing Reference Material / Scope
7 — Bowl guard SPCC; identified in the GAF200 reference section
8 — Liquid-meter inner cover PC; identified in the GAF600 reference section
9 — Liquid-meter seal NBR; identified in the GAF600 reference section
10 — Liquid-meter cover SPCC; identified in the GAF600 reference section

Performance Curves

Parameter Details
Current family plot GAF300; horizontal axis: flow in L/min, shown from 0 to 6000; vertical axis: outlet pressure, 0–0.6 MPa.
Reading the chart The curves show performance under their indicated test conditions. The end of the plotted axis is not a rated flow at every pressure.
Inlet-pressure condition The linked GAF flow plot does not print a separate inlet-pressure value. Do not import a test pressure from another family’s curve.

Dimensions and Mounting

Drawing dimensions are in millimeters. Lettered or local callouts retain the catalog drawing references; use the drawing for their exact datums.

Parameter Details
A — drawing dimension 62.5 mm
B — drawing dimension 67.5 mm
BA — drawing dimension 41 mm
C — drawing dimension 197 mm
CA — drawing dimension 179 mm
K — drawing dimension 6.5 mm
KA — drawing dimension 40 mm
KB — drawing dimension 8 mm
KC — drawing dimension 27 mm
P — main port NPT 3/8
PA — drawing dimension 158 mm
Q — drain connection G1/4
Bracket-dependent outline The drawing includes the bracket; C and CA retain the separate vertical datums shown in the catalog.

For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

Weight Reference and Catalog Edition

Approximate reference weight: 385 g. The 2022 comprehensive catalog, printed page 300, lists GAF300–10J at this value. This same-family / same-size reference is used for the current listing; it is not a published weight for the complete current option code. Differences not individually mass-adjusted: the nylon bowl is referenced to the same-size PC-bowl entry because no nylon mass is listed; automatic drain A; thread option T; the current mounting bracket is included, whereas the reference J code omits it. This is a reference estimate, not an individual measurement or packaged shipping weight. The linked family catalog separately gives 360 g as its general family reference. The two source values have different published scopes; the selected weight-field reference follows the 2022 table.

Product form

Specifications: GAF300N10AT is an AirTAC GAF300 air filter with a nylon bowl, NPT 3/8 ports, a 40 µm element and... Read more

SKU: GAF300N10AT

$41.10 Incl. VAT

    Guaranteed secure & safe checkout.

    Ach Direct DebitAmazon American Express Apple Pay BizumDiners ClubDiscoverGoogle Pay Mastercard MB WAY PayPalSatispayShop Pay USDC Visa

    Bank transfer also available. Payment options may vary by location and device.

    Shipping, returns & order help

    Free shipping on orders US$30+ under 2 kg

    Import duties & taxes included on all orders

    Download: 3D model selection.
    Shipping & delivery times

    In-stock items: processed and shipped within 1–3 business days. Custom-made items: G/NPT threads and non-standard specifications require 7–15 business days of factory production before shipping.

    Standard international delivery typically takes 7–13 business days after dispatch, depending on customs clearance and the local delivery network. Processing or production time is additional. Next-day and overnight delivery are not available.

    Most products ship from our manufacturing centers in Asia, then transfer to a local carrier after customs clearance.

    Read our shipping policy
    Shipping costs & import taxes

    Free shipping: orders of US$30 or more weighing under 2 kg. Import duties and taxes are included on all orders.

    If an overweight shipping surcharge applies after packing, we pause shipment and email you the amount for approval before dispatch. This is a transport charge, not an import tax. If you do not reply within 7 days, the order is canceled and fully refunded.

    Shipping charges and tax details
    Model selection & custom orders

    Please check the full model number, dimensions, thread type, stroke and voltage where applicable before ordering. If you are unsure, email airtacs@airtacs.com with the model number and required specifications.

    Custom-made products, including G/NPT thread specifications and custom-built parts, are non-returnable and non-refundable under our refund policy.

    Read the refund policy before ordering
    Tracking & delivery support

    Use the tracking link in your shipping confirmation email. For YunExpress shipments, enter your YT tracking number at Yuntrack to view the journey and local delivery details.

    Provide a complete physical delivery address and reachable contact details. P.O. boxes and virtual mail-forwarding addresses are not accepted.

    If delivery fails, contact the local carrier and email airtacs@airtacs.com with your order and tracking numbers. For failures caused by an incorrect/incomplete address or an unreachable recipient, return to the local warehouse typically takes 7–30 business days. Redelivery requires an additional shipping fee; cancellation after failed delivery is subject to deductions for original shipping and carrier return fees.

    Delivery issue policy
    Returns & product issues

    Eligible returns are accepted within 7 days of delivery. Items must be unused, uninstalled and in their original factory packaging. Contact airtacs@airtacs.com for a Return Authorization (RA) number before returning anything.

    Ordered the wrong model or changed your mind? You pay return shipping, original shipping is non-refundable, and a 50% restocking fee is deducted from the actual price paid for the returned product.

    Defective, damaged or incorrect item? We provide a replacement and cover return shipping; no restocking fee applies. Custom-made items are excluded from standard returns. These terms are subject to applicable law and do not limit your statutory rights.

    Read the full refund policy
    Bank transfers & invoices

    Bank transfer: Select bank transfer at checkout and submit your order. The bank account details and payment instructions will then be displayed.

    Invoices: Invoices are available only after an order is placed. We are a US-based company and provide a standard commercial invoice, not an EU VAT tax invoice. If your company requires an EU VAT invoice, please confirm your requirements with us before ordering.

    For payment or invoice questions, email airtacs@airtacs.com with your order number.

    Description

    Specifications: GAF300N10AT is an AirTAC GAF300 air filter with a nylon bowl, NPT 3/8 ports, a 40 µm element and automatic drainage, supplied with a bracket.

    Airtac GAF200-600 air preparation series are functional alternatives to SMC AF20-40 series.

    Product Catalog

    Download Airtac Product Catalog (PDF)

    For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

    Model Code Explained

    Code Meaning for This Product
    GAF GA Series air filter
    300 300-size body
    N nylon bowl
    10 3/8-inch nominal port size
    A automatic drainage
    Blank bracket code Bracket included
    Blank filtering code 40 µm filter
    T NPT thread

    Product Features

    • The filter removes moisture and solid particles from compressed air.
    • The filter uses air rotation to separate liquid and an element to remove particles, with low pressure loss and high water-separation performance.
    • The catalog provides semi-automatic drainage with manual operation, or automatic drainage. The selected option is identified above.
    • Bowl materials are selected by model code, allowing the published PC, metal and nylon options to be distinguished.

    Technical Specifications

    Parameter Details
    Working medium Air
    Main ports NPT 3/8
    Filtering grade 40 µm
    Pressure range 0.15–0.9 MPa (20–130 psi)
    Proof pressure 1.5 MPa (215 psi)
    Temperature −5 to 70 °C, non-freezing
    Bowl material nylon
    Drain type automatic drainage
    Drain bowl capacity 60 cc
    Mounting bracket Included
    Catalog reference weight 360 g for the standard family model in this linked catalog. This is a catalog reference, not a measured weight of this individual option combination or a shipping weight.

    Series Ordering Options

    These are ordering alternatives for the current size. The model-code table identifies the configuration supplied under this listing; alternative options are not extra parts supplied together.

    Parameter Details
    Body and port options for this size 08 = 1/4 inch, 10 = 3/8 inch, 15 = 1/2 inch
    Bowl choices Blank: PC; C: metal; N: nylon
    Drain choices Blank: semi-automatic with manual drainage; A: automatic
    Filter choices Blank: 40 µm; W: 5 µm
    Thread choices Blank: PT; G: G; T: NPT
    Bracket choices Blank: bracket included; J: no bracket

    Internal Construction

    The parts table covers the GAF series. Items 1–6 identify the filter construction and the selected bowl material. The catalog illustrates GAF200 and GAF600 section views; the additional guard/level-indicator items below are explicitly labeled as those drawing references, not a claim that every bowl version has both assemblies.

    Drawing Item Material / Current Selection
    1 — Body Aluminum alloy
    2 — O-ring NBR
    3 — Air guider High-viscosity POM
    4 — Filter element HDPE; 40 µm for this product
    5 — Umbrella baffle High-viscosity POM
    6 — Drain bowl Nylon
    Series Drawing Reference Material / Scope
    7 — Bowl guard SPCC; identified in the GAF200 reference section
    8 — Liquid-meter inner cover PC; identified in the GAF600 reference section
    9 — Liquid-meter seal NBR; identified in the GAF600 reference section
    10 — Liquid-meter cover SPCC; identified in the GAF600 reference section

    Performance Curves

    Parameter Details
    Current family plot GAF300; horizontal axis: flow in L/min, shown from 0 to 6000; vertical axis: outlet pressure, 0–0.6 MPa.
    Reading the chart The curves show performance under their indicated test conditions. The end of the plotted axis is not a rated flow at every pressure.
    Inlet-pressure condition The linked GAF flow plot does not print a separate inlet-pressure value. Do not import a test pressure from another family’s curve.

    Dimensions and Mounting

    Drawing dimensions are in millimeters. Lettered or local callouts retain the catalog drawing references; use the drawing for their exact datums.

    Parameter Details
    A — drawing dimension 62.5 mm
    B — drawing dimension 67.5 mm
    BA — drawing dimension 41 mm
    C — drawing dimension 197 mm
    CA — drawing dimension 179 mm
    K — drawing dimension 6.5 mm
    KA — drawing dimension 40 mm
    KB — drawing dimension 8 mm
    KC — drawing dimension 27 mm
    P — main port NPT 3/8
    PA — drawing dimension 158 mm
    Q — drain connection G1/4
    Bracket-dependent outline The drawing includes the bracket; C and CA retain the separate vertical datums shown in the catalog.

    For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

    Weight Reference and Catalog Edition

    Approximate reference weight: 385 g. The 2022 comprehensive catalog, printed page 300, lists GAF300–10J at this value. This same-family / same-size reference is used for the current listing; it is not a published weight for the complete current option code. Differences not individually mass-adjusted: the nylon bowl is referenced to the same-size PC-bowl entry because no nylon mass is listed; automatic drain A; thread option T; the current mounting bracket is included, whereas the reference J code omits it. This is a reference estimate, not an individual measurement or packaged shipping weight. The linked family catalog separately gives 360 g as its general family reference. The two source values have different published scopes; the selected weight-field reference follows the 2022 table.
