Description

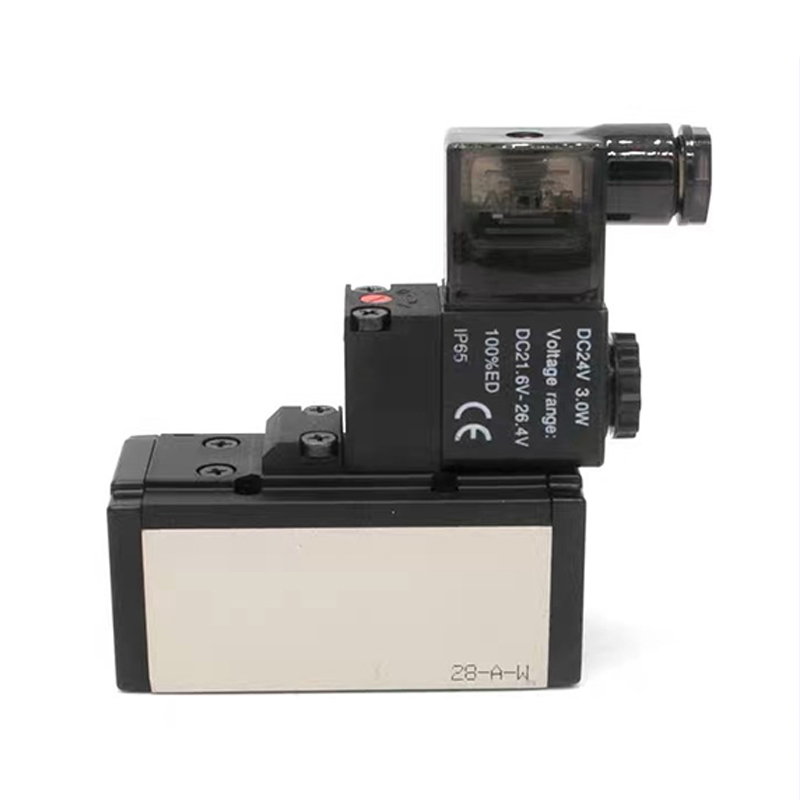

ISO standard solenoid valve,200 series,double solenoid 5/2 way,DC24V voltage,terminal,internal pilot
Product feature:
ESV200, 300, 400, 600 Series
1.Succinct appearance and compact conformation.
2.The installation size conforms to ISO 5599/1 standard.
3.Because of the special seals, the feature are large flow rate and long lifetime.
4.For 200\300\400 series you can adjust the installation direction of the gasket to change the acting type: internal pilot, external pilot, or air control.
5.You need install the valve together with the sub-base. There are individual and parallel type for manifold sub-base.
6.There are various connection and installation method for manifold. It is easy to use.
7.The manifold of 200\300\400 series have the function of exhaust throttling, so not need to connect another throttle valve.
