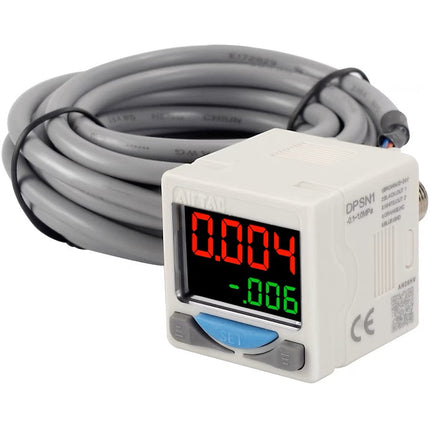

Airtac DPS series: digital pressure switch - DPSP1D-01050

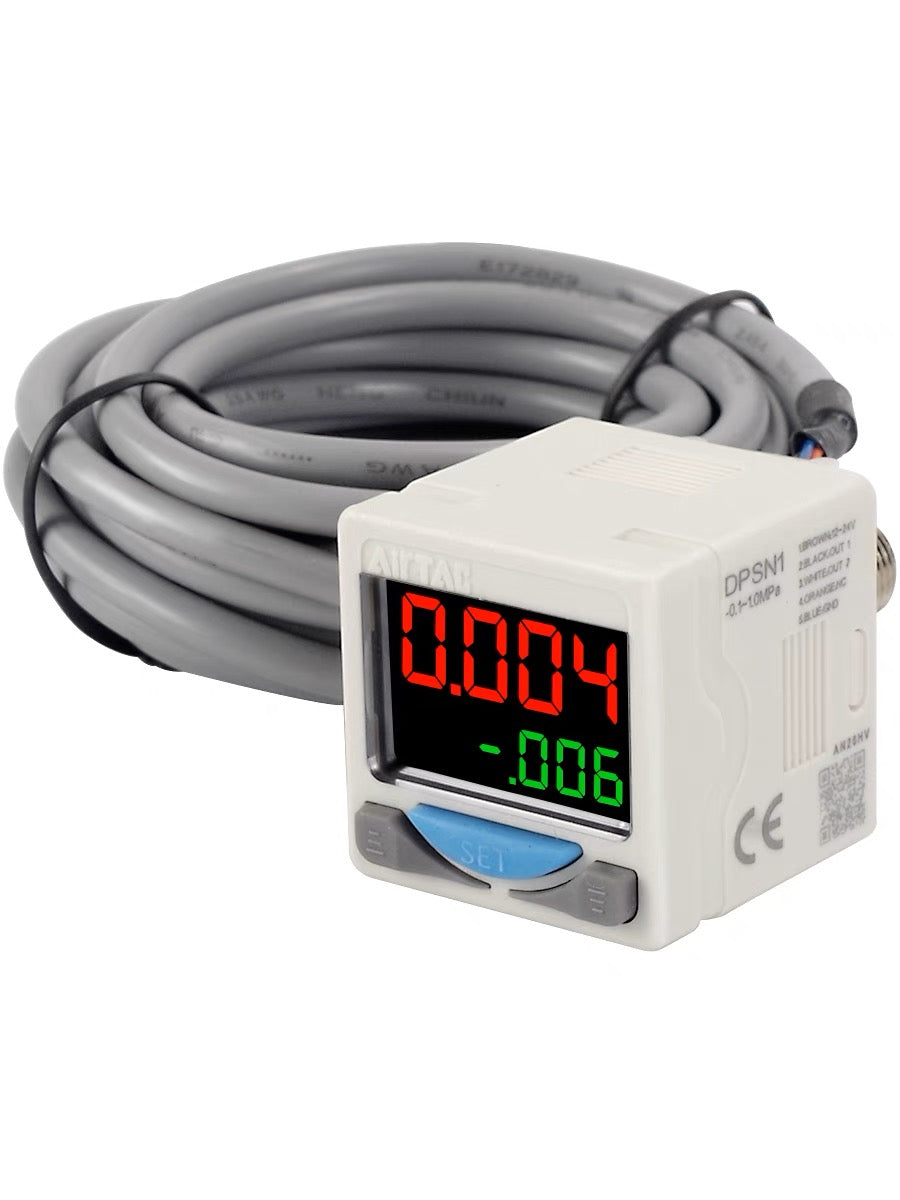

Photos are for reference only. Not all models have pictures.

Description

Specifications: DPSP1D-01050 is an AirTAC DPS digital pressure switch with two PNP outputs, a −100 to 100 kPa measuring range, bottom electrical connector, 5 m, and a PT 1/8 male pressure port with an internal M5 female thread.

Product Catalog

Download Airtac Product Catalog (PDF)

Download Legacy Airtac Product Catalog (PDF)

Technical specifications and drawings below follow the 2025 DPS catalog, printed pages 254–257. Use the 2025 download for the current drawing revision. The legacy download retains an earlier edition with superseded vibration and mounting data.

For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

Model Code Explained

Code Meaning for This Product
DPS Digital pressure switch
P1 Two PNP outputs
D bottom electrical connector
01 −100 to 100 kPa
050 5 m
Blank thread code Male PT 1/8; female M5

Product Features

  • Dual-row LCD displays measured pressure and the selected setting, with configurable red/green backlighting.
  • Two switching outputs can each use easy, hysteresis or window-comparator operation, with normally open or normally closed selection.
  • Selectable pressure units, display refresh time and output response delay support different machine-control requirements.
  • The setting-lock and zero-adjustment functions are available from the front buttons.
  • The PNP version does not support the copy function.

Technical Specifications

Parameter Details
Working medium Non-corrosive gas
Measurement range −100 to 100 kPa
Withstand pressure 200 kPa
Supply 12–24 VDC ±10%; supply ripple less than 10% peak-to-peak
Output configuration Two PNP switching outputs
Maximum applied output voltage 30 V
Maximum output current 100 mA
Residual output voltage Less than 1.5 V
Measurement accuracy ±2% full scale ±1 digit at 25 ±3 °C
Repeatability ±0.2% full scale
Temperature characteristic ±3% full scale, referenced to 25 °C across 0–50 °C
LCD display Dual row: 4 digits for measured pressure; 3.5 digits for the setting; red/green backlight
Display update choices 100, 250, 500 or 1000 ms
Response-delay choices 2, 20, 50, 100, 250, 500, 1000, 2500 or 5000 ms
Adjustable hysteresis 0.1, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7 or 0.8 kPa
Pressure units kPa, kgf/cm², bar, psi, mmHg, inHg
Operating temperature 0–50 °C
Storage temperature −20 to 65 °C
Relative humidity 35–80% RH, without condensation
Vibration resistance — 2025 catalog 10–150 Hz; full amplitude 1.5 mm; X, Y and Z directions for 2 hours each, without power
Impact resistance Maximum 100 m/s²; X, Y and Z directions, 3 times each
Electrical entry bottom electrical connector
Cable option 5 m
Pressure connection Male PT 1/8; internal female M5
Protection rating The catalog assigns IP63 only to the prewired/grommet type; no IP rating is specified here for this connector version.

Electrical Connections

Parameter Details
Brown wire / positive supply Connect to DC supply positive within the rated supply range.
Blue wire / negative supply Connect to DC supply negative.
Black wire Switching output 1.
White wire Switching output 2.
Load connection For PNP output, connect the load between the output and negative supply; the output sources current.
Protection and restart An output load above 100 mA activates short-circuit protection. Remove the fault and restart as directed in the catalog.

Display, Buttons and Menus

Parameter Details
A / B / C Up button / SET button / down button
D / E Measured-pressure display / setting display
F / G Output 1 indication / output 2 indication
H / J Power-and-signal connection / pressure inlet
Basic menu Hold SET for 2 seconds from measurement mode. Set the output mode, NO/NC behavior, response delay and backlight behavior.
Advanced menu Hold SET for 4 seconds from measurement mode. Hold SET for 2 seconds to return to measurement mode.
Backlight selection Red with output and green without output; green with output and red without output; always red; or always green.
Advanced display settings Choose the lower-row setting value, blank display or unit; select display update time and hysteresis.
Advanced functions Power-saving/backlight setting, backlight trigger OUT1/OUT2/AND/OR, copy setting where supported, and factory reset.
Zero adjustment Press the up and down buttons together.
Setting lock Up + SET locks the settings; down + SET unlocks them. LCK is displayed when a button is pressed while locked.

Switching Modes

Parameter Details
EASY mode A single setpoint is used with the selected hysteresis. In the normal output diagram the output switches on above the setpoint plus hysteresis and off below the setpoint.
HYS mode Separate upper and lower thresholds set the switching band. In the normal output diagram the output turns on above the upper threshold and off below the lower threshold.
WCMP window-comparator mode The normal output diagram is active within the selected lower/upper pressure window and inactive outside it, with hysteresis at the boundaries.
NO / NC selection Each output can use normally open or normally closed behavior. The selected logic determines whether the indicated switching state is inverted.

Copy Function Restriction

The PNP type has no parameter-copy function. Configure its outputs and settings on the unit rather than applying the NPN master/slave copy wiring.

Mounting Accessories — Ordered Separately

Parameter Details
F-DPSDEB Panel-mount adapter for this bottom electrical-connector version; the 2025 drawing specifies a square 35.5 ±0.3 mm panel cutout and panel thickness 1–5 mm.
F-DPSLB Mounting bracket for the DPS sensor; the 2025 drawing shows 29.6 mm upright width, 24 mm upright height, two Ø3.2 mm mounting holes and 1.6 mm plate thickness. The bracket is an installation accessory and is not included merely by ordering the sensor.
Assembly sequence Install the panel accessory first, then the sensor, for the bottom-connector type.

Installation and Operating Notes

  • Do not drop the sensor or subject it to impact.
  • Do not apply more than 60 N tension to the cable.
  • Tightening torque at the pressure connection must not exceed 7 N·m.
  • Do not use corrosive or flammable gases or liquids.
  • Keep pressure within the specified range.
  • Turn the power off before wiring.
  • Avoid oil and solvent splashes.
  • Separate signal wiring from high-voltage cables and conduits.
  • After an output fault or overload, correct the cause before restarting.
  • Where transient pressure produces an unwanted response, select an appropriate response delay.

Dimensions and Mounting

Dimensions are in millimeters. The D version’s bottom feature is its electrical connector; the pressure connection remains the threaded connection shown at the rear. Mounting accessories are ordered separately.

Parameter Details
Sensor face 30 × 30 mm
Body depth 28.6 mm
Overall depth including pressure connection 47.6 mm
Pressure-connection local length 7 mm
Mounting threads 2 × M3
Mounting-hole spacing callout 20 mm
Rear-view local offset 12 mm
Pressure thread Male PT 1/8; female M5
Bottom electrical-connector projection 12.4 mm below the sensor body
Bottom-connector width 20 mm

For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

Estimated Weight

Approximate engineering estimate: 148 g, excluding packaging. The calculation uses 43 g for the sensor body, an effective four-core lead allowance of 21 g/m for 5 m, and 0 g for an additional M8 connector, which is not part of this option. The lead allowance comes from a published 85 g versus 43 g comparison for a 2 m lead assembly on a similarly sized pressure switch; it is an allocated reference including that lead assembly’s connector, not a published AirTAC cable density. These are cross-model weight estimates, not AirTAC catalog or measured weights. Housing, connector, cable and thread differences are not individually weighed. No compatibility or technical equivalence is implied. Brackets, separately ordered extension cables and packaging are excluded.

Optional Piping Accessories

O = the rear sensing boss’s external male PT1/8; use an exact matching female connection. I = the same boss’s internal female M5; use an exact matching male connection. O and I are alternative ways to connect one measured-pressure source: select one, not both. They are not flow-through inlet/outlet or pilot ports. The separate M3 mounting holes are not pneumatic connections. Multiple keys retain each use. Tube OD is mm (in = inches); compression/tubing show OD × ID. These piping accessories are optional and ordered separately.

Code-prefix uses (match the longest listed family prefix): BD male–female; BKC/GBKC compression fitting; BPC/GBPC metal straight; BPCF metal female straight connector; BPMF metal female bulkhead connector; BPOC metal straight; BU double female straight coupling; GPC/PC straight; GPEB/PEB branch tee; GPED/PED run tee; GPH/PH banjo elbow; GPHF/PHF female branch banjo; GPL/PL elbow; GPLL/PLL extended elbow; GPYB/PYB Y; PCF female straight connector; PLF female elbow; PMF female bulkhead connector; POC round straight; UE PU tube; US PU tube.

Use Size / complete codes
O male PT1/4 ↔ female PT1/8: BD0102,BD0102-S
male PT3/8 ↔ female PT1/8: BD0103,BD0103-S
male PT1/2 ↔ female PT1/8: BD0104,BD0104-S
PT1/8 female / 4 OD: BPCF401,BPMF401,PCF401,PCF401D,PLF401,PLF401D,PMF401,PMF401D
PT1/8 female / 6 OD: BPCF601,BPMF601,PCF601,PCF601D,PLF601,PLF601D,PMF601,PMF601D
PT1/8 female / 8 OD: BPCF801,BPMF801,PCF801,PCF801D,PLF801,PLF801D,PMF801,PMF801D
PT1/8 female / PT1/8 female: BU0101,BU0101-S
PT1/8 female / 10 OD: PCF1001,PCF1001D,PLF1001,PLF1001D,PMF1001,PMF1001D
4; male RA PT1/8 / female RB PT1/8: PHF401,PHF401-S,PHF401D,PHF401D-S
6; male RA PT1/8 / female RB PT1/8: PHF601,PHF601-S,PHF601D,PHF601D-S
8; male RA PT1/8 / female RB PT1/8: PHF801,PHF801-S,PHF801D,PHF801D-S
8 × 5: UE95A080050100MBU,US98A080050100MBU
10 × 6.5: UE95A100065100MBU,US98A100065100MBU
I 4 × 2.5: BKC0425-M5,BKC0425-M5-S,GBKC0425-M5
4: BPC4M5,BPOC4M5,GBPC4M5,GPC4M5-M,GPC4M5D-M,GPEB4M5,GPEB4M5D,GPED4M5,GPED4M5D,GPH4M5,GPH4M5D,GPL4M5,GPL4M5-M,GPL4M5D,GPL4M5D-M,GPLL4M5,GPLL4M5D,GPYB4M5,GPYB4M5D,PC4M5,PC4M5-M,PC4M5-S,PC4M5D,PC4M5D-M,PC4M5D-S,PEB4M5,PEB4M5-S,PEB4M5D,PEB4M5D-S,PED4M5,PED4M5-S,PED4M5D,PED4M5D-S,PH4M5,PH4M5-S,PH4M5D,PH4M5D-S,PL4M5,PL4M5-M,PL4M5-S,PL4M5D,PL4M5D-M,PL4M5D-S,PLL4M5,PLL4M5-S,PLL4M5D,PLL4M5D-S,POC4M5,POC4M5-S,POC4M5D,POC4M5D-S,PYB4M5,PYB4M5-S,PYB4M5D,PYB4M5D-S
6: BPC6M5,BPOC6M5,GBPC6M5,GPC6M5,GPC6M5-M,GPC6M5D,GPC6M5D-M,GPEB6M5,GPEB6M5D,GPED6M5,GPED6M5D,GPH6M5,GPH6M5D,GPL6M5,GPL6M5-M,GPL6M5D,GPL6M5D-M,GPLL6M5,GPLL6M5D,GPYB6M5,GPYB6M5D,PC6M5,PC6M5-M,PC6M5-S,PC6M5D,PC6M5D-M,PC6M5D-S,PEB6M5,PEB6M5-S,PEB6M5D,PEB6M5D-S,PED6M5,PED6M5-S,PED6M5D,PED6M5D-S,PH6M5,PH6M5-S,PH6M5D,PH6M5D-S,PL6M5,PL6M5-M,PL6M5-S,PL6M5D,PL6M5D-M,PL6M5D-S,PLL6M5,PLL6M5-S,PLL6M5D,PLL6M5D-S,POC6M5,POC6M5-S,POC6M5D,POC6M5D-S,PYB6M5,PYB6M5-S,PYB6M5D,PYB6M5D-S
3.2: GPC3.2M5-M,GPC3.2M5D-M,GPL3.2M5-M,GPL3.2M5D-M,PC3.2M5-M,PC3.2M5D-M,PL3.2M5-M,PL3.2M5D-M
4; male RA M5 × 0.8 / female RB M5 × 0.8: GPHF4M5,GPHF4M5D,PHF4M5,PHF4M5-S,PHF4M5D,PHF4M5D-S
6; male RA M5 × 0.8 / female RB M5 × 0.8: GPHF6M5,GPHF6M5D,PHF6M5,PHF6M5-S,PHF6M5D,PHF6M5D-S
3.2 × 2: UE95A032020100MBU,US98A032020100MBU
I,O 4 × 2.5: UE95A040025100MBU,US98A040025100MBU
6 × 4: UE95A060040100MBU,US98A060040100MBU

These passive connections and tubes are optional and ordered separately for a clean compressed-air pressure-sensing line. Select either O or I at the single rear sensing boss. Do not connect separate pressure sources to O and I, use the sensor as a through-flow device, or assign either connection as a pilot or exhaust port. Keep every branch of a selected fitting on the same measured-pressure source.

The positive-pressure limit for this DPS range is 0.1 MPa; operate the sensor and complete connection path within 0–50°C and every stricter fitting or tube limit. Its 0.2 MPa withstand pressure is not a working rating. These accessory selections cover positive-pressure air only. The sensor’s negative-pressure measurement range does not establish vacuum suitability of the assembled fittings, seals and tubing; verify the entire path before vacuum service. Do not use liquids or corrosive or flammable gases. Other non-corrosive gases require confirmed sensor and complete-path material and application compatibility and are outside these air selections.

Match exact thread standard, size and opposite gender. Use the specified thread seal or face gasket and check engagement, sealing, clearance, tool access and support without obstructing the sensing passage. Follow the sensor’s original installation instructions, including the 7 N·m pressure-connection ceiling, and any lower fitting-specific torque; 7 N·m is not a tightening target for every fitting. Depressurize before disconnecting.

Match tube OD and, for compression fittings, OD/ID; metric and inch sizes are not interchangeable. Use the specified soft nylon/PU tube and check full insertion, seating and bends. Support tubing and fittings so their loads do not twist the sensor. Put the compression cap over the tube, seat the tube in the body and tighten the cap as specified; loosen it before removal and use a wrench on the body’s hex flats.

For the listed metric male fittings, D identifies black catalog-specified plastic parts instead of the blank grey option. -M denotes the miniature version; -S identifies the specified stainless-steel 304 parts only. Use the exact complete code and its stated geometry; these suffixes do not apply to every family.

PCF/PLF/PMF/BPCF/BPMF have female pneumatic threads for the external male O connection; their tube sockets are separate connections. On PMF/BPMF bulkhead fittings, panel-mounting threads and retaining nuts are not pneumatic ports. Check panel thickness, washer/nut seating and support. For PCF/PMF, D specifies a black release button (blank: grey). For PLF, D specifies a black release button and body (blank: grey). These D options do not apply to the listed metal or N-prefixed female fittings.

PHF/GPHF fittings have male RA, female RB and a separate tube socket. For role I, the fitting’s male RA mates with the sensor’s internal female thread; for role O, the fitting’s female RB mates with the sensor’s external male thread. Use only the role and exact end size listed for that code. Connect the remaining threaded end to its own matching opposite-gender part and seal, keeping it on the same measured-pressure source. A fitting’s RB is not a tube socket.

Match both adapter ends independently by size, gender and thread standard. BD first size is female RB, which mates with O; the second is male RA, requiring a separate matching female part. BU are female-to-female couplings; after connecting one end to O, the other needs a separate matching male part. These parts do not convert PT to G, NPT or M5, and do not authorize plugging the active sensing connection.

Standard plastic push-in fittings: ≤1 MPa, −20–70°C. Metal BPC/BPOC/BPCF/BPMF/GBPC: ≤0.9 MPa. BKC/GBKC/BD/BU: ≤1 MPa. The listed metal push-in, compression and threaded-adapter groups have a 0–150°C component range. These are component limits, not an extension of the DPS range; use the lower pressure and narrower temperature range of the sensor, every fitting and tube.

US98A/UE95A examples are separately ordered blue 100 m metric PU coils rated 1 MPa at 23°C. US98A: −20–70°C; UE95A: −40–70°C. Match OD/ID and derate with increasing temperature within all sensor/component limits; 1 MPa is not assured throughout. Use inch tube for an inch socket, never an approximately similar metric size.

Items marked discontinued are historical service references, not current standard recommendations. Confirm availability or a manufacturer-approved replacement. An unmarked catalogue entry does not promise current production, stock or delivery.

Product form

Specifications: DPSP1D-01050 is an AirTAC DPS digital pressure switch with two PNP outputs, a −100 to 100 kPa measuring range,... Read more

SKU: DPSP1D-01050

$62.75 Incl. VAT

    Guaranteed secure & safe checkout.

    Ach Direct DebitAmazon American Express Apple Pay BizumDiners ClubDiscoverGoogle Pay Mastercard MB WAY PayPalSatispayShop Pay USDC Visa

    Bank transfer also available. Payment options may vary by location and device.

    Shipping, returns & order help

    Free shipping on orders US$30+ under 2 kg

    Import duties & taxes included on all orders

    Download: 3D model selection.
    Shipping & delivery times

    In-stock items: processed and shipped within 1–3 business days. Custom-made items: G/NPT threads and non-standard specifications require 7–15 business days of factory production before shipping.

    Standard international delivery typically takes 7–13 business days after dispatch, depending on customs clearance and the local delivery network. Processing or production time is additional. Next-day and overnight delivery are not available.

    Most products ship from our manufacturing centers in Asia, then transfer to a local carrier after customs clearance.

    Read our shipping policy
    Shipping costs & import taxes

    Free shipping: orders of US$30 or more weighing under 2 kg. Import duties and taxes are included on all orders.

    If an overweight shipping surcharge applies after packing, we pause shipment and email you the amount for approval before dispatch. This is a transport charge, not an import tax. If you do not reply within 7 days, the order is canceled and fully refunded.

    Shipping charges and tax details
    Model selection & custom orders

    Please check the full model number, dimensions, thread type, stroke and voltage where applicable before ordering. If you are unsure, email airtacs@airtacs.com with the model number and required specifications.

    Custom-made products, including G/NPT thread specifications and custom-built parts, are non-returnable and non-refundable under our refund policy.

    Read the refund policy before ordering
    Tracking & delivery support

    Use the tracking link in your shipping confirmation email. For YunExpress shipments, enter your YT tracking number at Yuntrack to view the journey and local delivery details.

    Provide a complete physical delivery address and reachable contact details. P.O. boxes and virtual mail-forwarding addresses are not accepted.

    If delivery fails, contact the local carrier and email airtacs@airtacs.com with your order and tracking numbers. For failures caused by an incorrect/incomplete address or an unreachable recipient, return to the local warehouse typically takes 7–30 business days. Redelivery requires an additional shipping fee; cancellation after failed delivery is subject to deductions for original shipping and carrier return fees.

    Delivery issue policy
    Returns & product issues

    Eligible returns are accepted within 7 days of delivery. Items must be unused, uninstalled and in their original factory packaging. Contact airtacs@airtacs.com for a Return Authorization (RA) number before returning anything.

    Ordered the wrong model or changed your mind? You pay return shipping, original shipping is non-refundable, and a 50% restocking fee is deducted from the actual price paid for the returned product.

    Defective, damaged or incorrect item? We provide a replacement and cover return shipping; no restocking fee applies. Custom-made items are excluded from standard returns. These terms are subject to applicable law and do not limit your statutory rights.

    Read the full refund policy
    Bank transfers & invoices

    Bank transfer: Select bank transfer at checkout and submit your order. The bank account details and payment instructions will then be displayed.

    Invoices: Invoices are available only after an order is placed. We are a US-based company and provide a standard commercial invoice, not an EU VAT tax invoice. If your company requires an EU VAT invoice, please confirm your requirements with us before ordering.

    For payment or invoice questions, email airtacs@airtacs.com with your order number.

    Description

    Specifications: DPSP1D-01050 is an AirTAC DPS digital pressure switch with two PNP outputs, a −100 to 100 kPa measuring range, bottom electrical connector, 5 m, and a PT 1/8 male pressure port with an internal M5 female thread.

    Product Catalog

    Download Airtac Product Catalog (PDF)

    Download Legacy Airtac Product Catalog (PDF)

    Technical specifications and drawings below follow the 2025 DPS catalog, printed pages 254–257. Use the 2025 download for the current drawing revision. The legacy download retains an earlier edition with superseded vibration and mounting data.

    For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

    Model Code Explained

    Code Meaning for This Product
    DPS Digital pressure switch
    P1 Two PNP outputs
    D bottom electrical connector
    01 −100 to 100 kPa
    050 5 m
    Blank thread code Male PT 1/8; female M5

    Product Features

    • Dual-row LCD displays measured pressure and the selected setting, with configurable red/green backlighting.
    • Two switching outputs can each use easy, hysteresis or window-comparator operation, with normally open or normally closed selection.
    • Selectable pressure units, display refresh time and output response delay support different machine-control requirements.
    • The setting-lock and zero-adjustment functions are available from the front buttons.
    • The PNP version does not support the copy function.

    Technical Specifications

    Parameter Details
    Working medium Non-corrosive gas
    Measurement range −100 to 100 kPa
    Withstand pressure 200 kPa
    Supply 12–24 VDC ±10%; supply ripple less than 10% peak-to-peak
    Output configuration Two PNP switching outputs
    Maximum applied output voltage 30 V
    Maximum output current 100 mA
    Residual output voltage Less than 1.5 V
    Measurement accuracy ±2% full scale ±1 digit at 25 ±3 °C
    Repeatability ±0.2% full scale
    Temperature characteristic ±3% full scale, referenced to 25 °C across 0–50 °C
    LCD display Dual row: 4 digits for measured pressure; 3.5 digits for the setting; red/green backlight
    Display update choices 100, 250, 500 or 1000 ms
    Response-delay choices 2, 20, 50, 100, 250, 500, 1000, 2500 or 5000 ms
    Adjustable hysteresis 0.1, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7 or 0.8 kPa
    Pressure units kPa, kgf/cm², bar, psi, mmHg, inHg
    Operating temperature 0–50 °C
    Storage temperature −20 to 65 °C
    Relative humidity 35–80% RH, without condensation
    Vibration resistance — 2025 catalog 10–150 Hz; full amplitude 1.5 mm; X, Y and Z directions for 2 hours each, without power
    Impact resistance Maximum 100 m/s²; X, Y and Z directions, 3 times each
    Electrical entry bottom electrical connector
    Cable option 5 m
    Pressure connection Male PT 1/8; internal female M5
    Protection rating The catalog assigns IP63 only to the prewired/grommet type; no IP rating is specified here for this connector version.

    Electrical Connections

    Parameter Details
    Brown wire / positive supply Connect to DC supply positive within the rated supply range.
    Blue wire / negative supply Connect to DC supply negative.
    Black wire Switching output 1.
    White wire Switching output 2.
    Load connection For PNP output, connect the load between the output and negative supply; the output sources current.
    Protection and restart An output load above 100 mA activates short-circuit protection. Remove the fault and restart as directed in the catalog.

    Display, Buttons and Menus

    Parameter Details
    A / B / C Up button / SET button / down button
    D / E Measured-pressure display / setting display
    F / G Output 1 indication / output 2 indication
    H / J Power-and-signal connection / pressure inlet
    Basic menu Hold SET for 2 seconds from measurement mode. Set the output mode, NO/NC behavior, response delay and backlight behavior.
    Advanced menu Hold SET for 4 seconds from measurement mode. Hold SET for 2 seconds to return to measurement mode.
    Backlight selection Red with output and green without output; green with output and red without output; always red; or always green.
    Advanced display settings Choose the lower-row setting value, blank display or unit; select display update time and hysteresis.
    Advanced functions Power-saving/backlight setting, backlight trigger OUT1/OUT2/AND/OR, copy setting where supported, and factory reset.
    Zero adjustment Press the up and down buttons together.
    Setting lock Up + SET locks the settings; down + SET unlocks them. LCK is displayed when a button is pressed while locked.

    Switching Modes

    Parameter Details
    EASY mode A single setpoint is used with the selected hysteresis. In the normal output diagram the output switches on above the setpoint plus hysteresis and off below the setpoint.
    HYS mode Separate upper and lower thresholds set the switching band. In the normal output diagram the output turns on above the upper threshold and off below the lower threshold.
    WCMP window-comparator mode The normal output diagram is active within the selected lower/upper pressure window and inactive outside it, with hysteresis at the boundaries.
    NO / NC selection Each output can use normally open or normally closed behavior. The selected logic determines whether the indicated switching state is inverted.

    Copy Function Restriction

    The PNP type has no parameter-copy function. Configure its outputs and settings on the unit rather than applying the NPN master/slave copy wiring.

    Mounting Accessories — Ordered Separately

    Parameter Details
    F-DPSDEB Panel-mount adapter for this bottom electrical-connector version; the 2025 drawing specifies a square 35.5 ±0.3 mm panel cutout and panel thickness 1–5 mm.
    F-DPSLB Mounting bracket for the DPS sensor; the 2025 drawing shows 29.6 mm upright width, 24 mm upright height, two Ø3.2 mm mounting holes and 1.6 mm plate thickness. The bracket is an installation accessory and is not included merely by ordering the sensor.
    Assembly sequence Install the panel accessory first, then the sensor, for the bottom-connector type.

    Installation and Operating Notes

    • Do not drop the sensor or subject it to impact.
    • Do not apply more than 60 N tension to the cable.
    • Tightening torque at the pressure connection must not exceed 7 N·m.
    • Do not use corrosive or flammable gases or liquids.
    • Keep pressure within the specified range.
    • Turn the power off before wiring.
    • Avoid oil and solvent splashes.
    • Separate signal wiring from high-voltage cables and conduits.
    • After an output fault or overload, correct the cause before restarting.
    • Where transient pressure produces an unwanted response, select an appropriate response delay.

    Dimensions and Mounting

    Dimensions are in millimeters. The D version’s bottom feature is its electrical connector; the pressure connection remains the threaded connection shown at the rear. Mounting accessories are ordered separately.

    Parameter Details
    Sensor face 30 × 30 mm
    Body depth 28.6 mm
    Overall depth including pressure connection 47.6 mm
    Pressure-connection local length 7 mm
    Mounting threads 2 × M3
    Mounting-hole spacing callout 20 mm
    Rear-view local offset 12 mm
    Pressure thread Male PT 1/8; female M5
    Bottom electrical-connector projection 12.4 mm below the sensor body
    Bottom-connector width 20 mm

    For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

    Estimated Weight

    Approximate engineering estimate: 148 g, excluding packaging. The calculation uses 43 g for the sensor body, an effective four-core lead allowance of 21 g/m for 5 m, and 0 g for an additional M8 connector, which is not part of this option. The lead allowance comes from a published 85 g versus 43 g comparison for a 2 m lead assembly on a similarly sized pressure switch; it is an allocated reference including that lead assembly’s connector, not a published AirTAC cable density. These are cross-model weight estimates, not AirTAC catalog or measured weights. Housing, connector, cable and thread differences are not individually weighed. No compatibility or technical equivalence is implied. Brackets, separately ordered extension cables and packaging are excluded.

    Optional Piping Accessories

    O = the rear sensing boss’s external male PT1/8; use an exact matching female connection. I = the same boss’s internal female M5; use an exact matching male connection. O and I are alternative ways to connect one measured-pressure source: select one, not both. They are not flow-through inlet/outlet or pilot ports. The separate M3 mounting holes are not pneumatic connections. Multiple keys retain each use. Tube OD is mm (in = inches); compression/tubing show OD × ID. These piping accessories are optional and ordered separately.

    Code-prefix uses (match the longest listed family prefix): BD male–female; BKC/GBKC compression fitting; BPC/GBPC metal straight; BPCF metal female straight connector; BPMF metal female bulkhead connector; BPOC metal straight; BU double female straight coupling; GPC/PC straight; GPEB/PEB branch tee; GPED/PED run tee; GPH/PH banjo elbow; GPHF/PHF female branch banjo; GPL/PL elbow; GPLL/PLL extended elbow; GPYB/PYB Y; PCF female straight connector; PLF female elbow; PMF female bulkhead connector; POC round straight; UE PU tube; US PU tube.

    Use Size / complete codes
    O male PT1/4 ↔ female PT1/8: BD0102,BD0102-S
    male PT3/8 ↔ female PT1/8: BD0103,BD0103-S
    male PT1/2 ↔ female PT1/8: BD0104,BD0104-S
    PT1/8 female / 4 OD: BPCF401,BPMF401,PCF401,PCF401D,PLF401,PLF401D,PMF401,PMF401D
    PT1/8 female / 6 OD: BPCF601,BPMF601,PCF601,PCF601D,PLF601,PLF601D,PMF601,PMF601D
    PT1/8 female / 8 OD: BPCF801,BPMF801,PCF801,PCF801D,PLF801,PLF801D,PMF801,PMF801D
    PT1/8 female / PT1/8 female: BU0101,BU0101-S
    PT1/8 female / 10 OD: PCF1001,PCF1001D,PLF1001,PLF1001D,PMF1001,PMF1001D
    4; male RA PT1/8 / female RB PT1/8: PHF401,PHF401-S,PHF401D,PHF401D-S
    6; male RA PT1/8 / female RB PT1/8: PHF601,PHF601-S,PHF601D,PHF601D-S
    8; male RA PT1/8 / female RB PT1/8: PHF801,PHF801-S,PHF801D,PHF801D-S
    8 × 5: UE95A080050100MBU,US98A080050100MBU
    10 × 6.5: UE95A100065100MBU,US98A100065100MBU
    I 4 × 2.5: BKC0425-M5,BKC0425-M5-S,GBKC0425-M5
    4: BPC4M5,BPOC4M5,GBPC4M5,GPC4M5-M,GPC4M5D-M,GPEB4M5,GPEB4M5D,GPED4M5,GPED4M5D,GPH4M5,GPH4M5D,GPL4M5,GPL4M5-M,GPL4M5D,GPL4M5D-M,GPLL4M5,GPLL4M5D,GPYB4M5,GPYB4M5D,PC4M5,PC4M5-M,PC4M5-S,PC4M5D,PC4M5D-M,PC4M5D-S,PEB4M5,PEB4M5-S,PEB4M5D,PEB4M5D-S,PED4M5,PED4M5-S,PED4M5D,PED4M5D-S,PH4M5,PH4M5-S,PH4M5D,PH4M5D-S,PL4M5,PL4M5-M,PL4M5-S,PL4M5D,PL4M5D-M,PL4M5D-S,PLL4M5,PLL4M5-S,PLL4M5D,PLL4M5D-S,POC4M5,POC4M5-S,POC4M5D,POC4M5D-S,PYB4M5,PYB4M5-S,PYB4M5D,PYB4M5D-S
    6: BPC6M5,BPOC6M5,GBPC6M5,GPC6M5,GPC6M5-M,GPC6M5D,GPC6M5D-M,GPEB6M5,GPEB6M5D,GPED6M5,GPED6M5D,GPH6M5,GPH6M5D,GPL6M5,GPL6M5-M,GPL6M5D,GPL6M5D-M,GPLL6M5,GPLL6M5D,GPYB6M5,GPYB6M5D,PC6M5,PC6M5-M,PC6M5-S,PC6M5D,PC6M5D-M,PC6M5D-S,PEB6M5,PEB6M5-S,PEB6M5D,PEB6M5D-S,PED6M5,PED6M5-S,PED6M5D,PED6M5D-S,PH6M5,PH6M5-S,PH6M5D,PH6M5D-S,PL6M5,PL6M5-M,PL6M5-S,PL6M5D,PL6M5D-M,PL6M5D-S,PLL6M5,PLL6M5-S,PLL6M5D,PLL6M5D-S,POC6M5,POC6M5-S,POC6M5D,POC6M5D-S,PYB6M5,PYB6M5-S,PYB6M5D,PYB6M5D-S
    3.2: GPC3.2M5-M,GPC3.2M5D-M,GPL3.2M5-M,GPL3.2M5D-M,PC3.2M5-M,PC3.2M5D-M,PL3.2M5-M,PL3.2M5D-M
    4; male RA M5 × 0.8 / female RB M5 × 0.8: GPHF4M5,GPHF4M5D,PHF4M5,PHF4M5-S,PHF4M5D,PHF4M5D-S
    6; male RA M5 × 0.8 / female RB M5 × 0.8: GPHF6M5,GPHF6M5D,PHF6M5,PHF6M5-S,PHF6M5D,PHF6M5D-S
    3.2 × 2: UE95A032020100MBU,US98A032020100MBU
    I,O 4 × 2.5: UE95A040025100MBU,US98A040025100MBU
    6 × 4: UE95A060040100MBU,US98A060040100MBU

    These passive connections and tubes are optional and ordered separately for a clean compressed-air pressure-sensing line. Select either O or I at the single rear sensing boss. Do not connect separate pressure sources to O and I, use the sensor as a through-flow device, or assign either connection as a pilot or exhaust port. Keep every branch of a selected fitting on the same measured-pressure source.

    The positive-pressure limit for this DPS range is 0.1 MPa; operate the sensor and complete connection path within 0–50°C and every stricter fitting or tube limit. Its 0.2 MPa withstand pressure is not a working rating. These accessory selections cover positive-pressure air only. The sensor’s negative-pressure measurement range does not establish vacuum suitability of the assembled fittings, seals and tubing; verify the entire path before vacuum service. Do not use liquids or corrosive or flammable gases. Other non-corrosive gases require confirmed sensor and complete-path material and application compatibility and are outside these air selections.

    Match exact thread standard, size and opposite gender. Use the specified thread seal or face gasket and check engagement, sealing, clearance, tool access and support without obstructing the sensing passage. Follow the sensor’s original installation instructions, including the 7 N·m pressure-connection ceiling, and any lower fitting-specific torque; 7 N·m is not a tightening target for every fitting. Depressurize before disconnecting.

    Match tube OD and, for compression fittings, OD/ID; metric and inch sizes are not interchangeable. Use the specified soft nylon/PU tube and check full insertion, seating and bends. Support tubing and fittings so their loads do not twist the sensor. Put the compression cap over the tube, seat the tube in the body and tighten the cap as specified; loosen it before removal and use a wrench on the body’s hex flats.

    For the listed metric male fittings, D identifies black catalog-specified plastic parts instead of the blank grey option. -M denotes the miniature version; -S identifies the specified stainless-steel 304 parts only. Use the exact complete code and its stated geometry; these suffixes do not apply to every family.

    PCF/PLF/PMF/BPCF/BPMF have female pneumatic threads for the external male O connection; their tube sockets are separate connections. On PMF/BPMF bulkhead fittings, panel-mounting threads and retaining nuts are not pneumatic ports. Check panel thickness, washer/nut seating and support. For PCF/PMF, D specifies a black release button (blank: grey). For PLF, D specifies a black release button and body (blank: grey). These D options do not apply to the listed metal or N-prefixed female fittings.

    PHF/GPHF fittings have male RA, female RB and a separate tube socket. For role I, the fitting’s male RA mates with the sensor’s internal female thread; for role O, the fitting’s female RB mates with the sensor’s external male thread. Use only the role and exact end size listed for that code. Connect the remaining threaded end to its own matching opposite-gender part and seal, keeping it on the same measured-pressure source. A fitting’s RB is not a tube socket.

    Match both adapter ends independently by size, gender and thread standard. BD first size is female RB, which mates with O; the second is male RA, requiring a separate matching female part. BU are female-to-female couplings; after connecting one end to O, the other needs a separate matching male part. These parts do not convert PT to G, NPT or M5, and do not authorize plugging the active sensing connection.

    Standard plastic push-in fittings: ≤1 MPa, −20–70°C. Metal BPC/BPOC/BPCF/BPMF/GBPC: ≤0.9 MPa. BKC/GBKC/BD/BU: ≤1 MPa. The listed metal push-in, compression and threaded-adapter groups have a 0–150°C component range. These are component limits, not an extension of the DPS range; use the lower pressure and narrower temperature range of the sensor, every fitting and tube.

    US98A/UE95A examples are separately ordered blue 100 m metric PU coils rated 1 MPa at 23°C. US98A: −20–70°C; UE95A: −40–70°C. Match OD/ID and derate with increasing temperature within all sensor/component limits; 1 MPa is not assured throughout. Use inch tube for an inch socket, never an approximately similar metric size.

    Items marked discontinued are historical service references, not current standard recommendations. Confirm availability or a manufacturer-approved replacement. An unmarked catalogue entry does not promise current production, stock or delivery.

    Recently viewed products

      Footer image

      © 2026 Airtac, Powered by Shopify

      • US (USD $) US (USD $)
      • Ach Direct Debit
      • Amazon
      • American Express
      • Apple Pay
      • Bizum
      • Diners Club
      • Discover
      • Google Pay
      • Mastercard
      • MB WAY
      • PayPal
      • Satispay
      • Shop Pay
      • USDC
      • Visa
