Description

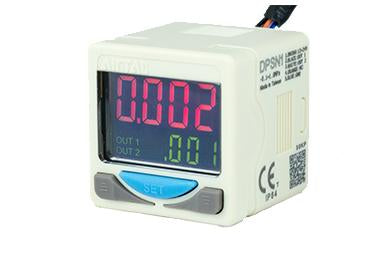

Series: Electronic digital pressure sensor,Output type: NPN,Power connection mode: terminal type power connection,Measuring pressure range:-100kPa ~ 100kPa,Outlet length: line length 2m,Pressure stoma type: external teeth NPT1/8; internal teeth: 10-32UNF,
Click to download the Airtac catalog
Product Features
1.Do not drop、knock or apply excessive impact while handling. Otherwise could cause damage and a malfunction.
2.The tensile strength of the cord is 60N. Applying a greater pulling force on it can cause a malfunction.
3.Do not exceed the screw-in torque of 7N.m when installing piping,Exceeding this value may cause malfunctioning of the sensor.
4.Do not use it with corrosive and/or flammable gases or liquids.
5.Please use it within rated pressure range,Turn off the power before connecting the wires.
6.Don 't use in an environment with spattering liquid of oil or solvent,Separate power lines from high voltage lines, avoiding wiring in the same conduit with these lines.
7.When output current exceeds 100mA, circuit protection will be activated. System will resume once reboot.
8.Adjust output-response response time can avoid errors caused by sudden change of working pressure,There is no copy function for PNPtype.
