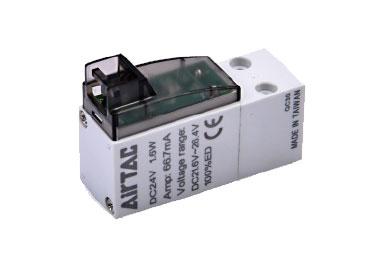

Miniature solenoid valve 3/2 way DC24V .5m wire manual overrideThe CPV15BP-050 miniature solenoid directional control valve is suited for compact... Read more
SKU: CPV15BP-050
$11.61
| Item | CPV15 |
|---|---|
| Working Medium | Filtered air (≥40 μm) |
| Actuation Type | Direct acting |
| Orifice Diameter | Φ0.8 mm |
| Effective Area | P→A: 0.44 mm² (Cv=0.024) A→R: 0.55 mm² (Cv=0.03) |
| Stroke | 0.6 mm |
| Weight | Valve only: 32 g With lead: 050 = 14.6 g, 200 = 21.4 g |
| Mounting Method | 2 × M2.5 screws (included) |
| Operating Pressure | 0–0.8 MPa (0–114 psi) |
| Max Pressure Resistance | 1.2 MPa (175 psi) |
| Operating Temperature | –20°C to 70°C |
| Item | AC220V | AC110V | AC24V | DC24V | DC12V |
|---|---|---|---|---|---|
| Rated Voltage | AC220V | AC110V | AC24V | DC24V | DC12V |
| Voltage Tolerance | AC: ±15% ~ –10% | DC: ±10% | |||
| Insulation Class | Class F | ||||
| Power Consumption | 2.0VA | 2.0VA | — | 1.6W | 1.6W |
| Response Time | ON ≤10 ms / OFF ≤10 ms | ||||
Note: The maximum operating frequency is measured under no-load condition.
Valve Body Example: CPV15 B P – 050
| No. | Code | Description |
|---|---|---|
| ① | CPV15 | 15 mm series micro solenoid valve |
| ② | A / B / C / E / F | A: AC220V B: DC24V C: AC110V E: AC24V F: DC12V |
| ③ | P | P: With manual override |
| ④ | 050 / 200 | Lead wire length: 050 = 0.5 m / 200 = 2.0 m |
Connector Cable Example: CPVT050
| No. | Code | Description |
|---|---|---|
| ① | CPVT | CPV Series connector cable |
| ② | T | With plug |
| ③ | 050 / 200 | 050 = 0.5 m / 200 = 2.0 m |
| No. | Component | Material |
|---|---|---|
| 1 | Coil cover | PA66 |
| 2 | Housing | Aluminum |
| 3 | Valve base | Brass |
| 4 | Fixed core | Stainless steel |
| 5 | Spring | Stainless steel |
| 6 | O-rings | NBR |
| 7 | Moving core | Stainless steel |
| 8 | Ceramic plate | Ceramic |
| 9–24 | Seals, clips, plates | NBR / PA66 / metal |
