Airtac CPV: Compact Modular Valve Bank - CPV15SF8FT

Description

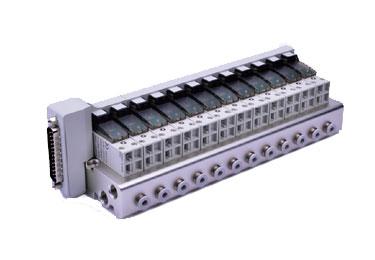

Compact modular solenoid valve and manifold assembly DC12V 8 stations NPT thread typeThe CPV15SF8FT integrated valve and manifold assembly is suited for your compact pneumatic systems.



1.Integrated installation centralizes air intake exhaust and power(25pin D-Sub)to save space and reduce additional accessories.
2.Flexible combination and expandability for various applications. Blank plates are optional.
3.Equipped with manual override for quick air circuit checking.
4.Low starting voltage and long service life.
Product form

Compact modular solenoid valve and manifold assembly DC12V 8 stations NPT thread typeThe CPV15SF8FT integrated valve and manifold assembly is... Read more

SKU: CPV15SF8FT

$145.68

    • Image may not be representative of actual product.

    Description

    Compact modular solenoid valve and manifold assembly DC12V 8 stations NPT thread typeThe CPV15SF8FT integrated valve and manifold assembly is suited for your compact pneumatic systems.



    1.Integrated installation centralizes air intake exhaust and power(25pin D-Sub)to save space and reduce additional accessories.
    2.Flexible combination and expandability for various applications. Blank plates are optional.
    3.Equipped with manual override for quick air circuit checking.
    4.Low starting voltage and long service life.
    Airtac Product Details

    CPV15S Series Integrated Solenoid Valve

    • Product Features
    • Specifications
    • Electrical Specifications
    • Product Ordering Code
    • Installation & Notes

    Product Features

    1. Modular structure with unified signal transmission and 25-pin D-sub control interface, saving space and wiring cost.
    2. Manual override with locking mechanism included for easy testing and debugging.
    3. Compact body, flexible installation; multiple valve groups can be combined to expand station capacity.
    4. Wide range of pipe thread options: PT, G, NPT (selectable).

    Specifications

    ItemCPV15SBCPV15SF
    Working MediumFiltered air (≥40 μm)
    Actuation TypeDirect acting
    Available Positions2F–20F (even numbers)
    Connection25-pin D-sub connector
    Port SizePT thread, G threadNPT thread
    TubingΦ4 mm (push-in fitting),Φ5/32' (push-in fitting)
    Output ModeCentralized exhaust
    Operating Pressure0.15–0.8 MPa (21–114 psi)
    Max Pressure Resistance1.2 MPa (175 psi)
    Operating Temperature–20°C to 70°C

    Note: Available thread types: PT, G, NPT (selectable).

    Electrical Specifications

    ItemCPV15SBCPV15SF
    Rated VoltageDC24VDC12V
    Voltage ToleranceDC ±10%
    Insulation ClassClass F
    Power ConsumptionDC: 1.6W

    Note: The maximum operating frequency is measured under no-load condition.

    Product Ordering Code

    Example: CPV15S B 20F

    No.CodeDescription
    CPV15SCPV15S Series integrated solenoid valve
    B / F B: DC24V
    F: DC12V
    2F / 4F / … / 20F Number of valve positions (even only)
    (blank) / G / T (blank): PT thread
    G: G thread
    T: NPT thread

    Installation & Notes

    • Use M2.5×12 mm screws to fix valve units to the base; recommended torque: 0.15–0.2 N·m.
    • Use blanking plate to cover unused positions. Secure with screws at side positions as shown.
    • Tubing can be pushed into Φ4 mm push-in fittings or 5/32” ports depending on thread type (PT, G, or NPT).
    • Base includes dual mounting slots; use M4×12 mm screws or optional DIN rail clips (TS15 standard) to mount.
