Airtac coil and accessories: Fluid control valve(2/2 way) - CLA170F
Grommet,coil specification(bore size Φ17.0mm),DC12V voltage,B class Read more
SKU: CLA170F
$29.14

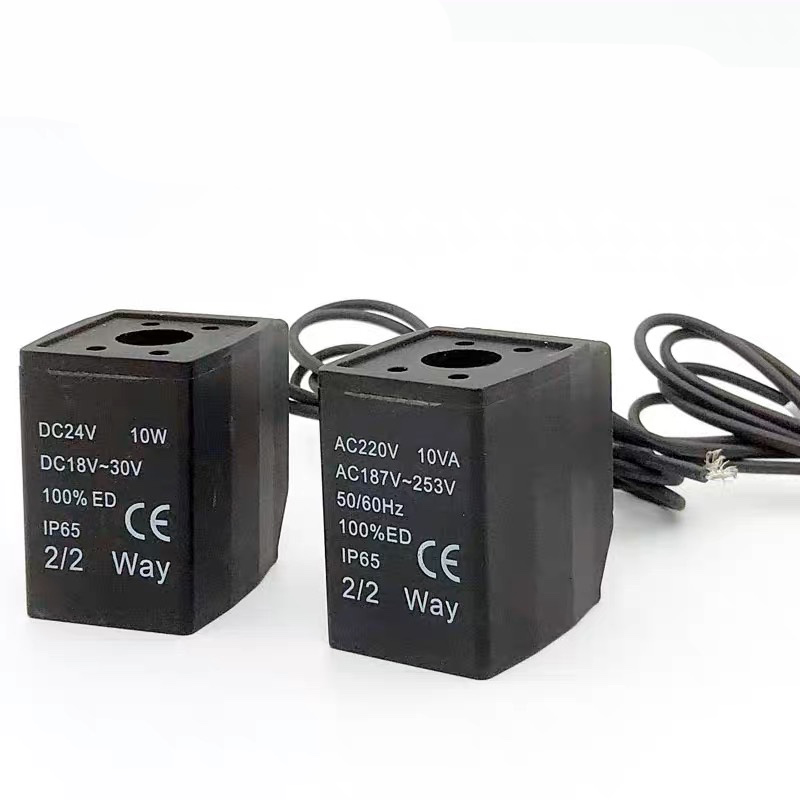

- Image may not be representative of actual product.
Fluid Control Valve
Coils & Accessories
Specifications
| Model | Voltage | Frequency | Allowed Range | Power (VA/W) | Temp. Rise (℃) |
|---|---|---|---|---|---|
| 116 AC 220V | 220 | 50Hz | ±15% | 10.0VA | 35~50 |
| 116 DC 24V | 24 | — | ±10% | 6.5W | 30~40 |
| 170 AC 220V | 220 | 50Hz | ±15% | 25.0VA | 60~65 |
| 170 DC 24V | 24 | — | ±10% | 12.0W | 40~40 |
Internal Wiring Diagram
| Coil Model | Wiring Diagram | DIN Terminal |
|---|---|---|
| CDA116 (DIN) | [Diagram] | PL2925 |
| CLA116 (Lead) | [Diagram] | — |
| CDA170 (DIN) | [Diagram] | PL3030 |
Finished Order Code
① Coil Category
CD: DIN
CL: Lead-out
CD: DIN
CL: Lead-out
② Coil ID
A116: φ11.6mm
A170: φ17.0mm
A116: φ11.6mm
A170: φ17.0mm
③ Voltage
A: AC220V
B: DC24V
C: AC110V
E: AC24V
F: DC12V
A: AC220V
B: DC24V
C: AC110V
E: AC24V
F: DC12V
④ Temperature Class
(blank): Normal
H: High Temperature
(blank): Normal
H: High Temperature
Coil Selection
| Valve Model | Coil Code | 116 Series (B) | 116 Series (H) | 170 Series (B) | 170 Series (H) |
|---|---|---|---|---|---|
| 2W030 | 2S030 | × | × | × | × |
| 2KW030 | 2KS030 | × | × | × | × |
| 2L050 | 2KL050 | × | × | × | × |
| 2W150 | 2S150 | ● | ● | ● | ● |
| 2V250 | 2S250 | × | × | ● | ● |
DIN Connector Usage & Mounting Accessories
DIN Connector Usage:
Steps: DIN cap → terminal body → pin wiring → insert terminal → cover lock
| Valve Model | Bracket Code | F=25030LB | F=25150LB | F=25200LB |
|---|---|---|---|---|
| 2W030 | 2S030 | ✓ | × | × |
| 2W150 | 2S150 | ✓ | ✓ | × |
| 2KW200 | 2KS200 | × | ✓ | ✓ |
| 2V250 | 2S250 | × | ✓ | × |
| 2S320-500 | 2KS320-500 | ✓ | × | ✓ |
