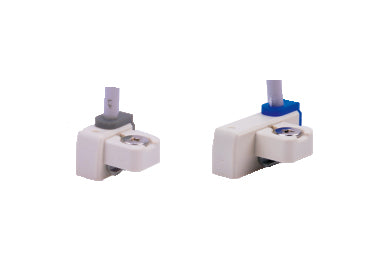

Cylinder position switch Reed switch J type 150mm wire length with M12 plug connector replacement for the Airtac CS1JC12 position... Read more
SKU: CMSJ-C12
$12.71
General Type (CMS) – Blue Label
High Temperature Type – Red Label
Note: A05–CMS minimum cable bending radius is recommended at 19mm. The high-temperature version has no indicator light.
The CMSG model comes with two types of mounting kits, suitable for various cylinders:
| Item | CMS: Magnetic Sensor |
|---|---|
| Model | 2-wire General Type / 2-wire High Temperature Type |
| Voltage | 5V ~ 240V AC/DC |
| Max. Switching Current | 100mA |
| Max. Load Capacity | 10W Max. |
| Internal Power Consumption | None |
| Internal Residual Voltage | 2.5V Max. @100mA DC / None |
| Leakage Current | None |
| Max. Switching Frequency | 200Hz |
| Shock Resistance | 50G |
| Protective Circuit | None |
| Operating Temperature | -10℃ ~ 70℃ / -10℃ ~ 125℃ |
| Protection Grade | IP64 |
| Certifications | CE Certified, RoHS |
Example: CMS-G-020-□ or A05-CMS-G-020
| Code Position | Description |
|---|---|
| ① Industry Code | Blank: General type A05: Machinery industry type |
| ② Series Code | CMS: Magnetic Sensor |
| ③ Specification Code |
Direct Cable Output 020: 2m cable 030: 3m cable 050: 5m cable 100: 10m cable |
| ④ Cable Connector Type |
Quick Male Connector M08: M8 quick connector + 0.5m cable M08010: M8 quick connector + 1m cable M08020: M8 quick connector + 2m cable M08030: M8 quick connector + 3m cable M12: M12 quick connector + 0.5m cable M12010: M12 quick connector + 1m cable M12020: M12 quick connector + 2m cable M12030: M12 quick connector + 3m cable |
| ⑤ Special Code |
Blank: Standard type H: High-temperature type (Note: High-temp type not available for A05 series) |
Note 1: A05 industry type does not support M08 and M12 quick connectors.
Note 2: For M08 and M12 quick connectors with corresponding sockets, please refer to Page 412.
| Sensor Model | Compatible Cylinder Series (Bore Size) | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DMSG / CMSG / EMSG | HFK / HFKL (Ø10~Ø25) | ACO / TACQ (Ø16~Ø160) | SDA (Ø10~Ø100) | TWQ / TCL / TCM (Ø12~Ø100) | QCK (Ø12~Ø63) | SAU / HFZ / HFY / HFP (Ø10~Ø63) | TR / STW (Ø10~Ø63) | MD / MKC (Ø16~Ø40) | AQK / BAK (Ø16~Ø32) | MCK (with MCK40G) | ● indicates compatibility | |||
| Sensor Model | Compatible Cylinder | Bracket Type | Bracket Model |
|---|---|---|---|
| DMSG / CMSG | PB / PBR, MI / TMI, MF, MG, MA / MAC | Aluminum Clamp | MBL, MCK, TWK (standard / enhanced) |
| — | Plastic Clip | 3Q, 4Q | |
| ● Must be used with bracket for correct installation. | |||
| Sensor Model | Clamp Model | Applicable Bore Size | Note |
|---|---|---|---|
| DMSG / CMSG | SC,SGC | Ø32 ~ Ø250 | Used with SC,SGC mounting kits |
| Sensor Model | Compatible Series | Bore Size | Note |
|---|---|---|---|
| DMSJ / CMSJ | ACO/TACQ, SDA, TWQ, QCK, QDK, TN | Ø10 ~ Ø100 | Mounting accessories required |
| DMSJ / CMSJ | TWH / TWM | Ø20 ~ Ø80 |
| Sensor Model | Compatible Series | Bore Size |
|---|---|---|
| DMSH / CMSH / EMSH | ACO/TACQ, TC, HFZ, HFY, HFP, HFR, HFC, HFT | Ø6 ~ Ø125 |
| QDK, HLQ, HLQH, HLS/HLSL, MU, HLH, MPG | Ø6 ~ Ø63 | |
| HRQ, HFK, HLF, HGS, RMH, HFD | Ø2 ~ Ø100 |
| Sensor Model | Compatible Series | Bore Size |
|---|---|---|
| DMSE / CMSE | SE / BSE, SAI / TSAI, SAI, ACE, ACE / JSI | Ø32 ~ Ø200 |
● For detailed sensor-cylinder compatibility, refer to original catalog or consult technical support.
