Airtac C-6DEN2: Communication Module

Photos are for reference only. Not all models have pictures.

Description

Specifications: 6D Series Communication Module Communication protocol: EtherNet/IP protocol Output type: NPN output points 24, suitable for 6D series

Specifications

1. Model: C-6DEN2

2. Output points: 24 points (for 6D series)/36 points (for 6DW series), communication rate: 100Mbps, configuration file: EDS file, control power supply voltage: DC24V ± 10%

3. Internal consumption current of control power supply: less than 100mA, output power supply voltage: DC24V 10%, output polarity: PNP or NPN

4. Power interface: M12 pin 5-pin A code, communication interface: 2XM12 jack 4-hole D code, protection level: dustproof

5. Operating temperature:-10~60 ℃, operating humidity: 35 ~ 85% RH, withstand voltage: AC500V 1min between terminal and shell

6. Insulation resistance: 10MΩ or more (DC500V), between the terminal and the shell; Communication connection mode: daisy chain

Click to download Airtac product catalog

Product Features

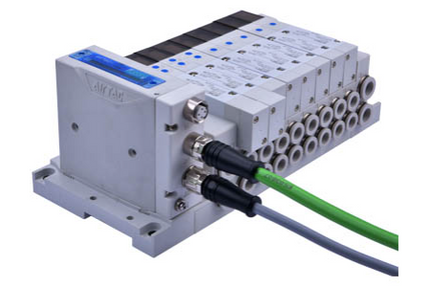

1. This integrated valve group adopts centralized intake and exhaust, and a single signal source input (15 pin D-SUB/25 pin D-SUB/37 pin D-SUB) design, which can simplify the wiring installation process and reduce the risk of defects caused by assembly;

2. The combination of flexible, can be connected to the number of solenoid valves for any combination;

3. The base is easy to install and can be separately locked or combined with the guide channel without additional purchase of accessories;

4. The base can be installed at the same time 2 position and 3 position solenoid valve, no need to purchase additional accessories;

5. Attached manual adjustment device function, easy to install and debug;

6. Low starting voltage and long service life.

Compared with the SMC SY series, the AirTac 6D series is a functional replacement.
