Description
Series: B Series Filter Nozzle caliber: 3/8" Drainage mode: differential pressure drainage type Filtration accuracy: 5μm level Tooth type: NPT tooth
Specifications

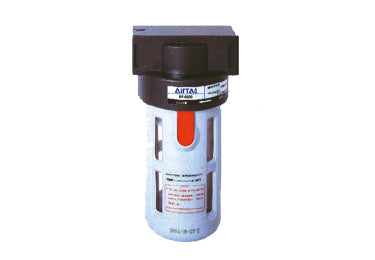

1. Model: BF3000WT
2. Working medium: air, nozzle diameter: PT3/8, filter element accuracy: 40μm or 5μm, operating pressure range: 0.15~1.0MPa(20 ~ 145psi)
3. Guaranteed pressure resistance: 1.5MPa(215psi), operating temperature range:-5~70 ℃ (not frozen), filter cup capacity: 60CC
4. Take over the tooth type G teeth, NPT teeth optional
Internal structure: 1 cup of Oling: NBR/2. Body: aluminum alloy/3. Filter element: HDPE/4. Umbrella type fixing seat: POM/5. Water cup: PC/6. Differential pressure drain bolt: POM/7. Differential pressure drainage seat: POM/8. Drain connection: POM/9. Spring: Stainless steel/10. Sealing sleeve: POM/11. Diverter: POM/12. Shield switch: POM/13. Shield: PA6/14. Differential pressure drainage seat: NBR/15. Buckle: Spring steel
Filter cartridge :BF-40 With white 40μm filter element BF-5 With blue 5μm filter element
Click to download Airtac product catalog
Product Features
AF Series:
1. The structure is exquisite and compact.
2. Low pressure loss, high water separation efficiency.
3. Filtering accuracy of 5 microns, 40 microns two. (optional)
BF Series:
1. Low pressure loss, high water separation efficiency.
2. There is a high-strength plastic protective cover outside the bowl, which is safer and more reliable.
3. The filtering accuracy is 5 microns, 40 microns two (optional).
