Description

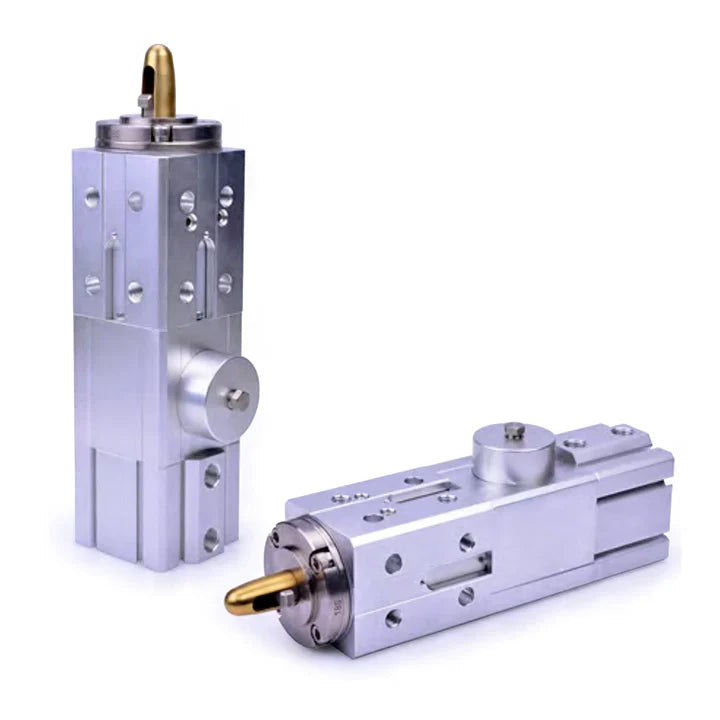

Specifications: Holding type pin cylinder Cylinder diameter: 50mm Magnet: with magnet Body installation size: installation screw hole M12X1.75/pin hole diameter ø10 Position relation between screw hole and pin hole of mounting surface: C- type configuration relation Clamping arm position: Clamping arm and air inlet hole 270 ° Adjusting gasket: 2mm with adjusting gasket (2 0.5mm +1 1mm) Tooth type: PT1/4 Guide pin diameter: 24.2mm, Guide pin height: 36mm
Click to download Airtac product catalog
Product Features
1. Implement JIS standard.
2. The surface of the pin is coated with titanium alloy, which greatly improves the wear resistance.
3. The front cover of the cylinder has a metal scraping sleeve, which can effectively remove slag, chips, etc.
4. Multi-directional installation, the body of the mechanism part provides four-sided installation.
5. The cylinder body has a sensor groove around it, which is easy to install.
