Airtac ACQ Series: Double-axis Compound Stroke Adjustable Cylinder - ACQJ160X100-75S

Description

Specifications: ultra-thin cylinder (double-axis compound stroke adjustable type) Cylinder diameter: 160mm Stroke: 100mm Adjusting stroke: 75mm Magnet: with magnet Tooth type of piston rod: inner tooth type Tooth type: PT tooth

Click to download Airtac product catalog

Product Features

1. Implement JIS standard.

2. The cylinder body and the front and rear cover are fixed by C- shaped buckle ring, which is compact and reliable.

3. The inner diameter of the cylinder body shall be treated with hard oxidation after finishing, which is wear-resistant and durable.

4. The piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function.

5. Compact structure, can effectively save installation space.

6. There is a sensor groove around the cylinder body, which is convenient to install the sensor.

Product form

Specifications: ultra-thin cylinder (double-axis compound stroke adjustable type) Cylinder diameter: 160mm Stroke: 100mm Adjusting stroke: 75mm Magnet: with magnet Tooth... Read more

SKU: ACQJ160X100-75S

$304.70

    • Guaranteed secure & safe checkout.

      paypal

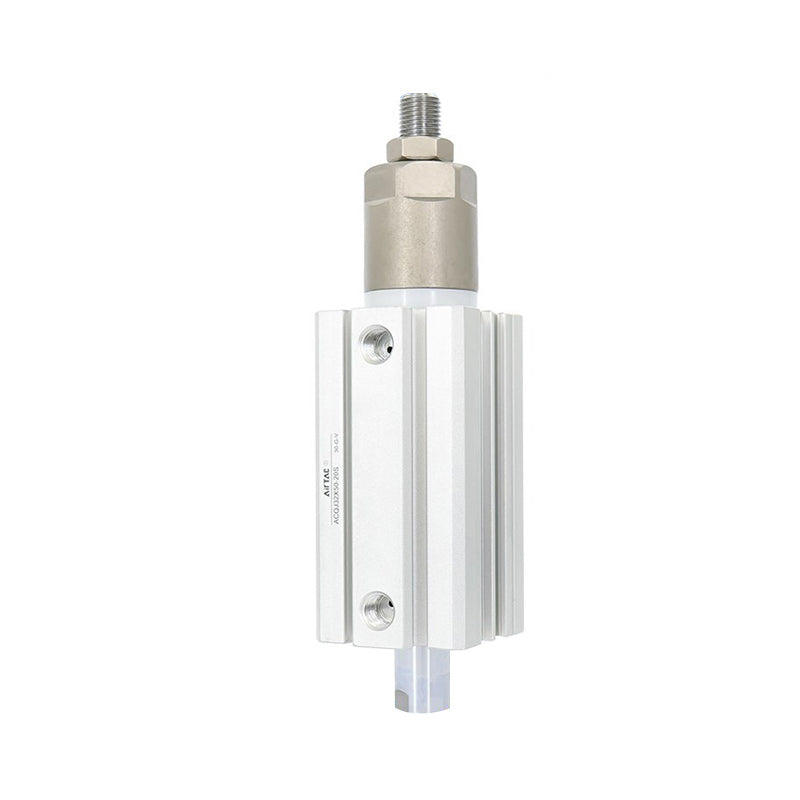

    • Image may not be representative of actual product.
    • Airtac ACQ cylinders are a functional replacement for the SMC CQ2 series cylinders.

    Description

    Specifications: ultra-thin cylinder (double-axis compound stroke adjustable type) Cylinder diameter: 160mm Stroke: 100mm Adjusting stroke: 75mm Magnet: with magnet Tooth type of piston rod: inner tooth type Tooth type: PT tooth

    Click to download Airtac product catalog

    Product Features

    1. Implement JIS standard.

    2. The cylinder body and the front and rear cover are fixed by C- shaped buckle ring, which is compact and reliable.

    3. The inner diameter of the cylinder body shall be treated with hard oxidation after finishing, which is wear-resistant and durable.

    4. The piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function.

    5. Compact structure, can effectively save installation space.

    6. There is a sensor groove around the cylinder body, which is convenient to install the sensor.
