Description

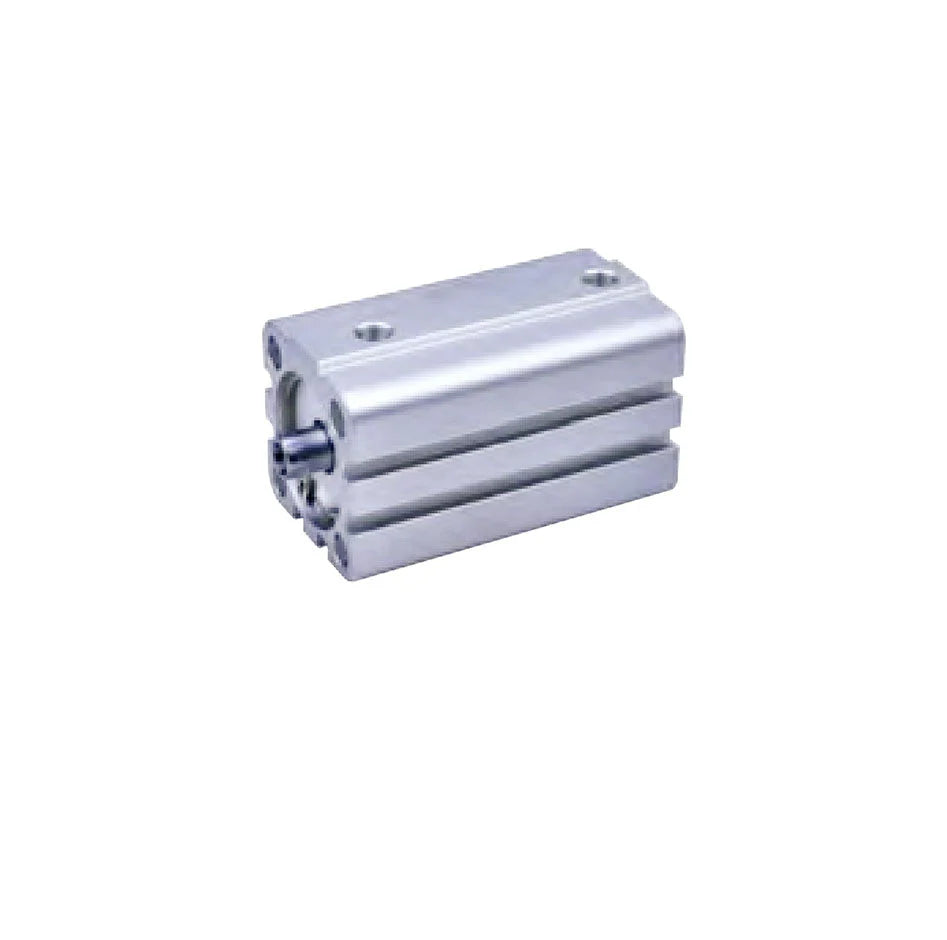

Specifications: Compact cylinder (compound type) Bore: 63mm Stroke: 110mm Magnet: with magnet Tooth type of piston rod: external tooth type Fixed type: axial fixed seat Tooth type: G tooth
Specifications
1. Model: ACF63X110SBLBG
2. Action type: double action type, working medium: air (filtered by filter screen above 40μm)
3. Use pressure range: 0.15~1.0MPa(22~145psi), Guaranteed pressure resistance: 1.5MPa(215psi)
4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel Tolerance Range: Travel ≤100+0/1.0, Travel ＞100+0/1.5
5. Buffer type: anti-collision pad, nozzle caliber: G1/8, The nozzle tooth type is optional with PT tooth and G tooth.
Internal structure and main parts material: 1. back cover: none (ø12, 16), aluminum alloy (other)/2. Anti-collision pad (ring):TPU/3. Piston: Brass (ø12, 16), aluminum alloy (other)/4. Magnet: sintered rubidium iron boron (12, 16), plastic (other)/5. Wear-resistant ring: none (ø12~32), wear-resistant material (other)/6. Body: aluminum alloy/7. Bushing: none (ø12~32), wear-resistant material (other)/8. Front cover: aluminum alloy/9.C type buckle: spring steel/10. O-ring: NBR/12. Piston rod: S45C hard chrome abrasive rod/13. Piston O: NBR/14. Fixed plate: aluminum alloy/15. Screw: carbon steel/16. Slide bushing: brass/17. Guide rod: stainless steel (ø12~40),S45C (other)
Installation accessories :F-ACE63LB Axial mounting F-SI63FA Flange connecting plate F-SE63CA Single-ear fixing seat F-SE63CB Binaural mount F-SI63CR Single-ear connection seat F-SI63FTC Front cover trunnion bracket F-SI63TCM2 trunnion mount ， Piston rod end joint :F-M12X125I I Connector F-M12X125Y Y connector F-M12X125F Floating joint F-M12X125U fisheye joint
Click to download Airtac product catalog
Product Features
1. The implementation of ISO21287 standards, the installation size of versatility.
2. The cylinder body and the front and rear cover are fixed by C- shaped buckle ring, and the piston and piston rod are riveted structure, which is compact and reliable.
3. The inner diameter of the cylinder body shall be treated with hard oxidation after finishing, which is wear-resistant and durable.
4. The piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function.
5. Compact structure, compared with the ISO15552 standard cylinder, can effectively save 50% of the installation space.
6. The three sides of the cylinder body are equipped with sensor grooves, which is convenient to install the sensor.
7. Built-in anti-collision pad, effectively absorb the residual energy generated by high-speed operation and mechanical rotation.
8. A variety of installation accessories for choice.
