Description

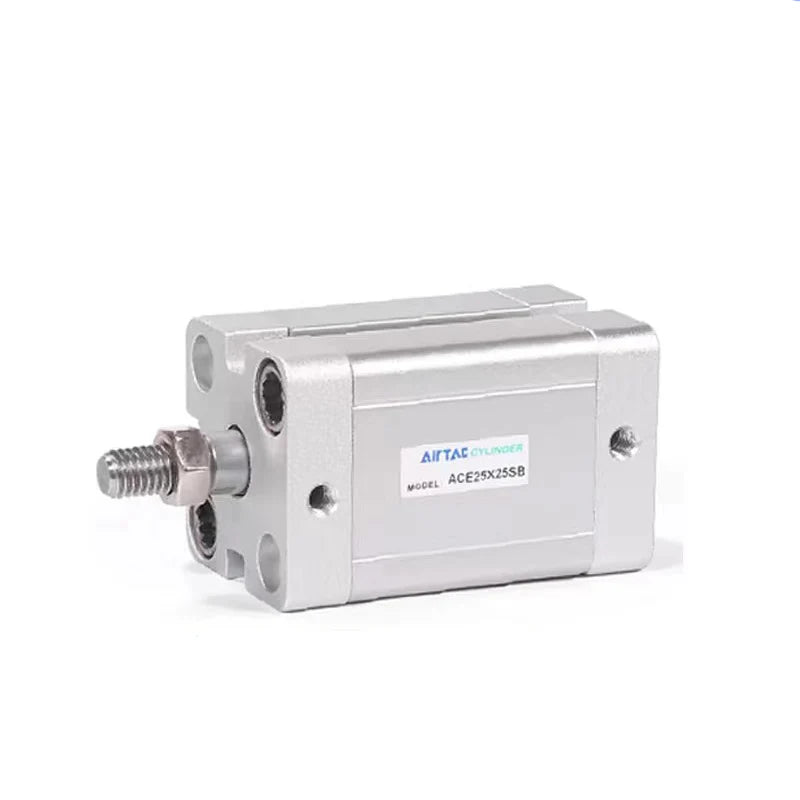

Specifications: Compact cylinder (double-shaft compound stroke adjustable type) Bore: 100mm Travel: 10mm Adjusting stroke: 40mm Magnet: no magnet Tooth type of piston rod: inner tooth type Fixed type: front flange connecting plate Tooth type: M16X1.5
Specifications
1. Model: ACEJ100X10-40FA
2. Action type: double action type, working medium: air (filtered by filter screen above 40μm)
3. Use pressure range: 0.15~1.0MPa(22~145psi), Guaranteed pressure resistance: 1.5MPa(215psi)
4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel Tolerance Range: Travel ≤100+0/1.0, Travel ＞100+0/1.5
5. Buffer type: anti-collision pad, nozzle caliber: G1/8
6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSE,CMSE
Internal structure and main parts material: 1. screw: carbon steel/2. Rear cover: aluminum alloy/3. Crash cushion (ring):TPU/4.O-ring: NBR/5. Wear-resistant ring: none (ø12~20), wear-resistant material (other)/6. Magnet: sintered rubidium iron boron (ø12~20), plastic (other)/7. Piston O: NBR/8. Piston: aluminum alloy/9. Piston rod: S45C/10. Body: aluminum alloy/11. Front cover: Aluminum alloy/12. Bushing: none (ø12~25), wear-resistant material (other)/13. Axle core Oring: NBR/14. Panel: aluminum alloy/15. Screw: carbon steel/16. Bushing: wear-resistant material/17. Guide rod: stainless steel (ø12~40),S45C (other)
Type of sealing ring :P-ACEJ100-R1 NBR Material P-ACEJ100-R2 Fluorine rubber material ， Installation accessories :F-ACE100LB Axial mounting F-SI100FA Flange connecting plate F-SI100FTC Front cover trunnion bracket F-SI125TCM2 trunnion mount
Click to download Airtac product catalog
Product Features
1. The implementation of ISO21287 standards, the installation size of versatility.
2. The cylinder body is connected with the front and rear cover by thread, which has good strength and convenient maintenance.
3. The inner diameter of the cylinder body shall be treated with hard oxidation after finishing, which is wear-resistant and durable.
4. The piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function.
5. Compact structure, compared with the ISO15552 standard cylinder, can effectively save 50% of the installation space.
6. The three sides of the cylinder body are equipped with sensor grooves, which is convenient to install the sensor.
7. Built-in anti-collision pad, effectively absorb the residual energy generated by high-speed operation and mechanical rotation.
8. A variety of installation accessories for choice.
