Airtac ACE series: double-acting double-rod compact cylinder - ACED100X150BFA

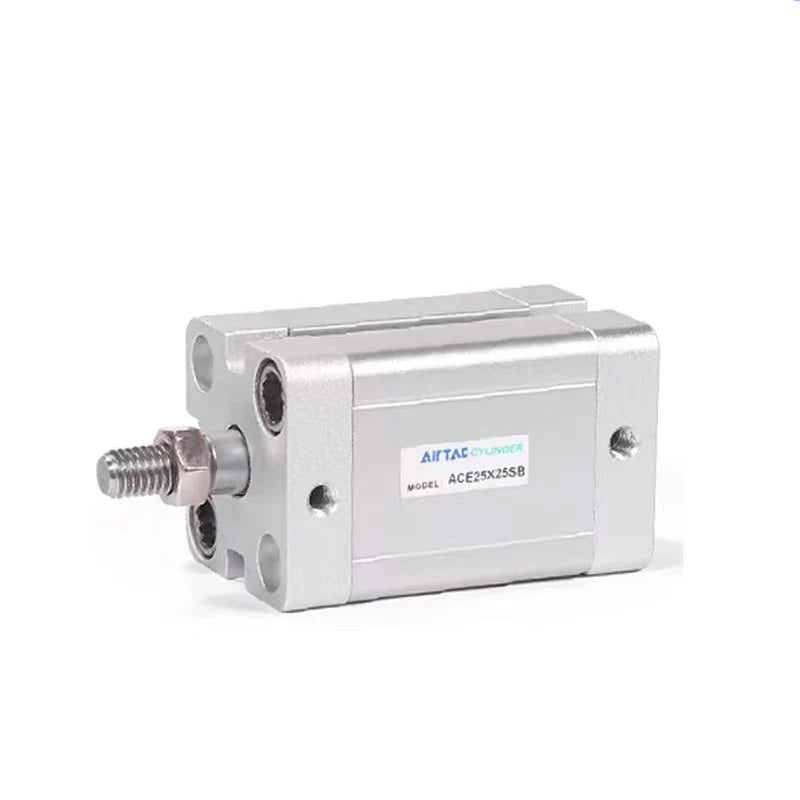

Photos are for reference only. Not all models have pictures.

Description

Specifications: ACED100X150BFA is an AirTAC double-acting, double-rod cylinder with a 100 mm bore, 150 mm stroke, no magnetic option in the standard suffix position, and male-threaded rod end. The FA suffix selects front flange.

Product Catalog

Download Airtac Product Catalog (PDF)

Download 2022 mounting brackets (PDF)

Download 2022 rod-end joints and sensor mounts (PDF)

Download 2022 cylinder installation and weight tables (PDF)

For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

Model Code Explained

Code Meaning for This Model
ACED double-acting, double-rod cylinder
100 100 mm bore
X150 150 mm nominal stroke
Blank magnetic position No magnetic piston selected by the standard order-code position
B male-threaded rod end
FA front flange
Blank pipe-thread suffix Metric connection at the small bores; PT is the standard pipe-thread option where a pipe port is used

Technical Specifications

Parameter Details
Action double-acting, double-rod cylinder
Working medium Air filtered through a 40 μm filter or finer
Operating pressure 0.15–1 MPa
Proof pressure 1.5 MPa; a proof-test rating, not the continuous operating limit
Ambient and fluid temperature −20 to 70 °C
Piston speed 30–500 mm/s
Stroke tolerance +1.0 / 0 mm up to 100 mm stroke; +1.5 / 0 mm above 100 mm
Cushioning Bumper
Air connection PT 1/8
Design standard ISO 21287

Product Features

  • The cylinder body and covers use threaded connections for strength and maintenance access.
  • The precision-finished bore is hard anodized for wear resistance.
  • The compact double-lip piston seal has an oil-retaining design; the cylinder is prelubricated.
  • The compact construction saves installation space compared with the ISO 15552 design cited in the catalog. Three body sides have magnetic-switch grooves.

Dimensions for This Bore and Configuration

Dimensions are in millimeters unless a thread, angle or tolerance is stated. Letter labels follow the 118–125 printed-page drawings in the 2022 Chinese catalog. A base letter value is not automatically an overall length; use its stated stroke relationship.

Parameter Details
A 85 mm
AB 9 mm
AC 67 mm
AD 19 mm
B 113.5 mm
D 20 mm
E M12 × 1.75
EA 20 mm
H 17 mm
J 15 mm
JA 2.5 mm
JB 89 mm
K M10 × 1.5
KA Not listed for this size
P G1/8
PA 10.5 mm
PB 7 mm
R 12.5 mm
RA 6 mm
T 12 mm
TA 2.6 mm
AF 29 mm
FA 8 mm
Adjustment thread R Not listed for this size
Male rod AB 37 mm
Male rod D 20 mm
Male rod E M16 × 1.5
Male rod EA 26 mm
Male rod EB 28 mm
Male rod F 23 mm
Male rod FA 8 mm
Male rod H 17 mm

Stroke-dependent Drawing Relationships

Parameter Details
Reference drawing overall A + 2 × stroke
AC outline AC + stroke
Stroke used in the order code 150 mm

P is the thread label printed in the dimensional reference drawing. The connection selected by this order code is PT 1/8. PT, G and NPT threads must not be treated as interchangeable merely because they share a nominal fraction.

A, AB and the body outline are the catalog reference drawing values. The selected male rod uses the separate male-rod dimensions; do not substitute the female rod projection AB for it.

Construction and Materials

Parameter Details
1 Screw Carbon steel
2 Rear cover Aluminum alloy
3 Bumper TPU
4 O-ring NBR
5 Wear ring Wear-resistant material
6 Magnet Magnetic-option component; not fitted in a non-magnetic configuration
7 Piston seal NBR
8 Piston Aluminum alloy
9 Piston rod S45C steel
10 Body Aluminum alloy
11 Front cover Aluminum alloy
12 Bushing Wear-resistant material
13 Rod seal NBR

Item numbers identify the catalog sectional drawing. They are component references, not spare-part order codes or package quantities.

Matching Accessories and Mounting

Parameter Details
F-ACE100LB (LB) foot bracket for ACED 100 mm bore
F-SI100FA (FA) front flange for ACED 100 mm bore
F-SI100FTC (FTC) trunnion mounting for ACED 100 mm bore; requires F-SI125TCM2 support
F-SI125TCM2 (TCM2) trunnion support for ACED 100 mm bore; pair with F-SI100FTC; mounting position is not freely adjustable
F-M16X150I I-type rod joint; matches the selected male rod thread only
F-M16X150Y Y clevis; matches the selected male rod thread only
F-M16X150F floating joint; matches the selected male rod thread only
F-M16X150U spherical rod-end joint; matches the selected male rod thread only
Magnetic switch condition This code does not select a magnetic piston. A magnetic switch cannot provide piston-position sensing on a non-magnetic cylinder.

Accessory codes are listed for selection. Optional brackets, rod joints and switches are separate items unless the selected code or the stated pin note expressly identifies them. Component item numbers do not specify purchase quantities.

Selected FA Mounting Dimensions

Parameter Details
A 16 mm
B 75 mm
C 115 mm
D 14.5 mm
E 89 mm
F 150 mm
G 176 mm
H 55.5 mm
N 76 mm

Letters in this table belong to the FA accessory drawing. Stroke-dependent C, D, E, N or A dimensions must be read with the added-stroke callouts and the selected cylinder action; they are not all fixed overall lengths.

Stroke and Option Selection

Parameter Details
Standard strokes for this bore/action 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60, 70, 75, 80, 90, 100, 110, 120, 125, 150, 160, 175, 200, 225, 250, 275, 300 mm
Intermediate strokes The catalog allows a nonstandard intermediate stroke with the outer dimensions of the next larger standard stroke; this does not extend the maximum allowable stroke.
Magnetic selection Select the magnetic option before ordering a position switch; electrical type, cable and connector are selected separately.

Selection, Installation and Operation

  • Select bore from the required thrust and available pressure; then check stroke, load direction, mounting, cushioning and sensing. The general catalog load-factor references are at most 0.7 for static/slow work and at most 0.5 for 50–500 mm/s motion. They do not replace the load and guide checks for this cylinder.
  • Keep the piston rod and load aligned. Support lateral or eccentric loads with an appropriate guide; avoid applying bending force or tightening torque through the rod or guide.
  • Use clean filtered air. Prevent freezing, water, dust and corrosive substances from entering the cylinder. The cylinder is prelubricated; if lubrication is introduced, use additive-free ISO VG32 oil and continue that lubrication.
  • Start with the speed controller restricted, then open it gradually. Choose the circuit and flow-control direction for the action and load; a double-acting meter-out circuit is a general reference, not a guarantee of equal speed or precise stopping.
  • Isolate the air and electrical supplies and release trapped pressure before maintenance. Check the mounting and retained parts before repressurizing. A C-ring must be fully seated before operation.

Circuit Selection Reference at 500 mm/s

Parameter Details
Reference bore 100 mm
Effective flow area at the reference speed 20.4 mm²
Tube outside / inside diameter 16 / 11 mm
Example speed controller PTL03
Example silencer BSL03
Example solenoid valves 5V31010 / 5V32010
Example air-piloted valves 4A31010 / 4A32010

The general 2022 selection table gives these circuit examples for this bore at a theoretical 500 mm/s reference speed. They are not included accessories, a guaranteed achieved speed, or a statement that every example screws directly into this cylinder. Match the actual port thread, action, tubing, valve capacity and operating conditions.

Weight Reference

Estimated reference weight: 3821.92 g. Based on the same family/bore catalog mass data and the stated configuration; it is not an AirTAC published weight for this exact variant or a measured weight. The selected mounting bracket mass is not separately listed in the cylinder weight table; this reference does not certify a packed assembly weight.

For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

Product form

Specifications: ACED100X150BFA is an AirTAC double-acting, double-rod cylinder with a 100 mm bore, 150 mm stroke, no magnetic option in... Read more

SKU: ACED100X150BFA

$175.77 Incl. VAT

    Guaranteed secure & safe checkout.

    Ach Direct DebitAmazon Amazon American Express Apple Pay BizumDiners ClubDiscoverGoogle Pay Mastercard MB WAY PayPalSatispayShop Pay USDC Visa

    Bank transfer also available. Payment options may vary by location and device.

    Shipping, returns & order help

    Free shipping on orders US$30+ under 2 kg

    Import duties & taxes included on all orders

    Download: 3D model selection.
    Shipping & delivery times

    In-stock items: processed and shipped within 1–3 business days. Custom-made items: G/NPT threads and non-standard specifications require 7–15 business days of factory production before shipping.

    Standard international delivery typically takes 7–13 business days after dispatch, depending on customs clearance and the local delivery network. Processing or production time is additional. Next-day and overnight delivery are not available.

    Most products ship from our manufacturing centers in Asia, then transfer to a local carrier after customs clearance.

    Read our shipping policy
    Shipping costs & import taxes

    Free shipping: orders of US$30 or more weighing under 2 kg. Import duties and taxes are included on all orders.

    If an overweight shipping surcharge applies after packing, we pause shipment and email you the amount for approval before dispatch. This is a transport charge, not an import tax. If you do not reply within 7 days, the order is canceled and fully refunded.

    Shipping charges and tax details
    Model selection & custom orders

    Please check the full model number, dimensions, thread type, stroke and voltage where applicable before ordering. If you are unsure, email airtacs@airtacs.com with the model number and required specifications.

    Custom-made products, including G/NPT thread specifications and custom-built parts, are non-returnable and non-refundable under our refund policy.

    Read the refund policy before ordering
    Tracking & delivery support

    Use the tracking link in your shipping confirmation email. For YunExpress shipments, enter your YT tracking number at Yuntrack to view the journey and local delivery details.

    Provide a complete physical delivery address and reachable contact details. P.O. boxes and virtual mail-forwarding addresses are not accepted.

    If delivery fails, contact the local carrier and email airtacs@airtacs.com with your order and tracking numbers. For failures caused by an incorrect/incomplete address or an unreachable recipient, return to the local warehouse typically takes 7–30 business days. Redelivery requires an additional shipping fee; cancellation after failed delivery is subject to deductions for original shipping and carrier return fees.

    Delivery issue policy
    Returns & product issues

    Eligible returns are accepted within 7 days of delivery. Items must be unused, uninstalled and in their original factory packaging. Contact airtacs@airtacs.com for a Return Authorization (RA) number before returning anything.

    Ordered the wrong model or changed your mind? You pay return shipping, original shipping is non-refundable, and a 50% restocking fee is deducted from the actual price paid for the returned product.

    Defective, damaged or incorrect item? We provide a replacement and cover return shipping; no restocking fee applies. Custom-made items are excluded from standard returns. These terms are subject to applicable law and do not limit your statutory rights.

    Read the full refund policy
    Bank transfers & invoices

    Bank transfer: Select bank transfer at checkout and submit your order. The bank account details and payment instructions will then be displayed.

    Invoices: Invoices are available only after an order is placed. We are a US-based company and provide a standard commercial invoice, not an EU VAT tax invoice. If your company requires an EU VAT invoice, please confirm your requirements with us before ordering.

    For payment or invoice questions, email airtacs@airtacs.com with your order number.

    Description

    Specifications: ACED100X150BFA is an AirTAC double-acting, double-rod cylinder with a 100 mm bore, 150 mm stroke, no magnetic option in the standard suffix position, and male-threaded rod end. The FA suffix selects front flange.

    Product Catalog

    Download Airtac Product Catalog (PDF)

    Download 2022 mounting brackets (PDF)

    Download 2022 rod-end joints and sensor mounts (PDF)

    Download 2022 cylinder installation and weight tables (PDF)

    For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

    Model Code Explained

    Code Meaning for This Model
    ACED double-acting, double-rod cylinder
    100 100 mm bore
    X150 150 mm nominal stroke
    Blank magnetic position No magnetic piston selected by the standard order-code position
    B male-threaded rod end
    FA front flange
    Blank pipe-thread suffix Metric connection at the small bores; PT is the standard pipe-thread option where a pipe port is used

    Technical Specifications

    Parameter Details
    Action double-acting, double-rod cylinder
    Working medium Air filtered through a 40 μm filter or finer
    Operating pressure 0.15–1 MPa
    Proof pressure 1.5 MPa; a proof-test rating, not the continuous operating limit
    Ambient and fluid temperature −20 to 70 °C
    Piston speed 30–500 mm/s
    Stroke tolerance +1.0 / 0 mm up to 100 mm stroke; +1.5 / 0 mm above 100 mm
    Cushioning Bumper
    Air connection PT 1/8
    Design standard ISO 21287

    Product Features

    • The cylinder body and covers use threaded connections for strength and maintenance access.
    • The precision-finished bore is hard anodized for wear resistance.
    • The compact double-lip piston seal has an oil-retaining design; the cylinder is prelubricated.
    • The compact construction saves installation space compared with the ISO 15552 design cited in the catalog. Three body sides have magnetic-switch grooves.

    Dimensions for This Bore and Configuration

    Dimensions are in millimeters unless a thread, angle or tolerance is stated. Letter labels follow the 118–125 printed-page drawings in the 2022 Chinese catalog. A base letter value is not automatically an overall length; use its stated stroke relationship.

    Parameter Details
    A 85 mm
    AB 9 mm
    AC 67 mm
    AD 19 mm
    B 113.5 mm
    D 20 mm
    E M12 × 1.75
    EA 20 mm
    H 17 mm
    J 15 mm
    JA 2.5 mm
    JB 89 mm
    K M10 × 1.5
    KA Not listed for this size
    P G1/8
    PA 10.5 mm
    PB 7 mm
    R 12.5 mm
    RA 6 mm
    T 12 mm
    TA 2.6 mm
    AF 29 mm
    FA 8 mm
    Adjustment thread R Not listed for this size
    Male rod AB 37 mm
    Male rod D 20 mm
    Male rod E M16 × 1.5
    Male rod EA 26 mm
    Male rod EB 28 mm
    Male rod F 23 mm
    Male rod FA 8 mm
    Male rod H 17 mm

    Stroke-dependent Drawing Relationships

    Parameter Details
    Reference drawing overall A + 2 × stroke
    AC outline AC + stroke
    Stroke used in the order code 150 mm

    P is the thread label printed in the dimensional reference drawing. The connection selected by this order code is PT 1/8. PT, G and NPT threads must not be treated as interchangeable merely because they share a nominal fraction.

    A, AB and the body outline are the catalog reference drawing values. The selected male rod uses the separate male-rod dimensions; do not substitute the female rod projection AB for it.

    Construction and Materials

    Parameter Details
    1 Screw Carbon steel
    2 Rear cover Aluminum alloy
    3 Bumper TPU
    4 O-ring NBR
    5 Wear ring Wear-resistant material
    6 Magnet Magnetic-option component; not fitted in a non-magnetic configuration
    7 Piston seal NBR
    8 Piston Aluminum alloy
    9 Piston rod S45C steel
    10 Body Aluminum alloy
    11 Front cover Aluminum alloy
    12 Bushing Wear-resistant material
    13 Rod seal NBR

    Item numbers identify the catalog sectional drawing. They are component references, not spare-part order codes or package quantities.

    Matching Accessories and Mounting

    Parameter Details
    F-ACE100LB (LB) foot bracket for ACED 100 mm bore
    F-SI100FA (FA) front flange for ACED 100 mm bore
    F-SI100FTC (FTC) trunnion mounting for ACED 100 mm bore; requires F-SI125TCM2 support
    F-SI125TCM2 (TCM2) trunnion support for ACED 100 mm bore; pair with F-SI100FTC; mounting position is not freely adjustable
    F-M16X150I I-type rod joint; matches the selected male rod thread only
    F-M16X150Y Y clevis; matches the selected male rod thread only
    F-M16X150F floating joint; matches the selected male rod thread only
    F-M16X150U spherical rod-end joint; matches the selected male rod thread only
    Magnetic switch condition This code does not select a magnetic piston. A magnetic switch cannot provide piston-position sensing on a non-magnetic cylinder.

    Accessory codes are listed for selection. Optional brackets, rod joints and switches are separate items unless the selected code or the stated pin note expressly identifies them. Component item numbers do not specify purchase quantities.

    Selected FA Mounting Dimensions

    Parameter Details
    A 16 mm
    B 75 mm
    C 115 mm
    D 14.5 mm
    E 89 mm
    F 150 mm
    G 176 mm
    H 55.5 mm
    N 76 mm

    Letters in this table belong to the FA accessory drawing. Stroke-dependent C, D, E, N or A dimensions must be read with the added-stroke callouts and the selected cylinder action; they are not all fixed overall lengths.

    Stroke and Option Selection

    Parameter Details
    Standard strokes for this bore/action 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60, 70, 75, 80, 90, 100, 110, 120, 125, 150, 160, 175, 200, 225, 250, 275, 300 mm
    Intermediate strokes The catalog allows a nonstandard intermediate stroke with the outer dimensions of the next larger standard stroke; this does not extend the maximum allowable stroke.
    Magnetic selection Select the magnetic option before ordering a position switch; electrical type, cable and connector are selected separately.

    Selection, Installation and Operation

    • Select bore from the required thrust and available pressure; then check stroke, load direction, mounting, cushioning and sensing. The general catalog load-factor references are at most 0.7 for static/slow work and at most 0.5 for 50–500 mm/s motion. They do not replace the load and guide checks for this cylinder.
    • Keep the piston rod and load aligned. Support lateral or eccentric loads with an appropriate guide; avoid applying bending force or tightening torque through the rod or guide.
    • Use clean filtered air. Prevent freezing, water, dust and corrosive substances from entering the cylinder. The cylinder is prelubricated; if lubrication is introduced, use additive-free ISO VG32 oil and continue that lubrication.
    • Start with the speed controller restricted, then open it gradually. Choose the circuit and flow-control direction for the action and load; a double-acting meter-out circuit is a general reference, not a guarantee of equal speed or precise stopping.
    • Isolate the air and electrical supplies and release trapped pressure before maintenance. Check the mounting and retained parts before repressurizing. A C-ring must be fully seated before operation.

    Circuit Selection Reference at 500 mm/s

    Parameter Details
    Reference bore 100 mm
    Effective flow area at the reference speed 20.4 mm²
    Tube outside / inside diameter 16 / 11 mm
    Example speed controller PTL03
    Example silencer BSL03
    Example solenoid valves 5V31010 / 5V32010
    Example air-piloted valves 4A31010 / 4A32010

    The general 2022 selection table gives these circuit examples for this bore at a theoretical 500 mm/s reference speed. They are not included accessories, a guaranteed achieved speed, or a statement that every example screws directly into this cylinder. Match the actual port thread, action, tubing, valve capacity and operating conditions.

    Weight Reference

    Estimated reference weight: 3821.92 g. Based on the same family/bore catalog mass data and the stated configuration; it is not an AirTAC published weight for this exact variant or a measured weight. The selected mounting bracket mass is not separately listed in the cylinder weight table; this reference does not certify a packed assembly weight.

    For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.
