Description

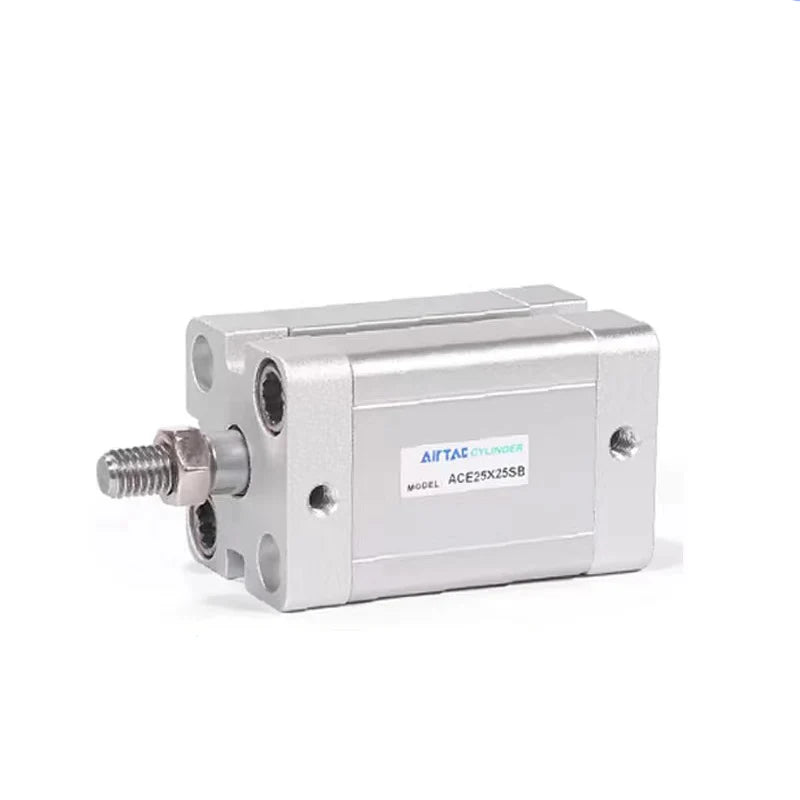

Specifications: Compact cylinder (compound type) Bore: 100mm Stroke: 225mm Magnet: no magnet Tooth type of piston rod: inner tooth type Fixed type: axial fixed seat Tooth type: NPT tooth
Specifications
1. Model: ACE100X225LBT
2. Action type: double action type, working medium: air (filtered by filter screen above 40μm)
3. Use pressure range: 0.15~1.0MPa(22~145psi), Guaranteed pressure resistance: 1.5MPa(215psi)
4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel Tolerance Range: Travel ≤100+0/1.0, Travel ＞100+0/1.5
5. Buffer type: anti-collision pad, nozzle caliber: G1/8
6. The nozzle tooth type is optional with PT tooth, G tooth and NPT tooth, and the sensor can be selected: DMSE,CMSE
Internal structure and main parts material: 1. screw: carbon steel/2. Back cover: Aluminum alloy/3. Crash cushion (ring):TPU/4.O-ring: NBR/5. Wear-resistant ring: none (ø12~20), wear-resistant material (other)/6. Magnet: sintered rubidium iron boron (ø12~20), plastic (other)/7. Piston O: NBR/8. Piston: Aluminum alloy/9. Piston rod: S45C/10. Body: aluminum alloy/11. Front cover: Aluminum alloy/12. Bushing: none (ø12~25), wear-resistant material (other)/13. Axis core Oream: NBR/14. Panel: aluminum alloy/15. Screw: carbon steel/16. Bushing: wear-resistant material/17. Guide rod: stainless steel (ø12~40),S45C (other)
Type of sealing ring :P-ACE100-R1 NBR material P-ACE100-R2 Fluorine rubber material ， Installation accessories :F-ACE100LB Axial mounting F-SI100FA Flange connecting plate F-SE100CA Single-ear fixing seat F-SE100CB Binaural mount F-SI100CR Single-ear connection seat F-SI100FTC Front cover trunnion bracket F-SI125TCM2 trunnion mount ， Piston rod end joint :F-M16X150I I Connector F-M16X150Y Y connector F-M16X150F Floating joint F-M16X150U fisheye joint
Click to download Airtac product catalog
Product Features
1. The implementation of ISO21287 standards, installation size versatility;
2. The cylinder body and the front and rear cover are connected with threads, with good strength and convenient maintenance;
3. The inner diameter of the cylinder body after finishing hard oxidation treatment, wear resistance, good durability;
4. The piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function;
5. Compact structure, compared with ISO15552 standard cylinders, it can effectively save 50% of the installation space;
6. The three sides of the cylinder body are provided with sensor grooves, which is convenient to install the sensor;
7. Built-in anti-collision pad, effectively absorb the residual energy generated by high-speed operation and mechanical rotation;
8. A variety of installation accessories to choose from.
