Description
Series: A series conditioning combination Nozzle caliber: 1/4" Drainage mode: differential pressure + manual drainage Type: low pressure type (0.4MPa) Pressure gauge: schedule Scale unit: psi Filtration accuracy: 40μm level Tooth type: NPT tooth
Specifications

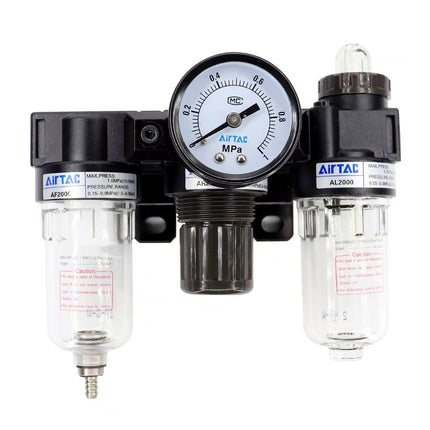

1. Model: AC2000CL2T
2. Working medium: air, nozzle diameter: PT1/4, filter element accuracy: 40μm or 5μm, pressure regulating range: 0.15~0.9MPa(20 ~ 130psi)
3. Maximum operating pressure: 1.0MPa(145psi), guaranteed pressure resistance: 1.5MPa(215psi), operating temperature range:-5~70 ℃ (not frozen)
4. Filter cup capacity: 15CC, oil cup capacity: 25CC, recommended lubricating oil: ISO VG32 or equivalent oil
5. Components: filter: AF2000C, pressure regulating valve: AR2000C, oil feeder: AL2000C. The nozzle type includes PT teeth, G teeth and NPT teeth
Internal structure: 1.AF, BF series filter/2.A, B series connecting piece/3.A, B series fixing bracket/4.AR, BR series pressure regulating valve/5.A, B series bracket fixing piece/6. Hexagon socket bolt/7.AL, BL series oil feeder
Filter water cup oil cup :AC2000 Water cup with differential pressure drainage AC2000 Water cup with manual drainage AC2000 Water cup without drain AC2000 Oil cup
Click to download Airtac product catalog
Product Features
1. Lightweight and compact structure, easy to install and use.
2. Press-in self-locking mechanism, which can prevent the setting pressure from being disturbed by the outside world;
3. Small pressure loss, high water efficiency.
4. Transparent inspection cover, you can directly observe the size of the oil drop.
5. In addition to the standard form, there are low pressure type to choose from (the highest adjustable pressure 0.4MPa).
