Airtac 6SV series: pneumatic solenoid valve - 6SV230P08BIG

Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

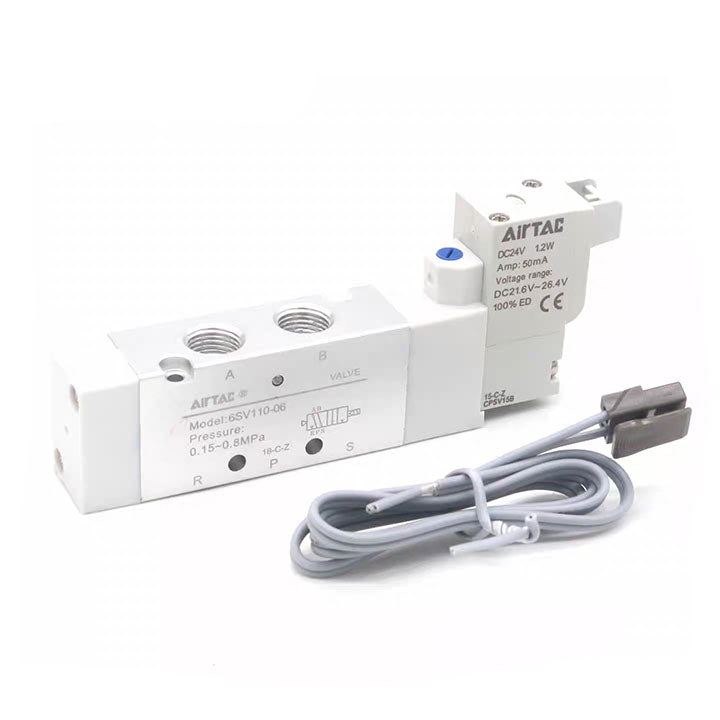

Photos are for reference only. Not all models have pictures.

Description

Specifications: 6SV230P08BIG is an AirTAC 200-size, 5/3-way, double-solenoid, pressure center pneumatic solenoid valve in the 6SV series. This configuration uses G1/4 threaded working ports and a 24 V DC coil supply. The flying lead connection has a 0.5 m fixed lead. The selected thread standard is G.

Product Catalog

Download New 6SV Catalog (PDF)

Old 6V Catalog (PDF)

For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

Ordering and Delivery

We supply 6SV230P08BIG (new 6SV). No exact 6V counterpart is listed. Compare PDF dimensions, mounting and electrical data.

6V vs 6SV: Dimensions and Replacement Guide

Model Code Explained

The following entries decode the actual order code 6SV230P08BIG. Optional configurations for the series are listed separately at the end of this description.

Code	Meaning for this model
6SV	6SV series five-port pneumatic solenoid valve.
2	200 body-size series.
30P	5/3-way, double-solenoid, pressure center. Five ports and three switching positions; the spool is spring-centered.
08	Working-port size: G1/4.
B	Rated coil supply: 24 V DC.
I	Electrical connection: flying lead.
Cable length for I	A fixed 0.5 m lead is specified; no separate 200 length code is used.
G	G pipe-thread selection.

Technical Specifications (6SV)

These specifications come from the new 6SV catalog and apply within the configuration limits stated for this model.

Parameter	Details
Series and body size	6SV / 200
Valve function	5/3-way, double-solenoid, pressure center
Actuation	Internally piloted pneumatic solenoid valve.
Working medium	Air filtered to 40 μm.
Working pressure	0.2–0.8 MPa
Proof pressure	1.2 MPa
Operating temperature	−20 to 70°C
Body material	Aluminum alloy
Lubrication	Not required. If lubricated air is used, use ISO VG32 or an equivalent lubricant and continue lubrication without interruption.
Maximum operating frequency	3 cycles/s, tested without load.
Reference mass	143 g; series catalog reference mass. The catalog does not give a separate mass for the flying lead version.
Supply port P	G1/4
Working ports A and B	G1/4 threaded working ports
Exhaust ports R and S	G1/8
Pilot exhaust	Collected through exhaust ports R and S.

Electrical Specifications

Parameter	Details
Catalog pilot / coil specification	CPSV15
Rated voltage	24 V DC (code B)
Electrical connection	Flying lead (code I)
Cable length	0.5 m fixed lead
Power consumption	1.2 W per coil
Voltage tolerance	±10% of the DC rating
Protection	IP65, as stated in the 6SV catalog.
Insulation class	Class F
Activating time	≤0.05 s

Power consumption is stated per coil. The rated voltage and connection above describe this order code; other voltages and connectors are separate ordering options.

Features and Operation

This double-solenoid, spring-centered valve has a pressure-center position. In the center position, P supplies A and B while R and S are blocked.
The aluminum-alloy body is extruded and machined. The revised series design provides a larger effective flow area; the relevant flow data are listed below.
Manifold mounting groups compatible valves together to reduce installation space. Valve, manifold and blanking-plate orders are separate.

External and Mounting Dimensions

The dimensions below follow the 6SV23008 drawing in the new 6SV PDF, page 5. Each drawing letter is listed separately. Linear dimensions are in millimeters; port threads retain their thread designation. Drawing references B, BC and C are separate spans, not a combined overall length × width × height. Plug-in drawing reference only: the catalog does not specify the complete connector envelope or installation clearance for this flying lead version. Confirm these dimensions before installation.

Drawing reference	Dimension / specification
A	155.5 mm
B	42 mm
BC	32.5 mm
C	18.5 mm
P	G1/4
PA	84.5 mm
PB	3 mm
Q	G1/8
QA	36 mm
QB	66.5 mm
T	G1/4
TA	74.5 mm
TB	20 mm
R	3.2 mm
RA	41 mm
RB	64 mm
RC	13.5 mm
RD	2 mm
S	4.3 mm
SA	20 mm
SB	74.5 mm
SC	7 mm

Drawing note	How to read it
A	Axial dimension shown in the drawing.
P	Supply-port thread. Do not confuse dimension P with the manifold length-table reference P.
Q	Two exhaust ports; each port uses the thread listed under Q.
T	Two working outlets; the listed thread or tube size applies to each.
R holes	2 × Ø3.2 mm, at the positions shown in the catalog drawing.
S holes	2 × Ø4.3 mm, at the positions shown in the catalog drawing.

For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

Installation and Manual Operation

Avoid dropping the valve or striking the precision pilot assembly. Do not dismantle it casually.
If the pilot mounting screws become loose, the catalog specifies M2.5×17 screws tightened to 0.4–0.45 N·m.
Before using the manual override, confirm that any resulting actuator movement can occur safely.
Pressing the manual override without rotation gives non-locking operation. For the locking position, press and rotate in the direction shown in the catalog; use the drawing to identify the correct positions.
Use a precision screwdriver for the manual operation described in the catalog; the stated torque is 0.1 N·m.
Allow adequate space for the flying lead, cable routing and pneumatic tubing. The plug-in drawing does not establish the connector clearance for this version.

Accessory Kit Contents

Parameter	Details
Matching manifold family	6SV200M
Manifold station range	1F–30F; 30 is the maximum station count in the applicable ordering range.
Manifold order examples	6SV200M1F; 6SV200M30F. Add G or T only when selecting that manifold thread standard.
Manifold thread selection	Blank suffix = PT; G = G thread; T = NPT.
Matching blanking plate	P-6SV200M-R2
Manifold kit contents	Base, base seals and screws. The source does not specify the individual component quantities.
Blanking-plate kit contents	Blanking plate and screws. The source does not specify the individual component quantities.
Included with this valve	The manifold and blanking plate are separate accessories and are not included with this valve order.

Select accessories for the 6SV family. A replacement relationship between 6V and 6SV valves does not establish dimensional or mounting interchangeability between their manifolds. The new 6SV accessory ordering information is on PDF page 6. That page lists L/P dimensions for 1F–20F only; do not extrapolate dimensions for 21F–30F.

Flow / Performance Characteristics

Current configuration:

Parameter	Details
Effective area	Not separately specified for this exact port / center configuration.
Flow coefficient Cv	Not separately specified for this exact port / center configuration.
Applicability	Do not substitute the reference values of another port size or center function for this model.

Series reference data: The following configurations are those identified in the catalog flow table. They are provided to explain the series data and do not add options to the current order code.

Catalog configuration	Published reference
6SV210-08 / 6SV220-08	17.9 mm² effective area; Cv 1.05
6SV230C-08	16.2 mm² effective area; Cv 0.9

Performance graph	Reference information
Reference curve	6SV210-08
Pressure axis	0–0.7 MPa, marked in 0.1 MPa increments.
Flow axis	0–2200 L/min, marked in 200 L/min increments.
Test basis	Laboratory flow curve; effective area and Cv are derived from measured flow.
Reading the graph	Axis limits are graph scales, not a guaranteed rated flow. Use the original PDF to read curve positions and test conditions.

Internal Components

The 6SV catalog provides an internal-structure key for the 6SV110 / 6SV120 / 6SV130C illustrations. The numbered list below follows those illustrations; it is not a package-quantity list or a set of separately orderable part numbers, and it does not prove that every illustrated part is present in every configuration.

Drawing item	Component name
1	Pilot valve
2	Manual pin
3	Pilot body
4	Large piston
5	Body
6	Spool
7	Small piston
8	Shaped O-ring
9	Bottom cover
10	Screw
11	Steel ball
12	Spring
13	Return seat
14	Side cover

Series Ordering Options

These are series ordering choices, not additional features supplied with 6SV230P08BIG. Use the model-code table above for the selected configuration.

Ordering category	Series options and restrictions
Body-size / port combinations	0500: M5; 100: M5, 06; 200: 06, 08; 300: 10; 400: 15
Control codes	10 = single-solenoid 5/2; 20 = double-solenoid 5/2; 30C = closed-center 5/3; 30E = exhaust-center 5/3; 30P = pressure-center 5/3.
Voltage codes	A = 220 V AC; B = 24 V DC; C = 110 V AC; E = 24 V AC; F = 12 V DC.
Threaded port codes	M5 = M5×0.8; 06 = 1/8 in; 08 = 1/4 in; 10 = 3/8 in; 15 = 1/2 in.
Pipe-thread suffixes	Blank = PT; G = G thread; T = NPT. These suffixes are not used with M5 ports.
Connection codes	Blank = plug-in terminal; I = flying lead; D = DIN connector; M = M8 connector.
0500 restrictions	The 0500 series does not list voltage E (24 V AC) or connection D (DIN).
Cable-length rules	Plug-in: blank = 0.5 m, 200 = 2 m. I and M: fixed 0.5 m lead. D: no cable-length code.
J quick-connect option	No J quick-connect equivalent is listed in this new 6SV catalog.

Matching Accessory Codes

Item	Complete codes and use
6SV PT1/4 manifold	6SV200M2F,6SV200M3F,6SV200M4F,6SV200M5F,6SV200M6F,6SV200M7F,6SV200M8F,6SV200M9F,6SV200M10F,6SV200M11F,6SV200M12F,6SV200M13F,6SV200M14F,6SV200M15F,6SV200M16F,6SV200M17F,6SV200M18F,6SV200M19F,6SV200M20F,6SV200M21F,6SV200M22F,6SV200M23F,6SV200M24F,6SV200M25F,6SV200M26F,6SV200M27F,6SV200M28F,6SV200M29F
6SV G1/4 manifold	6SV200M1FG,6SV200M2FG,6SV200M3FG,6SV200M4FG,6SV200M5FG,6SV200M6FG,6SV200M7FG,6SV200M8FG,6SV200M9FG,6SV200M10FG,6SV200M11FG,6SV200M12FG,6SV200M13FG,6SV200M14FG,6SV200M15FG,6SV200M16FG,6SV200M17FG,6SV200M18FG,6SV200M19FG,6SV200M20FG,6SV200M21FG,6SV200M22FG,6SV200M23FG,6SV200M24FG,6SV200M25FG,6SV200M26FG,6SV200M27FG,6SV200M28FG,6SV200M29FG,6SV200M30FG
6SV NPT1/4 manifold	6SV200M1FT,6SV200M2FT,6SV200M3FT,6SV200M4FT,6SV200M5FT,6SV200M6FT,6SV200M7FT,6SV200M8FT,6SV200M9FT,6SV200M10FT,6SV200M11FT,6SV200M12FT,6SV200M13FT,6SV200M14FT,6SV200M15FT,6SV200M16FT,6SV200M17FT,6SV200M18FT,6SV200M19FT,6SV200M20FT,6SV200M21FT,6SV200M22FT,6SV200M23FT,6SV200M24FT,6SV200M25FT,6SV200M26FT,6SV200M27FT,6SV200M28FT,6SV200M29FT,6SV200M30FT

Optional Connections and Air Preparation

P = G1/4 supply; E = G1/8 R/S exhaust; W = G1/4 A/B work ports; MP = PT1/4, MG = G1/4, MN = NPT1/4. Multiple keys retain each use. Tube OD is mm (in = inches); compression/tubing show OD × ID. These piping accessories are ordered separately. MP/MG/MN identify the selected manifold common ports; each family’s stated supply/exhaust use still applies.

Code-prefix uses (match the longest listed family prefix): GPC/NPC/PC straight; GPL/NPL/PL elbow; GPLL/NPLL/PLL extended elbow; GPEB/NPEB/PEB branch tee; GPED/NPED/PED run tee; GPYB/NPYB/PYB Y; GPH/NPH/PH banjo elbow; GPHF/NPHF/PHF female branch banjo; GPHW/NPHW/PHW twin banjo; GPZB/NPZB/PZB cross; GPKD/NPKD/PKD reducing distribution fitting; BPC/GBPC/NBPC metal straight; BKC/GBKC/NBKC compression fitting; BB/GBB/NBB male–male; BD/GBD/NBD male–female; GPSS/NPSS/PSS flow control; GPTL/NPTL/PTL push-lock flow control; GPSA/NPSA/PSA inline flow control; ASC inline threaded flow control; GAFR upstream filter-regulator; US PU tube; UE PU tube; BSL/GBSL/NBSL silencer; BSLM/GBSLM/NBSLM miniature silencer; BESL/GBESL/NBESL adjustable silencer; PPA plug-in silencer; POC round straight; BPOC metal straight; PAL plastic silencer; PALM miniature plastic silencer; PSL elbow flow control.

Port use	Tube / connection size and complete codes
MG,P,W	6: GPC602,GPC602D,GPL602,GPL602D,GPLL602,GPLL602D,GPEB602,GPEB602D,GPED602,GPED602D,GPYB602,GPYB602D,GPH602,GPH602D,GPHF602,GPHF602D,GPHW602,GPHW602D,GPZB602,GPZB602D,GBPC602,GPSS602A,GPSS602AD,GPSS602B,GPSS602BD,GPTL602A,GPTL602AD,GPTL602B,GPTL602BD 8: GPC802,GPC802D,GPL802,GPL802D,GPLL802,GPLL802D,GPEB802,GPEB802D,GPED802,GPED802D,GPYB802,GPYB802D,GPH802,GPH802D,GPHF802,GPHF802D,GPHW802,GPHW802D,GPZB802,GPZB802D,GBPC802,GPSS802A,GPSS802AD,GPSS802B,GPSS802BD,GPTL802A,GPTL802AD,GPTL802B,GPTL802BD 10: GPC1002,GPC1002D,GPL1002,GPL1002D,GPLL1002,GPLL1002D,GPEB1002,GPEB1002D,GPED1002,GPED1002D,GPYB1002,GPYB1002D,GPH1002,GPH1002D,GPHF1002,GPHF1002D,GPHW1002,GPHW1002D,GPZB1002,GPZB1002D,GBPC1002,GPSS1002A,GPSS1002AD,GPSS1002B,GPSS1002BD,GPTL1002A,GPTL1002AD,GPTL1002B,GPTL1002BD 12: GPC1202,GPC1202D,GPL1202,GPL1202D,GPLL1202,GPLL1202D,GPEB1202,GPEB1202D,GPED1202,GPED1202D,GPYB1202,GPYB1202D,GBPC1202 4: GPC402-M,GPC402D-M,GPL402-M,GPL402D-M,GPLL402,GPLL402D,GPEB402,GPEB402D,GPED402,GPED402D,GPYB402,GPYB402D,GBPC402 main 8 / branch 6: GPKD8-602,GPKD8-602D 6 × 4: GBKC0604-02 8 × 5: GBKC0805-02 8 × 5.5 or 6: GBKC0806-02 10 × 6.5: GBKC1065-02 10 × 7.5 or 8: GBKC1075-02 12 × 8: GBKC1208-02 12 × 9 or 10: GBKC1209-02 male G1/4 ↔ male G1/4: GBB0202 male G3/8 ↔ male G1/4: GBB0203 male G1/2 ↔ male G1/4: GBB0204 male G1/4 ↔ female G1/8: GBD0102
E,MG,P,W	male G1/4 ↔ male G1/8: GBB0102
E,MG,MP,P,W	4: GPSA4,GPSA4D,PSA4,PSA4D,PSA4-S,PSA4D-S 6: GPSA6,GPSA6D,PSA6,PSA6D,PSA6-S,PSA6D-S 8: GPSA8,GPSA8D,PSA8,PSA8D,PSA8-S,PSA8D-S 10: GPSA10,GPSA10D,PSA10,PSA10D,PSA10-S,PSA10D-S 12: GPSA12,GPSA12D,PSA12,PSA12D,PSA12-S,PSA12D-S 4 × 2.5: US98A040025100MBU,UE95A040025100MBU 6 × 4: US98A060040100MBU,UE95A060040100MBU 8 × 5: US98A080050100MBU,UE95A080050100MBU 10 × 6.5: US98A100065100MBU,UE95A100065100MBU 12 × 8: US98A120080100MBU,UE95A120080100MBU
MG,P	ASC20008G,GAFR20008SG,GAFR30008SG
E	6: GPC601,GPC601D,GPL601,GPL601D,GPC601-M,GPC601D-M,GPL601-M,GPL601D-M,GPLL601,GPLL601D,GPEB601,GPEB601D,GPED601,GPED601D,GPYB601,GPYB601D,GPH601,GPH601D,GPHF601,GPHF601D,GPHW601,GPHW601D,GPZB601,GPZB601D,GBPC601,GPTL601A,GPTL601AD,GPTL601B,GPTL601BD,GPSS601A,GPSS601AD,GPSS601B,GPSS601BD 8: GPC801,GPC801D,GPL801,GPL801D,GPLL801,GPLL801D,GPEB801,GPEB801D,GPED801,GPED801D,GPYB801,GPYB801D,GPH801,GPH801D,GPHF801,GPHF801D,GPHW801,GPHW801D,GPZB801,GPZB801D,GBPC801,GPTL801A,GPTL801AD,GPTL801B,GPTL801BD,GPSS801A,GPSS801AD,GPSS801B,GPSS801BD 10: GPC1001,GPC1001D,GPL1001,GPL1001D,GPLL1001,GPLL1001D,GPEB1001,GPEB1001D,GPED1001,GPED1001D,GPYB1001,GPYB1001D,GBPC1001 12: GPC1201,GPC1201D,GPL1201,GPL1201D 4: GPC401-M,GPC401D-M,GPL401-M,GPL401D-M,GPLL401,GPLL401D,GPEB401,GPEB401D,GPED401,GPED401D,GPYB401,GPYB401D,GPH401,GPH401D,GPHF401,GPHF401D,GPHW401,GPHW401D,GBPC401 main 6 / branch 4: GPKD6-401,GPKD6-401D 4 × 2.5: GBKC0425-01 6 × 4: GBKC0604-01 8 × 5: GBKC0805-01 8 × 5.5 or 6: GBKC0806-01 male G1/8 ↔ male G1/8: GBB0101 male G3/8 ↔ male G1/8: GBB0103 GBSL01,GBSLM01,GBESL01
E,MG,MP	6: PPA6 8: PPA8 10: PPA10 12: PPA12
MP	4: PC402,PC402D,POC402,POC402D,PL402,PL402D,PLL402,PLL402D,PEB402,PEB402D,PED402,PED402D,PYB402,PYB402D,PC402-S,PC402D-S,POC402-S,POC402D-S,PL402-S,PL402D-S,PLL402-S,PLL402D-S,PEB402-S,PEB402D-S,PED402-S,PED402D-S,PYB402-S,PYB402D-S,BPC402 6: PC602,PC602D,POC602,POC602D,PL602,PL602D,PLL602,PLL602D,PEB602,PEB602D,PED602,PED602D,PYB602,PYB602D,PH602,PH602D,PHF602,PHF602D,PHW602,PHW602D,PZB602,PZB602D,PC602-S,PC602D-S,POC602-S,POC602D-S,PL602-S,PL602D-S,PLL602-S,PLL602D-S,PEB602-S,PEB602D-S,PED602-S,PED602D-S,PYB602-S,PYB602D-S,PH602-S,PH602D-S,PHF602-S,PHF602D-S,PHW602-S,PHW602D-S,PZB602-S,PZB602D-S,BPC602,BPOC602,PSL602A,PSL602AD,PSL602B,PSL602BD,PSL602A-S,PSL602AD-S,PSL602B-S,PSL602BD-S,PSS602A,PSS602AD,PSS602B,PSS602BD,PSS602A-S,PSS602AD-S,PSS602B-S,PSS602BD-S,PTL602A,PTL602AD,PTL602B,PTL602BD 8: PC802,PC802D,POC802,POC802D,PL802,PL802D,PLL802,PLL802D,PEB802,PEB802D,PED802,PED802D,PYB802,PYB802D,PH802,PH802D,PHF802,PHF802D,PHW802,PHW802D,PZB802,PZB802D,PC802-S,PC802D-S,POC802-S,POC802D-S,PL802-S,PL802D-S,PLL802-S,PLL802D-S,PEB802-S,PEB802D-S,PED802-S,PED802D-S,PYB802-S,PYB802D-S,PH802-S,PH802D-S,PHF802-S,PHF802D-S,PHW802-S,PHW802D-S,PZB802-S,PZB802D-S,BPC802,BPOC802,PSL802A,PSL802AD,PSL802B,PSL802BD,PSL802A-S,PSL802AD-S,PSL802B-S,PSL802BD-S,PSS802A,PSS802AD,PSS802B,PSS802BD,PSS802A-S,PSS802AD-S,PSS802B-S,PSS802BD-S,PTL802A,PTL802AD,PTL802B,PTL802BD 10: PC1002,PC1002D,POC1002,POC1002D,PL1002,PL1002D,PLL1002,PLL1002D,PEB1002,PEB1002D,PED1002,PED1002D,PYB1002,PYB1002D,PH1002,PH1002D,PHF1002,PHF1002D,PHW1002,PHW1002D,PZB1002,PZB1002D,PC1002-S,PC1002D-S,POC1002-S,POC1002D-S,PL1002-S,PL1002D-S,PLL1002-S,PLL1002D-S,PEB1002-S,PEB1002D-S,PED1002-S,PED1002D-S,PYB1002-S,PYB1002D-S,PH1002-S,PH1002D-S,PHF1002-S,PHF1002D-S,PHW1002-S,PHW1002D-S,PZB1002-S,PZB1002D-S,BPC1002,BPOC1002,PSL1002A,PSL1002AD,PSL1002B,PSL1002BD,PSL1002A-S,PSL1002AD-S,PSL1002B-S,PSL1002BD-S,PSS1002A,PSS1002AD,PSS1002B,PSS1002BD,PSS1002A-S,PSS1002AD-S,PSS1002B-S,PSS1002BD-S,PTL1002A,PTL1002AD,PTL1002B,PTL1002BD 12: PC1202,PC1202D,POC1202,POC1202D,PL1202,PL1202D,PLL1202,PLL1202D,PEB1202,PEB1202D,PED1202,PED1202D,PYB1202,PYB1202D,PC1202-S,PC1202D-S,POC1202-S,POC1202D-S,PL1202-S,PL1202D-S,PLL1202-S,PLL1202D-S,PEB1202-S,PEB1202D-S,PED1202-S,PED1202D-S,PYB1202-S,PYB1202D-S,BPC1202 main 8 / branch 6: PKD8-602,PKD8-602D,PKD8-602-S,PKD8-602D-S 6 × 4: BKC0604-02,BKC0604-02-S 8 × 5: BKC0805-02,BKC0805-02-S 8 × 5.5 or 6: BKC0806-02,BKC0806-02-S 10 × 6.5: BKC1065-02,BKC1065-02-S 10 × 7.5 or 8: BKC1075-02,BKC1075-02-S 12 × 8: BKC1208-02,BKC1208-02-S 12 × 9 or 10: BKC1209-02,BKC1209-02-S male PT1/4 ↔ male PT1/8: BB0102,BB0102-S male PT1/4 ↔ male PT1/4: BB0202,BB0202-S male PT3/8 ↔ male PT1/4: BB0203,BB0203-S male PT1/2 ↔ male PT1/4: BB0204,BB0204-S male PT1/4 ↔ female PT1/8: BD0102,BD0102-S BSL02,BSLM02,BESL02,PAL02,PAL02D,PALM02,PALM02D,BSL02-S,BSLM02-S,BESL02-S,ASC20008,GAFR20008S,GAFR30008S
MG	GBSL02,GBSLM02,GBESL02
MN	1/4 in: NPC1/4-1/4,NPL1/4-1/4,NPEB1/4-1/4,NPED1/4-1/4,NPYB1/4-1/4,NPTL1/4-1/4A,NPTL1/4-1/4B,NPSA1/4 5/16 in: NPC5/16-1/4,NPL5/16-1/4,NPEB5/16-1/4,NPED5/16-1/4,NPYB5/16-1/4,NPTL5/16-1/4A,NPTL5/16-1/4B,NPSA5/16 3/8 in: NPC3/8-1/4,NPL3/8-1/4,NPEB3/8-1/4,NPED3/8-1/4,NPYB3/8-1/4,NPTL3/8-1/4A,NPTL3/8-1/4B,NPSA3/8 1/2 in: NPC1/2-1/4,NPL1/2-1/4,NPEB1/2-1/4,NPED1/2-1/4,NPYB1/2-1/4,NPSA1/2 NBSL1/4,NBSLM1/4,ASC20008T,GAFR20008ST,GAFR30008ST
MN (discontinued)	1/4 in: NPLL1/4-1/4,NPH1/4-1/4,NPHF1/4-1/4,NPHW1/4-1/4,NPZB1/4-1/4,NBPC1/4-1/4,NPSS1/4-1/4A,NPSS1/4-1/4B 5/16 in: NPLL5/16-1/4,NPH5/16-1/4,NPHF5/16-1/4,NPHW5/16-1/4,NPZB5/16-1/4,NBPC5/16-1/4,NPSS5/16-1/4A,NPSS5/16-1/4B 3/8 in: NPLL3/8-1/4,NPH3/8-1/4,NPHF3/8-1/4,NPHW3/8-1/4,NPZB3/8-1/4,NBPC3/8-1/4,NPSS3/8-1/4A,NPSS3/8-1/4B 1/2 in: NPLL1/2-1/4,NBPC1/2-1/4 main 5/16 / branch 1/4 in: NPKD5/16-1/4-1/4 1/4 × 5/32 in: NBKC1/4-5/32-1/4 5/16 × 1/5 in: NBKC5/16-1/5-1/4 3/8 × 1/4 in: NBKC3/8-1/4-1/4 1/2 × 1/3 in: NBKC1/2-1/3-1/4 male NPT1/8 ↔ male NPT1/4: NBB1/8-1/4 male NPT1/4 ↔ male NPT1/4: NBB1/4-1/4 male NPT3/8 ↔ male NPT1/4: NBB1/4-3/8 male NPT1/2 ↔ male NPT1/4: NBB1/4-1/2 male NPT1/4 ↔ female NPT1/8: NBD1/8-1/4 NBESL1/4

Match PT/G/NPT exactly. Use the specified thread seal/face gasket. Match tube OD and compression OD/ID; metric and inch differ. Use suitable soft nylon/PU tube; check insertion, clearance and flow. Tighten compression bodies by the hex, not tube nuts. Where listed: D=black, blank=grey, -M=miniature; -S denotes the specified 304 stainless parts only.

Tube unions need matching connections. PPA silencers need metric push-in exhaust sockets; they are not threaded plugs or vacuum filters. ASC/GAFR female ports need separate male connections. Branches share a circuit. PHF/GPHF/NPHF female RB matches the stated male RA thread: connect or seal as permitted, not as a tube socket.

Push-in/tube-union/flow parts: ≤1 MPa, −20–70°C. Metal BPC/BPOC/GBPC: ≤0.9 MPa; NBPC/compression/adapters: ≤1 MPa. Both metal groups: 0–150°C, restricting the valve path to 0–70°C or narrower. Observe every lower component limit; no system vacuum rating is established.

PU examples: separate blue 100 m coils, 1 MPa at 23°C. US98A: −20–70°C; UE95A: −40–70°C, within valve/component limits and temperature derating; 0.8 MPa is not assured throughout. Match OD/ID; order inch tube separately. Discontinued parts are historical service references: confirm availability or a manufacturer-approved replacement.

Maintain 0.2–0.8 MPa and lower component limits, including minimum pilot supply. MP/MG/MN must match the selected manifold common-port thread; they do not change A/B working connections.

Flow-control suffix A restricts thread-to-tube, free in reverse; B reverses it. Supply normally flows tube-to-thread; exhaust normally flows thread-to-tube. At a threaded valve work port, A restricts flow to the actuator and B the return; cylinder-mounted control orientation differs. Follow flow symbols and circuit direction. Closed controls do not isolate. Adjust gently without forcing stops; depressurize before tube removal.

Use silencers only at the stated R/S exhaust. Check total flow/back pressure for all active stations. Adjustable silencers and remote exhaust affect the circuit. Never cap active P/A/B/R/S.

Connect ASC separately in supply, following P/A markings: 0.05–0.95 MPa, −20–70°C. Put GAFR upstream of P: inlet ≤1 MPa, regulation 0.15–0.9 MPa, −5–70°C nonfreezing. Either requires 0.2–0.8 MPa valve supply and all lower limits. GAFR S: 40 µm, PC bowl, differential/manual drain, bracket and gauge; no reverse-flow valve.

The reviewed pages establish no complete separate coil/cable/connector/pilot-assembly code. Obtain the manufacturer-confirmed code for the actual generation, revision and voltage.

PTL/GPTL recommended cap adjustment; NPTL maximum: 1/8: 0.08 N·m, 1/4: 0.16 N·m. These are not thread-installation torques.
