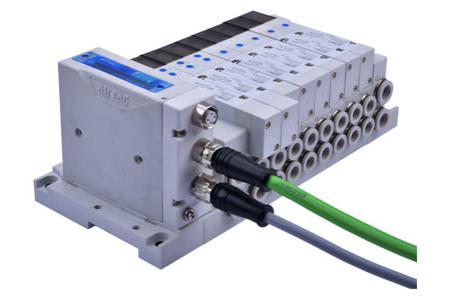

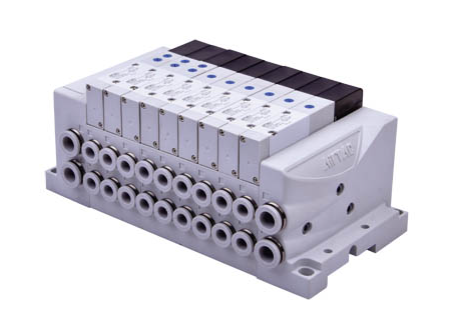

Airtac 6D200: Valve Bank Assembly -6D2H11F-J10FS11

Photos are for reference only. Not all models have pictures.

Description

Series: 6D200 series side out type integrated valve group Total number of companies: 11 companies Nozzle diameter (A/B port):ø10 quick plug connector Nozzle standard voltage: DC12V Number of single control solenoid valves: 11 Number of double-control solenoid valves: none Number of three-position middle-sealed solenoid valve: none Number of three-position relief solenoid valves: none Number of three-position medium pressure solenoid valve: None Communication protocol module specifications: without communication protocol module

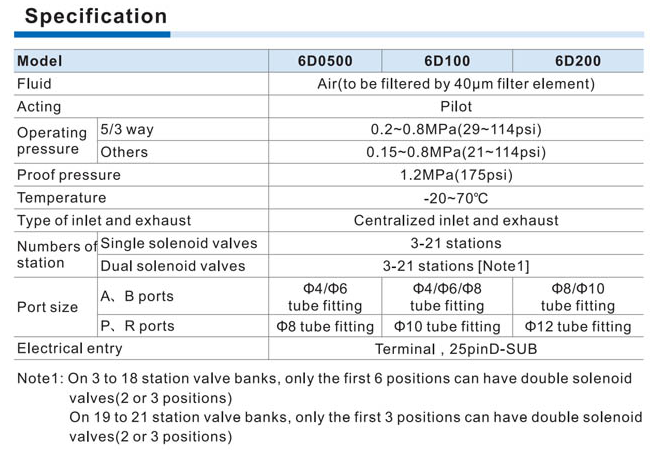

Specifications

1. Model: 6D2H11F-J10FS11

2. Working medium: air (filtered by filter screen above 40μm), actuation mode: pilot type

3.3 position type with pressure range: 0.2~0.8MPa(29 ~ 114psi), other type: 0.15~0.8MPa(21 ~ 114psi); Guaranteed pressure resistance: 1.2MPa(175psi)

4. Working temperature:-20~70 ℃, intake and exhaust mode: centralized intake and exhaust, installation connection number: 3 to 21

5. Nozzle diameter A and B holes: ø8 and ø10 quick plug connector nozzles, P and R holes: ø12 quick plug connector nozzles; Power connection mode: plug-in type, 25pinD-SUB

Click to download Airtac product catalog

Product Features

1. This integrated valve group adopts centralized intake and exhaust, and a single signal source input (15 pin D-SUB/25 pin D-SUB/37 pin D-SUB) design, which can simplify the wiring installation process and reduce the risk of defects caused by assembly;

2. The combination of flexible, can be connected to the number of solenoid valves for any combination;

3. The base is easy to install and can be separately locked or combined with the guide channel without additional purchase of accessories;

4. The base can be installed at the same time 2 position and 3 position solenoid valve, no need to purchase additional accessories;

5. Attached manual adjustment device function, easy to install and debug;

6. Low starting voltage and long service life.

Compared with the SMC SY series, the AirTac 6D series is a functional replacement.

Product form

Series: 6D200 series side out type integrated valve group Total number of companies: 11 companies Nozzle diameter (A/B port):ø10 quick... Read more

SKU: 6D2H11F-J10FS11

$663.86 Incl. VAT

    Guaranteed secure & safe checkout.

    Ach Direct DebitAmazon American Express Apple Pay BizumDiners ClubDiscoverGoogle Pay Mastercard PayPalShop Pay USDC Visa

    Bank transfer also available. Payment options may vary by location and device.

    Shipping, returns & order help

    Free shipping on orders US$30+ under 2 kg

    Import duties & taxes included on all orders

    Download: 3D model selection.
    Shipping & delivery times

    In-stock items: processed and shipped within 1–3 business days. Custom-made items: G/NPT threads and non-standard specifications require 7–15 business days of factory production before shipping.

    Standard international delivery typically takes 7–13 business days after dispatch, depending on customs clearance and the local delivery network. Processing or production time is additional. Next-day and overnight delivery are not available.

    Most products ship from our manufacturing centers in Asia, then transfer to a local carrier after customs clearance.

    Read our shipping policy
    Shipping costs & import taxes

    Free shipping: orders of US$30 or more weighing under 2 kg. Import duties and taxes are included on all orders.

    If an overweight shipping surcharge applies after packing, we pause shipment and email you the amount for approval before dispatch. This is a transport charge, not an import tax. If you do not reply within 7 days, the order is canceled and fully refunded.

    Shipping charges and tax details
    Model selection & custom orders

    Please check the full model number, dimensions, thread type, stroke and voltage where applicable before ordering. If you are unsure, email airtacs@airtacs.com with the model number and required specifications.

    Custom-made products, including G/NPT thread specifications and custom-built parts, are non-returnable and non-refundable under our refund policy.

    Read the refund policy before ordering
    Tracking & delivery support

    Use the tracking link in your shipping confirmation email. For YunExpress shipments, enter your YT tracking number at Yuntrack to view the journey and local delivery details.

    Provide a complete physical delivery address and reachable contact details. P.O. boxes and virtual mail-forwarding addresses are not accepted.

    If delivery fails, contact the local carrier and email airtacs@airtacs.com with your order and tracking numbers. For failures caused by an incorrect/incomplete address or an unreachable recipient, return to the local warehouse typically takes 7–30 business days. Redelivery requires an additional shipping fee; cancellation after failed delivery is subject to deductions for original shipping and carrier return fees.

    Delivery issue policy
    Returns & product issues

    Eligible returns are accepted within 7 days of delivery. Items must be unused, uninstalled and in their original factory packaging. Contact airtacs@airtacs.com for a Return Authorization (RA) number before returning anything.

    Ordered the wrong model or changed your mind? You pay return shipping, original shipping is non-refundable, and a 50% restocking fee is deducted from the actual price paid for the returned product.

    Defective, damaged or incorrect item? We provide a replacement and cover return shipping; no restocking fee applies. Custom-made items are excluded from standard returns. These terms are subject to applicable law and do not limit your statutory rights.

    Read the full refund policy
    Bank transfers & invoices

    Bank transfer: Select bank transfer at checkout and submit your order. The bank account details and payment instructions will then be displayed.

    Invoices: Invoices are available only after an order is placed. We are a US-based company and provide a standard commercial invoice, not an EU VAT tax invoice. If your company requires an EU VAT invoice, please confirm your requirements with us before ordering.

    For payment or invoice questions, email airtacs@airtacs.com with your order number.

    Description

    Series: 6D200 series side out type integrated valve group Total number of companies: 11 companies Nozzle diameter (A/B port):ø10 quick plug connector Nozzle standard voltage: DC12V Number of single control solenoid valves: 11 Number of double-control solenoid valves: none Number of three-position middle-sealed solenoid valve: none Number of three-position relief solenoid valves: none Number of three-position medium pressure solenoid valve: None Communication protocol module specifications: without communication protocol module

    Specifications

    1. Model: 6D2H11F-J10FS11

    2. Working medium: air (filtered by filter screen above 40μm), actuation mode: pilot type

    3.3 position type with pressure range: 0.2~0.8MPa(29 ~ 114psi), other type: 0.15~0.8MPa(21 ~ 114psi); Guaranteed pressure resistance: 1.2MPa(175psi)

    4. Working temperature:-20~70 ℃, intake and exhaust mode: centralized intake and exhaust, installation connection number: 3 to 21

    5. Nozzle diameter A and B holes: ø8 and ø10 quick plug connector nozzles, P and R holes: ø12 quick plug connector nozzles; Power connection mode: plug-in type, 25pinD-SUB

    Click to download Airtac product catalog

    Product Features

    1. This integrated valve group adopts centralized intake and exhaust, and a single signal source input (15 pin D-SUB/25 pin D-SUB/37 pin D-SUB) design, which can simplify the wiring installation process and reduce the risk of defects caused by assembly;

    2. The combination of flexible, can be connected to the number of solenoid valves for any combination;

    3. The base is easy to install and can be separately locked or combined with the guide channel without additional purchase of accessories;

    4. The base can be installed at the same time 2 position and 3 position solenoid valve, no need to purchase additional accessories;

    5. Attached manual adjustment device function, easy to install and debug;

    6. Low starting voltage and long service life.

    Compared with the SMC SY series, the AirTac 6D series is a functional replacement.
