Airtac 6A series: air-piloted directional valve - 6A22006

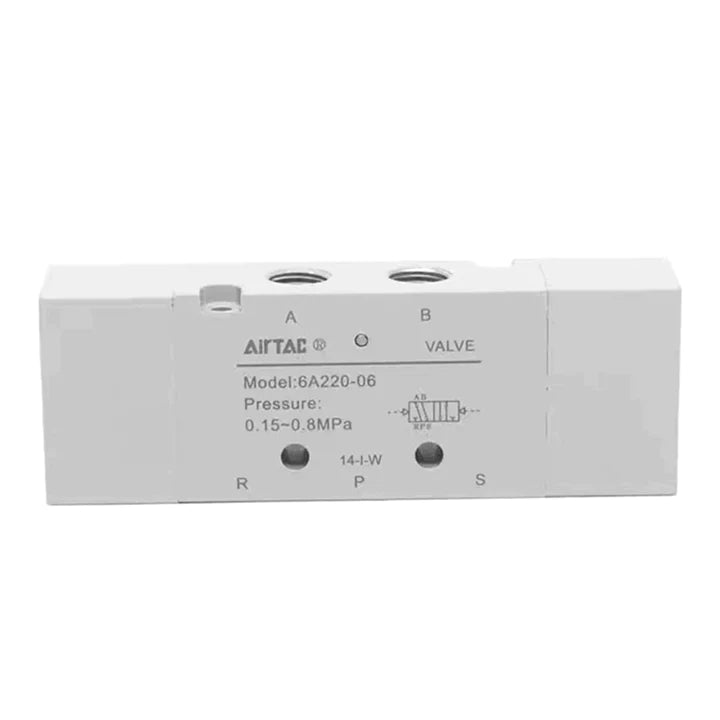

Photos are for reference only. Not all models have pictures.

Description

Specifications: 6A22006 is a 6A 200 series air-operated valve; 5/2-way, double air pilot; supply and working ports PT 1/8; exhaust ports PT 1/8; external pneumatic control.

Product Catalog

Download Airtac Product Catalog (PDF)

For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

Replacement and Ordering

Order 6SA22006 as the replacement for 6A22006. We ship the new 6SA series. Orders for 6A22006 are supplied as 6SA22006.

6SA Product Catalog (PDF)

AirTAC 6A vs 6SA Air-Operated Valves: Length, Dimensions and Replacement Guide

Compare the overall dimensions, mounting holes and air-pilot port in the replacement guide before changing series.

Model Code Explained

Code Meaning
6A Air-operated valve, 5/2-way or 5/3-way series
2 200 series
20 5/2-way, double air pilot
06 Supply and working ports: PT 1/8
Thread code: blank PT thread

Technical Specifications

Item Specification
Medium / actuation Air filtered through a 40 μm filter element; external pneumatic pilot
Supply / working / exhaust P supply and A/B working ports: PT 1/8; R/S exhaust ports: PT 1/8
Operating pressure 0.15–0.8 MPa (21–114 psi)
Proof pressure 1.2 MPa (175 psi)
Temperature / body material −20 to 70 °C; aluminum alloy
Lubrication Not required
Maximum operating frequency 5 cycles/s, under no-load conditions
Catalog valve weight 125 g

Once lubricated air is used, continue lubrication without interruption. ISO VG32 oil or an equivalent is recommended.

Features and Operation

Special processing of the internal bore reduces friction and starting pressure and supports long service life. The valve can be combined with a manifold to form a valve group and save space.

P = supply; A and B = working ports; R and S = exhaust. The 5/2-way symbol uses pneumatic pilots on both sides.

External and Mounting Dimensions

Drawing reference: 6A22006. Numerical dimensions are in millimeters and use the letters in the catalog. A is the overall length shown in the drawing; B and C retain their separate dimension-line references.

Drawing label Dimension
A / B / C 94.5 / 32.5 / 18.5 mm
PA / PB 47.5 / 3.2 mm
QA / QB 36 / 29.5 mm
R / RA / RB / RC 3.2 / 41 / 27 / 13.5 mm
S / SA / SB / SC Ø4.3 / 20 / 37.5 / 7 mm
TA / TB / TC 20 / 37.5 / 2 mm
Drawing thread label Catalog callout
D 1/8
P 1/8
Q 1/8
T 1/8

Drawing labels: D = air-pilot port; P = supply; 2-Q = two exhaust ports; 2-T = two working ports. Mounting holes are 2 × ØR and 2 × ØS. These drawing letters are distinct from the pneumatic-symbol port letters.

The catalog drawing uses the standard PT thread configuration. The current model uses PT threads as specified above; use the drawing with its dimension-line orientation when checking installation.

For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

Effective Area and Cv — Series Reference

Catalog reference model / port Effective area / Cv
6A210 / 6A220 with port code 08 (1/4) 15.4 mm² / 0.91
6A230C08 14.2 mm² / 0.84

Effective area and Cv are calculated from measured flow data. The values above retain their catalog model and port labels; a C-center value refers to that closed-center reference.

Flow Characteristics — Series Reference

The 6A210-08 chart plots flow from 0 to 1800 L/min in 300 L/min divisions horizontally and operating pressure from 0 to 0.7 MPa in 0.1 MPa divisions vertically. The curves are AirTAC laboratory test results for the named chart model. Chart-axis limits are not rated maximum flow. Refer to the PDF for the plotted curves and their relationships.

Series Ordering Options

Item Specification
Control codes 10 = single air pilot, 5/2-way; 20 = double air pilot, 5/2-way; 30C = closed center; 30E = exhaust center; 30P = pressure center. All 30 codes are double-air-pilot, 5/3-way.
Families / port codes 0500: M5; 100: M5 or 06 (1/8); 200: 06 (1/8) or 08 (1/4); 300: 10 (3/8).
Thread options M5 uses no thread suffix. Inch ports: blank = PT; G = G; T = NPT.

These are series ordering options. This item has the configuration stated in Specifications above.

Accessories

For the supplied 6SA200, use 6SV200M; 6V200M is only for an installed legacy 6A200. No 6V/6SV installation interchangeability is established. Match family, drawing and sealing surfaces; choose the base thread independently of the valve thread. Order optional accessories and valves separately. Base kits contain base, seals and screws; blanking kits contain plate and screws for an unused valve station, not threaded plugs. For 6SV200M 21–30 stations, confirm installation dimensions before ordering; reviewed L/P dimensions stop at 20.

Item Complete codes and use
Legacy 6A maintenance: 6V200M, PT PT 1/4 common supply/exhaust ports; 1–20 stations.
6V200M1F,6V200M2F,6V200M3F,6V200M4F,6V200M5F,6V200M6F,6V200M7F,6V200M8F,6V200M9F,6V200M10F,6V200M11F,6V200M12F,6V200M13F,6V200M14F,6V200M15F,6V200M16F,6V200M17F,6V200M18F,6V200M19F,6V200M20F
Legacy 6A maintenance: 6V200M, G G 1/4 common supply/exhaust ports; 1–20 stations.
6V200M1FG,6V200M2FG,6V200M3FG,6V200M4FG,6V200M5FG,6V200M6FG,6V200M7FG,6V200M8FG,6V200M9FG,6V200M10FG,6V200M11FG,6V200M12FG,6V200M13FG,6V200M14FG,6V200M15FG,6V200M16FG,6V200M17FG,6V200M18FG,6V200M19FG,6V200M20FG
Legacy 6A maintenance: 6V200M, NPT NPT 1/4 common supply/exhaust ports; 1–20 stations.
6V200M1FT,6V200M2FT,6V200M3FT,6V200M4FT,6V200M5FT,6V200M6FT,6V200M7FT,6V200M8FT,6V200M9FT,6V200M10FT,6V200M11FT,6V200M12FT,6V200M13FT,6V200M14FT,6V200M15FT,6V200M16FT,6V200M17FT,6V200M18FT,6V200M19FT,6V200M20FT
Legacy maintenance blanking-plate kit Unused mounting station on 6V200M.
P-6V200M-R2
6SA supply: 6SV200M, PT PT 1/4 common supply/exhaust ports; 1–30 stations.
6SV200M1F,6SV200M2F,6SV200M3F,6SV200M4F,6SV200M5F,6SV200M6F,6SV200M7F,6SV200M8F,6SV200M9F,6SV200M10F,6SV200M11F,6SV200M12F,6SV200M13F,6SV200M14F,6SV200M15F,6SV200M16F,6SV200M17F,6SV200M18F,6SV200M19F,6SV200M20F,6SV200M21F,6SV200M22F,6SV200M23F,6SV200M24F,6SV200M25F,6SV200M26F,6SV200M27F,6SV200M28F,6SV200M29F,6SV200M30F
6SA supply: 6SV200M, G G 1/4 common supply/exhaust ports; 1–30 stations.
6SV200M1FG,6SV200M2FG,6SV200M3FG,6SV200M4FG,6SV200M5FG,6SV200M6FG,6SV200M7FG,6SV200M8FG,6SV200M9FG,6SV200M10FG,6SV200M11FG,6SV200M12FG,6SV200M13FG,6SV200M14FG,6SV200M15FG,6SV200M16FG,6SV200M17FG,6SV200M18FG,6SV200M19FG,6SV200M20FG,6SV200M21FG,6SV200M22FG,6SV200M23FG,6SV200M24FG,6SV200M25FG,6SV200M26FG,6SV200M27FG,6SV200M28FG,6SV200M29FG,6SV200M30FG
6SA supply: 6SV200M, NPT NPT 1/4 common supply/exhaust ports; 1–30 stations.
6SV200M1FT,6SV200M2FT,6SV200M3FT,6SV200M4FT,6SV200M5FT,6SV200M6FT,6SV200M7FT,6SV200M8FT,6SV200M9FT,6SV200M10FT,6SV200M11FT,6SV200M12FT,6SV200M13FT,6SV200M14FT,6SV200M15FT,6SV200M16FT,6SV200M17FT,6SV200M18FT,6SV200M19FT,6SV200M20FT,6SV200M21FT,6SV200M22FT,6SV200M23FT,6SV200M24FT,6SV200M25FT,6SV200M26FT,6SV200M27FT,6SV200M28FT,6SV200M29FT,6SV200M30FT
Matching blanking-plate kit Unused mounting station on 6SV200M.
P-6SV200M-R2

The connection options below apply to the supplied 6SA valve: its pilot is PT1/8. The original 6A D callout above remains a legacy reference, not a pilot-fitting instruction for the supplied valve.

Piping and Air Preparation

These assignments apply to the declared supplied 6SA valve. Keep the original 6A reference data separate when changing series. P/W = supplied valve supply P and separate A/B working ports (PT1/8); E = separate R/S exhaust ports (PT1/8). X = separate PT1/8 pneumatic pilot connection(s), not a working port. MP = PT1/4, MG = G1/4, MN = NPT1/4 common supply/exhaust on the selected matching 6SV manifold. Select the manifold thread independently; its ports do not change valve or pilot threads. Common-port silencers serve exhaust only; ASC and GAFR serve upstream supply only. Do not combine separate supply, working, exhaust or pilot circuits. Multiple keys retain each use. Tube OD is mm (in = inches); compression/tubing show OD × ID. These piping accessories are optional and ordered separately.

Code-prefix uses (match the longest listed family prefix): ASC inline threaded flow control; BB/GBB/NBB male–male; BD/GBD/NBD male–female; BESL/GBESL/NBESL adjustable silencer; BKC/GBKC/NBKC compression fitting; BPC/GBPC/NBPC metal straight; BPOC metal straight; BSL/GBSL/NBSL silencer; BSLM/GBSLM/NBSLM miniature silencer; GAFR upstream filter-regulator; GPC/NPC/PC straight; GPEB/NPEB/PEB branch tee; GPED/NPED/PED run tee; GPH/NPH/PH banjo elbow; GPHF/NPHF/PHF female branch banjo; GPHW/NPHW/PHW twin banjo; GPKD/NPKD/PKD reducing distribution fitting; GPL/NPL/PL elbow; GPLL/NPLL/PLL extended elbow; GPSA/NPSA/PSA inline flow control; GPSS/NPSS/PSS flow control; GPTL/NPTL/PTL push-lock flow control; GPYB/NPYB/PYB Y; GPZB/NPZB/PZB cross; PAL plastic silencer; PALM miniature plastic silencer; POC round straight; PPA plug-in silencer; PSL elbow flow control; UE PU tube; US PU tube.

Use Size / complete codes
P ASC10006,GAFR20006S
MP ASC20008,BESL02,BESL02-S,BSL02,BSL02-S,BSLM02,BSLM02-S,GAFR20008S,GAFR30008S,PAL02,PAL02D,PALM02,PALM02D
male PT1/4 ↔ male PT1/4: BB0202,BB0202-S
male PT3/8 ↔ male PT1/4: BB0203,BB0203-S
male PT1/2 ↔ male PT1/4: BB0204,BB0204-S
male PT1/4 ↔ female PT1/8: BD0102,BD0102-S
6 × 4: BKC0604-02,BKC0604-02-S
8 × 5: BKC0805-02,BKC0805-02-S
8 × 5.5 or 6: BKC0806-02,BKC0806-02-S
10 × 6.5: BKC1065-02,BKC1065-02-S
10 × 7.5 or 8: BKC1075-02,BKC1075-02-S
12 × 8: BKC1208-02,BKC1208-02-S
12 × 9 or 10: BKC1209-02,BKC1209-02-S
10: BPC1002,BPOC1002,PC1002,PC1002-S,PC1002D,PC1002D-S,PEB1002,PEB1002-S,PEB1002D,PEB1002D-S,PED1002,PED1002-S,PED1002D,PED1002D-S,PH1002,PH1002-S,PH1002D,PH1002D-S,PHF1002,PHF1002-S,PHF1002D,PHF1002D-S,PHW1002,PHW1002-S,PHW1002D,PHW1002D-S,PL1002,PL1002-S,PL1002D,PL1002D-S,PLL1002,PLL1002-S,PLL1002D,PLL1002D-S,POC1002,POC1002-S,POC1002D,POC1002D-S,PSL1002A,PSL1002A-S,PSL1002AD,PSL1002AD-S,PSL1002B,PSL1002B-S,PSL1002BD,PSL1002BD-S,PSS1002A,PSS1002A-S,PSS1002AD,PSS1002AD-S,PSS1002B,PSS1002B-S,PSS1002BD,PSS1002BD-S,PTL1002A,PTL1002AD,PTL1002B,PTL1002BD,PYB1002,PYB1002-S,PYB1002D,PYB1002D-S,PZB1002,PZB1002-S,PZB1002D,PZB1002D-S
12: BPC1202,PC1202,PC1202-S,PC1202D,PC1202D-S,PEB1202,PEB1202-S,PEB1202D,PEB1202D-S,PED1202,PED1202-S,PED1202D,PED1202D-S,PL1202,PL1202-S,PL1202D,PL1202D-S,PLL1202,PLL1202-S,PLL1202D,PLL1202D-S,POC1202,POC1202-S,POC1202D,POC1202D-S,PYB1202,PYB1202-S,PYB1202D,PYB1202D-S
4: BPC402,PC402,PC402-S,PC402D,PC402D-S,PEB402,PEB402-S,PEB402D,PEB402D-S,PED402,PED402-S,PED402D,PED402D-S,PL402,PL402-S,PL402D,PL402D-S,PLL402,PLL402-S,PLL402D,PLL402D-S,POC402,POC402-S,POC402D,POC402D-S,PYB402,PYB402-S,PYB402D,PYB402D-S
6: BPC602,BPOC602,PC602,PC602-S,PC602D,PC602D-S,PEB602,PEB602-S,PEB602D,PEB602D-S,PED602,PED602-S,PED602D,PED602D-S,PH602,PH602-S,PH602D,PH602D-S,PHF602,PHF602-S,PHF602D,PHF602D-S,PHW602,PHW602-S,PHW602D,PHW602D-S,PL602,PL602-S,PL602D,PL602D-S,PLL602,PLL602-S,PLL602D,PLL602D-S,POC602,POC602-S,POC602D,POC602D-S,PSL602A,PSL602A-S,PSL602AD,PSL602AD-S,PSL602B,PSL602B-S,PSL602BD,PSL602BD-S,PSS602A,PSS602A-S,PSS602AD,PSS602AD-S,PSS602B,PSS602B-S,PSS602BD,PSS602BD-S,PTL602A,PTL602AD,PTL602B,PTL602BD,PYB602,PYB602-S,PYB602D,PYB602D-S,PZB602,PZB602-S,PZB602D,PZB602D-S
8: BPC802,BPOC802,PC802,PC802-S,PC802D,PC802D-S,PEB802,PEB802-S,PEB802D,PEB802D-S,PED802,PED802-S,PED802D,PED802D-S,PH802,PH802-S,PH802D,PH802D-S,PHF802,PHF802-S,PHF802D,PHF802D-S,PHW802,PHW802-S,PHW802D,PHW802D-S,PL802,PL802-S,PL802D,PL802D-S,PLL802,PLL802-S,PLL802D,PLL802D-S,POC802,POC802-S,POC802D,POC802D-S,PSL802A,PSL802A-S,PSL802AD,PSL802AD-S,PSL802B,PSL802B-S,PSL802BD,PSL802BD-S,PSS802A,PSS802A-S,PSS802AD,PSS802AD-S,PSS802B,PSS802B-S,PSS802BD,PSS802BD-S,PTL802A,PTL802AD,PTL802B,PTL802BD,PYB802,PYB802-S,PYB802D,PYB802D-S,PZB802,PZB802-S,PZB802D,PZB802D-S
main 8 / branch 6: PKD8-602,PKD8-602-S,PKD8-602D,PKD8-602D-S
MG ASC20008G,GAFR20008SG,GAFR30008SG,GBESL02,GBSL02,GBSLM02
male G1/4 ↔ male G1/8: GBB0102
male G1/4 ↔ male G1/4: GBB0202
male G3/8 ↔ male G1/4: GBB0203
male G1/2 ↔ male G1/4: GBB0204
male G1/4 ↔ female G1/8: GBD0102
6 × 4: GBKC0604-02
8 × 5: GBKC0805-02
8 × 5.5 or 6: GBKC0806-02
10 × 6.5: GBKC1065-02
10 × 7.5 or 8: GBKC1075-02
12 × 8: GBKC1208-02
12 × 9 or 10: GBKC1209-02
10: GBPC1002,GPC1002,GPC1002D,GPEB1002,GPEB1002D,GPED1002,GPED1002D,GPH1002,GPH1002D,GPHF1002,GPHF1002D,GPHW1002,GPHW1002D,GPL1002,GPL1002D,GPLL1002,GPLL1002D,GPSS1002A,GPSS1002AD,GPSS1002B,GPSS1002BD,GPTL1002A,GPTL1002AD,GPTL1002B,GPTL1002BD,GPYB1002,GPYB1002D,GPZB1002,GPZB1002D
12: GBPC1202,GPC1202,GPC1202D,GPEB1202,GPEB1202D,GPED1202,GPED1202D,GPL1202,GPL1202D,GPLL1202,GPLL1202D,GPYB1202,GPYB1202D
4: GBPC402,GPC402-M,GPC402D-M,GPEB402,GPEB402D,GPED402,GPED402D,GPL402-M,GPL402D-M,GPLL402,GPLL402D,GPYB402,GPYB402D
6: GBPC602,GPC602,GPC602D,GPEB602,GPEB602D,GPED602,GPED602D,GPH602,GPH602D,GPHF602,GPHF602D,GPHW602,GPHW602D,GPL602,GPL602D,GPLL602,GPLL602D,GPSS602A,GPSS602AD,GPSS602B,GPSS602BD,GPTL602A,GPTL602AD,GPTL602B,GPTL602BD,GPYB602,GPYB602D,GPZB602,GPZB602D
8: GBPC802,GPC802,GPC802D,GPEB802,GPEB802D,GPED802,GPED802D,GPH802,GPH802D,GPHF802,GPHF802D,GPHW802,GPHW802D,GPL802,GPL802D,GPLL802,GPLL802D,GPSS802A,GPSS802AD,GPSS802B,GPSS802BD,GPTL802A,GPTL802AD,GPTL802B,GPTL802BD,GPYB802,GPYB802D,GPZB802,GPZB802D
main 8 / branch 6: GPKD8-602,GPKD8-602D
MN ASC20008T,GAFR20008ST,GAFR30008ST,NBSL1/4,NBSLM1/4
1/2 in: NPC1/2-1/4,NPEB1/2-1/4,NPED1/2-1/4,NPL1/2-1/4,NPSA1/2,NPYB1/2-1/4
1/4 in: NPC1/4-1/4,NPEB1/4-1/4,NPED1/4-1/4,NPL1/4-1/4,NPSA1/4,NPTL1/4-1/4A,NPTL1/4-1/4B,NPYB1/4-1/4
3/8 in: NPC3/8-1/4,NPEB3/8-1/4,NPED3/8-1/4,NPL3/8-1/4,NPSA3/8,NPTL3/8-1/4A,NPTL3/8-1/4B,NPYB3/8-1/4
5/16 in: NPC5/16-1/4,NPEB5/16-1/4,NPED5/16-1/4,NPL5/16-1/4,NPSA5/16,NPTL5/16-1/4A,NPTL5/16-1/4B,NPYB5/16-1/4
E,P,W,X male PT1/8 ↔ male PT1/8: BB0101,BB0101-S
male PT3/8 ↔ male PT1/8: BB0103,BB0103-S
4 × 2.5: BKC0425-01,BKC0425-01-S
6 × 4: BKC0604-01,BKC0604-01-S
8 × 5: BKC0805-01,BKC0805-01-S
8 × 5.5 or 6: BKC0806-01,BKC0806-01-S
10: BPC1001,PC1001,PC1001-S,PC1001D,PC1001D-S,PEB1001,PEB1001-S,PEB1001D,PEB1001D-S,PED1001,PED1001-S,PED1001D,PED1001D-S,PL1001,PL1001-S,PL1001D,PL1001D-S,PLL1001,PLL1001-S,PLL1001D,PLL1001D-S,POC1001,POC1001-S,POC1001D,POC1001D-S,PYB1001,PYB1001-S,PYB1001D,PYB1001D-S
4: BPC401,BPOC401,PC401,PC401-M,PC401-S,PC401D,PC401D-M,PC401D-S,PEB401,PEB401-S,PEB401D,PEB401D-S,PED401,PED401-S,PED401D,PED401D-S,PH401,PH401-S,PH401D,PH401D-S,PHF401,PHF401-S,PHF401D,PHF401D-S,PHW401,PHW401-S,PHW401D,PHW401D-S,PL401,PL401-M,PL401-S,PL401D,PL401D-M,PL401D-S,PLL401,PLL401-S,PLL401D,PLL401D-S,POC401,POC401-S,POC401D,POC401D-S,PYB401,PYB401-S,PYB401D,PYB401D-S
6: BPC601,BPOC601,PC601,PC601-M,PC601-S,PC601D,PC601D-M,PC601D-S,PEB601,PEB601-S,PEB601D,PEB601D-S,PED601,PED601-S,PED601D,PED601D-S,PH601,PH601-S,PH601D,PH601D-S,PHF601,PHF601-S,PHF601D,PHF601D-S,PHW601,PHW601-S,PHW601D,PHW601D-S,PL601,PL601-M,PL601-S,PL601D,PL601D-M,PL601D-S,PLL601,PLL601-S,PLL601D,PLL601D-S,POC601,POC601-S,POC601D,POC601D-S,PYB601,PYB601-S,PYB601D,PYB601D-S,PZB601,PZB601-S,PZB601D,PZB601D-S
8: BPC801,BPOC801,PC801,PC801-S,PC801D,PC801D-S,PEB801,PEB801-S,PEB801D,PEB801D-S,PED801,PED801-S,PED801D,PED801D-S,PH801,PH801-S,PH801D,PH801D-S,PHF801,PHF801-S,PHF801D,PHF801D-S,PHW801,PHW801-S,PHW801D,PHW801D-S,PL801,PL801-S,PL801D,PL801D-S,PLL801,PLL801-S,PLL801D,PLL801D-S,POC801,POC801-S,POC801D,POC801D-S,PYB801,PYB801-S,PYB801D,PYB801D-S,PZB801,PZB801-S,PZB801D,PZB801D-S
12: PC1201,PC1201-S,PC1201D,PC1201D-S,PL1201,PL1201-S,PL1201D,PL1201D-S
main 6 / branch 4: PKD6-401,PKD6-401-S,PKD6-401D,PKD6-401D-S
E,MP,P,W,X male PT1/4 ↔ male PT1/8: BB0102,BB0102-S
E BESL01,BESL01-S,BSL01,BSL01-S,BSLM01,BSLM01-S,PAL01,PAL01D,PALM01,PALM01D
E,MG,MP,P,W 10: GPSA10,GPSA10D,PSA10,PSA10-S,PSA10D,PSA10D-S
12: GPSA12,GPSA12D,PSA12,PSA12-S,PSA12D,PSA12D-S
4: GPSA4,GPSA4D,PSA4,PSA4-S,PSA4D,PSA4D-S
6: GPSA6,GPSA6D,PSA6,PSA6-S,PSA6D,PSA6D-S
8: GPSA8,GPSA8D,PSA8,PSA8-S,PSA8D,PSA8D-S
MN (discontinued) male NPT1/2 ↔ male NPT1/4: NBB1/4-1/2
male NPT1/4 ↔ male NPT1/4: NBB1/4-1/4
male NPT3/8 ↔ male NPT1/4: NBB1/4-3/8
male NPT1/8 ↔ male NPT1/4: NBB1/8-1/4
male NPT1/4 ↔ female NPT1/8: NBD1/8-1/4
NBESL1/4
1/2 × 1/3 in: NBKC1/2-1/3-1/4
1/4 × 5/32 in: NBKC1/4-5/32-1/4
3/8 × 1/4 in: NBKC3/8-1/4-1/4
5/16 × 1/5 in: NBKC5/16-1/5-1/4
1/2 in: NBPC1/2-1/4,NPLL1/2-1/4
1/4 in: NBPC1/4-1/4,NPH1/4-1/4,NPHF1/4-1/4,NPHW1/4-1/4,NPLL1/4-1/4,NPSS1/4-1/4A,NPSS1/4-1/4B,NPZB1/4-1/4
3/8 in: NBPC3/8-1/4,NPH3/8-1/4,NPHF3/8-1/4,NPHW3/8-1/4,NPLL3/8-1/4,NPSS3/8-1/4A,NPSS3/8-1/4B,NPZB3/8-1/4
5/16 in: NBPC5/16-1/4,NPH5/16-1/4,NPHF5/16-1/4,NPHW5/16-1/4,NPLL5/16-1/4,NPSS5/16-1/4A,NPSS5/16-1/4B,NPZB5/16-1/4
main 5/16 / branch 1/4 in: NPKD5/16-1/4-1/4
E,MG,MP 10: PPA10
12: PPA12
6: PPA6
8: PPA8
E,P,W 4: PSL401A,PSL401A-S,PSL401AD,PSL401AD-S,PSL401B,PSL401B-S,PSL401BD,PSL401BD-S,PTL401A-M,PTL401AD-M,PTL401B-M,PTL401BD-M
6: PSL601A,PSL601A-S,PSL601AD,PSL601AD-S,PSL601B,PSL601B-S,PSL601BD,PSL601BD-S,PSS601A,PSS601A-S,PSS601AD,PSS601AD-S,PSS601B,PSS601B-S,PSS601BD,PSS601BD-S,PTL601A,PTL601A-M,PTL601AD,PTL601AD-M,PTL601B,PTL601B-M,PTL601BD,PTL601BD-M
8: PSL801A,PSL801A-S,PSL801AD,PSL801AD-S,PSL801B,PSL801B-S,PSL801BD,PSL801BD-S,PSS801A,PSS801A-S,PSS801AD,PSS801AD-S,PSS801B,PSS801B-S,PSS801BD,PSS801BD-S,PTL801A,PTL801AD,PTL801B,PTL801BD
E,MG,MP,P,W,X 4 × 2.5: UE95A040025100MBU,US98A040025100MBU
6 × 4: UE95A060040100MBU,US98A060040100MBU
8 × 5: UE95A080050100MBU,US98A080050100MBU
10 × 6.5: UE95A100065100MBU,US98A100065100MBU
12 × 8: UE95A120080100MBU,US98A120080100MBU

Match PT/G/NPT exactly. Use the specified thread seal or face gasket. Match tube OD and compression OD/ID; metric and inch sizes are not interchangeable. Use suitable soft nylon/PU tube and check seating, clearance, bends and flow. Tighten compression bodies by the hex, not tube nuts. Where listed: D is black, blank grey, -M miniature; -S denotes only the specified 304 stainless parts.

Tube-side flow controls need matching tube connections. PPA silencers need metric push-in exhaust sockets; they are not threaded plugs or vacuum filters. PHF/GPHF/NPHF female RB matches the specified male RA thread and seal, not a tube socket. Branches join one circuit. Keep working A and B, supply P, exhaust R and S, and independent pilot signals separate.

Standard push-in fittings, silencers and flow-control parts: ≤1 MPa, −20–70°C. Metal BPC/BPOC/GBPC: ≤0.9 MPa; NBPC/compression fittings/thread adapters: ≤1 MPa. The listed metal push-in, compression and adapter groups have a 0–150°C range, limiting the connected valve/base path to 0–70°C or narrower. Observe every stricter component limit; no system vacuum rating is established.

The piping selections serve the supplied 6SA valve and the selected matching 6SV manifold. Keep valve main-air pressure within 0.15–0.8 MPa and temperature within −20–70°C, subject to every stricter component limit. The reviewed pages do not give a separate pilot-control pressure range; confirm the required pilot pressure, flow and signal conditions for the actual valve.

X serves only the supplied 6SA valve’s separate PT1/8 pilot connection(s). Use matching connecting fittings and tube while preserving independent pilot filling and venting. Do not put a flow control, silencer, ASC/GAFR or plug in an active pilot line; a main-port or manifold fitting does not establish a pilot connection.

Flow-control suffix A restricts thread→tube, with free reverse flow; suffix B reverses it. Supply normally flows tube→thread and exhaust thread→tube. At valve working ports A and B, suffix A restricts flow to the actuator and suffix B the return; cylinder-mounted orientation differs. Follow the flow symbols, including PSA/GPSA/NPSA. Controls on common manifold lines affect all connected active stations. Closed controls are not leak-tight isolation. Adjust gently without forcing stops; depressurize before tube removal.

Silencers serve only valve R/S or the selected matching 6SV manifold’s common exhaust. Check total flow and back pressure, including adjustable silencers and remote exhaust. Never cap an active supply, working, exhaust or pilot connection. MP/MG/MN options do not change the valve’s own main or pilot threads; each applies only to its selected manifold thread.

ASC is a separately connected upstream supply flow control; both female ports require matching male connections. Follow P/A markings. Its limits are 0.05–0.95 MPa and −20–70°C with ≤40 µm filtration; actual supplied valve air remains 0.15–0.8 MPa or narrower. Do not use it to restrict independent pilot control air.

GAFR is a separately connected upstream supply filter/regulator. Both female ports require matching male piping; follow IN→OUT and check total flow and bowl/environment suitability. Inlet ≤1 MPa; regulation 0.15–0.9 MPa; −5–70°C, nonfreezing. Set the supplied 6SA valve air to 0.15–0.8 MPa and all stricter limits. Listed GAFR S versions have a 40 µm filter, PC bowl, differential/manual drain, bracket and gauge, without a reverse-flow valve. These accessory ratings do not establish an independent bare-manifold rating.

US98A/UE95A examples are separately ordered blue 100 m metric PU coils rated 1 MPa at 23°C. US98A: −20–70°C; UE95A: −40–70°C. Match OD/ID and derate as temperature rises within valve/component limits; 0.8 MPa is not assured throughout. Use inch tube where the selected connection requires it; metric tube is not a substitute.

PTL/GPTL recommended cap-adjustment torque; NPTL maximum: 1/8: 0.08 N·m, 1/4: 0.16 N·m. These are not thread-installation torques.

Items marked discontinued are historical service references, not current standard recommendations. Confirm availability or a manufacturer-approved replacement. An unmarked catalogue entry does not promise current production, stock or delivery. All listed piping and air-preparation options are ordered separately.

Product form

Specifications: 6A22006 is a 6A 200 series air-operated valve; 5/2-way, double air pilot; supply and working ports PT 1/8; exhaust... Read more

SKU: 6A22006

$29.32 Incl. VAT

    Guaranteed secure & safe checkout.

    Ach Direct DebitAmazon American Express Apple Pay BizumDiners ClubDiscoverGoogle Pay Mastercard MB WAY PayPalSatispayShop Pay USDC Visa

    Bank transfer also available. Payment options may vary by location and device.

    Shipping, returns & order help

    Free shipping on orders US$30+ under 2 kg

    Import duties & taxes included on all orders

    Download: 3D model selection.
    Shipping & delivery times

    In-stock items: processed and shipped within 1–3 business days. Custom-made items: G/NPT threads and non-standard specifications require 7–15 business days of factory production before shipping.

    Standard international delivery typically takes 7–13 business days after dispatch, depending on customs clearance and the local delivery network. Processing or production time is additional. Next-day and overnight delivery are not available.

    Most products ship from our manufacturing centers in Asia, then transfer to a local carrier after customs clearance.

    Read our shipping policy
    Shipping costs & import taxes

    Free shipping: orders of US$30 or more weighing under 2 kg. Import duties and taxes are included on all orders.

    If an overweight shipping surcharge applies after packing, we pause shipment and email you the amount for approval before dispatch. This is a transport charge, not an import tax. If you do not reply within 7 days, the order is canceled and fully refunded.

    Shipping charges and tax details
    Model selection & custom orders

    Please check the full model number, dimensions, thread type, stroke and voltage where applicable before ordering. If you are unsure, email airtacs@airtacs.com with the model number and required specifications.

    Custom-made products, including G/NPT thread specifications and custom-built parts, are non-returnable and non-refundable under our refund policy.

    Read the refund policy before ordering
    Tracking & delivery support

    Use the tracking link in your shipping confirmation email. For YunExpress shipments, enter your YT tracking number at Yuntrack to view the journey and local delivery details.

    Provide a complete physical delivery address and reachable contact details. P.O. boxes and virtual mail-forwarding addresses are not accepted.

    If delivery fails, contact the local carrier and email airtacs@airtacs.com with your order and tracking numbers. For failures caused by an incorrect/incomplete address or an unreachable recipient, return to the local warehouse typically takes 7–30 business days. Redelivery requires an additional shipping fee; cancellation after failed delivery is subject to deductions for original shipping and carrier return fees.

    Delivery issue policy
    Returns & product issues

    Eligible returns are accepted within 7 days of delivery. Items must be unused, uninstalled and in their original factory packaging. Contact airtacs@airtacs.com for a Return Authorization (RA) number before returning anything.

    Ordered the wrong model or changed your mind? You pay return shipping, original shipping is non-refundable, and a 50% restocking fee is deducted from the actual price paid for the returned product.

    Defective, damaged or incorrect item? We provide a replacement and cover return shipping; no restocking fee applies. Custom-made items are excluded from standard returns. These terms are subject to applicable law and do not limit your statutory rights.

    Read the full refund policy
    Bank transfers & invoices

    Bank transfer: Select bank transfer at checkout and submit your order. The bank account details and payment instructions will then be displayed.

    Invoices: Invoices are available only after an order is placed. We are a US-based company and provide a standard commercial invoice, not an EU VAT tax invoice. If your company requires an EU VAT invoice, please confirm your requirements with us before ordering.

    For payment or invoice questions, email airtacs@airtacs.com with your order number.

    Description

    Specifications: 6A22006 is a 6A 200 series air-operated valve; 5/2-way, double air pilot; supply and working ports PT 1/8; exhaust ports PT 1/8; external pneumatic control.

    Product Catalog

    Download Airtac Product Catalog (PDF)

    For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

    Replacement and Ordering

    Order 6SA22006 as the replacement for 6A22006. We ship the new 6SA series. Orders for 6A22006 are supplied as 6SA22006.

    6SA Product Catalog (PDF)

    AirTAC 6A vs 6SA Air-Operated Valves: Length, Dimensions and Replacement Guide

    Compare the overall dimensions, mounting holes and air-pilot port in the replacement guide before changing series.

    Model Code Explained

    Code Meaning
    6A Air-operated valve, 5/2-way or 5/3-way series
    2 200 series
    20 5/2-way, double air pilot
    06 Supply and working ports: PT 1/8
    Thread code: blank PT thread

    Technical Specifications

    Item Specification
    Medium / actuation Air filtered through a 40 μm filter element; external pneumatic pilot
    Supply / working / exhaust P supply and A/B working ports: PT 1/8; R/S exhaust ports: PT 1/8
    Operating pressure 0.15–0.8 MPa (21–114 psi)
    Proof pressure 1.2 MPa (175 psi)
    Temperature / body material −20 to 70 °C; aluminum alloy
    Lubrication Not required
    Maximum operating frequency 5 cycles/s, under no-load conditions
    Catalog valve weight 125 g

    Once lubricated air is used, continue lubrication without interruption. ISO VG32 oil or an equivalent is recommended.

    Features and Operation

    Special processing of the internal bore reduces friction and starting pressure and supports long service life. The valve can be combined with a manifold to form a valve group and save space.

    P = supply; A and B = working ports; R and S = exhaust. The 5/2-way symbol uses pneumatic pilots on both sides.

    External and Mounting Dimensions

    Drawing reference: 6A22006. Numerical dimensions are in millimeters and use the letters in the catalog. A is the overall length shown in the drawing; B and C retain their separate dimension-line references.

    Drawing label Dimension
    A / B / C 94.5 / 32.5 / 18.5 mm
    PA / PB 47.5 / 3.2 mm
    QA / QB 36 / 29.5 mm
    R / RA / RB / RC 3.2 / 41 / 27 / 13.5 mm
    S / SA / SB / SC Ø4.3 / 20 / 37.5 / 7 mm
    TA / TB / TC 20 / 37.5 / 2 mm
    Drawing thread label Catalog callout
    D 1/8
    P 1/8
    Q 1/8
    T 1/8

    Drawing labels: D = air-pilot port; P = supply; 2-Q = two exhaust ports; 2-T = two working ports. Mounting holes are 2 × ØR and 2 × ØS. These drawing letters are distinct from the pneumatic-symbol port letters.

    The catalog drawing uses the standard PT thread configuration. The current model uses PT threads as specified above; use the drawing with its dimension-line orientation when checking installation.

    For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

    Effective Area and Cv — Series Reference

    Catalog reference model / port Effective area / Cv
    6A210 / 6A220 with port code 08 (1/4) 15.4 mm² / 0.91
    6A230C08 14.2 mm² / 0.84

    Effective area and Cv are calculated from measured flow data. The values above retain their catalog model and port labels; a C-center value refers to that closed-center reference.

    Flow Characteristics — Series Reference

    The 6A210-08 chart plots flow from 0 to 1800 L/min in 300 L/min divisions horizontally and operating pressure from 0 to 0.7 MPa in 0.1 MPa divisions vertically. The curves are AirTAC laboratory test results for the named chart model. Chart-axis limits are not rated maximum flow. Refer to the PDF for the plotted curves and their relationships.

    Series Ordering Options

    Item Specification
    Control codes 10 = single air pilot, 5/2-way; 20 = double air pilot, 5/2-way; 30C = closed center; 30E = exhaust center; 30P = pressure center. All 30 codes are double-air-pilot, 5/3-way.
    Families / port codes 0500: M5; 100: M5 or 06 (1/8); 200: 06 (1/8) or 08 (1/4); 300: 10 (3/8).
    Thread options M5 uses no thread suffix. Inch ports: blank = PT; G = G; T = NPT.

    These are series ordering options. This item has the configuration stated in Specifications above.

    Accessories

    For the supplied 6SA200, use 6SV200M; 6V200M is only for an installed legacy 6A200. No 6V/6SV installation interchangeability is established. Match family, drawing and sealing surfaces; choose the base thread independently of the valve thread. Order optional accessories and valves separately. Base kits contain base, seals and screws; blanking kits contain plate and screws for an unused valve station, not threaded plugs. For 6SV200M 21–30 stations, confirm installation dimensions before ordering; reviewed L/P dimensions stop at 20.

    Item Complete codes and use
    Legacy 6A maintenance: 6V200M, PT PT 1/4 common supply/exhaust ports; 1–20 stations.
    6V200M1F,6V200M2F,6V200M3F,6V200M4F,6V200M5F,6V200M6F,6V200M7F,6V200M8F,6V200M9F,6V200M10F,6V200M11F,6V200M12F,6V200M13F,6V200M14F,6V200M15F,6V200M16F,6V200M17F,6V200M18F,6V200M19F,6V200M20F
    Legacy 6A maintenance: 6V200M, G G 1/4 common supply/exhaust ports; 1–20 stations.
    6V200M1FG,6V200M2FG,6V200M3FG,6V200M4FG,6V200M5FG,6V200M6FG,6V200M7FG,6V200M8FG,6V200M9FG,6V200M10FG,6V200M11FG,6V200M12FG,6V200M13FG,6V200M14FG,6V200M15FG,6V200M16FG,6V200M17FG,6V200M18FG,6V200M19FG,6V200M20FG
    Legacy 6A maintenance: 6V200M, NPT NPT 1/4 common supply/exhaust ports; 1–20 stations.
    6V200M1FT,6V200M2FT,6V200M3FT,6V200M4FT,6V200M5FT,6V200M6FT,6V200M7FT,6V200M8FT,6V200M9FT,6V200M10FT,6V200M11FT,6V200M12FT,6V200M13FT,6V200M14FT,6V200M15FT,6V200M16FT,6V200M17FT,6V200M18FT,6V200M19FT,6V200M20FT
    Legacy maintenance blanking-plate kit Unused mounting station on 6V200M.
    P-6V200M-R2
    6SA supply: 6SV200M, PT PT 1/4 common supply/exhaust ports; 1–30 stations.
    6SV200M1F,6SV200M2F,6SV200M3F,6SV200M4F,6SV200M5F,6SV200M6F,6SV200M7F,6SV200M8F,6SV200M9F,6SV200M10F,6SV200M11F,6SV200M12F,6SV200M13F,6SV200M14F,6SV200M15F,6SV200M16F,6SV200M17F,6SV200M18F,6SV200M19F,6SV200M20F,6SV200M21F,6SV200M22F,6SV200M23F,6SV200M24F,6SV200M25F,6SV200M26F,6SV200M27F,6SV200M28F,6SV200M29F,6SV200M30F
    6SA supply: 6SV200M, G G 1/4 common supply/exhaust ports; 1–30 stations.
    6SV200M1FG,6SV200M2FG,6SV200M3FG,6SV200M4FG,6SV200M5FG,6SV200M6FG,6SV200M7FG,6SV200M8FG,6SV200M9FG,6SV200M10FG,6SV200M11FG,6SV200M12FG,6SV200M13FG,6SV200M14FG,6SV200M15FG,6SV200M16FG,6SV200M17FG,6SV200M18FG,6SV200M19FG,6SV200M20FG,6SV200M21FG,6SV200M22FG,6SV200M23FG,6SV200M24FG,6SV200M25FG,6SV200M26FG,6SV200M27FG,6SV200M28FG,6SV200M29FG,6SV200M30FG
    6SA supply: 6SV200M, NPT NPT 1/4 common supply/exhaust ports; 1–30 stations.
    6SV200M1FT,6SV200M2FT,6SV200M3FT,6SV200M4FT,6SV200M5FT,6SV200M6FT,6SV200M7FT,6SV200M8FT,6SV200M9FT,6SV200M10FT,6SV200M11FT,6SV200M12FT,6SV200M13FT,6SV200M14FT,6SV200M15FT,6SV200M16FT,6SV200M17FT,6SV200M18FT,6SV200M19FT,6SV200M20FT,6SV200M21FT,6SV200M22FT,6SV200M23FT,6SV200M24FT,6SV200M25FT,6SV200M26FT,6SV200M27FT,6SV200M28FT,6SV200M29FT,6SV200M30FT
    Matching blanking-plate kit Unused mounting station on 6SV200M.
    P-6SV200M-R2

    The connection options below apply to the supplied 6SA valve: its pilot is PT1/8. The original 6A D callout above remains a legacy reference, not a pilot-fitting instruction for the supplied valve.

    Piping and Air Preparation

    These assignments apply to the declared supplied 6SA valve. Keep the original 6A reference data separate when changing series. P/W = supplied valve supply P and separate A/B working ports (PT1/8); E = separate R/S exhaust ports (PT1/8). X = separate PT1/8 pneumatic pilot connection(s), not a working port. MP = PT1/4, MG = G1/4, MN = NPT1/4 common supply/exhaust on the selected matching 6SV manifold. Select the manifold thread independently; its ports do not change valve or pilot threads. Common-port silencers serve exhaust only; ASC and GAFR serve upstream supply only. Do not combine separate supply, working, exhaust or pilot circuits. Multiple keys retain each use. Tube OD is mm (in = inches); compression/tubing show OD × ID. These piping accessories are optional and ordered separately.

    Code-prefix uses (match the longest listed family prefix): ASC inline threaded flow control; BB/GBB/NBB male–male; BD/GBD/NBD male–female; BESL/GBESL/NBESL adjustable silencer; BKC/GBKC/NBKC compression fitting; BPC/GBPC/NBPC metal straight; BPOC metal straight; BSL/GBSL/NBSL silencer; BSLM/GBSLM/NBSLM miniature silencer; GAFR upstream filter-regulator; GPC/NPC/PC straight; GPEB/NPEB/PEB branch tee; GPED/NPED/PED run tee; GPH/NPH/PH banjo elbow; GPHF/NPHF/PHF female branch banjo; GPHW/NPHW/PHW twin banjo; GPKD/NPKD/PKD reducing distribution fitting; GPL/NPL/PL elbow; GPLL/NPLL/PLL extended elbow; GPSA/NPSA/PSA inline flow control; GPSS/NPSS/PSS flow control; GPTL/NPTL/PTL push-lock flow control; GPYB/NPYB/PYB Y; GPZB/NPZB/PZB cross; PAL plastic silencer; PALM miniature plastic silencer; POC round straight; PPA plug-in silencer; PSL elbow flow control; UE PU tube; US PU tube.

    Use Size / complete codes
    P ASC10006,GAFR20006S
    MP ASC20008,BESL02,BESL02-S,BSL02,BSL02-S,BSLM02,BSLM02-S,GAFR20008S,GAFR30008S,PAL02,PAL02D,PALM02,PALM02D
    male PT1/4 ↔ male PT1/4: BB0202,BB0202-S
    male PT3/8 ↔ male PT1/4: BB0203,BB0203-S
    male PT1/2 ↔ male PT1/4: BB0204,BB0204-S
    male PT1/4 ↔ female PT1/8: BD0102,BD0102-S
    6 × 4: BKC0604-02,BKC0604-02-S
    8 × 5: BKC0805-02,BKC0805-02-S
    8 × 5.5 or 6: BKC0806-02,BKC0806-02-S
    10 × 6.5: BKC1065-02,BKC1065-02-S
    10 × 7.5 or 8: BKC1075-02,BKC1075-02-S
    12 × 8: BKC1208-02,BKC1208-02-S
    12 × 9 or 10: BKC1209-02,BKC1209-02-S
    10: BPC1002,BPOC1002,PC1002,PC1002-S,PC1002D,PC1002D-S,PEB1002,PEB1002-S,PEB1002D,PEB1002D-S,PED1002,PED1002-S,PED1002D,PED1002D-S,PH1002,PH1002-S,PH1002D,PH1002D-S,PHF1002,PHF1002-S,PHF1002D,PHF1002D-S,PHW1002,PHW1002-S,PHW1002D,PHW1002D-S,PL1002,PL1002-S,PL1002D,PL1002D-S,PLL1002,PLL1002-S,PLL1002D,PLL1002D-S,POC1002,POC1002-S,POC1002D,POC1002D-S,PSL1002A,PSL1002A-S,PSL1002AD,PSL1002AD-S,PSL1002B,PSL1002B-S,PSL1002BD,PSL1002BD-S,PSS1002A,PSS1002A-S,PSS1002AD,PSS1002AD-S,PSS1002B,PSS1002B-S,PSS1002BD,PSS1002BD-S,PTL1002A,PTL1002AD,PTL1002B,PTL1002BD,PYB1002,PYB1002-S,PYB1002D,PYB1002D-S,PZB1002,PZB1002-S,PZB1002D,PZB1002D-S
    12: BPC1202,PC1202,PC1202-S,PC1202D,PC1202D-S,PEB1202,PEB1202-S,PEB1202D,PEB1202D-S,PED1202,PED1202-S,PED1202D,PED1202D-S,PL1202,PL1202-S,PL1202D,PL1202D-S,PLL1202,PLL1202-S,PLL1202D,PLL1202D-S,POC1202,POC1202-S,POC1202D,POC1202D-S,PYB1202,PYB1202-S,PYB1202D,PYB1202D-S
    4: BPC402,PC402,PC402-S,PC402D,PC402D-S,PEB402,PEB402-S,PEB402D,PEB402D-S,PED402,PED402-S,PED402D,PED402D-S,PL402,PL402-S,PL402D,PL402D-S,PLL402,PLL402-S,PLL402D,PLL402D-S,POC402,POC402-S,POC402D,POC402D-S,PYB402,PYB402-S,PYB402D,PYB402D-S
    6: BPC602,BPOC602,PC602,PC602-S,PC602D,PC602D-S,PEB602,PEB602-S,PEB602D,PEB602D-S,PED602,PED602-S,PED602D,PED602D-S,PH602,PH602-S,PH602D,PH602D-S,PHF602,PHF602-S,PHF602D,PHF602D-S,PHW602,PHW602-S,PHW602D,PHW602D-S,PL602,PL602-S,PL602D,PL602D-S,PLL602,PLL602-S,PLL602D,PLL602D-S,POC602,POC602-S,POC602D,POC602D-S,PSL602A,PSL602A-S,PSL602AD,PSL602AD-S,PSL602B,PSL602B-S,PSL602BD,PSL602BD-S,PSS602A,PSS602A-S,PSS602AD,PSS602AD-S,PSS602B,PSS602B-S,PSS602BD,PSS602BD-S,PTL602A,PTL602AD,PTL602B,PTL602BD,PYB602,PYB602-S,PYB602D,PYB602D-S,PZB602,PZB602-S,PZB602D,PZB602D-S
    8: BPC802,BPOC802,PC802,PC802-S,PC802D,PC802D-S,PEB802,PEB802-S,PEB802D,PEB802D-S,PED802,PED802-S,PED802D,PED802D-S,PH802,PH802-S,PH802D,PH802D-S,PHF802,PHF802-S,PHF802D,PHF802D-S,PHW802,PHW802-S,PHW802D,PHW802D-S,PL802,PL802-S,PL802D,PL802D-S,PLL802,PLL802-S,PLL802D,PLL802D-S,POC802,POC802-S,POC802D,POC802D-S,PSL802A,PSL802A-S,PSL802AD,PSL802AD-S,PSL802B,PSL802B-S,PSL802BD,PSL802BD-S,PSS802A,PSS802A-S,PSS802AD,PSS802AD-S,PSS802B,PSS802B-S,PSS802BD,PSS802BD-S,PTL802A,PTL802AD,PTL802B,PTL802BD,PYB802,PYB802-S,PYB802D,PYB802D-S,PZB802,PZB802-S,PZB802D,PZB802D-S
    main 8 / branch 6: PKD8-602,PKD8-602-S,PKD8-602D,PKD8-602D-S
    MG ASC20008G,GAFR20008SG,GAFR30008SG,GBESL02,GBSL02,GBSLM02
    male G1/4 ↔ male G1/8: GBB0102
    male G1/4 ↔ male G1/4: GBB0202
    male G3/8 ↔ male G1/4: GBB0203
    male G1/2 ↔ male G1/4: GBB0204
    male G1/4 ↔ female G1/8: GBD0102
    6 × 4: GBKC0604-02
    8 × 5: GBKC0805-02
    8 × 5.5 or 6: GBKC0806-02
    10 × 6.5: GBKC1065-02
    10 × 7.5 or 8: GBKC1075-02
    12 × 8: GBKC1208-02
    12 × 9 or 10: GBKC1209-02
    10: GBPC1002,GPC1002,GPC1002D,GPEB1002,GPEB1002D,GPED1002,GPED1002D,GPH1002,GPH1002D,GPHF1002,GPHF1002D,GPHW1002,GPHW1002D,GPL1002,GPL1002D,GPLL1002,GPLL1002D,GPSS1002A,GPSS1002AD,GPSS1002B,GPSS1002BD,GPTL1002A,GPTL1002AD,GPTL1002B,GPTL1002BD,GPYB1002,GPYB1002D,GPZB1002,GPZB1002D
    12: GBPC1202,GPC1202,GPC1202D,GPEB1202,GPEB1202D,GPED1202,GPED1202D,GPL1202,GPL1202D,GPLL1202,GPLL1202D,GPYB1202,GPYB1202D
    4: GBPC402,GPC402-M,GPC402D-M,GPEB402,GPEB402D,GPED402,GPED402D,GPL402-M,GPL402D-M,GPLL402,GPLL402D,GPYB402,GPYB402D
    6: GBPC602,GPC602,GPC602D,GPEB602,GPEB602D,GPED602,GPED602D,GPH602,GPH602D,GPHF602,GPHF602D,GPHW602,GPHW602D,GPL602,GPL602D,GPLL602,GPLL602D,GPSS602A,GPSS602AD,GPSS602B,GPSS602BD,GPTL602A,GPTL602AD,GPTL602B,GPTL602BD,GPYB602,GPYB602D,GPZB602,GPZB602D
    8: GBPC802,GPC802,GPC802D,GPEB802,GPEB802D,GPED802,GPED802D,GPH802,GPH802D,GPHF802,GPHF802D,GPHW802,GPHW802D,GPL802,GPL802D,GPLL802,GPLL802D,GPSS802A,GPSS802AD,GPSS802B,GPSS802BD,GPTL802A,GPTL802AD,GPTL802B,GPTL802BD,GPYB802,GPYB802D,GPZB802,GPZB802D
    main 8 / branch 6: GPKD8-602,GPKD8-602D
    MN ASC20008T,GAFR20008ST,GAFR30008ST,NBSL1/4,NBSLM1/4
    1/2 in: NPC1/2-1/4,NPEB1/2-1/4,NPED1/2-1/4,NPL1/2-1/4,NPSA1/2,NPYB1/2-1/4
    1/4 in: NPC1/4-1/4,NPEB1/4-1/4,NPED1/4-1/4,NPL1/4-1/4,NPSA1/4,NPTL1/4-1/4A,NPTL1/4-1/4B,NPYB1/4-1/4
    3/8 in: NPC3/8-1/4,NPEB3/8-1/4,NPED3/8-1/4,NPL3/8-1/4,NPSA3/8,NPTL3/8-1/4A,NPTL3/8-1/4B,NPYB3/8-1/4
    5/16 in: NPC5/16-1/4,NPEB5/16-1/4,NPED5/16-1/4,NPL5/16-1/4,NPSA5/16,NPTL5/16-1/4A,NPTL5/16-1/4B,NPYB5/16-1/4
    E,P,W,X male PT1/8 ↔ male PT1/8: BB0101,BB0101-S
    male PT3/8 ↔ male PT1/8: BB0103,BB0103-S
    4 × 2.5: BKC0425-01,BKC0425-01-S
    6 × 4: BKC0604-01,BKC0604-01-S
    8 × 5: BKC0805-01,BKC0805-01-S
    8 × 5.5 or 6: BKC0806-01,BKC0806-01-S
    10: BPC1001,PC1001,PC1001-S,PC1001D,PC1001D-S,PEB1001,PEB1001-S,PEB1001D,PEB1001D-S,PED1001,PED1001-S,PED1001D,PED1001D-S,PL1001,PL1001-S,PL1001D,PL1001D-S,PLL1001,PLL1001-S,PLL1001D,PLL1001D-S,POC1001,POC1001-S,POC1001D,POC1001D-S,PYB1001,PYB1001-S,PYB1001D,PYB1001D-S
    4: BPC401,BPOC401,PC401,PC401-M,PC401-S,PC401D,PC401D-M,PC401D-S,PEB401,PEB401-S,PEB401D,PEB401D-S,PED401,PED401-S,PED401D,PED401D-S,PH401,PH401-S,PH401D,PH401D-S,PHF401,PHF401-S,PHF401D,PHF401D-S,PHW401,PHW401-S,PHW401D,PHW401D-S,PL401,PL401-M,PL401-S,PL401D,PL401D-M,PL401D-S,PLL401,PLL401-S,PLL401D,PLL401D-S,POC401,POC401-S,POC401D,POC401D-S,PYB401,PYB401-S,PYB401D,PYB401D-S
    6: BPC601,BPOC601,PC601,PC601-M,PC601-S,PC601D,PC601D-M,PC601D-S,PEB601,PEB601-S,PEB601D,PEB601D-S,PED601,PED601-S,PED601D,PED601D-S,PH601,PH601-S,PH601D,PH601D-S,PHF601,PHF601-S,PHF601D,PHF601D-S,PHW601,PHW601-S,PHW601D,PHW601D-S,PL601,PL601-M,PL601-S,PL601D,PL601D-M,PL601D-S,PLL601,PLL601-S,PLL601D,PLL601D-S,POC601,POC601-S,POC601D,POC601D-S,PYB601,PYB601-S,PYB601D,PYB601D-S,PZB601,PZB601-S,PZB601D,PZB601D-S
    8: BPC801,BPOC801,PC801,PC801-S,PC801D,PC801D-S,PEB801,PEB801-S,PEB801D,PEB801D-S,PED801,PED801-S,PED801D,PED801D-S,PH801,PH801-S,PH801D,PH801D-S,PHF801,PHF801-S,PHF801D,PHF801D-S,PHW801,PHW801-S,PHW801D,PHW801D-S,PL801,PL801-S,PL801D,PL801D-S,PLL801,PLL801-S,PLL801D,PLL801D-S,POC801,POC801-S,POC801D,POC801D-S,PYB801,PYB801-S,PYB801D,PYB801D-S,PZB801,PZB801-S,PZB801D,PZB801D-S
    12: PC1201,PC1201-S,PC1201D,PC1201D-S,PL1201,PL1201-S,PL1201D,PL1201D-S
    main 6 / branch 4: PKD6-401,PKD6-401-S,PKD6-401D,PKD6-401D-S
    E,MP,P,W,X male PT1/4 ↔ male PT1/8: BB0102,BB0102-S
    E BESL01,BESL01-S,BSL01,BSL01-S,BSLM01,BSLM01-S,PAL01,PAL01D,PALM01,PALM01D
    E,MG,MP,P,W 10: GPSA10,GPSA10D,PSA10,PSA10-S,PSA10D,PSA10D-S
    12: GPSA12,GPSA12D,PSA12,PSA12-S,PSA12D,PSA12D-S
    4: GPSA4,GPSA4D,PSA4,PSA4-S,PSA4D,PSA4D-S
    6: GPSA6,GPSA6D,PSA6,PSA6-S,PSA6D,PSA6D-S
    8: GPSA8,GPSA8D,PSA8,PSA8-S,PSA8D,PSA8D-S
    MN (discontinued) male NPT1/2 ↔ male NPT1/4: NBB1/4-1/2
    male NPT1/4 ↔ male NPT1/4: NBB1/4-1/4
    male NPT3/8 ↔ male NPT1/4: NBB1/4-3/8
    male NPT1/8 ↔ male NPT1/4: NBB1/8-1/4
    male NPT1/4 ↔ female NPT1/8: NBD1/8-1/4
    NBESL1/4
    1/2 × 1/3 in: NBKC1/2-1/3-1/4
    1/4 × 5/32 in: NBKC1/4-5/32-1/4
    3/8 × 1/4 in: NBKC3/8-1/4-1/4
    5/16 × 1/5 in: NBKC5/16-1/5-1/4
    1/2 in: NBPC1/2-1/4,NPLL1/2-1/4
    1/4 in: NBPC1/4-1/4,NPH1/4-1/4,NPHF1/4-1/4,NPHW1/4-1/4,NPLL1/4-1/4,NPSS1/4-1/4A,NPSS1/4-1/4B,NPZB1/4-1/4
    3/8 in: NBPC3/8-1/4,NPH3/8-1/4,NPHF3/8-1/4,NPHW3/8-1/4,NPLL3/8-1/4,NPSS3/8-1/4A,NPSS3/8-1/4B,NPZB3/8-1/4
    5/16 in: NBPC5/16-1/4,NPH5/16-1/4,NPHF5/16-1/4,NPHW5/16-1/4,NPLL5/16-1/4,NPSS5/16-1/4A,NPSS5/16-1/4B,NPZB5/16-1/4
    main 5/16 / branch 1/4 in: NPKD5/16-1/4-1/4
    E,MG,MP 10: PPA10
    12: PPA12
    6: PPA6
    8: PPA8
    E,P,W 4: PSL401A,PSL401A-S,PSL401AD,PSL401AD-S,PSL401B,PSL401B-S,PSL401BD,PSL401BD-S,PTL401A-M,PTL401AD-M,PTL401B-M,PTL401BD-M
    6: PSL601A,PSL601A-S,PSL601AD,PSL601AD-S,PSL601B,PSL601B-S,PSL601BD,PSL601BD-S,PSS601A,PSS601A-S,PSS601AD,PSS601AD-S,PSS601B,PSS601B-S,PSS601BD,PSS601BD-S,PTL601A,PTL601A-M,PTL601AD,PTL601AD-M,PTL601B,PTL601B-M,PTL601BD,PTL601BD-M
    8: PSL801A,PSL801A-S,PSL801AD,PSL801AD-S,PSL801B,PSL801B-S,PSL801BD,PSL801BD-S,PSS801A,PSS801A-S,PSS801AD,PSS801AD-S,PSS801B,PSS801B-S,PSS801BD,PSS801BD-S,PTL801A,PTL801AD,PTL801B,PTL801BD
    E,MG,MP,P,W,X 4 × 2.5: UE95A040025100MBU,US98A040025100MBU
    6 × 4: UE95A060040100MBU,US98A060040100MBU
    8 × 5: UE95A080050100MBU,US98A080050100MBU
    10 × 6.5: UE95A100065100MBU,US98A100065100MBU
    12 × 8: UE95A120080100MBU,US98A120080100MBU

    Match PT/G/NPT exactly. Use the specified thread seal or face gasket. Match tube OD and compression OD/ID; metric and inch sizes are not interchangeable. Use suitable soft nylon/PU tube and check seating, clearance, bends and flow. Tighten compression bodies by the hex, not tube nuts. Where listed: D is black, blank grey, -M miniature; -S denotes only the specified 304 stainless parts.

    Tube-side flow controls need matching tube connections. PPA silencers need metric push-in exhaust sockets; they are not threaded plugs or vacuum filters. PHF/GPHF/NPHF female RB matches the specified male RA thread and seal, not a tube socket. Branches join one circuit. Keep working A and B, supply P, exhaust R and S, and independent pilot signals separate.

    Standard push-in fittings, silencers and flow-control parts: ≤1 MPa, −20–70°C. Metal BPC/BPOC/GBPC: ≤0.9 MPa; NBPC/compression fittings/thread adapters: ≤1 MPa. The listed metal push-in, compression and adapter groups have a 0–150°C range, limiting the connected valve/base path to 0–70°C or narrower. Observe every stricter component limit; no system vacuum rating is established.

    The piping selections serve the supplied 6SA valve and the selected matching 6SV manifold. Keep valve main-air pressure within 0.15–0.8 MPa and temperature within −20–70°C, subject to every stricter component limit. The reviewed pages do not give a separate pilot-control pressure range; confirm the required pilot pressure, flow and signal conditions for the actual valve.

    X serves only the supplied 6SA valve’s separate PT1/8 pilot connection(s). Use matching connecting fittings and tube while preserving independent pilot filling and venting. Do not put a flow control, silencer, ASC/GAFR or plug in an active pilot line; a main-port or manifold fitting does not establish a pilot connection.

    Flow-control suffix A restricts thread→tube, with free reverse flow; suffix B reverses it. Supply normally flows tube→thread and exhaust thread→tube. At valve working ports A and B, suffix A restricts flow to the actuator and suffix B the return; cylinder-mounted orientation differs. Follow the flow symbols, including PSA/GPSA/NPSA. Controls on common manifold lines affect all connected active stations. Closed controls are not leak-tight isolation. Adjust gently without forcing stops; depressurize before tube removal.

    Silencers serve only valve R/S or the selected matching 6SV manifold’s common exhaust. Check total flow and back pressure, including adjustable silencers and remote exhaust. Never cap an active supply, working, exhaust or pilot connection. MP/MG/MN options do not change the valve’s own main or pilot threads; each applies only to its selected manifold thread.

    ASC is a separately connected upstream supply flow control; both female ports require matching male connections. Follow P/A markings. Its limits are 0.05–0.95 MPa and −20–70°C with ≤40 µm filtration; actual supplied valve air remains 0.15–0.8 MPa or narrower. Do not use it to restrict independent pilot control air.

    GAFR is a separately connected upstream supply filter/regulator. Both female ports require matching male piping; follow IN→OUT and check total flow and bowl/environment suitability. Inlet ≤1 MPa; regulation 0.15–0.9 MPa; −5–70°C, nonfreezing. Set the supplied 6SA valve air to 0.15–0.8 MPa and all stricter limits. Listed GAFR S versions have a 40 µm filter, PC bowl, differential/manual drain, bracket and gauge, without a reverse-flow valve. These accessory ratings do not establish an independent bare-manifold rating.

    US98A/UE95A examples are separately ordered blue 100 m metric PU coils rated 1 MPa at 23°C. US98A: −20–70°C; UE95A: −40–70°C. Match OD/ID and derate as temperature rises within valve/component limits; 0.8 MPa is not assured throughout. Use inch tube where the selected connection requires it; metric tube is not a substitute.

    PTL/GPTL recommended cap-adjustment torque; NPTL maximum: 1/8: 0.08 N·m, 1/4: 0.16 N·m. These are not thread-installation torques.

    Items marked discontinued are historical service references, not current standard recommendations. Confirm availability or a manufacturer-approved replacement. An unmarked catalogue entry does not promise current production, stock or delivery. All listed piping and air-preparation options are ordered separately.

    Recently viewed products

      Footer image

      © 2026 Airtac, Powered by Shopify

      • US (USD $) US (USD $)
      • Ach Direct Debit
      • Amazon
      • American Express
      • Apple Pay
      • Bizum
      • Diners Club
      • Discover
      • Google Pay
      • Mastercard
      • MB WAY
      • PayPal
      • Satispay
      • Shop Pay
      • USDC
      • Visa
