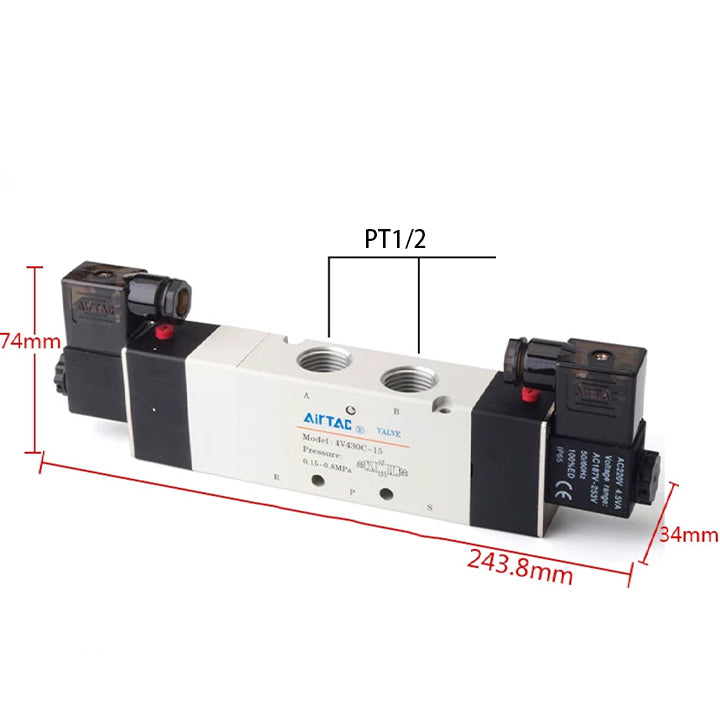

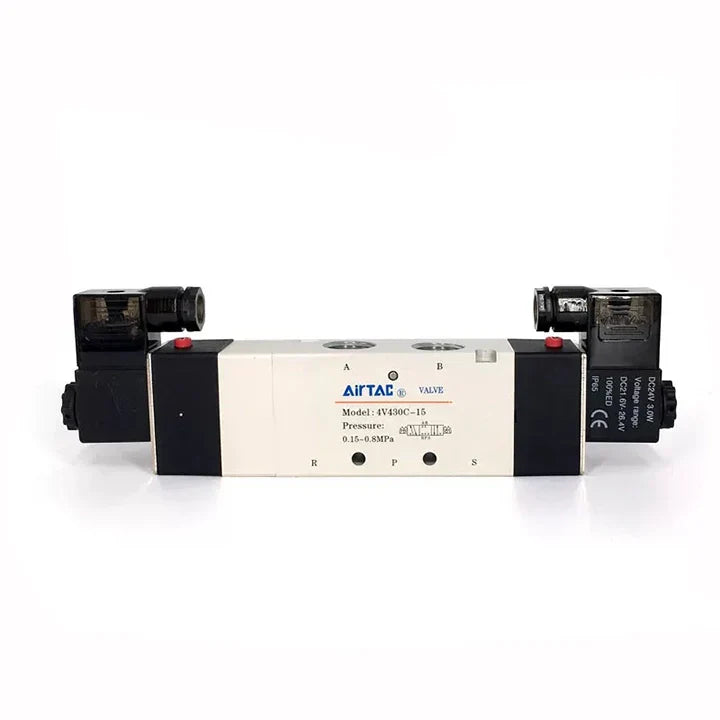

Specifications: five two. 5 port three-position solenoid valve Series: 400 series Electric control mode: 3 position double electric control neutral closed type Nozzle caliber: 1/2" Standard voltage: DC24V Power connection mode: DIN socket type Tooth type: PT tooth Guide mode: internal guide
Specifications
1. Model: 4V430C15B
2. Working medium: air (filtered by a filter screen above 40μm), actuation mode: internal guidance type or external guidance type, nozzle diameter: inlet = outlet = exhaust = PT1/2, effective cross-sectional area (Cv):40.0mm (Cv = 2.35)
3. Position number: 5 port three, using pressure range: 0.15~0.8MPa(21 ~ 114psi), Guaranteed pressure resistance: 1.2MPa(175psi)
4. Working temperature:-20~70 ℃, Body material: aluminum alloy, lubrication: do not need
5. The highest operating frequency: 3 times/second, weight (g):770, the nozzle tooth type has G teeth and NPT teeth to choose from.
6. If there is oil lubrication, it cannot be stopped in the middle. It is recommended that the lubricating oil be ISO VG32 or equivalent oil.
7. The highest operating frequency is no-load state, and the effective cross-sectional area and Cv value are calculated according to the test flow data.
Internal structure: 1. terminal/2. retaining nut/3. Coil/4. Movable iron/5. Fixed iron/6. Piston/7. Guide body/8. Noumenon/9. Wear ring/10. Bottom cover/11. Screw/12. Spring/13. Stop discharge pad/14.Oorder/15. Axis/16. Special-shaped o ling/17. Spring/18. Manual pin/19. Return seat/20. Spring/21. Side cover/22. Return seat
Solenoid Valve Spool Accessories :4V430-018-P1 Spool
Click to download Airtac product catalog
Product Features
1. Pilot guide mode: optional internal or external;
2. Sliding column structure: good sealing and sensitive response.
3. The three-position solenoid valve has three central functions for you to choose from.
4. Double control electromagnetic valve with memory function;
5. The inner hole adopts special processing technology, which has low wear and friction, low starting pressure and long service life;
6. No need for oil lubrication;
7. Can be integrated with the base valve group, saving installation space;
8. Equipped with auxiliary manual device, easy to install. Commissioning;
