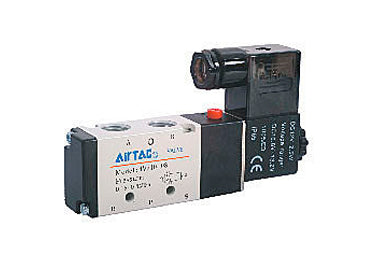

Airtac 4V410-15: Solenoid Air Valve - 4V41015AG

Description

Pneumatic valve single solenoid 5 way 1/2 G port AC 220V internal pilot terminal entry 400 seriesSolenoid Air Valve 4V41015AG -

Product Features:

1. Pilot-oriented mode: optional for internal or external;

2. Structure in sliding column mode: good tightness and sensitive reaction;

3. Three position Solenoid Air Valves have three kinds of central function for your choice;

4. Double control Solenoid Air Valves have memory function;

5. Internal hole adopts special processing technology which has little attrition friction low start pressure and long service life;

6. No need to add oil for lubrication;

7. It is available to form integrated valve group with the base to save installation space;

8. Affiliated manual devices are equipped to facilitate installation and debugging;

9. Several standard voltage grades are optional;


Click to download the 4V400 Airtac catalog








Product form

Pneumatic valve single solenoid 5 way 1/2 G port AC 220V internal pilot terminal entry 400 seriesSolenoid Air Valve 4V41015AG... Read more

SKU: 4V41015AG

$42.28

    • Image may not be representative of actual product.

    Description

    Pneumatic valve single solenoid 5 way 1/2 G port AC 220V internal pilot terminal entry 400 seriesSolenoid Air Valve 4V41015AG -

    Product Features:

    1. Pilot-oriented mode: optional for internal or external;

    2. Structure in sliding column mode: good tightness and sensitive reaction;

    3. Three position Solenoid Air Valves have three kinds of central function for your choice;

    4. Double control Solenoid Air Valves have memory function;

    5. Internal hole adopts special processing technology which has little attrition friction low start pressure and long service life;

    6. No need to add oil for lubrication;

    7. It is available to form integrated valve group with the base to save installation space;

    8. Affiliated manual devices are equipped to facilitate installation and debugging;

    9. Several standard voltage grades are optional;


    Click to download the 4V400 Airtac catalog








    Airtac Product Details

    Valve

    • Product Features
    • Specifications
    • Electrical Specifications
    • Product Ordering Code

    Product Features

    1. Guide type optional: internal pilot or external pilot.
    2. Sliding column structure with excellent sealing performance and quick response.
    3. Three-position solenoid valve offers three optional central functions.
    4. Double-head two-position solenoid valve supports memory function.
    5. Inner bore is processed with special technology to reduce friction, lower starting air pressure, and extend service life.
    6. Lubrication is not required.
    7. Compatible with integrated manifold for space-saving installation.
    8. Equipped with manual device for easy installation and debugging.
    9. Available in various standard voltage levels.

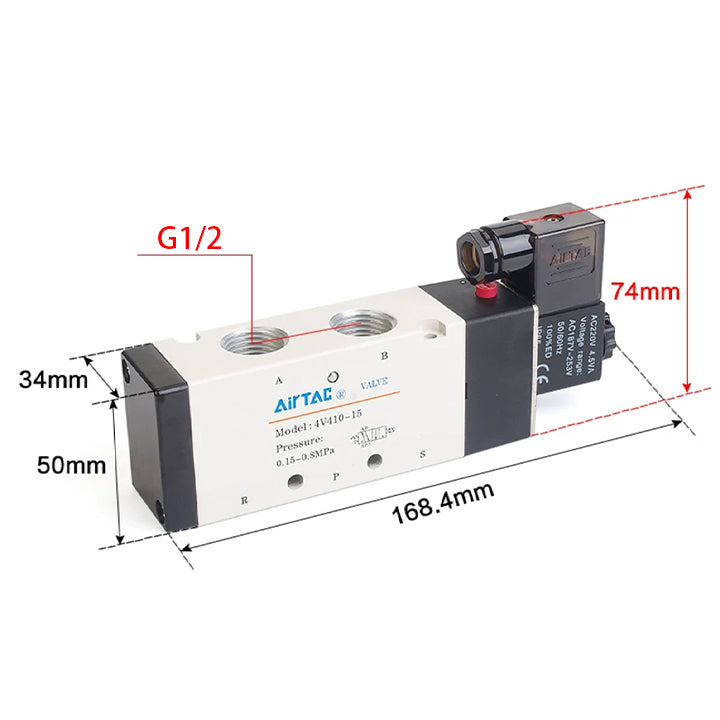

    Specifications

    Model 4V410-15 4V420-15 4V430C-15 4V430E-15 4V430P-15
    Working Medium Filtered air (≥40 μm)
    Actuation Type Internal or external pilot type
    Port Size
    [Note 1]    		 Inlet = Outlet = Exhaust = PT1/2
    Effective Area (Cv)
    [Note 4]    		 48.0 mm² (Cv = 2.82) 48.0 mm² (Cv = 2.82) 40.0 mm² (Cv = 2.35) 40.0 mm² (Cv = 2.35) 40.0 mm² (Cv = 2.35)
    Position & Ports 5/2 way 5/2 way 5/3 way 5/3 way 5/3 way
    Operating Pressure Range 0.15–0.8 MPa (21–114 psi)
    Max Pressure Resistance 1.2 MPa (175 psi)
    Operating Temperature –20°C to 70°C
    Body Material Aluminum alloy
    Lubrication
    [Note 2]    		 Not required
    Max Actuation Frequency
    [Note 3]    		 3 cycles/second
    Weight (g) 590 720 770 770 770

    Notes:

    1. [Note 1] G-thread and NPT-thread options are available.
    2. [Note 2] If lubrication is needed, use ISO VG32 or equivalent oil. Once started, do not stop lubrication midway.
    3. [Note 3] Max actuation frequency based on unloaded state.
    4. [Note 4] Effective area and Cv are calculated based on test flow rates under standard conditions.

    Electrical Specifications

    Item AC220V AC110V AC24V DC24V DC12V
    Rated Voltage AC220V AC110V AC24V DC24V DC12V
    Voltage Tolerance AC: ±15%, DC: ±10%
    Power Consumption 4.5VA 4.5VA 5.0VA 3.0W 2.5W
    Protection Grade IP65 (DIN40050)
    Insulation Class Class B
    Wiring Type DIN plug type or lead wire type
    Excitation Time ≤ 0.05 seconds

    Product Ordering Code

    Example: 4V410-15A□□-W

    No. Code Description
    ① 4V 5-port 2-position / 5-port 3-position solenoid valve
    ② 4 400 Series
    ③ 10
    20
    30C
    30E
    30P     		10: Double position, single solenoid
    20: Double position, double solenoid
    30C: 3-position, closed center
    30E: 3-position, exhaust center
    30P: 3-position, pressure center
    ④ 15 Port size: 1/2"
    ⑤ A
    B
    C
    E
    F     		A: AC220V
    B: DC24V
    C: AC110V
    E: AC24V
    F: DC12V
    ⑥ (blank)
    I    		 (blank): DIN plug-in type
    I: Lead wire type
    *Lead wire length: 0.5 m
    ⑦ (blank)
    G
    T    		 (blank): PT thread
    G: G thread
    T: NPT thread
    ⑧ (blank)
    -W    		 (blank): Internal pilot
    W: External pilot (with M5 external pilot port)

    Note: For lead wire type, the standard cable length is 0.5m.
    For base plate specifications and ordering methods, please refer to page P82.
