Airtac 4V110-06: Solenoid Air Valve - 4V11006B-W

Description

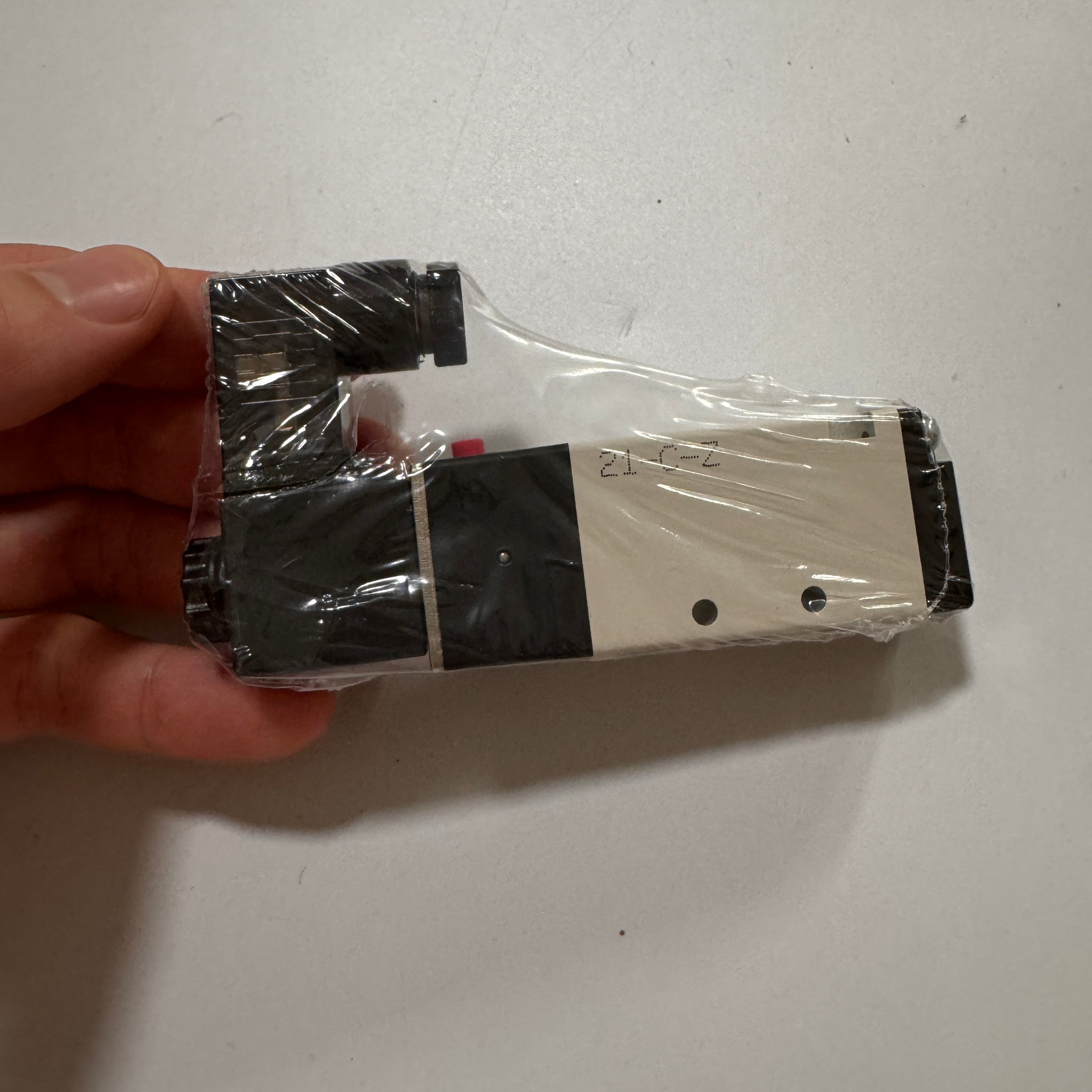

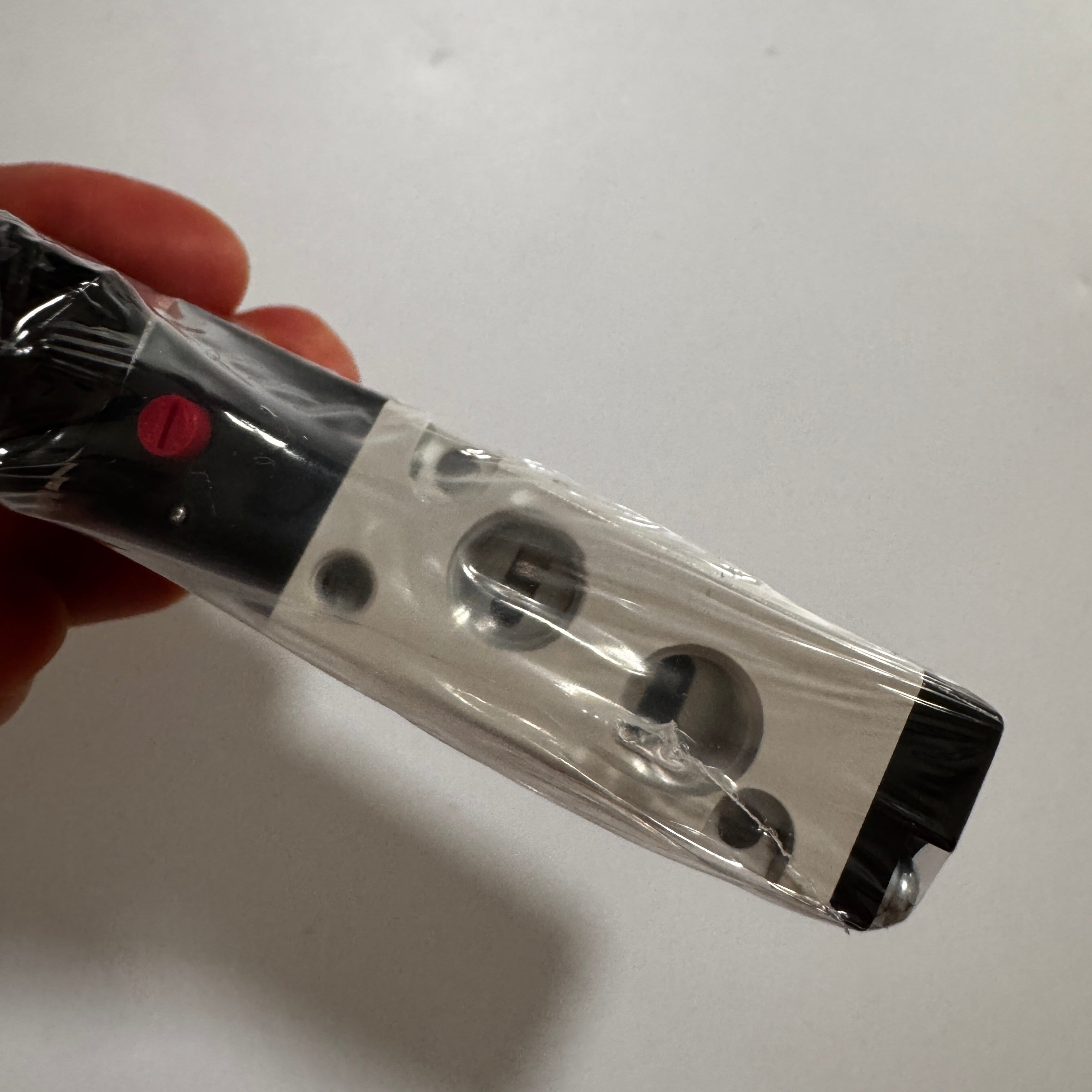

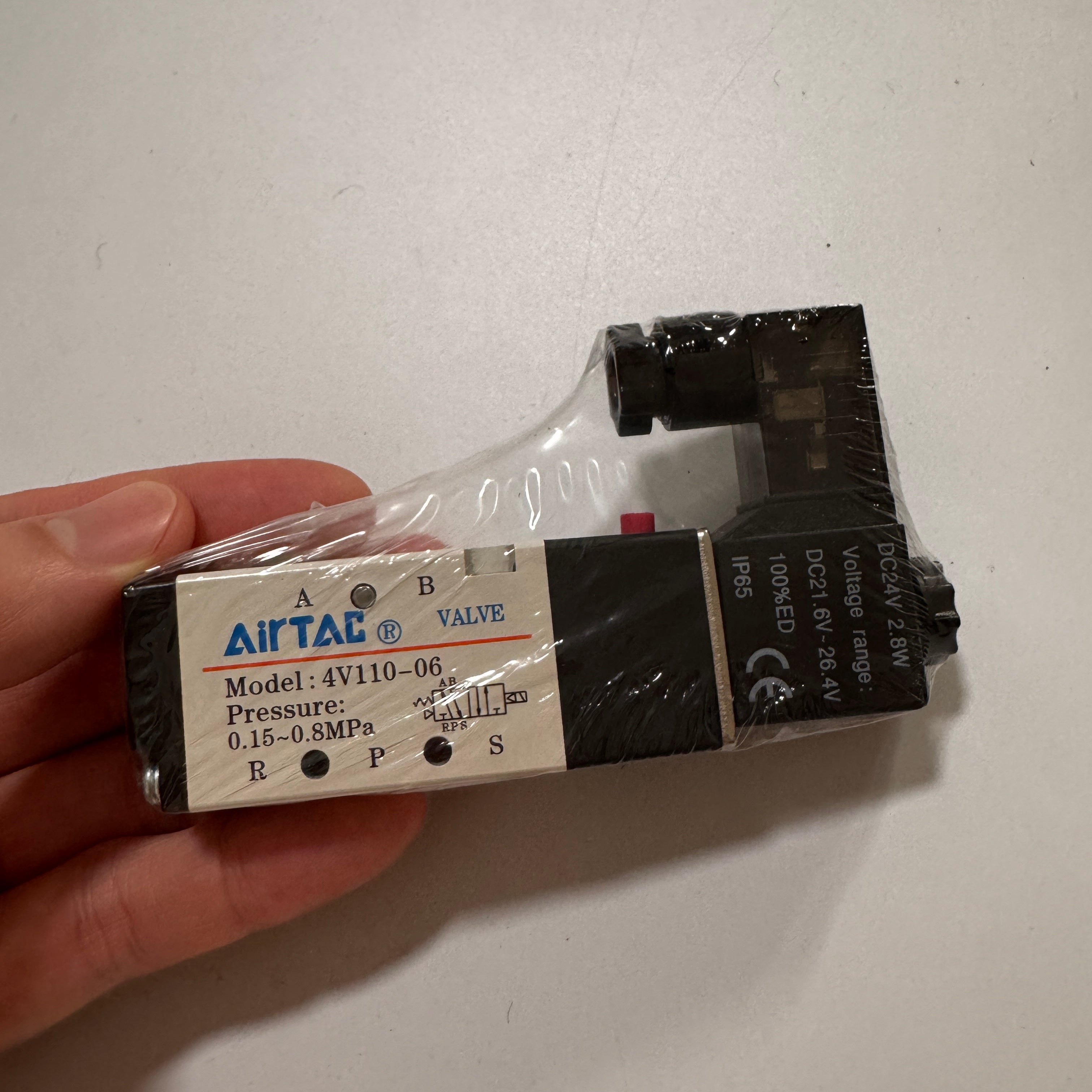

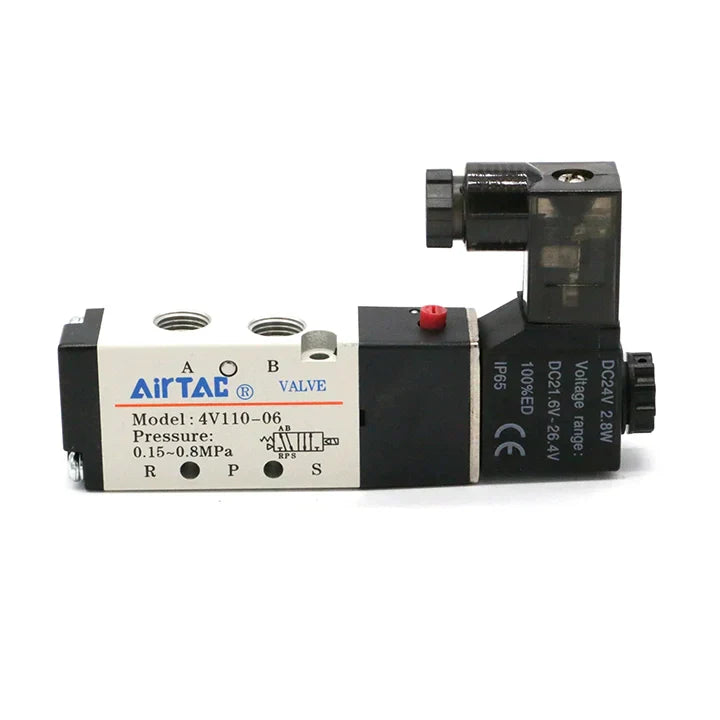

Pneumatic valve single solenoid 5 way 1/8 PT port DC 24V external pilot terminal entry 100 series Solenoid Air Valve 4V11006BW -

The Airtac 4V100 solenoid air valve series is a functional replacement for the SMC VFS1000 series.

Product Features:

1. Pilot-oriented mode: optional for internal or external;

2. Structure in sliding column mode: good tightness and sensitive reaction;

3. Three position Solenoid Air Valves have three kinds of central function for your choice;

4. Double control Solenoid Air Valves have memory function;

5. Internal hole adopts special processing technology which has little attrition friction low start pressure and long service life;

6. No need to add oil for lubrication;

7. It is available to form integrated valve group with the base to save installation space;

8. Affiliated manual devices are equipped to facilitate installation and debugging;

9. Several standard voltage grades are optional;

Click to download the 4v100 Airtac catalog







Product form

Pneumatic valve single solenoid 5 way 1/8 PT port DC 24V external pilot terminal entry 100 series Solenoid Air Valve... Read more

SKU: 4V11006B-W

$21.21

    • Image may not be representative of actual product.
    • The Airtac 4V100 solenoid air valve series is a functional replacement for the SMC VFS1000 series.

    Description

    Pneumatic valve single solenoid 5 way 1/8 PT port DC 24V external pilot terminal entry 100 series Solenoid Air Valve 4V11006BW -

    The Airtac 4V100 solenoid air valve series is a functional replacement for the SMC VFS1000 series.

    Product Features:

    1. Pilot-oriented mode: optional for internal or external;

    2. Structure in sliding column mode: good tightness and sensitive reaction;

    3. Three position Solenoid Air Valves have three kinds of central function for your choice;

    4. Double control Solenoid Air Valves have memory function;

    5. Internal hole adopts special processing technology which has little attrition friction low start pressure and long service life;

    6. No need to add oil for lubrication;

    7. It is available to form integrated valve group with the base to save installation space;

    8. Affiliated manual devices are equipped to facilitate installation and debugging;

    9. Several standard voltage grades are optional;

    Click to download the 4v100 Airtac catalog







    4V100-Valve Product Details

    Valve

    • Product Features
    • Specifications
    • Electrical Specifications
    • Product Ordering Code

    Product Features

    • Guiding methods: internal or external guiding options available.
    • Sliding spool structure with good sealing performance and quick response.
    • Three-position solenoid valve offers three types of central function selections.
    • Double solenoid valve features memory function.
    • Special processing on inner bore ensures low friction resistance, low starting pressure, and long service life.
    • Self-lubricating design requires no additional oil lubrication.
    • Manifold base mounting saves installation space.
    • Equipped with mounting accessories for easy installation and testing.
    • Multiple voltage grades are available as options.

    Specifications

    Model 4V110-M5
    4V120-M5    		 4V130C-M5
    4V130E-M5
    4V130P-M5    		 4V110-06
    4V120-06    		 4V130C-06
    4V130E-06
    4V130P-06
    Working Medium Air (filtered to 40μm or above)
    Actuation Method Internal or external pilot
    Port Size [Note 1] In/Out = M5 In/Out = M5 In/Out = PT1/8 In/Out = PT1/8
    Effective Orifice (Cv) [Note 4] 4V110-06, 4V120-06: 10.2mm² (Cv = 0.6) 4V130C-06: 8.6mm² (Cv = 0.51) Same as above
    Position 5/2 way 5/3 way 5/2 way 5/3 way
    Operating Pressure 0.15~0.8MPa (21~114psi)
    Max. Pressure Resistance 1.2MPa (175psi)
    Operating Temperature -20~70℃
    Body Material Aluminum Alloy
    Lubrication [Note 2] Not required
    Max. Operating Frequency [Note 3] 5 cycles/sec 3 cycles/sec 5 cycles/sec 3 cycles/sec
    Weight (g) 4V110-M5: 120g
    4V120-M5: 175g    		 200g 4V110-06: 120g
    4V120-06: 175g    		 200g
    Note 1: G thread and NPT thread are optional.
    Note 2: Oil lubrication is not required, but intermittent lubrication with ISO VG32 or equivalent is recommended if applied.
    Note 3: Maximum actuation frequency is measured under no-load conditions.
    Note 4: Effective orifice (Cv) is calculated based on flow test data.

    Electrical Specifications

    Item AC220V AC110V AC24V DC24V DC12V
    Rated Voltage As shown above
    Voltage Tolerance AC: ±15% DC: ±10%
    Power Consumption 3.5VA 3.5VA 4.0VA 2.8W 2.5W
    Protection Grade IP65 (DIN40050)
    Insulation Class Class B
    Connector Type DIN plug-in type, wired type
    Excitation Time ≤ 0.05s

    Product Ordering Code

    Example: 4V110-06A-W

    Position Code Description
    ① Specification Code 4V 5-port 2-position or 5-port 3-position solenoid valve
    ② Series Code 1 100 Series
    ③ Actuation Type 10
    20
    30C
    30E
    30P     		10: 2-position single solenoid
    20: 2-position double solenoid
    30C: 3-position double solenoid, closed center
    30E: 3-position double solenoid, exhaust center
    30P: 3-position double solenoid, pressure center
    ④ Port Size M5 / 06 M5: M5 thread
    06: PT1/8" thread
    ⑤ Rated Voltage A
    B
    C
    E
    F     		A: AC220V
    B: DC24V
    C: AC110V
    E: AC24V
    F: DC12V
    ⑥ Wiring Type (blank)
    I     		Blank: DIN plug type
    I: Lead wire type (wire length 0.5m)
    ⑦ Thread Type Code (blank)
    G
    T     		Blank: PT thread
    G: G thread
    T: NPT thread
    ⑧ Pilot Type (blank)
    W     		Blank: Internal pilot
    W: External pilot
    Note:
    • Lead-wire type standard wire length is 0.5m.
    • For manifold bases and more ordering codes, refer to page P82.
