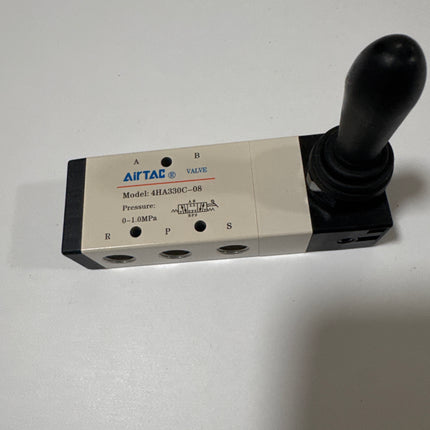

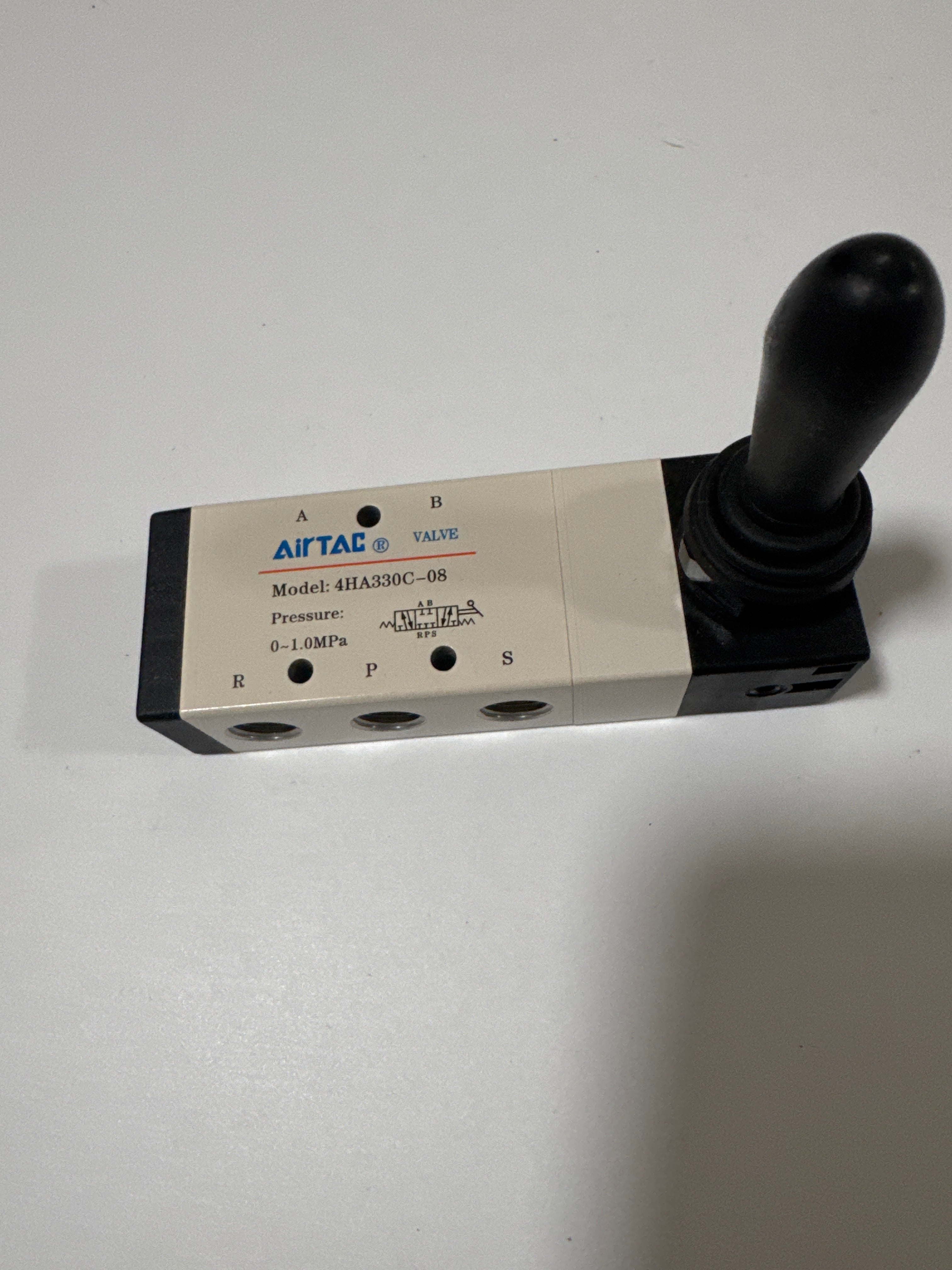

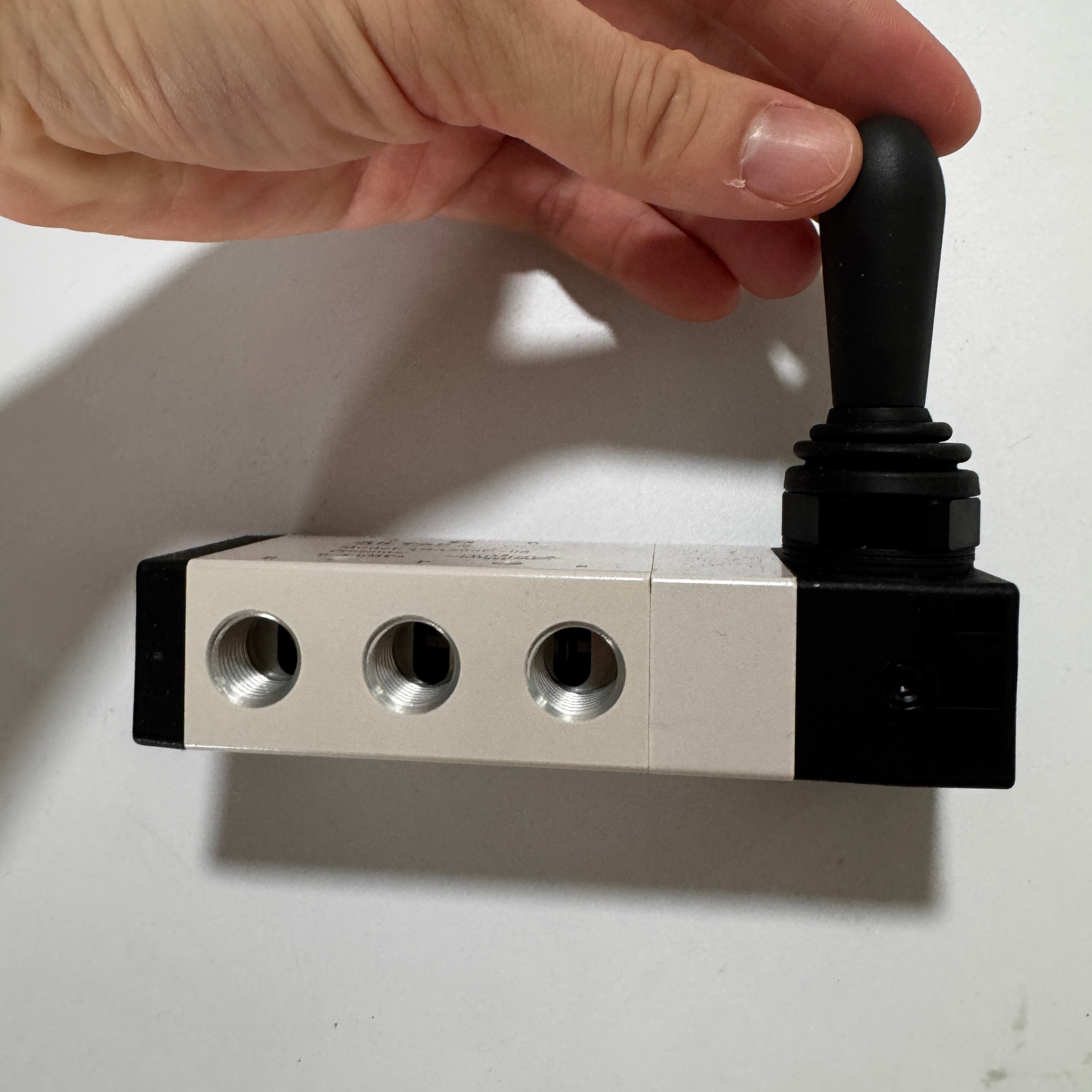

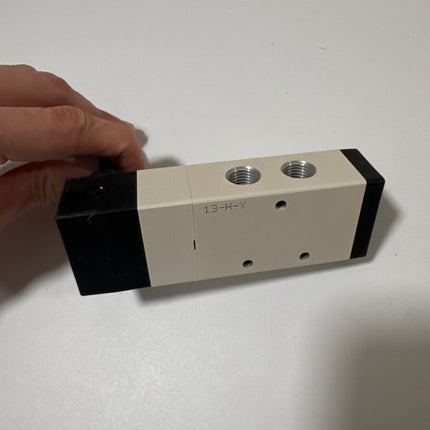

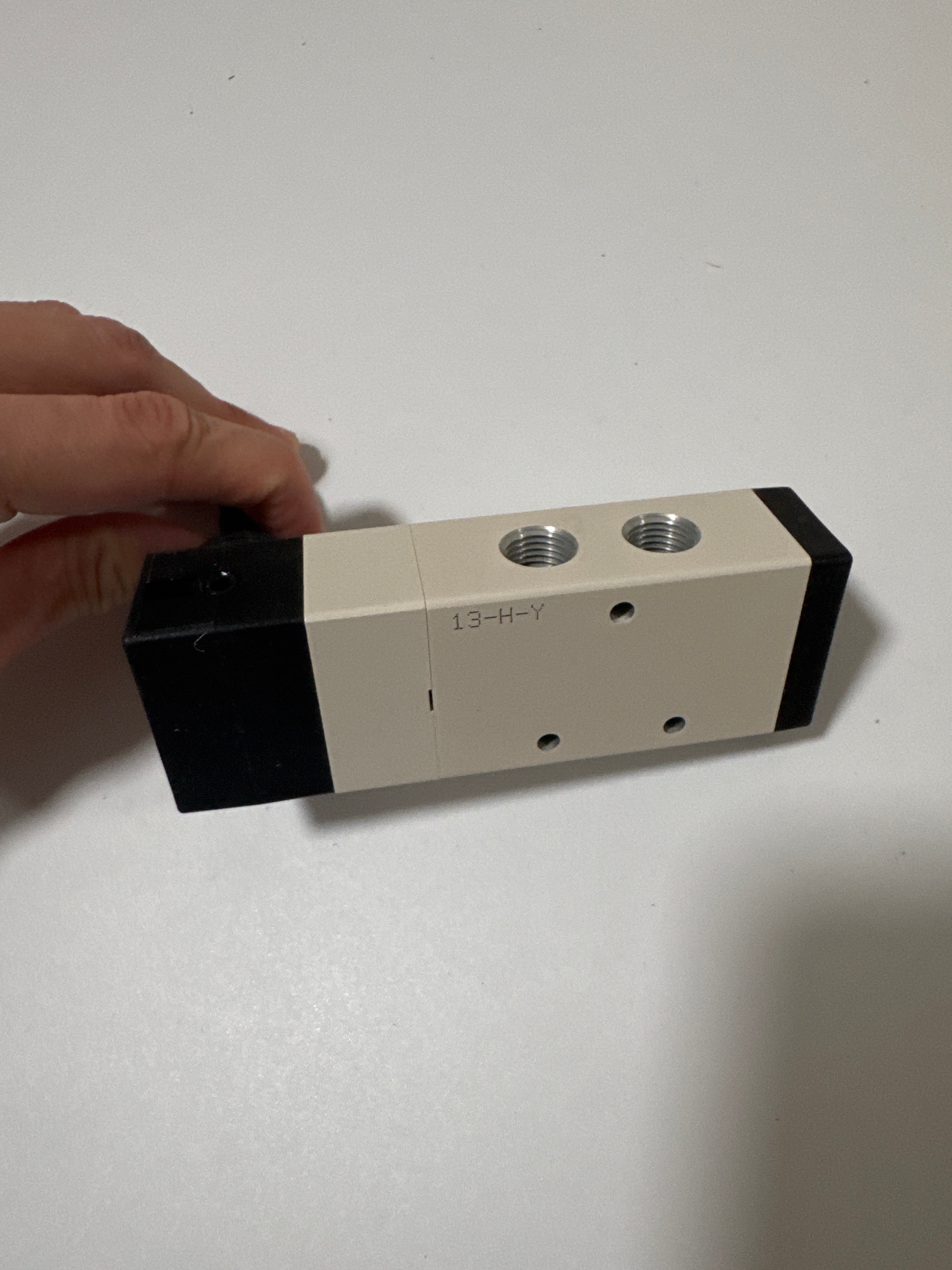

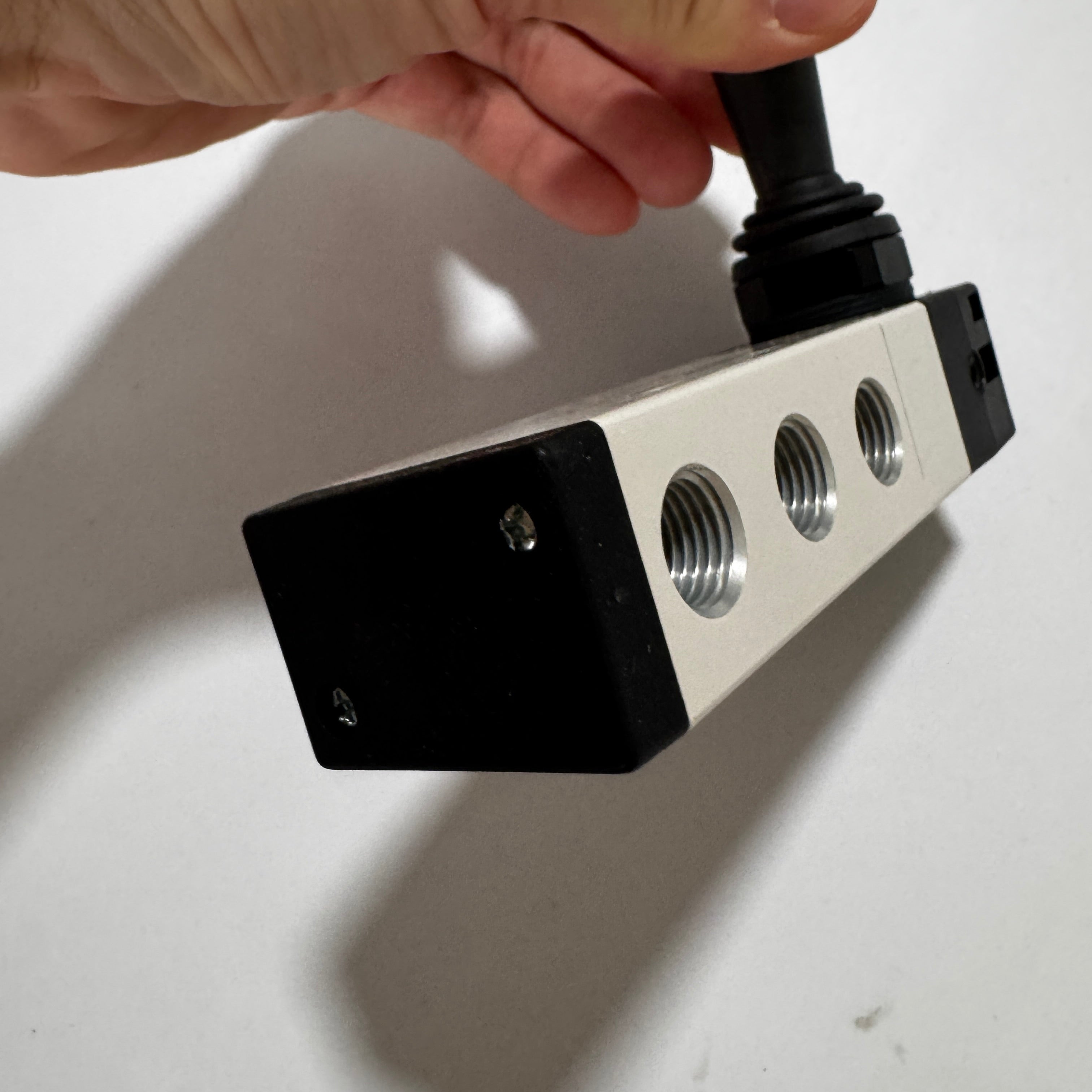

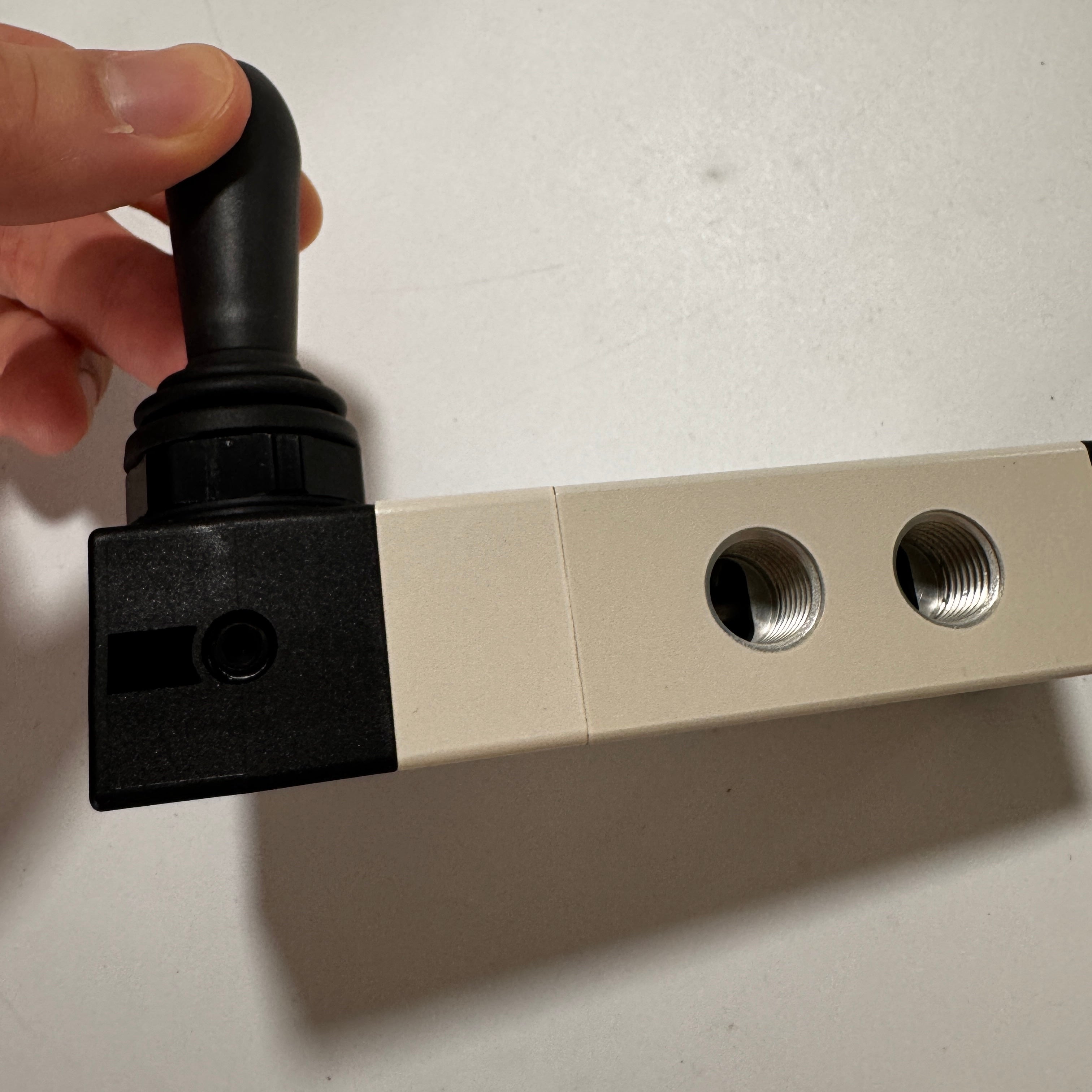

Airtac 4HA series: hand lever directional valve - 4HA330C08

Photos are for reference only. Not all models have pictures.

Description

Specifications: 4HA330C08 is a hand lever valve with spring return and 5-port, 3-position, closed center operation. 4HA selects the return construction, 3 selects the 300 size, 30C selects the position/center function, 08 selects the 1/4-inch inlet and outlet connections, and the omitted thread suffix selects PT thread.

Product Catalog

Download Airtac Product Catalog (PDF)

For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

Existing Product Statement

Airtac 4H hand lever valves are functional alternatives to the SMC VZM400 series.

Model Code Explained

Code Meaning for this model
4HA Hand lever valve; spring return
3 300 size
30C 5-port, 3-position, closed center
08 Supply and outlet connection PT 1/4
Thread suffix omitted PT thread

Technical Specifications

Parameter Details
Valve function 5-port, 3-position, closed center
Actuation Direct acting; hand lever
Return construction Spring return
Supply and outlet connection PT 1/4
Exhaust connection PT 1/4
Body material Aluminum alloy
Mounting Panel mounting or the body holes shown in the drawing
Working medium Air, filtered through a 40 µm filter element
Working pressure 0–1.0 MPa
Proof pressure 1.5 MPa
Operating temperature −20 to 70 °C
Air lubrication Not required
Weight The 2022 catalog weight table does not list an exact weight for this configuration

Features and Operation

  • The sliding-spool structure provides sealing performance in a compact valve.
  • The bore is specially processed to reduce friction and wear; installation and removal are straightforward.
  • Air lubrication is not required. If lubrication is used, continue it consistently with ISO VG32 or equivalent oil.

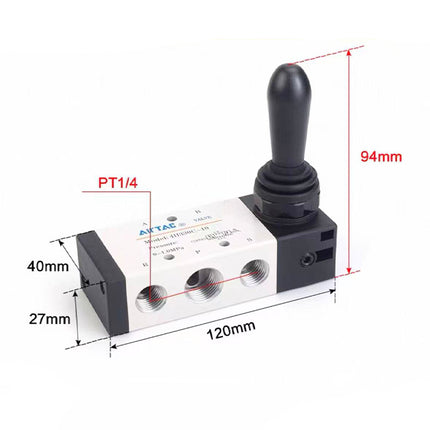

External and Mounting Dimensions

Drawing label Value for this model
A 120 mm
AB 106 mm
AC 92 mm
B 40 mm
C 94 mm
CA 27 mm
D 18 mm
K 4.3 mm
KA 24 mm
KB 27.5 mm
P PT 1/4
PA 45 mm
Q PT 1/4
QA 22 mm
QB Not specified (dash)
QC 40.5 mm
Theta ±10°
Mounting detail Value for this model

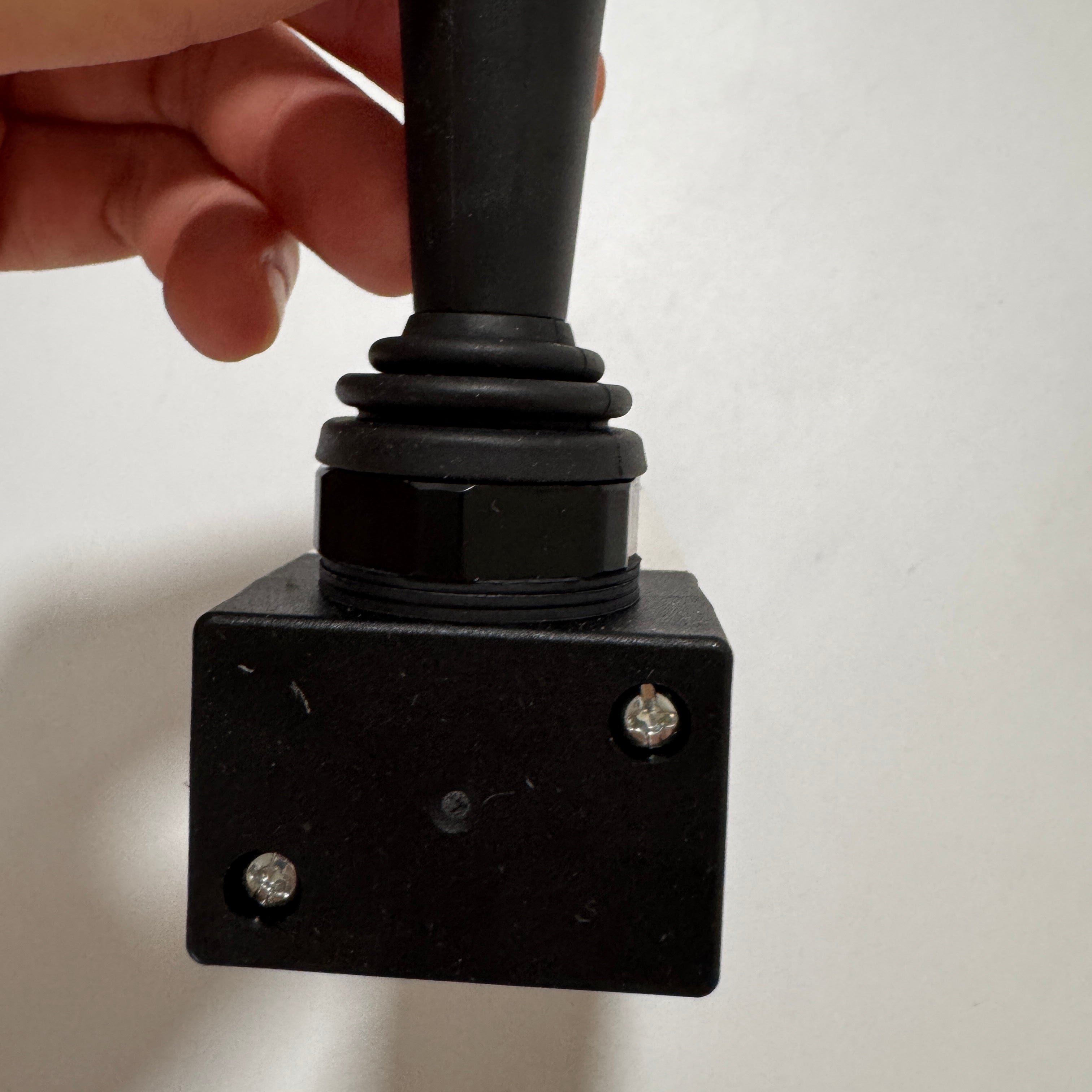

Panel-mounting thread M20 × 1.5
Panel opening diameter Ø20 mm
Maximum panel thickness 6 mm
Body mounting holes 3 × Ø4.3 mm

D and K are diameter references. P marks the exhaust connections and Q the supply/work connections. Retain or remove the mounting gasket according to the panel thickness and the catalog installation detail. A dash in the QB table cell means that no value is specified; it is not a zero dimension.

For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

Flow and Performance Reference

Parameter Details
Printed technical-table reference 4H330C10
Reference effective area 21.3 mm²
Reference Cv 1.25
Plotted curve model 4H31010
Chart vertical axis Operating pressure, MPa; labeled range 0–0.7 MPa
Chart horizontal axis Air flow, L/min; labeled range 0–3200
Curve conditions Curves plotted across the shown operating-pressure range; individual curves have no separate printed labels

These numerical flow references apply to the explicitly printed models. The catalog does not separately rate every return, center or port variant. The plotted two-position curve is not a separate performance guarantee for a three-position configuration. AirTAC laboratory flow measurements are used to calculate the effective area and Cv; chart limits are not rated flow values.

Internal Components

The numbered items below reproduce the catalog internal-structure reference. Item numbers identify parts in the illustration; they are not quantities, replacement-kit order codes or a list of separately supplied accessories. The source uses 4H210 and 4HA230C reference sections; return and positioning components depend on the selected construction.

Catalog item number Component name
1 Round-head screw
2 Bottom cover
3 Body
4 O-ring
5 Spool
6 Top cover
7 Round-head screw
8 Shaft
9 Socket set screw
10 Spring
11 Steel-ball sleeve
12 Steel ball
13 E-clip
14 Side cover
15 Spring
16 Return holder

Series Ordering Options

4H denotes manual return and 4HA denotes spring return. Size 200 offers 1/8 and 1/4 supply/work ports; size 300 offers 1/4 and 3/8. Function 10 is 5/2; 30C is 5/3 closed center; 30E is 5/3 exhaust center. PT is the default thread; G and NPT are alternatives. The return construction and center function in the current SKU are the ordered configuration. The page does not publish a separate accessory-kit order code or kit quantity.

Reference Weight

Estimated reference weight: 245 g. The reference is 4H330, published at 245 g. This 4HA operating-mechanism variant is referenced to the corresponding 4H size and position count; the different mechanism is not separately mass-adjusted. The current option differences are not individually weighed; this weight analogy does not establish technical or mounting interchangeability. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.
