Solenoid valve(3/2 way),200 series,single solenoid,1/4" port,normally closed,DC24V standard voltage,terminal,G thread,internal prompting Product Features:1.Structure in sliding column mode: good tightness... Read more

SKU: 3V21008NCB-G
Barcode: 3V21008NCB-G

$34.29

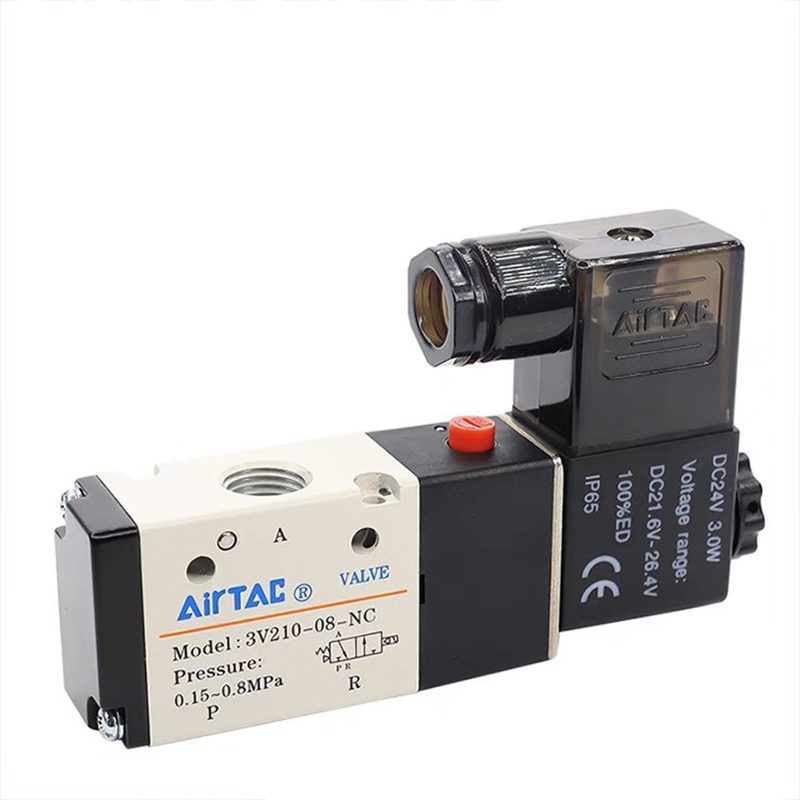

Image may not be representative of actual product.

Click to download the Airtac catalog

Download: 3D model selection.

Airtac Product Details

3V200 Series Solenoid Valve

Product Features
Specifications
Electrical Specifications
Product Ordering Code

Product Features

Pilot type: internal pilot standard, external pilot optional.
Sliding spool structure for reliable sealing and quick response.
Double solenoid valves provide memory function.
Inner bore processed with special technique to reduce friction, lower start-up pressure, and extend service life.
No lubrication required.
Manual override included for easy installation and debugging.
Compact design saves installation space.
Can be mounted on a manifold or used individually.

Specifications

Model	3V210-06	3V210-08
Working Medium	Filtered air (≥40 μm)
Actuation Type	Internal pilot / external pilot
Port Size	PT1/8	PT1/4
Effective Orifice (Cv)	φ1.7mm (Cv = 1.0)
Position Type	3-port 2-position
Operating Pressure	0.15–0.8 MPa (21–114 psi)
Max Pressure Resistance	1.2 MPa (175 psi)
Operating Temperature	–20°C to 70°C
Lubrication	Not required
Body Material	Aluminum alloy

Notes:

[Note 1] G-thread and NPT-thread are optional upon request.
[Note 2] If lubrication is required, use ISO VG32 or equivalent oil. Once lubrication starts, do not stop it.
[Note 3] The effective orifice (Cv) is measured under standard test conditions.

Electrical Specifications

Item	AC220V	AC110V	AC24V	DC24V	DC12V
Rated Voltage	AC220V	AC110V	AC24V	DC24V	DC12V
Voltage Tolerance	AC: ±15%, DC: ±10%
Power Consumption	4.5VA	4.5VA	5.0VA	3.0W	2.5W
Protection Grade	IP65 (DIN40050)
Insulation Class	Class B
Wiring Type	DIN plug or lead wire
Excitation Time	≤ 0.05 seconds
Max. Frequency	5 cycles/second

Note: The maximum operating frequency is measured under no-load condition.

Product Ordering Code

Example: 3V2108NOA□-W

No.	Code	Description
①	3V	3-port 2-position solenoid valve
②	2	200 Series
③	10 / 20	10: Single solenoid 20: Double solenoid
④	06 / 08	Port size: PT1/8 (06) / PT1/4 (08)
⑤	NC / NO	NC: Normally Closed NO: Normally Open
⑥	A / B / C / E / F	A: AC220V B: DC24V C: AC110V E: AC24V F: DC12V
⑦	(blank) / I	(blank): DIN plug I: Lead wire
⑧	(blank) / G / T	(blank): PT thread G: G thread T: NPT thread
⑨	(blank) / -W	(blank): Internal pilot -W: External pilot

Note: Lead wire standard length: 0.5m. For baseplate and installation method, refer to P81.
