Airtac 3V2 series: pneumatic solenoid valve - 3V208NCEIT

Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

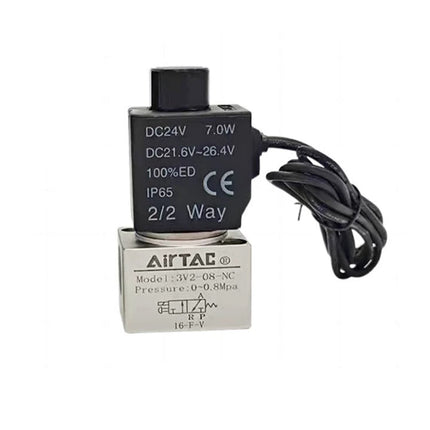

Photos are for reference only. Not all models have pictures.

Description

Specifications: Three-port, two-position solenoid valve; Series: 2; Port size: 1/4 inch; Initial state: normally closed (NC); Rated voltage: 24 V AC; Electrical connection: flying leads, 0.5 m lead length; Port thread: NPT1/4.

Product Catalog

Download Airtac Product Catalog (PDF)

For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

Airtac 3V2 series valves are functional alternatives to SMC VT307 series valves.

Model Code Explained

This model: 3V208NCEIT

Model code	Meaning for this model
3V	Three-port, two-position solenoid valve
2	Series 2
08	1/4 inch port size
NC	Normally closed (NC)
E	24 V AC
I	Flying leads, 0.5 m lead length
T	NPT1/4 ports

Technical Specifications

Parameter	Specifications for this model
Model	3V208NCEIT
Product type	Three-port, two-position (3/2-way) solenoid valve
Operation	Direct acting; normally closed (NC)
Working medium	Air filtered through a 40 μm filter
Port threads	NPT1/4; three ports
Effective flow area	3.4 mm²
Flow coefficient	Cv = 0.19
Lubrication	Not required
Operating pressure: standard service	0–0.8 MPa (0–114 psi), as stated in the catalog
Vacuum application	Suitable for vacuum (negative-pressure) applications; confirm the required operating range before selection.
Proof pressure	1.2 MPa (175 psi), as stated in the catalog
Operating temperature	−20 to 70 °C
Body material	Aluminum alloy

Electrical Specifications

Parameter	Specification
Rated voltage	24 V AC
Operating voltage tolerance	AC: ±15%
Power consumption	7 VA (AC)
Protection rating	IP65 (DIN 40050)
Insulation class	Class B
Electrical connection	Flying leads
Lead length	0.5 m
Energization time	0.05 s or less
Maximum operating frequency	10 cycles/s under no-load conditions

Features and Operation

Direct-acting switching; this model is normally closed (NC).
Coaxial shut-off structure for effective sealing and high airflow.
No additional oil lubrication is required.
A manual override assists with installation and commissioning.
The series offers several standard voltages; use the voltage specified for this model.
The catalog also identifies vacuum (negative-pressure) applications.

Symbol ports: P = pressure supply, A = working port, R = exhaust. When de-energized, P is blocked and A connects to R. When energized, P connects to A and R is blocked. The spring returns the valve to its normal state. Refer to the matching NC symbol in the PDF catalog.

External and Mounting Dimensions

For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

Dimensions below follow the flying lead drawing on printed page 36 of the 2022 catalog. Lengths, spacings and depths are in mm. Each local dimension refers to its own dimension line; use the PDF drawing to locate it.

Dimension location	Catalog dimension
Drawing configuration	Flying lead version
Side view: upper horizontal dimension	38.5 mm
Side view: height dimension	66.5 mm
Front view: body width	29.5 mm
Front view: local horizontal and vertical dimensions	13 mm and 13 mm; separate dimension lines
Side view: bottom horizontal dimension	33 mm
Side view: lower vertical dimensions	22.5 mm and 10.3 mm; separate dimension lines
Rear port center height for this port size	13.5 mm
Port callouts for this model	3 × NPT1/4
Bottom view: counterbores	2 × Ø6 mm counterbores, depth 4 mm
Bottom view: through holes	2 × Ø3.3 mm through holes
Mounting/bracket view: horizontal dimensions	37, 28 and 25 mm; each belongs to its own dimension line.
Mounting/bracket view: vertical dimensions	18.6, 33, 46 and 55 mm; each belongs to its own dimension line.
Threaded mounting holes shown	2 × M4 × 0.7; depth 7 mm.
Two bracket mounting openings	The drawing marks 2–4.5; the opening width dimension is 4.5 mm.
Side view: mounting plate thickness	2 mm; mounting plate is shown as optional on the valve drawing.

The standard drawing labels 06 ports as 3–PT1/8 and 08 ports as 3–PT1/4. The actual thread on this model is NPT1/4; G and NPT suffixes specify their respective threads. The drawing identifies the manual override and shows the mounting plate as optional.

Optional Mounting Accessory

Parameter	Specification
Ordering code	F-3V2FA
Name	FA mounting plate for 3V2 series valves
Supply status	Optional mounting accessory; the valve model code does not specify an included FA mounting plate.
Accessory code breakdown	F: mounting accessory; 3V2: valve series; FA: FA mounting plate

Flow / Performance Characteristics

The catalog flow graph is labeled 3V208NC. This model belongs to that valve group.

Graph element	Catalog reference
Graph model	3V208NC
Horizontal axis	Flow rate in L/min; marks: 0, 50, 100, 150, 200, 250, 300, 350
Vertical axis	Operating pressure in MPa; marks: 0, 0.1, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7
Reading the graph	Use the original plotted curves in the PDF catalog. The 350 L/min axis limit is not a rated-flow specification.

Internal Components

Item numbers refer to the series internal-structure drawing on printed page 35. They identify components, not quantities supplied in an accessory kit.

Drawing item	Component
1	Countersunk screw
2	Spacer
3	Spool assembly
4	Spring
5	Body
6	Gasket
7	Electromagnet assembly
8	Push rod
9	Coil
10	Moving armature assembly
11	Retaining washer
12	Retaining nut
13	Manual override button
14	Electrical connector
15	Connector gasket

Series Ordering Options

Series reference only: these are alternative ordering options. The configuration of this product is stated in Specifications and Model Code Explained above.

Valve ordering sequence: 3V + 2 + port size + initial state + rated voltage + electrical connection + thread code. The catalog example is 3V208NCA.

Option	Available series configurations
Valve type / series	3V: three-port, two-position solenoid valve; 2: Series 2
Port size	06: 1/8 inch; 08: 1/4 inch
Initial state	NC: normally closed; NO: normally open
Rated voltage	A: 220 V AC; B: 24 V DC; C: 110 V AC; E: 24 V AC; F: 12 V DC
Electrical connection	Blank: DIN connector; I: flying leads, lead length 0.5 m
Port thread	Blank: PT; G: G thread; T: NPT
Flow area by port size	06: 3.2 mm² (Cv 0.18); 08: 3.4 mm² (Cv 0.19)
Electrical reference	AC: 7 VA, voltage tolerance ±15%; DC: 7.0 W, voltage tolerance ±10%
Other drawing dimensions	DIN reference: upper horizontal span 65.5 mm; front-view height 74 mm. Rear-port center height: 06 = 15 mm; 08 = 13.5 mm. Refer to each separate view.

Reference Weight

Catalog reference weight: 157 g. The 2022 AirTAC catalog lists the 3V2 series at 157 g; individual voltage and thread options are not separately weighed. Actual weight is subject to the physical product; this is not a measured packed shipping weight.

Product form

Specifications: Three-port, two-position solenoid valve; Series: 2; Port size: 1/4 inch; Initial state: normally closed (NC); Rated voltage: 24 V... Read more

SKU: 3V208NCEIT

$43.98 Incl. VAT

Guaranteed secure & safe checkout.

Bank transfer also available. Payment options may vary by location and device.

Shipping, returns & order help

Free shipping on orders US$30+ under 2 kg

Import duties & taxes included on all orders

Download: 3D model selection.
