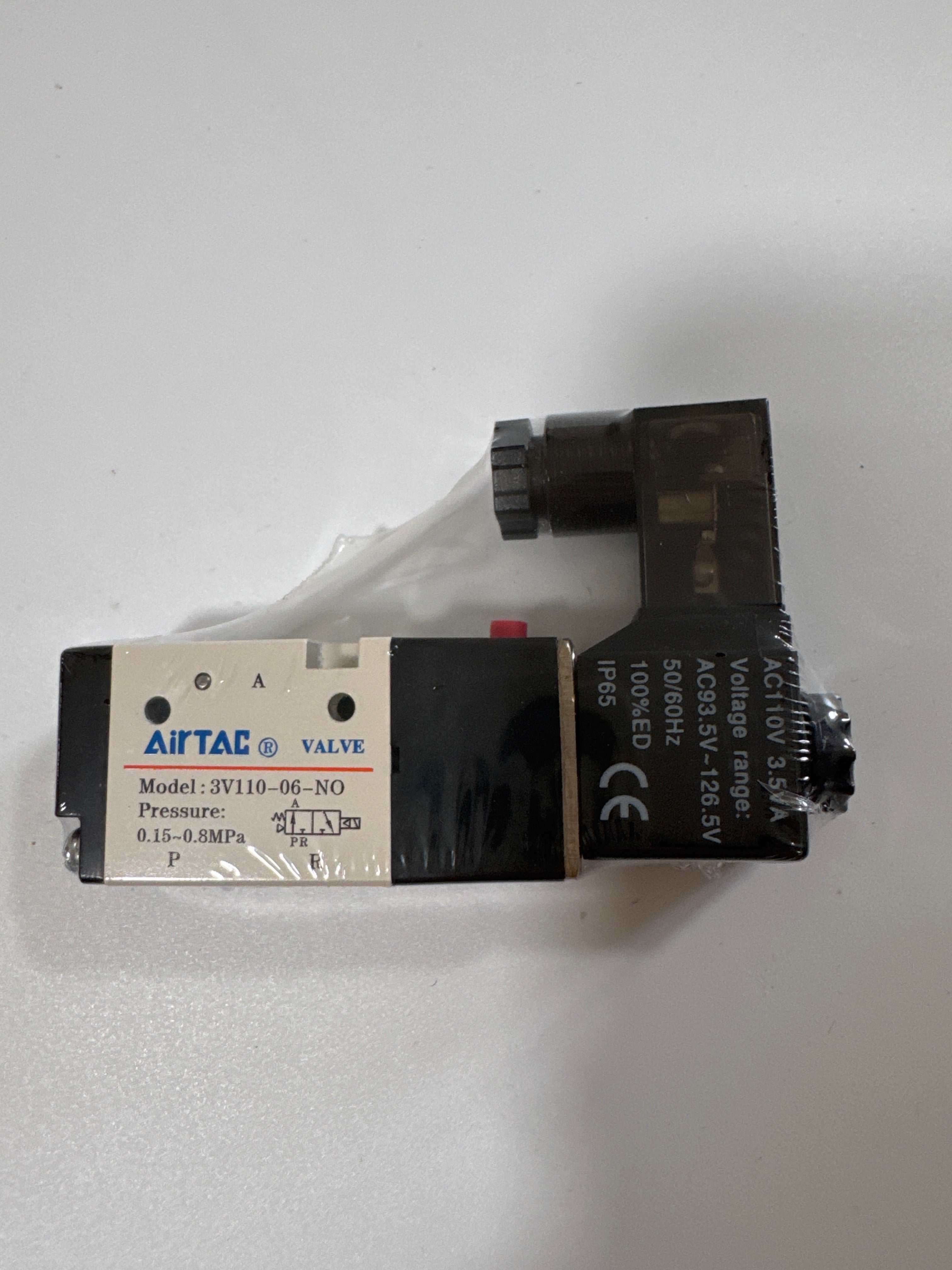

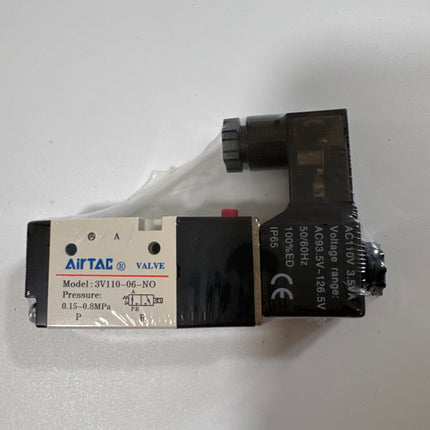

Airtac 3V110-06-NO: Solenoid valve(3/2 way) - 3V11006NOC

Description

Solenoid valve(3/2 way),100 series,single solenoid,1/8" port,normally opened,AC110V standard voltage,terminal,PT thread,internal prompting



Product Features:
1.Structure in sliding column mode: good tightness and sensitive reaction.
2.Double control solenoid valves have memory function.
3.Internal hole adopts special processing technology which has little attrition friction, low start pressure and long service life.
4.No need to add oil for lubrication.
5.Affiliated manual devices are equipped to facilitate installation and debugging.
6.Several standard voltage grades are optional.
7.Integrate with the manifold to save installation space.

Product form

Solenoid valve(3/2 way),100 series,single solenoid,1/8" port,normally opened,AC110V standard voltage,terminal,PT thread,internal prompting   Product Features:1.Structure in sliding column mode: good tightness... Read more

SKU: 3V11006NOC-PT
Barcode: 3V11006NOC-PT

$34.29

    • Image may not be representative of actual product.

    Description

    Solenoid valve(3/2 way),100 series,single solenoid,1/8" port,normally opened,AC110V standard voltage,terminal,PT thread,internal prompting



    Product Features:
    1.Structure in sliding column mode: good tightness and sensitive reaction.
    2.Double control solenoid valves have memory function.
    3.Internal hole adopts special processing technology which has little attrition friction, low start pressure and long service life.
    4.No need to add oil for lubrication.
    5.Affiliated manual devices are equipped to facilitate installation and debugging.
    6.Several standard voltage grades are optional.
    7.Integrate with the manifold to save installation space.

    3V100-Valve Product Details

    3V100 Series Solenoid Valve

    • Product Features
    • Specifications
    • Electrical Specifications
    • Product Ordering Code

    Product Features

    1. Pilot type: internal pilot standard, external pilot optional.
    2. Sliding spool structure, good sealing, quick response.
    3. Double solenoid model available for memory function.
    4. Inner bore is processed with special technique to reduce friction, lower start-up pressure, and extend service life.
    5. No need for lubrication.
    6. Manual override included for easy debugging.
    7. Compact size for space-saving installation.
    8. Available in manifold mounting or single unit use.

    Specifications

    Model 3V110-M5 3V120-M5 3V110-06 3V120-06
    Working MediumFiltered air (≥40 μm)
    Actuation TypeInternal pilot or external pilot
    Orifice Size (Cv)φ1.2mm (Cv = 0.6)
    Position Type3-port 2-position
    Port SizeM5M5PT1/8PT1/8
    Operating Pressure0.15–0.8 MPa (21–114 psi)
    Max Pressure Resistance1.2 MPa (175 psi)
    Operating Temperature–20°C to 70°C
    LubricationNot required
    Body MaterialAluminum alloy

    Notes:

    1. [Note 1] G-thread and NPT-thread are optional upon request.
    2. [Note 2] If lubrication is required, use ISO VG32 or equivalent oil. Once lubrication starts, do not stop it.
    3. [Note 3] The effective orifice (Cv) is measured under standard test conditions.

    Electrical Specifications

    Item AC220V AC110V AC24V DC24V DC12V
    Rated VoltageAC220VAC110VAC24VDC24VDC12V
    Voltage ToleranceAC: ±15%, DC: ±10%
    Power Consumption3.5VA3.5VA4.0VA2.8W2.5W
    Protection GradeIP65 (DIN40050)
    Insulation ClassClass B
    Wiring TypeDIN plug type / lead wire type
    Excitation Time≤ 0.05s
    Max Operating Frequency5 cycles/second

    Note: The maximum operating frequency is measured under no-load condition.

    Product Ordering Code

    Example: 3V1106NOA□-W

    No. Code Description
    ①3V3-port 2-position solenoid valve
    ②1100 Series
    ③10 / 2010: Single solenoid
    20: Double solenoid
    ④06 / M5Port size: PT1/8 (06) / M5
    ⑤NC / NONC: Normally Closed
    NO: Normally Open
    ⑥A / B / C / E / F A: AC220V
    B: DC24V
    C: AC110V
    E: AC24V
    F: DC12V
    ⑦(blank) / I(blank): DIN plug-in
    I: Lead wire type
    ⑧(blank) / G / T(blank): PT thread
    G: G thread
    T: NPT thread
    ⑨(blank) / -W(blank): Internal pilot
    -W: External pilot

    Note: Lead wire standard length is 0.5m. For baseplate and installation method, refer to P81.
